What makes the CMA 180-VL Single unique?

This model is a high-temperature, ventless upright dish machine with a built-in heat recovery system, eliminating the need for external venting—ideal for energy-efficient commercial kitchens.

How many racks can it wash per hour?

It processes up to 40 racks per hour, each 20" x 20" rack completing a full cycle in 90 seconds (49 seconds wash, 41 seconds rinse).

What temperature does it operate at?

The wash cycle runs at 155°F–160°F, while the final rinse reaches 180°F–195°F, meeting commercial sanitization standards.

Does it require a vent hood for steam?

No. The ventless design with integrated heat recovery captures and recycles steam internally, saving space and HVAC costs.

What are the power and plumbing requirements?

The unit connects via a ¾-inch water inlet and 2-inch drain line, operates on 60 Hz power, and works with an incoming hot water supply of 120°F–140°F.

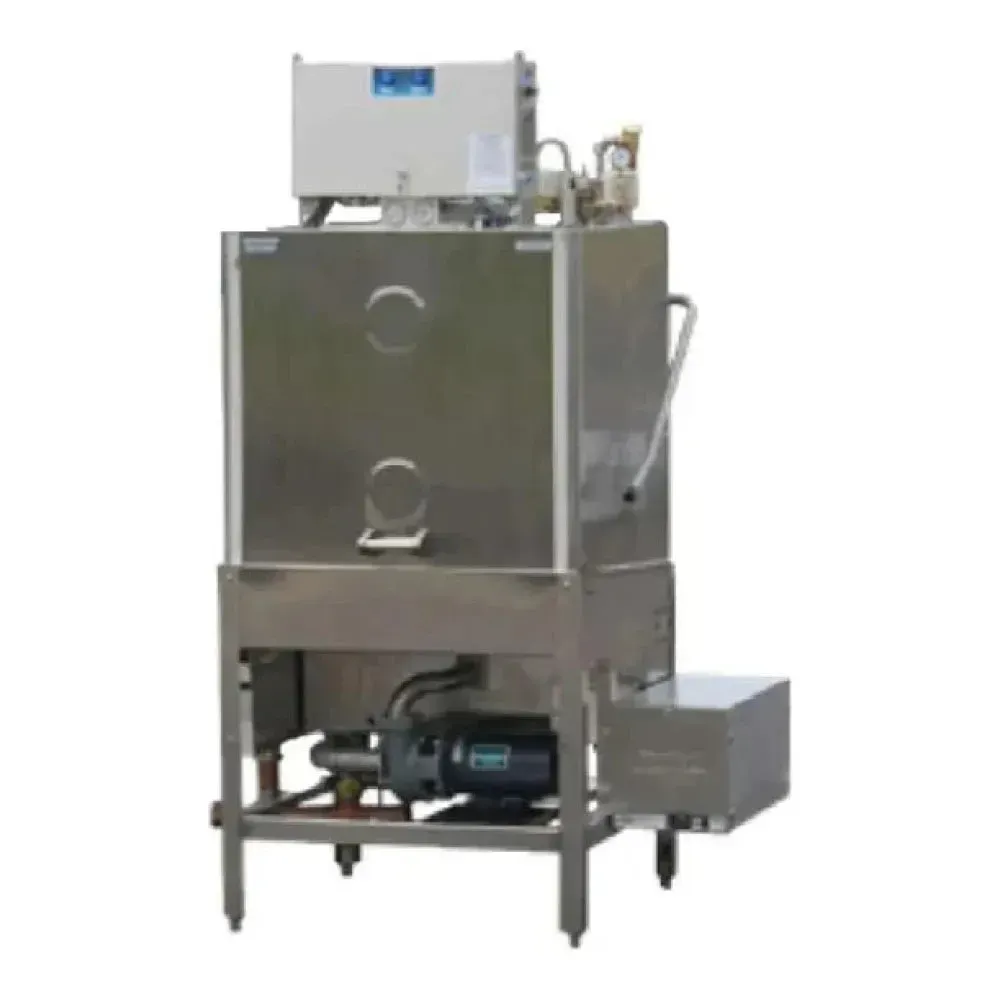

CMA Dishmachine 180-VL Single Rack High Temperature Ventless 3-Door Dishwasher with Booster, 3 Phase, 220V, 60Hz, 1 HP

Model: 180-VL Single

$15,567.00

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Model: 180-VL Single

★Why You'll Love It

Ventless Operation: Built-in heat recovery system eliminates steam venting, allowing flexible installation without requiring external ventilation hoods or ductwork.
High-Speed Performance: Processes 40 racks per hour with efficient 90-second cycles, combining 49-second wash and 41-second rinse phases.
Made in America: Proudly manufactured in the USA with premium stainless-steel construction and professional silver finish for lasting durability.
Perfect Sanitization: Maintains optimal wash temperatures of 155°F-160°F and final rinse at 180°F-195°F for thorough sanitization.
Space-Efficient Design: Compact upright configuration measures 25.5"W × 29"D × 95.31"H, maximizing cleaning capacity in minimal floor space.
Energy Efficient: Powerful 1 HP motor and 8-gallon wash tank optimize water usage at just 36 gallons per hour.
Safety Assured: Features door safety interlock system and carries NSF and cULus certifications for operational safety and compliance.
Easy Installation: Simple setup with ¾" water inlet and 2" drain line, compatible with standard 120°F-140°F hot water supply.
Warranty Protected: Includes comprehensive 1-year parts and labor warranty for peace of mind and reliable service support.
Commercial Grade: Three-door configuration accommodates standard 20" × 20" racks, designed for demanding commercial kitchen environments.

Built-in heat recovery system eliminates steam venting, allowing flexible installation without requiring external ventilation hoods or ductwork.

$15,567.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Installation & Elevation Diagram.pdf Spare Parts List.pdf Technical Specification Sheet.pdf User Manual.pdf Warranty Information.pdf Wiring & Component Diagram.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

American Dish HT-25 25" Upright Dishwasher, 4 Wire Single Rack, 3-Door

$10,931.58/Each

Similar Products

American Dish ADC-66-T 66" Conveyor Dishwasher, Low-Temp, R-L, Tall Hood

$33,291.06/Each

American Dish AF-3D-S 3D Upright Dishwasher with Single Rack and Muffler Heater, 3-Door, Low-Temp

$9,306.00/Each

American Dish ADC-66 R-L 66" Conveyor Dishwasher, High-Temp

$26,983.44/Each

American Dish ADC-66-T 66" Conveyor Dishwasher, High-Temp, L-R, Tall Hood

$33,588.72/Each

American Dish L-90-3DWC-S 29" Upright Dishwasher, Single Rack, 2 Door, 115V

$5,856.18/Each

American Dish HT-34 Pan Washer with Built-On Booster, Single Rack, High-Temp

$23,991.00/Each

American Dish AF-3D-S Upright Dishwasher with Single Rack, 2-Door, Low-Temp

$5,489.22/Each

American Dish AF-3D-S 3D Upright Dishwasher with Single Rack, 3-Door, Low-Temp

$5,731.44/Each

American Dish L-90-3DWS-3D 3-Door Single Rack Upright Dish Machine 208V

$9,549.54/Each

American Dish ADC-44 L-R 44" Conveyor Dishwasher with Built On Booster, High-Temp, 240V / 3PH

$22,934.34/Each

American Dish 5AG-S Upright Dishwasher, Double Rack, Pass-Thru, Low-Temp

$7,467.24/Each

Key Specification

ManufacturerCMA Dishmachine

Country of OriginProudly Made In America

MaterialStainless Steel

ColorSilver

Selling Unit1/Each

TypeUpright Dish Machine

Manufacturer	CMA Dishmachine	Country of Origin	Proudly Made In America	Material	Stainless Steel
Color	Silver	Selling Unit	1/Each	Type	Upright Dish Machine
Warranty	1 Year Parts & Labor	Features	Heat Recovery System, Door Safety Interlock System	Shipping Weight	625 pound
Hertz	60 hertz	Dishwasher Style	Ventless	High or Low Temp	High Temp
Horsepower	1 horsepower	Water Inlet Size	3/4 inch	Product Height	95.31 inch
Product Width	25.5 inch	Product Depth	29 inch	Certifications	NSF Listed, cULus Listed
Racks Per Hour	40 Racks	Shipping Length	45 inch	Door Configuration	3 Doors
Drain Size	2 inch	Shipping Height	96 inch	Shipping Width	56 inch
Number of Racks	1 Rack	Maximum Height	28 Inches	Rack Width	20 in
Wash Cycle Time	49 Seconds	Rack Length	20 in	Water Consumption	36 Gallons / Hour
Total Cycle Time	90 Seconds	Wash Water Temperature	155°F to 160°F	Rinse Water Temperature	180°F - 195°F
Hot Water Temperature	120°F to 140°F	Wash Tank Capacity	8 gallon (US)

Product Overview

The CMA Dishmachines 180-VL Single is a high-temperature, ventless upright dish machine, proudly made in America with durable stainless-steel construction and a sleek silver finish. Designed for heavy-duty commercial use, its three-door configuration processes up to 40 racks per hour, each 20" × 20" rack completing a full 90-second cycle (49 s wash, 41 s rinse) with wash temperatures of 155°F–160°F and a final rinse at 180°F–195°F.Powered by a 1 HP motor and featuring an 8 gal wash tank, it uses 36 gal/hour of water and vents no steam, thanks to its built-in heat recovery system. The unit runs on 60 Hz, draws power through a ¾" water inlet, and drains via a 2" line, making installation straightforward.Measuring 25.5" W × 29" D × 95.31" H, it stands on robust legs for stability. It accommodates a hot water supply of 120°F–140°F, ensuring consistent sanitization without external venting. Certified by NSF and cULus, the 180-VL Single includes a door safety interlock and comes with a 1-year parts & labor warranty, delivering reliable, efficient dishwashing performance in any fast-paced commercial kitchen.null
