What type of dishwasher is the CMA L-1X?

The CMA L-1X is a low-temperature undercounter commercial dishwasher, ideal for small restaurants, cafés, and commercial kitchens that need efficient dishwashing in compact spaces.

How many racks can it wash per hour?

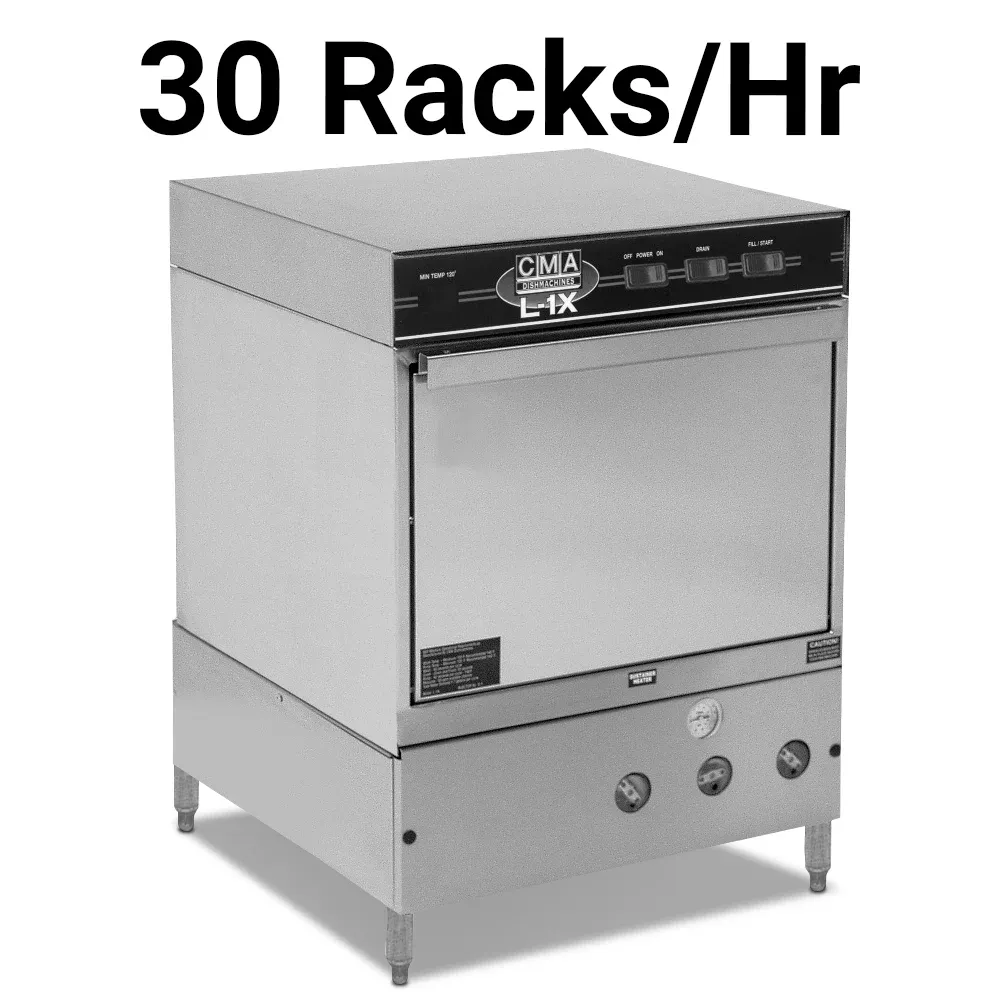

It can handle up to 30 racks per hour, with each cycle lasting 120 seconds (58 seconds wash, 32 seconds rinse, 30 seconds dwell).

What size dishes can it accommodate?

The L-1X supports 20" x 20" dish racks and fits dishware up to 12.12 inches in height, making it ideal for most standard plates, trays, and utensils.

How much water does it use per cycle?

Each cycle uses 1.7 gallons of water per rack, with a 1.7-gallon wash tank. A 35 GPM pump ensures consistent pressure and effective cleaning.

What are the electrical and plumbing requirements?

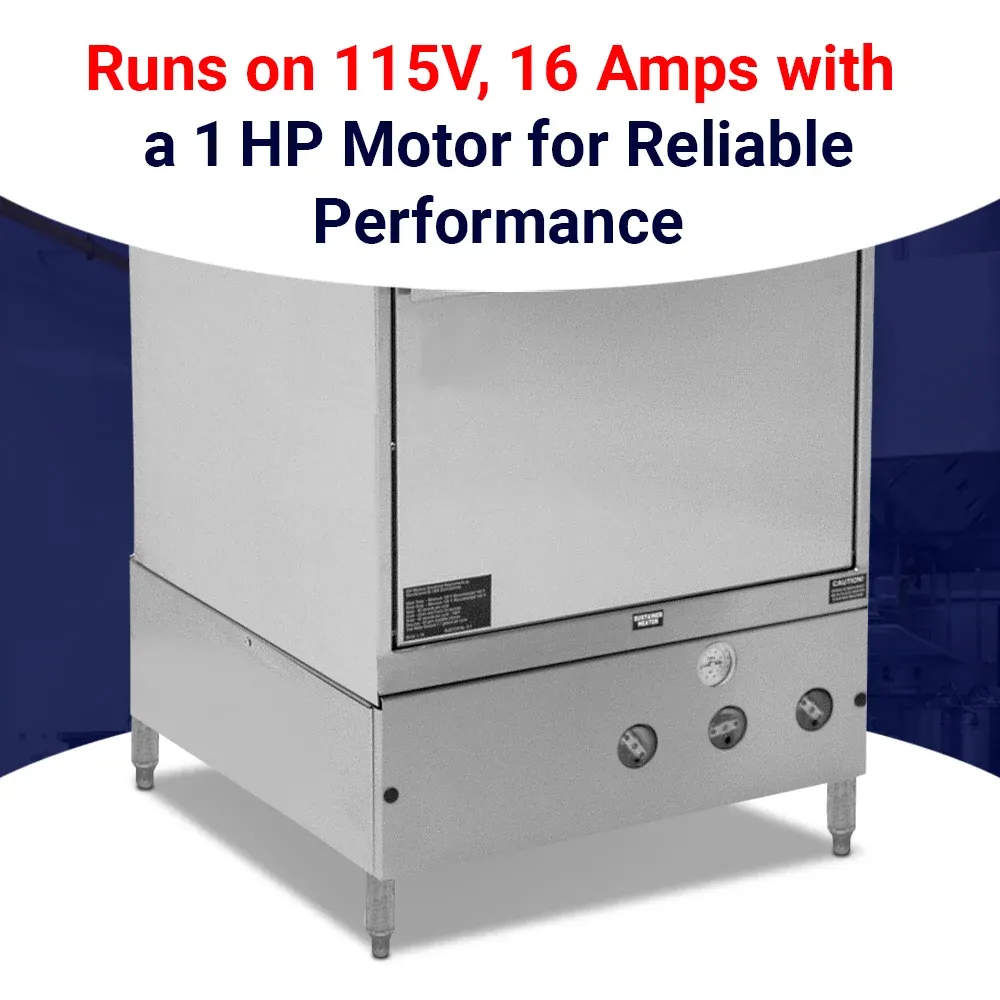

The unit operates on 115V, 16A, 1 phase, and requires a ½-inch water inlet, 1-inch drain, and a 120°F water supply for optimal performance.

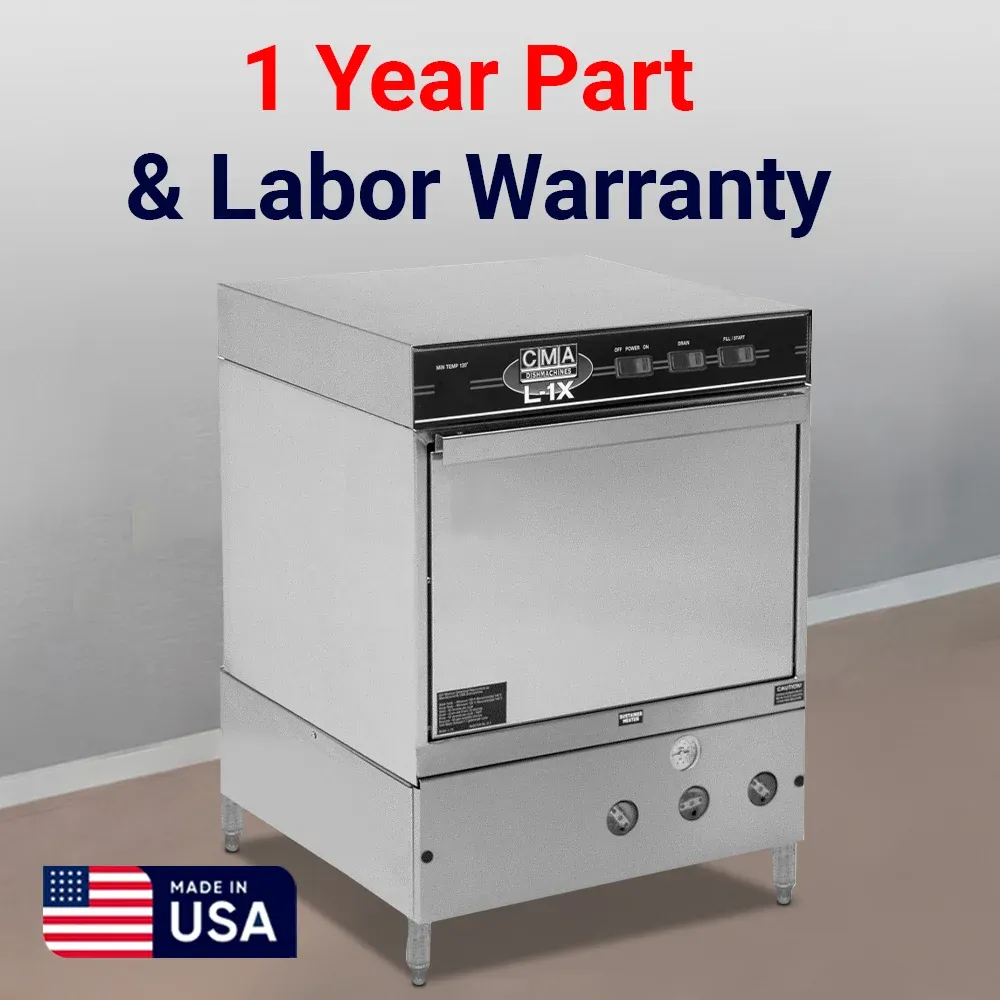

CMA Dishmachine L-1X Low Temperature Undercounter Dishwasher with Heater, 1 Phase, 115V, 60Hz, 1 HP

Model: L-1X

4.2(5 reviews)

$5,845.00

/Each

Want a better deal?Call for Our Best Price(866) 446-7322

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $78/week instead of $5,845 today

Keep your cash in your business

$78

per week

$11.14 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: L-1X

4.2(5 reviews)

★Why You'll Love It

Fast Cleaning Cycles: Completes full wash cycle in 120 seconds with 58-second wash and 32-second rinse, processing up to 30 racks per hour.

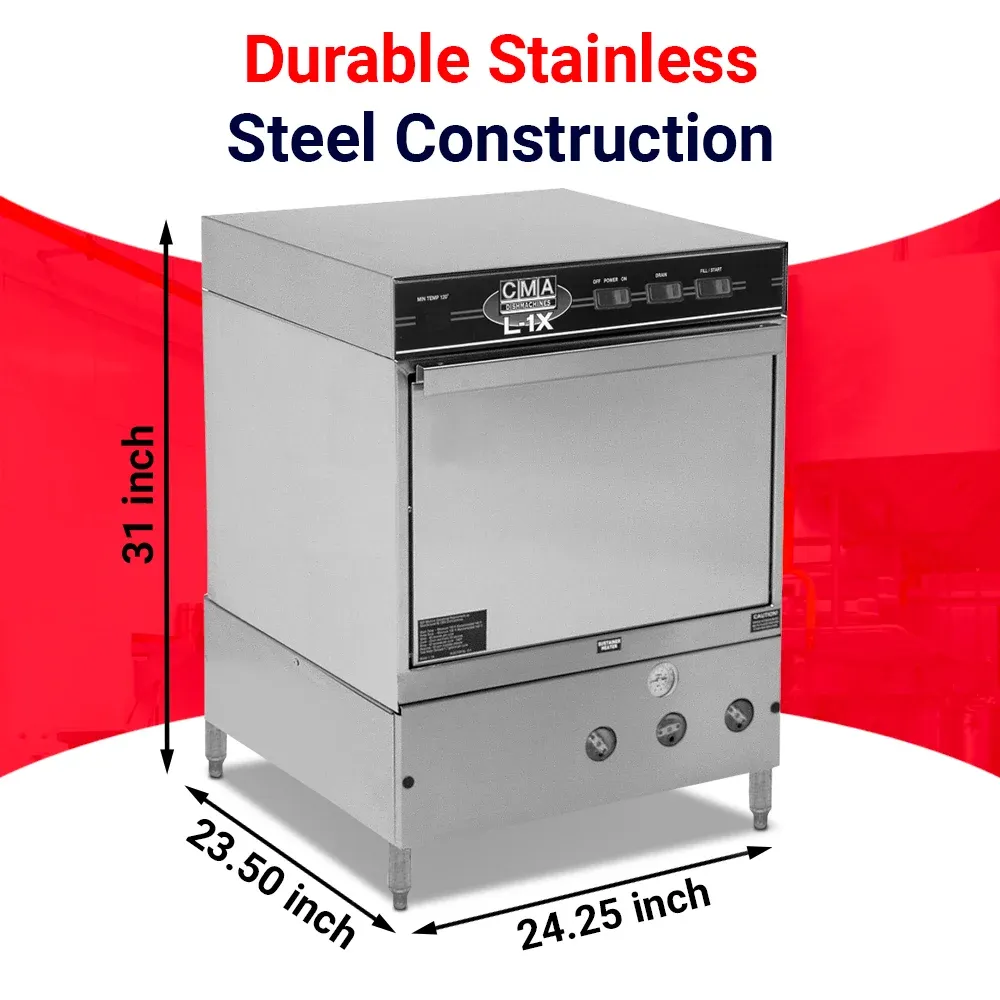

Space-Saving Design: Compact undercounter unit measuring 24"W x 23.5"D x 31"H, perfect for commercial kitchens with limited space.
Water Efficient: Uses only 1.7 gallons per rack with 35 GPM pump capacity, powered by efficient 1 HP motor.
Professional Certification: Meets rigorous industry standards with NSF, UL, and cULus certifications for commercial kitchen compliance.
Durable Construction: Built with high-quality stainless steel construction for long-lasting performance in demanding commercial environments.
Versatile Capacity: Accommodates 20" x 20" racks with 12.12-inch clearance height, suitable for various dishware and utensils.

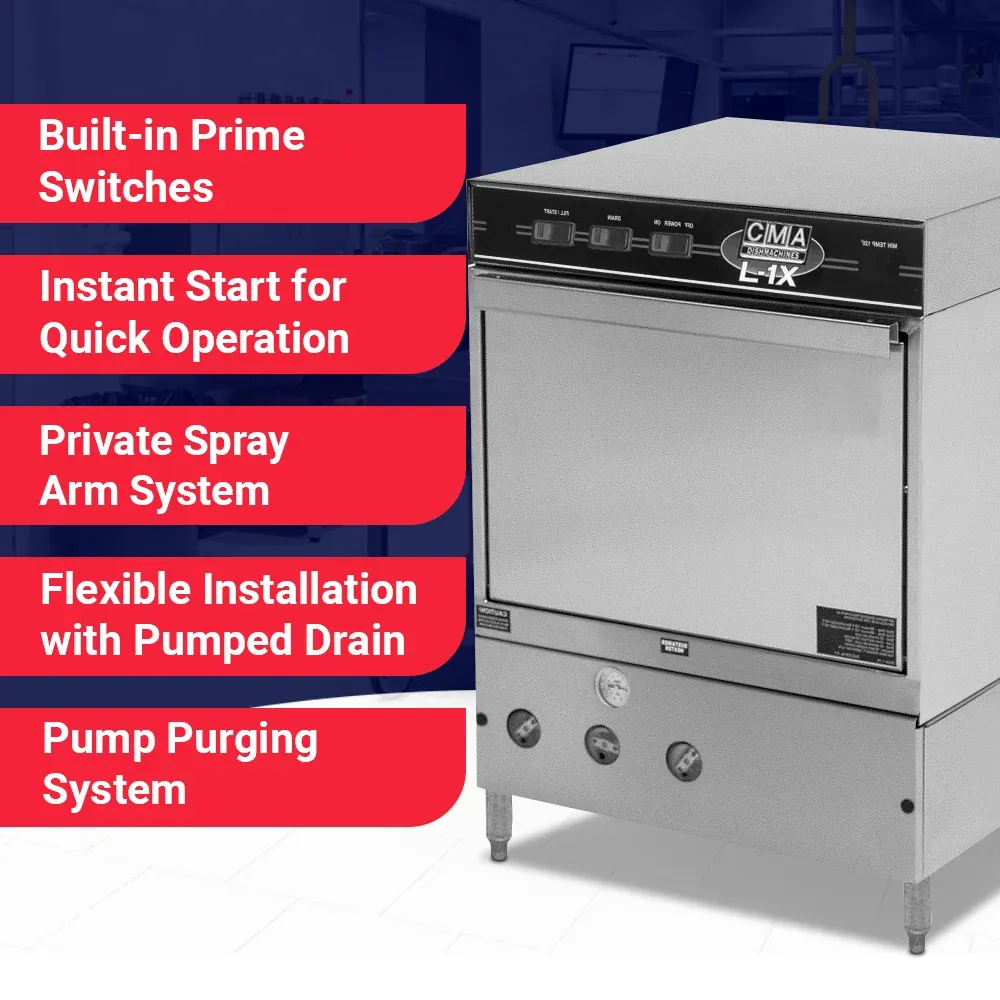

Enhanced Safety: Features door safety switch and unique spray arm system for secure and reliable operation.
Simple Installation: Easy setup with ½-inch water inlet and 1-inch drain connections, plus standard 115V/16A power requirements.
Built-in Heating: Includes integrated heater for consistent cleaning performance and optimal sanitization.
Complete Package: Comes with one dish rack included, ready for immediate implementation in commercial kitchen operations.

Completes full wash cycle in 120 seconds with 58-second wash and 32-second rinse, processing up to 30 racks per hour.

Call for Our Best Price(866) 446-7322

$5,845.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $78/week instead of $5,845 today

Keep your cash in your business

$78

per week

$11.14 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Installation & Elevation Diagram.pdf Setup & Usage Instructions.pdf Spare Parts List.pdf Technical Specification Sheet.pdf Warranty Information.pdf Wiring & Component Diagram.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

American Dish ET-AF-3-PH-S Undercounter Dishwasher, Single Rack, Low-Temp, 37 Tall W/ 14

$6,842.88/Each

Similar Products

American Dish ADC-44 R-L LT 44" Conveyor Dishwasher with Polymer Final Rinse Jets, Low-Temp

$16,824.06/Each

American Dish ADC-66-T 66" Conveyor Dishwasher, Low-Temp, R-L, Tall Hood

$33,291.06/Each

American Dish AF-3D-S Upright Dishwasher with Single Rack, 2-Door, Low-Temp

$5,489.22/Each

American Dish 5AG-S Upright Dishwasher, Double Rack, Pass-Thru, Low-Temp

$7,467.24/Each

American Dish AF-3D-S 3D Upright Dishwasher with Single Rack and Muffler Heater, 3-Door, Low-Temp

$9,306.00/Each

American Dish ADC-44 L-R LT 44" Conveyor Dishwasher with Polymer Final Rinse Jets, Low-Temp

$16,824.06/Each

American Dish AFC-3D-S Upright Dishwasher, Single Rack, 2-Door

$5,608.68/Each

Key Specification

ManufacturerCMA Dishmachine

Country of OriginProudly Made In America

MaterialStainless Steel

Selling Unit1/Each

TypeUndercounter Dishwasher

Warranty1 Year Parts & Labor

Manufacturer	CMA Dishmachine	Country of Origin	Proudly Made In America	Material	Stainless Steel
Selling Unit	1/Each	Type	Undercounter Dishwasher	Warranty	1 Year Parts & Labor
Features	Unique Spray Arm System, Door Safety Switch	Shipping Weight	172 pound	Amps	16 ampere
Phase	1 Phase	Voltage	115 volt	High or Low Temp	Low Temp
Racks Per Hour	30 Racks	Water Inlet Size	1/2 inch	Access Door Clearance	12.12 Inches
Drain Size	1 inch	Wash Tank Capacity	1.7 gallon (US)	Certifications	NSF Listed, UL Listed, cULus Listed
Included	Heater	Installation Type	Undercounter	Shipping Width	29 inch
Shipping Depth	28 inch	Shipping Height	38 inch	Water Temperature Supply	120 fahrenheit
Water Consumption Per Rack	1.7 Gallons	Rack Width	20	Pump Capacity	35 Gallons per Minute
Wash Cycle Time	58 Seconds	Rinse Cycle Time	32 Seconds	Total Cycle Time	120 Seconds
Dwell Time	30 Seconds	Rack Length	20	Motor Horsepower	1 HP
Maximum Loading Height	12.12	Number of Dish Racks	1 Dish Rack	Product Width	24 inch
Product Depth	23.5 inch	Product Height	31 inch

Product Overview

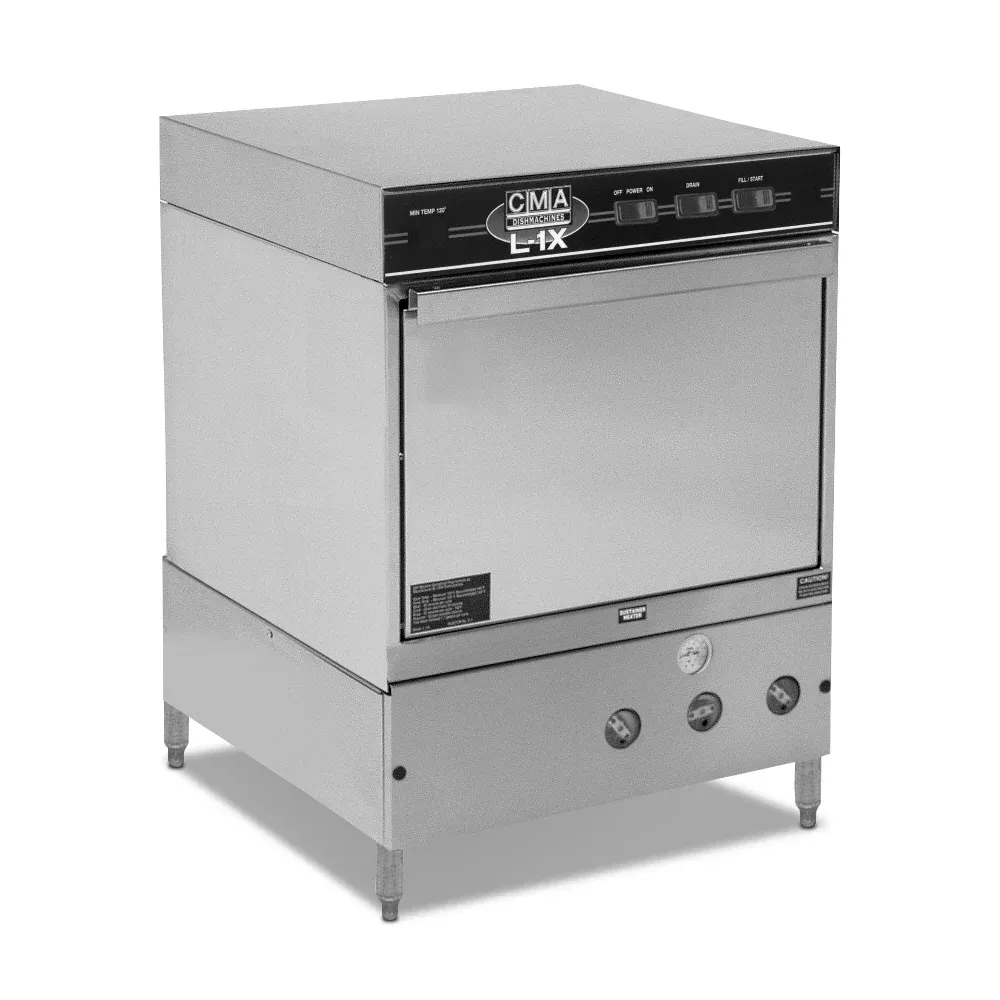

The CMA Dish Machines L-1X is a low-temperature undercounter dishwasher, made using durable stainless steel. Compact yet powerful, it’s ideal for commercial kitchens looking for efficiency in a small footprint.

Designed to handle 30 racks per hour, this unit features a wash cycle of 58 seconds and a total cycle time of 120 seconds. It supports dish racks sized 20" x 20" and fits items up to 12.12 inches high, making it suitable for standard dishware and utensils. It comes with 1 dish rack and a built-in heater to ensure effective cleaning.

Operating on 115V / 16A and 1-phase power, it uses 1.7 gallons of water per rack and has a pump capacity of 35 GPM, powered by a 1 HP motor. The rinse cycle lasts 32 seconds, followed by a 30-second dwell time, with a 1.7-gallon wash tank capacity.

The dishwasher measures 24" W x 23.5" D x 31" H, and offers an access door clearance of 12.12 inches. It features a ½-inch water inlet and a 1-inch drain. With certifications from NSF, UL, and cULus, plus user-friendly features like a unique spray arm system and door safety switch, the L-1X is a dependable commercial solution built for performance and safety.
