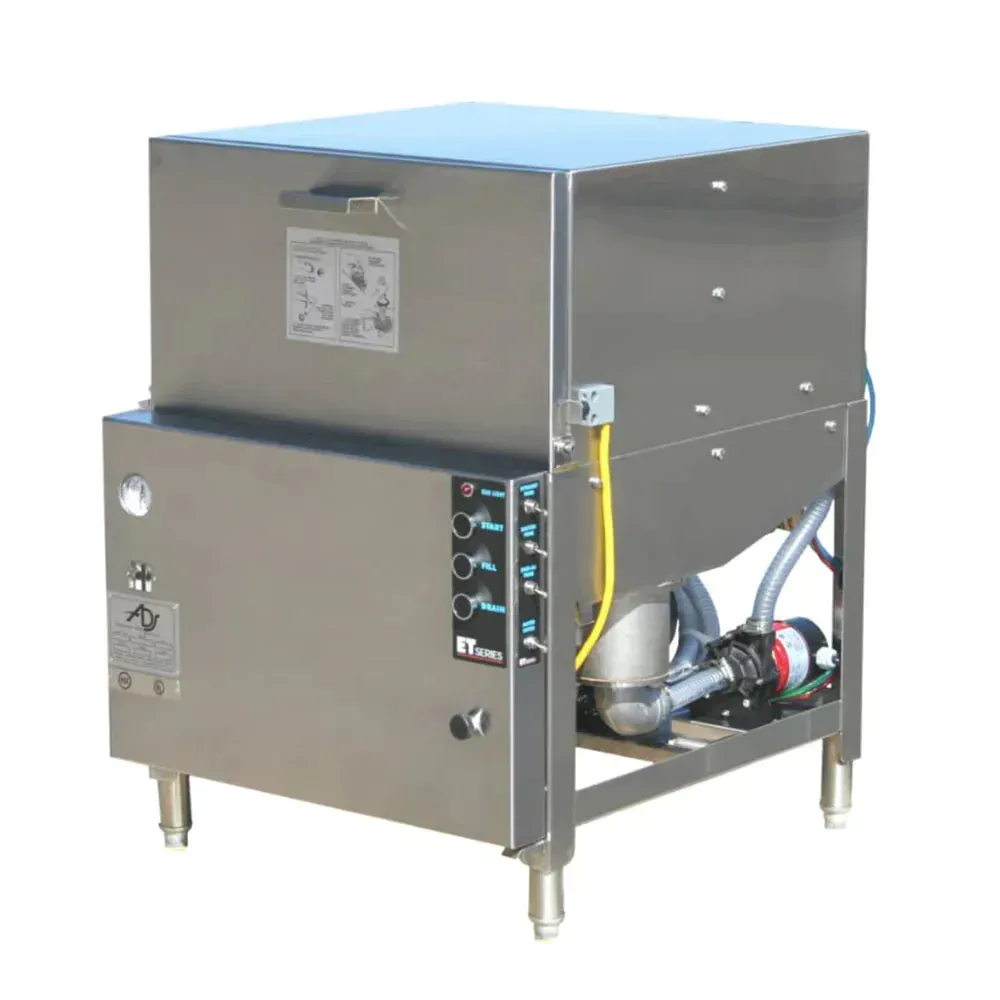

American Dish ET-AF-3-PH-S Undercounter Dishwasher, Single Rack, Low-Temp, 37 Tall W/ 14

The American Dish Service 018-1090.0000 Undercounter Dish Machine is a durable, stainless steel unit made in America. Featuring a pumped design and low-temp operation, it delivers efficient cleaning with a water consumption rate of just 1.7 gallons per cycle. With a 45-second wash cycle and total cycle time of 90 seconds, it’s engineered for fast, reliable performance in commercial environments.

This unit includes a single glassware cross-arm wash arm, a single chemical alarm, and 2 screens for effective operation. The sustainer heater runs at 1/2 kW with a 1/20 HP sustainer heater motor, while the main motor offers a powerful 1.5 HP. The design allows easy loading and unloading, supported by its pumped drain and sustainer heater features.

Measuring 25.5 in (W) x 29 in (D) x 37.5 in (H), it has a door clearance height of 14 inches and a door clearance depth of 22.25 inches. The rack dimensions are 19.75 inches in length and width, with the machine accommodating 1 rack per cycle. It has a maximum pump-out height of 20 inches and operates at 115 V, 20 A, single-phase, and 50/60 Hz.

The unit is NSF listed for sanitation compliance and comes with a limited 2 year parts and labor warranty. Shipping dimensions are 36 inches in width, 36 inches in depth, and 44 inches in height, with a shipping weight of 274 lb. It connects via a 1/2-inch water inlet, requires a 120°F water temperature supply, and has a 0.75-inch drain size.
