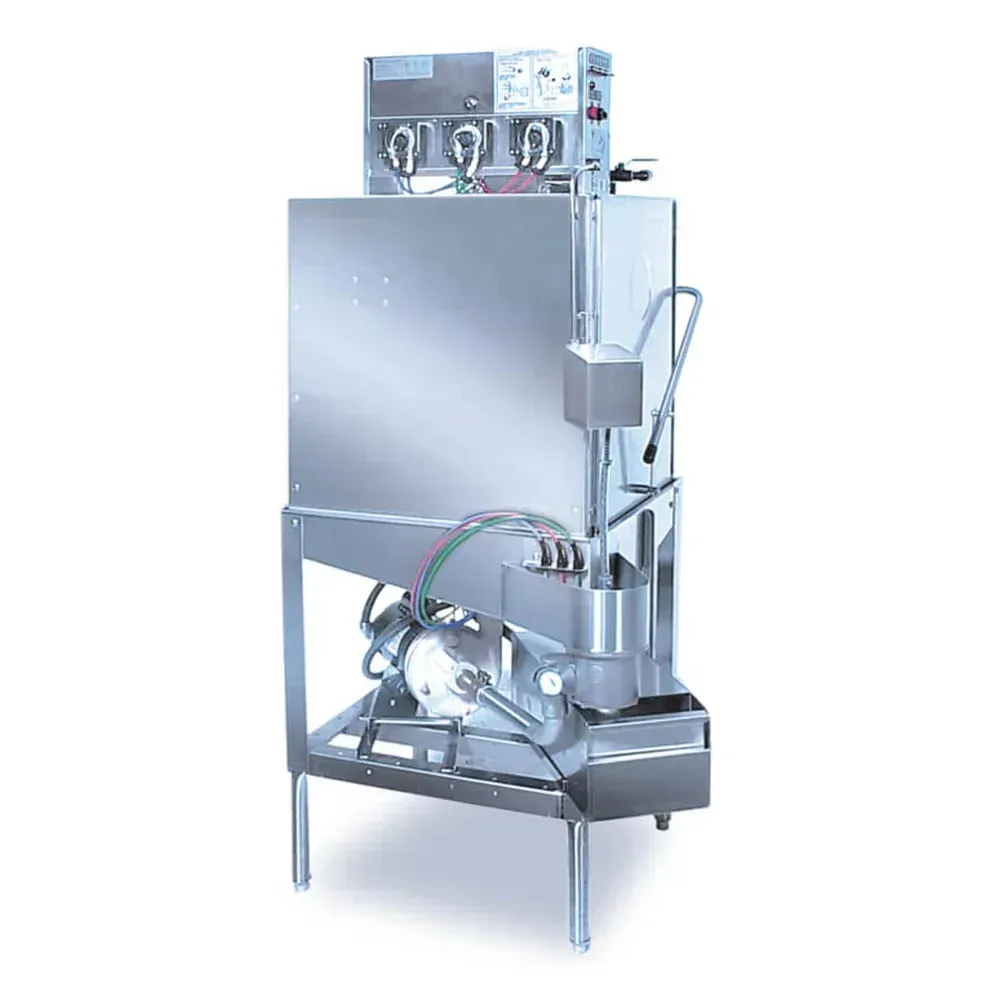

American Dish AFC-3D-S Upright Dishwasher with Single Rack, 2-Door, 208V

The American Dish Service Upright Dish Machine 027-0090.0127 delivers exceptional cleaning power with a low-temp wash cycle of 45 seconds and total cycle time of 90 seconds, ensuring fast turnaround. Designed for high-volume kitchens, it processes 37 racks per hour with a rack size of 19.75 inches. Dimensions are 33.5 (W) x 34.25 (D) x 80.87 (H) inches with doors open.

Built for durability, this dishwasher features stainless steel construction in a sleek silver finish. It includes dual screens and a convertible corner-to-pass-thru design to maximize kitchen workflow. The solid chemical dispensing system with a chemical alarm ensures precise sanitation, complemented by an energy-efficient muffler heater operating at 120°F water supply temperature.

Made in America, the unit supports smooth operation with a 20-amp single-phase electrical setup and a maximum fuse size of 20 amps. Its two upward-opening doors provide a 20.5-inch door clearance width and 20.75-inch height for ergonomic loading. Additional features include an outside sump and air gap to enhance reliability and prevent contamination.

Water consumption is optimized at 2.2 gallons per cycle, balancing cleanliness and resource efficiency. The dishwasher runs on 115 volts with 1.5 horsepower motor power and 1.125 kW wattage. The wire gauge recommended is 10 to 12 AWG, supporting safe and stable electrical connections for consistent performance.
