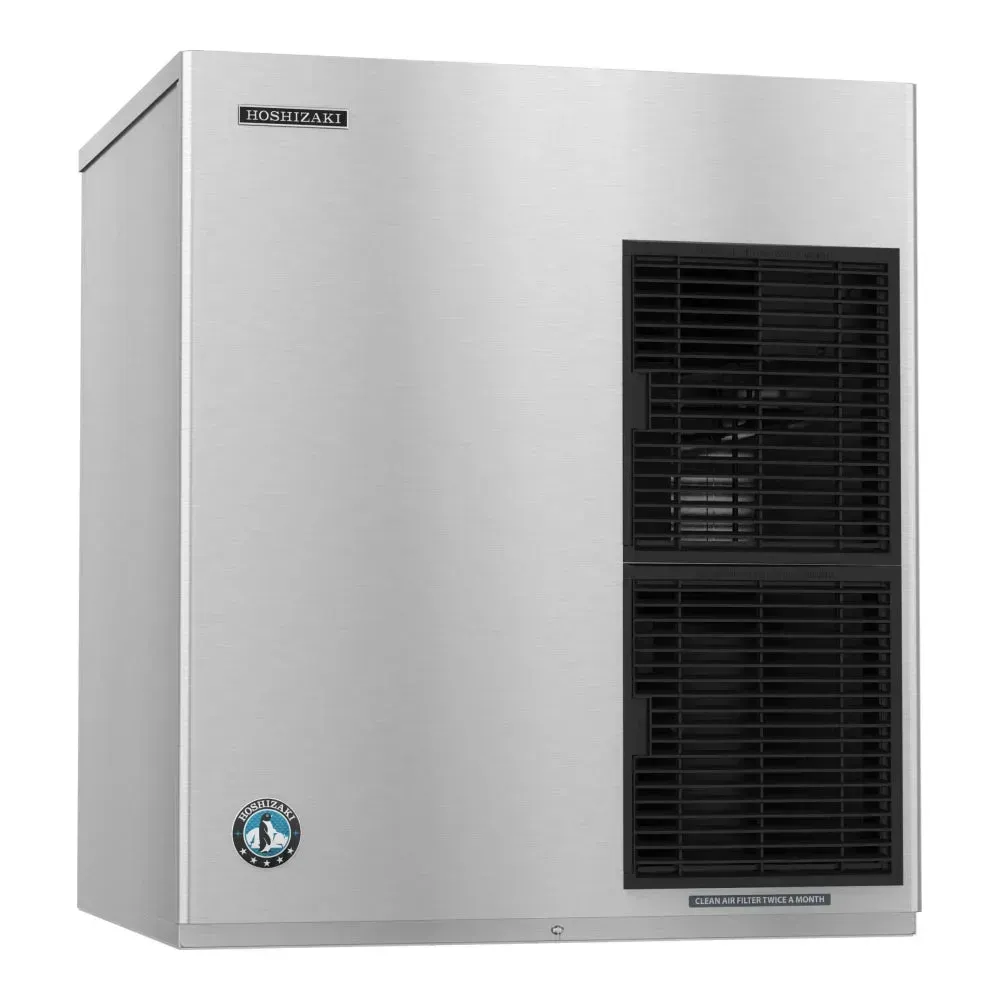

Water cooled nugget ice machine head from Hoshizaki America delivers over one thousand pounds of chewable ice daily, great for casual drink stations.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Hoshizaki
Country of Origin
Japan
Material
Stainless Steel
Color
Silver
Phase
1 Phase
Ice Type
Nugget
Plug Type
Hardwire
Shipping Weight
330 lb
Ambient Temperature Range
45°F to 100°F
Water Pressure Range
10 psig to 113 psig
Product Weight
300 lb
Design
Advanced CleanCycle24
Included
Auger With Bearing
Shipping Depth
32 in
Voltage Range
187 Volts - 253 Volts
Refrigerant Capacity
4.5
Maximum Fuse Size
20 A
Storage Bin
Without Storage Bin
Mounting Configuration
Dual Unit in 60 Inches Space
Product Depth
27.37 in
Water Inlet Size
1/4 in
Power Usage
3.76 kWh per 100 lbs.
Selling Unit
1/Each
Type
Ice Machine Head
Warranty
3 Years Parts & Labor, 5 Years Parts on Compressor
Features
2 Seconds Flush Cycle Every Hour, Infrared Bin Control
Voltage
208/230 V
Amps
15.4 A
Refrigerant Type
R-404A
Hertz
60 Hz
Condenser Type
Water Cooled
Water Temperature Range
45°F to 90°F
Certifications
NSF Listed, AHRI Certified, UL Certified
Series
Slim-Line Series
Shipping Width
34.75 in
Shipping Height
40 in
Heat Rejection
12800 BTU/Hr
Number of Wires
4 Wires
Water Usage (Potable 90°F/70°F)
12 gal
Water Usage (Condenser 90°F/70°F)
123 Gallons Per 100 lbs.
Product Width
30 in
Product Height
34.62 in
Drain Size
3/4 in
24 Hour Ice Production
1376 lb

Product Overview

The Hoshizaki F-1501MWJ-C is a premium Japanese-manufactured nugget ice machine head, crafted from durable stainless steel for commercial durability. This 30-inch Slim-Line Series model delivers superior performance with its advanced CleanCycle24 technology. Engineered for professional environments, this unit exemplifies Hoshizaki's commitment to quality and innovation in commercial ice production.

Operating at 208/230V with a single-phase power supply, this machine achieves impressive production capacity of 1,376 pounds per day. The water-cooled condenser system maintains optimal performance with a heat rejection rate of 12,800 BTUs. The unit features an infrared bin control and efficient operation, consuming just 3.76 kWh per 100 pounds of ice production. The R-404A refrigerant system ensures reliable cooling performance.

Measuring 30" width x 27.37" depth x 34.62" height, this compact unit fits seamlessly into commercial kitchen layouts. The machine accommodates water pressures from 10 to 113 psig and water temperatures between 45°F and 90°F. Dual unit mounting configuration allows installation in 60-inch spaces, maximizing production capacity. Equipped with 1/4" water inlet and 3/4" drain connections for straightforward installation.

This model comes with comprehensive warranty coverage: 3 years parts and labor, plus 5 years on the compressor. Meets strict industry standards with NSF, AHRI, and UL certifications for commercial use. Designed for integration with compatible storage bins (sold separately) for complete ice management solution. Built for continuous operation in demanding foodservice environments with ambient temperatures up to 100°F.
