Manitowoc RNK0320AZ 22" Nugget Ice Machine Head Without Storage Bin, Air Cooled, 298 lbs/day

Model: RNK0320AZ-251

$4,847.20

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Model: RNK0320AZ-251

★Why You'll Love It

High Ice Production: Produces up to 298 pounds of nugget ice daily, meeting high-volume ice demands for commercial beverage service operations.
Energy Efficient: Consumes only 5.90 kWh per 100 lbs of ice with 3075 BTU/hour rating, providing cost-effective and sustainable operation.
Extended Warranty Protection: Comprehensive 3-year parts and labor warranty for ice maker, plus 5-year coverage on evaporator and compressor components.
Commercial Certification: ETL Listed, ETL Sanitation Listed, and CE Listed certifications ensure compliance with commercial safety and sanitation standards.
Versatile Installation: Compatible with various bins and dispensers like D420, featuring rear air intake and side exhaust for flexible placement options.
Professional Power: Operates on 220/240V, 1 phase, 50 Hz power with 3.2 amp draw and 10-amp maximum fuse size.
Flexible Water System: Accommodates 14-84 psi water pressure range with 3/8-inch inlet and 1/2-inch drain connections for easy installation.
Modern Refrigeration: Uses environmentally conscious R452A refrigerant with air-cooled, self-contained condenser system for reliable performance.

Produces up to 298 pounds of nugget ice daily, meeting high-volume ice demands for commercial beverage service operations.

$4,847.20

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf User Manual.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Ice-O-Matic MFI1506A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 208-230V

$9,703.00/Each

Ice-O-Matic MFI1256A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 1149 lb/24 hr, 208/230v

$7,592.00/Each

Ice-O-Matic MFI0800A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 115v

$5,965.00/Each

Similar Products

Ice-O-Matic GEM0956A 21" Pearl Nugget Ice Machine Head Without Storage Bin, Air Cooled, 1053 lb., 208/230v

$7,875.00/Each

Ice-O-Matic GEM0450A 21" Nugget Ice Machine Head Without Storage Bin, Air Cooled, 464 lb/24 hr, 115v

$5,179.00/Each

Ice-O-Matic GEM0650R 21" Pearl Nugget Ice Machine Head Without Storage Bin, Remote Cooled, 115v

$6,228.00/Each

Ice-O-Matic GEM1306A 21" Pearl Ice Nugget Ice Machine Head Without Storage Bin, Air Cooled, 208/230v

$10,017.00/Each

Hoshizaki F-1002MWJ-C 22" F Series Cubelet Icemaker Head Without Storage Bin, Water Cooled, 878 lb/24 hr, 115v

$8,960.00/Each

Ice-O-Matic GEM2006R 30" Pearl Nugget Ice Machine Head with Remote Cooling Without Storage Bin, Stainless Steel, 208/230v

$11,192.00/Each

Hoshizaki F-801MAJ-C 22" F Series Nugget Ice Machine Head Without Storage Bin, Air Cooled, 690 lb/24 hr, 115v

$7,230.00/Each

Ice-O-Matic GEM0650A 21" Pearl Nugget Ice Machine Head Without Storage Bin, Air Cooled, 115v

$6,291.00/Each

Hoshizaki F-1002MAJ-C 22" F Series Nugget Ice Machine Head Without Storage Bin, Air Cooled, 890 lb/24 hr, 115v

$8,375.00/Each

Key Specification

ManufacturerManitowoc

Country of OriginProudly Made In America

MaterialStainless steel

ColorSilver

Selling Unit1/Each

TypeAir Cooled Ice Machine

Manufacturer	Manitowoc	Country of Origin	Proudly Made In America	Material	Stainless steel
Color	Silver	Selling Unit	1/Each	Type	Air Cooled Ice Machine
Warranty	3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor	Features	Multiplex beverage dispenser	Shipping Weight	163 pound
Phase	1 Phase	Voltage	220/240 volt	Amps	3.2 ampere
Plug Type	Hardwire	Refrigerant Type	R-452A	Water Usage	12 gallon (US)
Hertz	50 hertz	Ice Type	Nugget	Ambient Temperature Range	50˚ to 110˚F
Condenser Type	Air-Cooled Self-Contained	Certifications	ETL Listed, ETL Sanitation Listed, CE Listed	Compatible Model	D420
Series	RNK0320	Potable Water Pressure Range	14 to 84 Psi	Maximum Fuse Size	10 ampere
BTU Per Hour	3075 british thermal unit	Max Daily Ice Production	298 Lbs/Day	Installation Configuration	Installed on top of compatible bin & dispenser
Product Width	22 inch	Product Depth	23.62 inch	Product Height	26 inch
24 Hour Ice Production	298 pound	Water Inlet Size	3/8 inch	Drain Size	1/2 inch
Power Usage	5.90 kWh per 100 lbs

Product Overview

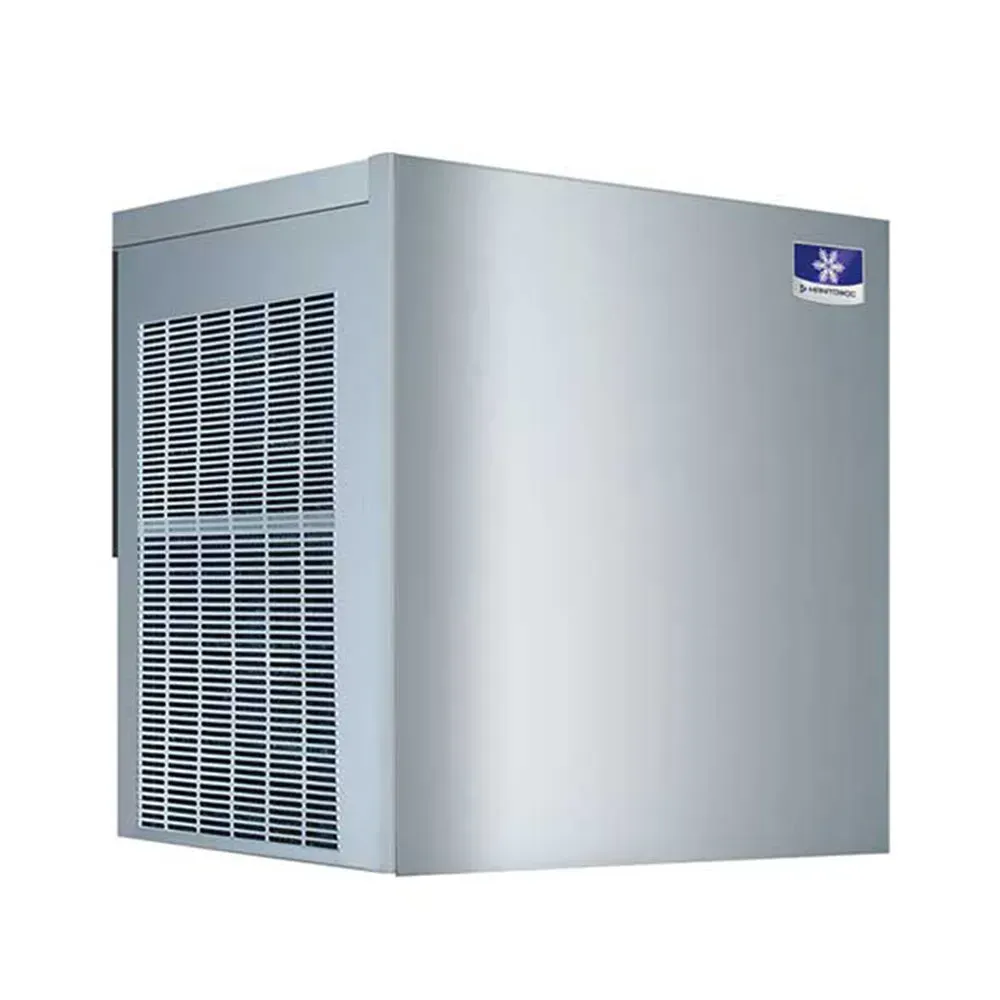

The Manitowoc RNK0320AZ is a nugget ice machine head made of stainless steel with a silver finish, designed for installation on top of compatible bins and dispensers such as the D420. It produces up to 298 lbs of nugget ice per day, operates on 220/240 volts, 1 phase, 50 Hz, and draws 3.2 amps. The machine features a hardwired electrical connection, and uses R452A refrigerant with an air-cooled, self-contained condenser.It consumes 5.90 kWh per 100 lbs of ice and is rated at 3075 BTU per hour. The unit uses 12 gallons of potable water, supports a water pressure range of 14 to 84 psi, and connects via a 3/8-inch water inlet and a 1/2-inch drain. It includes a multiplex beverage dispenser, features rear air intake and side exhaust, and has a maximum fuse size of 10 amps.The external dimensions of the unit are 22" W x 23.62" D x 26" H. It is certified by ETL Listed, ETL Sanitation Listed, and CE Listed. Warranty coverage includes 3 years parts and labor for the ice maker, and 5 years parts and labor for the evaporator and compressor.
