Key Specification

Manufacturer
Hoshizaki
Country of Origin
Japan
Material
Stainless Steel
Color
Silver
Phase
1 Phase
Ice Type
Nugget
Plug Type
Hardwire
Shipping Weight
205 lb
Ambient Temperature Range
45°F to 100°F
Water Pressure Range
10 psig to 113 psig
Product Weight
176 lb
Design
Advanced CleanCycle24
Included
Auger With Bearing
Shipping Depth
26.5 in
Shipping Capacity
15.7 cb3
Heat Rejection
8200 BTU/Hr
Number of Wires
3 Wires
Water Usage (Potable 90°F/70°F)
12 gal
Water Usage (Condenser 90°F/70°F)
111 Gallons Per 100 lbs.
Product Width
22 in
Product Height
26 in
Drain Size
3/4 in
24 Hour Ice Production
878 lb
Selling Unit
1/Each
Type
Ice Machine Head
Warranty
3 Years Parts & Labor, 5 Years Parts on Compressor
Features
2 Seconds Flush Cycle Every Hour, Infrared Bin Control
Voltage
115 V
Amps
13.7 A
Refrigerant Type
R-404A
Hertz
60 Hz
Condenser Type
Water Cooled
Water Temperature Range
45°F to 90°F
Certifications
NSF Listed, AHRI Certified, UL Certified
Series
Slim-Line Series
Shipping Width
32 in
Shipping Height
32 in
Voltage Range
104 Volts - 127 Volts
Refrigerant Capacity
12.3
Maximum Fuse Size
20 A
Storage Bin
Without Storage Bin
Mounting Configuration
Dual Unit in 44 Inches Space
Product Depth
27.37 in
Water Inlet Size
1/4 in
Power Usage
3.95 kWh per 100 lbs.

Product Overview

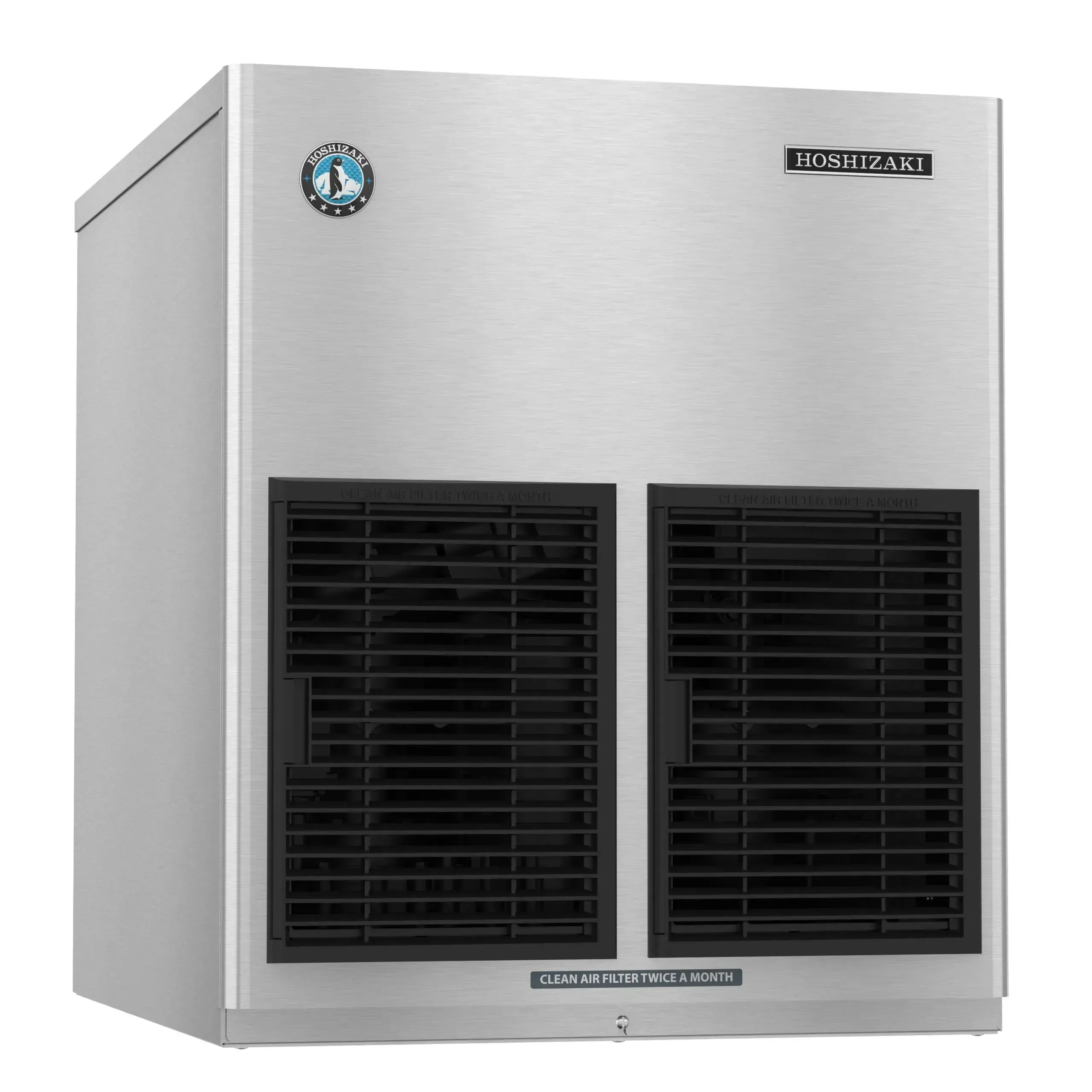

The Hoshizaki F-1002MWJ-C is a premium commercial nugget ice maker from the renowned F Series, crafted with durable stainless steel construction. This Japanese-manufactured unit represents the pinnacle of ice-making technology, featuring the innovative CleanCycle24 system. Designed for professional foodservice environments, this water-cooled cubelet ice maker delivers consistently high-quality, chewable nugget ice.

Operating at 115V with a modest 13.7 amp draw, this efficient unit produces up to 878 pounds of ice per 24-hour period. The advanced R-404A refrigeration system includes an infrared bin control and automatic 2-second flush cycle every hour. The unit maintains optimal performance with a water pressure range of 10-113 psig and features precise temperature controls for both water (45°F-90°F) and ambient conditions (45°F-100°F).

This slim-line series ice maker measures 22 inches in width, 27.37 inches in depth, and 26 inches in height, making it ideal for space-conscious installations. The unit weighs 176 pounds and includes a robust auger with bearing for reliable operation. Dual unit mounting configuration allows for installation in 44-inch spaces, maximizing ice production capacity in limited areas.

Protected by a comprehensive 3-year parts and labor warranty, plus an extended 5-year compressor warranty. The unit meets strict industry standards with NSF, AHRI, and UL certifications. Designed for professional kitchen environments, this ice maker head requires separate purchase of a compatible storage bin. The hardwired installation requires professional setup with a maximum fuse size of 20 amps and a 3-wire configuration.
