Which ice machine is compatible with the RCA-3561?

The RCA-3561 is specifically designed to work with the Ice-O-Matic CIM2046R remote-cooled ice machine.

What is the purpose of using a remote condenser like the RCA-3561?

A remote condenser helps move the heat exchange process away from the ice machine, reducing indoor heat and noise, which improves ice production efficiency and workplace comfort.

Is this unit suitable for outdoor installation?

Yes, its galvanized steel construction and cULus certification make it ideal for outdoor or rooftop installation in commercial settings.

What are the electrical requirements?

The RCA-3561 runs on 208/230 volts, single-phase, 60 Hz power and supports a maximum fuse size of 15 amps.

What refrigerant does it use?

This unit uses R-404a refrigerant, which is commonly used in commercial ice systems for its effective and reliable cooling performance.

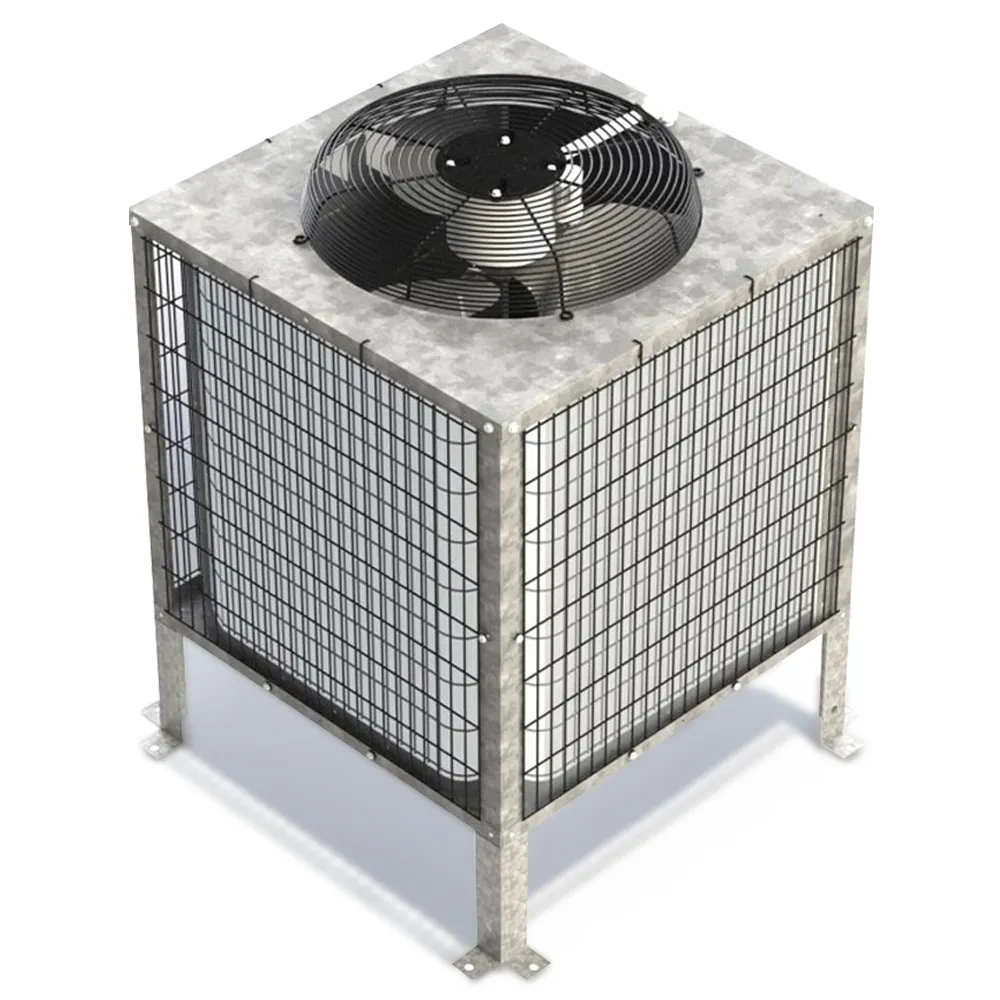

Ice-O-Matic RCA-3561 27" Remote Condenser for CIM2046R, 208-230V

Model: RCA-3561

4.6(5 reviews)

$1,723.00

/Each

Want a better deal?Call for Our Best Price(866) 446-7322

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $26/week instead of $1,723 today

Keep your cash in your business

$26

per week

$3.71 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: RCA-3561

4.6(5 reviews)

★Why You'll Love It

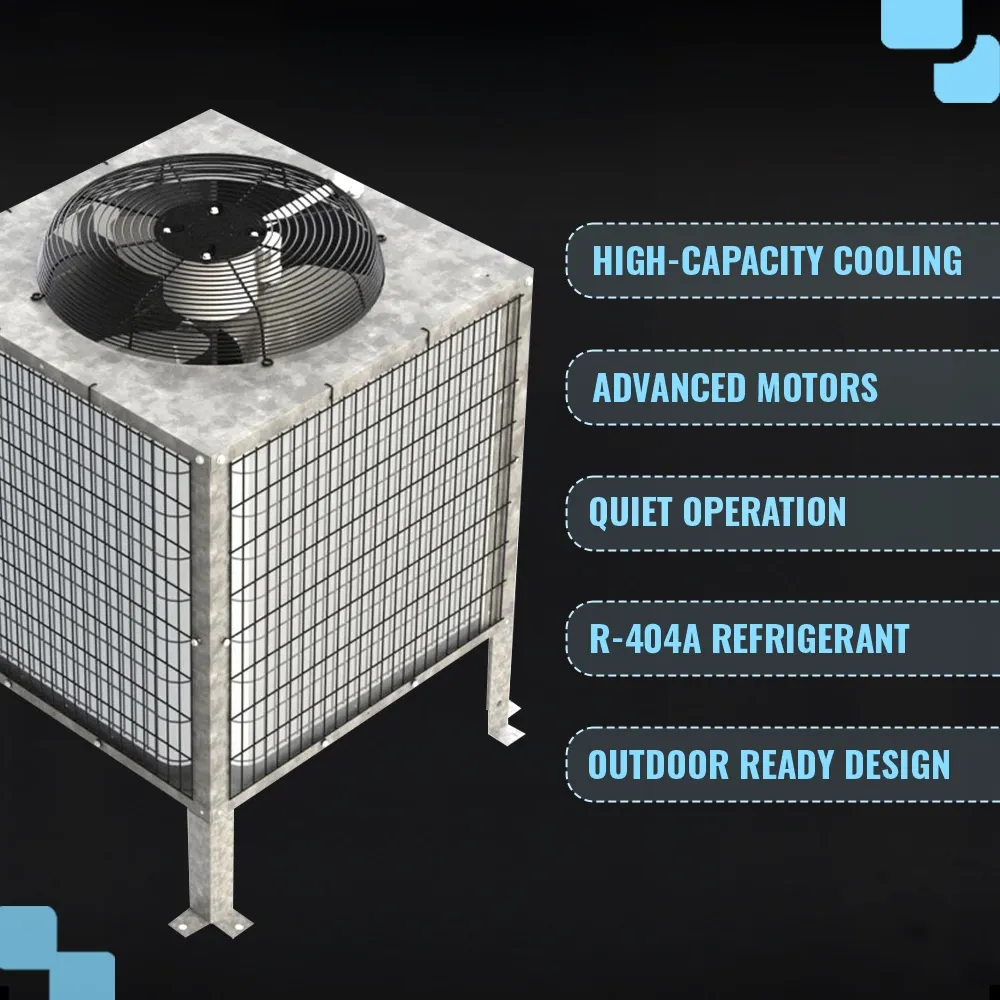

Heat Reduction Specialist: Relocates refrigeration system's heat exchange process outdoors, reducing indoor temperature and creating more comfortable working environments.
Noise Reduction Solution: Remote installation significantly decreases indoor operational noise levels by placing condenser components away from main workspace areas.
Commercial Grade Durability: Constructed with heavy-duty galvanized steel and silver finish, designed specifically for demanding commercial ice production environments.
Safety Certified: Meets rigorous safety standards with cULus certification, ensuring compliance with industry regulations and operational safety requirements.
Energy Efficient Design: Features advanced motor technology and innovative leg design for improved operational efficiency and reduced energy consumption.
Environmentally Responsible: Incorporates eco-friendly components and R-404a refrigerant, supporting sustainable commercial ice production practices.

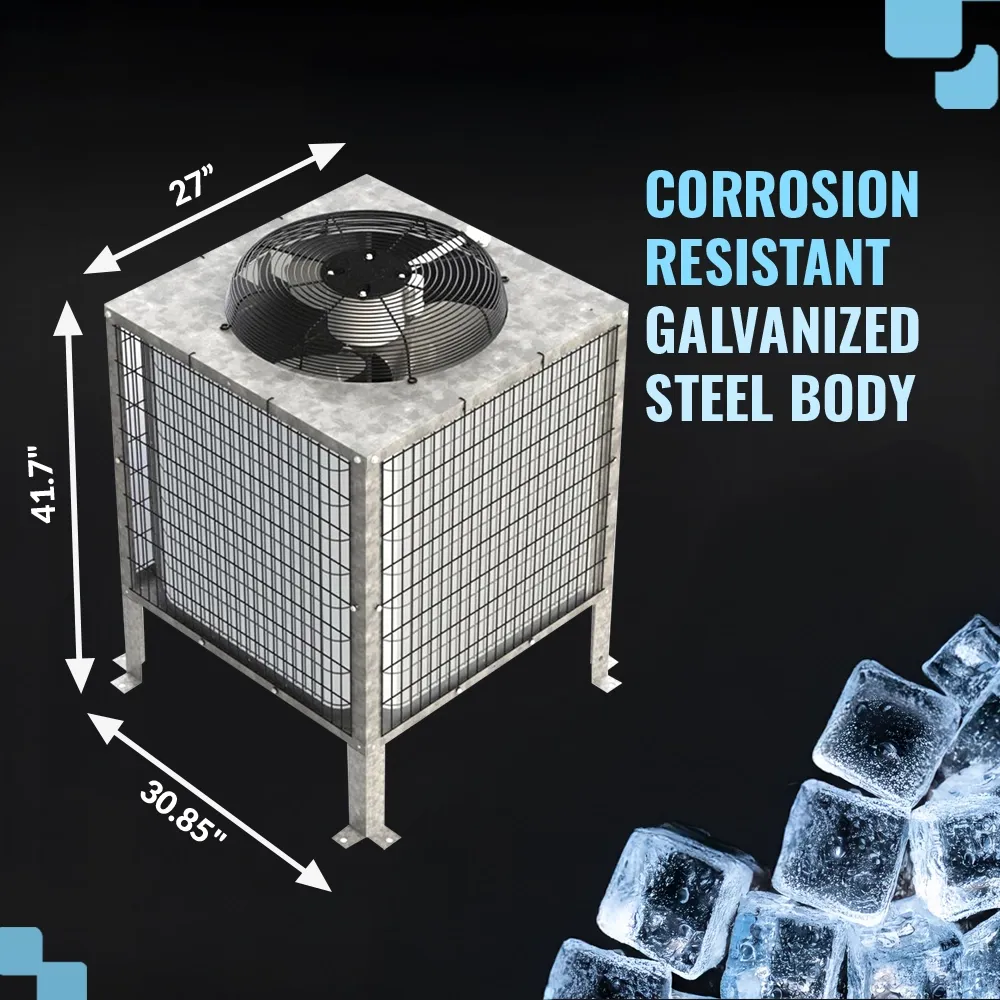

Perfect Size Fit: Compact dimensions of 27"W x 30.85"D x 41.7"H provide flexible installation options while maintaining powerful performance.
Specialized Compatibility: Specifically engineered to work seamlessly with CIM2046R ice machine model, ensuring optimal system performance.
Low Power Requirements: Operates on standard 208/230V single-phase power with 15-amp maximum fuse size, enabling easy electrical integration.
Complete Cooling System: Includes both fan and coil components, providing a comprehensive cooling solution for commercial ice production needs.

Relocates refrigeration system's heat exchange process outdoors, reducing indoor temperature and creating more comfortable working environments.

Call for Our Best Price(866) 446-7322

$1,723.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $26/week instead of $1,723 today

Keep your cash in your business

$26

per week

$3.71 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Manitowoc IYF1800C-161X Indigo NXT QuietQube 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 1660 lbs/day

$10,155.65/Each

Manitowoc IYF1800C Indigo NXT QuietQube 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 1660 lbs/day

$9,741.40/Each

Manitowoc IYF1400C-161X Indigo NXT 30" Half Cube Ice Machine Head Without Storage Bin, Remote Cooled, 1425 lbs/day, 115V

$8,110.00/Each

Similar Products

Manitowoc RCUF1200 QuietQube 34" Remote Ice Machine Condenser Unit, 208-230V, 1 Phase

$2,425.93/Each

Manitowoc JCF0900-261 29" Remote Ice Machine Condenser, Vertical Discharge, 208-230V

$1,421.02/Each

Manitowoc IYF1800C Indigo NXT QuietQube 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 1660 lbs/day

$9,741.40/Each

Manitowoc JCT1500 29" Remote Ice Machine Condenser, Vertical Discharge, 208/230V

$1,644.43/Each

Manitowoc IDF0500N-161AX Indigo NXT 30" Dice Cube Ice Machine Head Without Storage Bin, Air Cooled, 510 lbs/day

$4,765.74/Each

Manitowoc IYF1800C-161X Indigo NXT QuietQube 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 1660 lbs/day

$10,155.65/Each

Manitowoc IYF0600C Indigo NXT 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 600 lbs/day

$5,055.25/Each

Manitowoc CVDT1200 Indigo QuietQube 34" Remote Ice Machine Condenser, 3 Phase,208-230V

$2,796.42/Each

Manitowoc IYT1200N-261 Indigo NXT 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 1215 lbs/day, 208V, 1Ph

$7,485.83/Each

Manitowoc IBF0820C Indigo NXT QuietQube 22" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 825 lbs/day, 115V

$6,846.30/Each

Manitowoc IYF0500N Indigo NXT 30" Half Dice Cube Ice Machine Head Without Storage Bin, Remote Condenser, 525 lbs/day

$4,351.49/Each

Hoshizaki F-2001MRJZ 30" Flaker Icemaker Without Storage Bin, Remote Cooled

$14,785.00/Each

Key Specification

ManufacturerIce-O-Matic

Country of OriginProudly Made In America

MaterialGalvanized Steel

ColorSilver

Selling Unit1/Each

TypeIce Machine Condenser

Manufacturer	Ice-O-Matic	Country of Origin	Proudly Made In America	Material	Galvanized Steel
Color	Silver	Selling Unit	1/Each	Type	Ice Machine Condenser

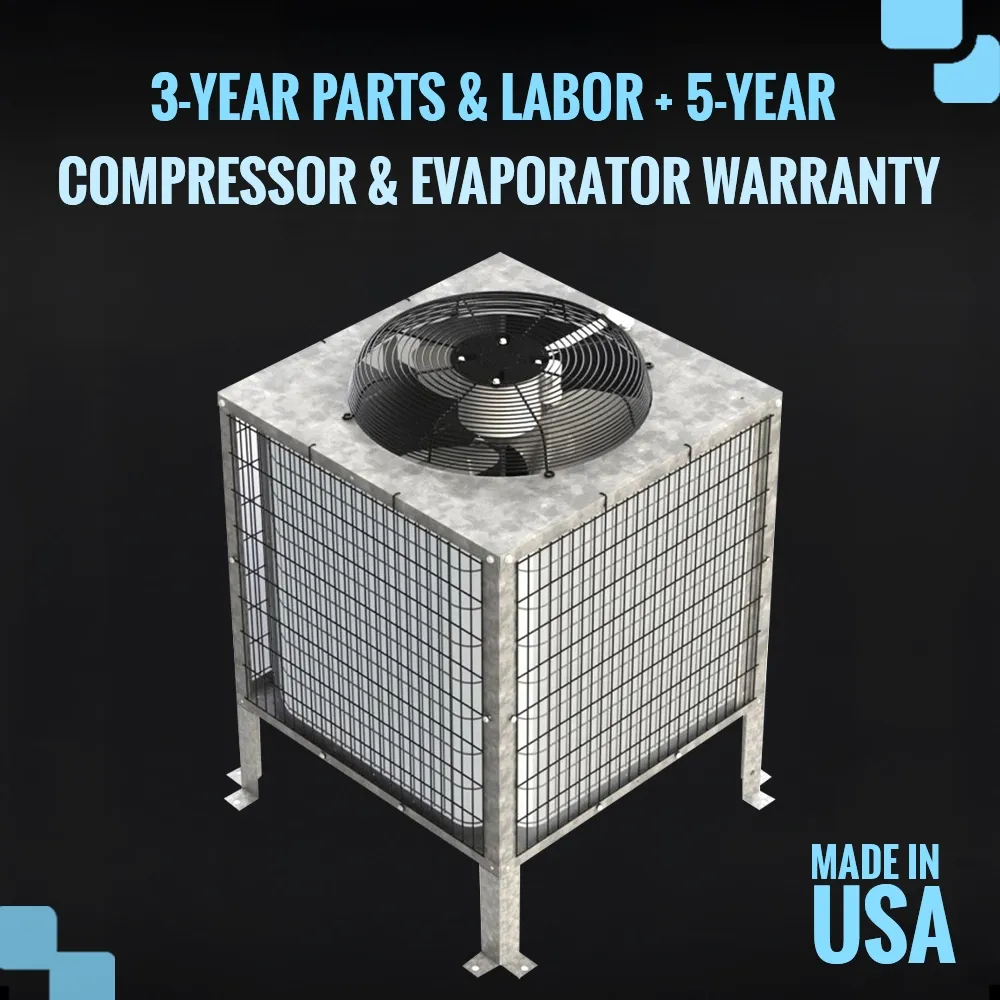

Warranty	3 years parts & labor, 5 years parts for Evaporator & Compressor	Features	Environmentally Responsible, More Efficient Motor, Innovative Legs	Shipping Weight	115 pound
Voltage	208/230 volt	Refrigerant Type	R-404A	Phase	1 Phase
Hertz	60 hertz	Certifications	cULus	Fits Model	CIM2046R
Included	Fan, Coil	Maximum Fuse Size	15 ampere	Product Width	27 inch
Product Depth	30.85 inch	Product Height	41.7 inch

Product Overview

The Ice-O-Matic RCA-3561 is a remote condenser engineered for optimal performance with the CIM2046R ice machine model. Ideal for commercial ice production environments, it helps reduce indoor noise and heat by relocating the refrigeration system’s heat exchange process outdoors or to a remote location.

This unit is constructed from galvanized steel with a silver finish, ensuring long-lasting durability in demanding conditions. It includes both a fan and coil and is cULus certified for safety and compliance. Designed with efficiency in mind, it features a more efficient motor, innovative leg design, and environmentally responsible components.

Operating on 208/230 volts, single-phase power at 60 hertz, the condenser uses R-404a refrigerant and supports a maximum fuse size of 15 amps. Dimensions are 27" W x 30.85" D x 41.7" H.
