What is the daily ice production capacity of this machine?

The Manitowoc IDF0500N-161AX can produce up to 510 pounds of ice in a 24-hour period under proper operating conditions.

What are the installation clearance requirements?

The unit requires 12 inches of clearance on the top and sides, and 5 inches of clearance at the back for proper installation and operation.

What type of warranty coverage comes with this ice machine?

The unit comes with a 3-year parts and labor warranty, plus an extended 5-year warranty on evaporator parts and compressor components.

Does this unit come with a storage bin?

No, the storage bin is sold separately. This is an ice machine head unit designed to be mounted on top of a compatible storage bin.

What are the water pressure and temperature requirements for operation?

The machine requires water pressure between 20 to 80 psi and can operate with water temperatures ranging from 40°F to 90°F.

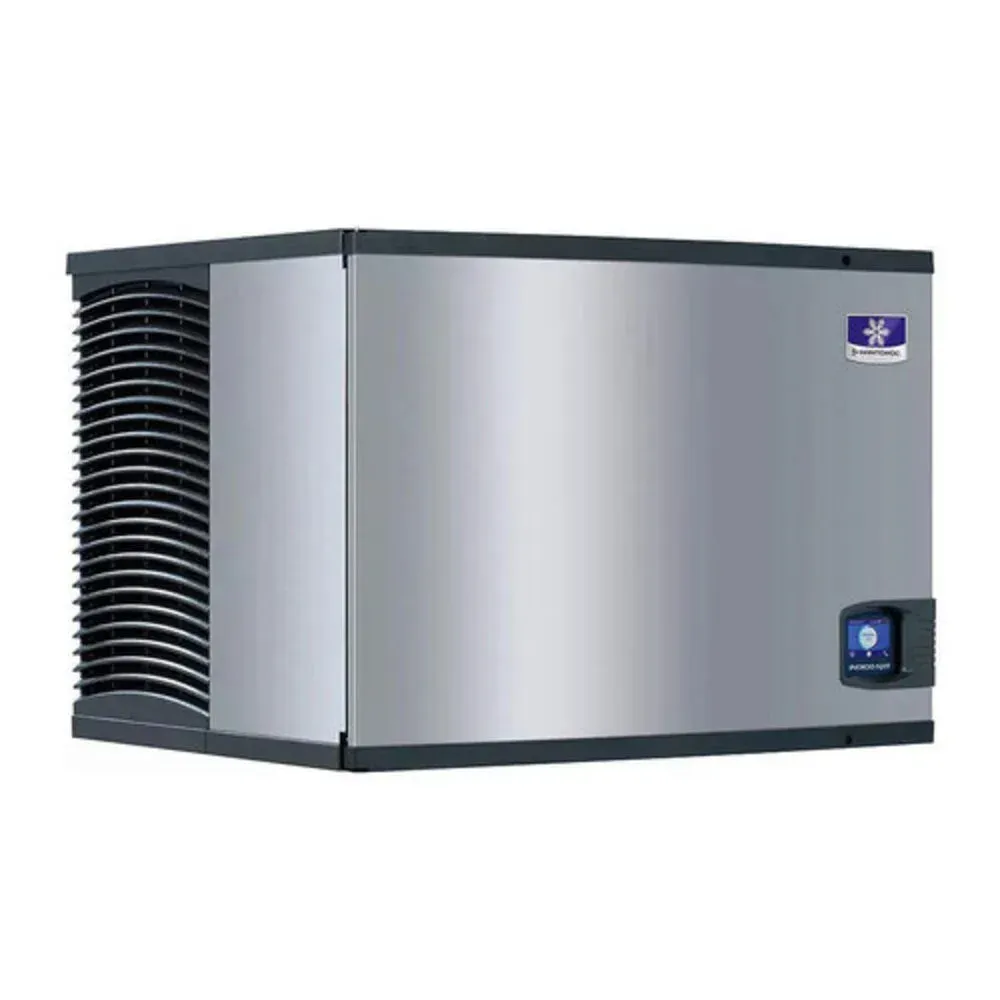

Manitowoc IDF0500N-161AX Indigo NXT 30" Dice Cube Ice Machine Head Without Storage Bin, Air Cooled, 510 lbs/day

Model: IDF0500N-161AX

$4,765.74

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Model: IDF0500N-161AX

★Why You'll Love It

High Ice Production: Produces up to 510 pounds of ice per day with full-size 7/8-inch cubes, ideal for high-volume commercial beverage service and food operations.
Energy Efficient Operation: Consumes only 5.96 kWh per 100 pounds of ice, utilizing R-404A refrigerant for optimal cooling performance and controlled energy usage.
Advanced Sanitation System: Features LuminIce II technology and iAuCS system with Arctic Pure Plus filters for superior ice hygiene and cleanliness.
Durable Construction: Built with stainless steel and DuraTech exterior finish, providing exceptional resistance to fingerprints, corrosion, and daily wear.
Smart Control Display: EasyTouch display interface enables intuitive operation and monitoring of ice production settings and system status.
Compact Design: Its space-efficient dimensions allow for convenient placement atop storage bins in commercial settings.
Comprehensive Warranty: Protected by 3-year parts and labor warranty, plus extended 5-year coverage on evaporator and compressor components.
Multiple Certifications: Meets rigorous industry standards with AHRI, cULus, CE, and NSF certifications for safety and performance.
Flexible Installation: Remote condenser system requires minimal clearance: 12 inches top/sides, 5 inches back, with standard water connections.
Water Management: Operates within 20-80 PSI pressure range, using 19 gallons daily with 3/8" inlet and 1/2" drain connections.

Produces up to 510 pounds of ice per day with full-size 7/8-inch cubes, ideal for high-volume commercial beverage service and food operations.

$4,765.74

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Ice-O-Matic RGA-1061-HM 27" Remote Condenser for GEM0956R, GEM1306R, MFI1506R, and MFI1256R, 208-230V

$1,305.00/Each

Ice-O-Matic RCA-3561 27" Remote Condenser for CIM2046R, 208-230V

$1,723.00/Each

Ice-O-Matic RGA-0501-HM 27" Remote Condenser for GEM060R and MFI0800R, 115V

$1,033.00/Each

Key Specification

ManufacturerManitowoc

Country of OriginProudly Made In America

MaterialStainless Steel

ColorSilver

Selling Unit1/Each

TypeIce Machine Head

Manufacturer	Manitowoc	Country of Origin	Proudly Made In America	Material	Stainless Steel
Color	Silver	Selling Unit	1/Each	Type	Ice Machine Head
Warranty	3 Years Parts & Labor, 5 Years Evaporator Parts & Labor, 5 Years Compressor Parts, 3 Years Compressor Labor	Features	EasyTouch Display, DuraTech Exterior, Traditional Condenser	Shipping Weight	169 pound
Amps	14.8 ampere	Hertz	60 hertz	Phase	1 Phase
Voltage	115 volt	Ice Type	Full Size Cube	Refrigerant Type	R-404A
Condenser Type	Air-Cooled Remote	Certifications	AHRI Certified, cULus Listed, CE, NSF Listed, ISO Approved	CFC Free	Yes
Series	Indigo NXT	LuminIce II	With LuminIce II	Included	Inhibitor, External Scoop Holder, Arctic Pure Plus Water Filters , iAuCS
Storage Bin	Without Storage Bin	Ambient Temperature Range	40°F to 110°F	Water Temperature Range	40°F to 90°F
Water Pressure Range	20 Psi to 80 Psi	Maximum Fuse Size	20 ampere	Water Usage (Potable 90°F/70°F)	19 gallon (US)
Remote Condenser Installation Clearance	12 Inches (Top/Sides), 5 Inches (Back)	Product Width	30 inch	Product Depth	24 inch
Product Height	21.5 inch	Water Inlet Size	3/8 inch	Drain Size	1/2 inch
Power Usage	5.96 kWh per 100 lbs.	24 Hour Ice Production	510 pound

Product Overview

The Manitowoc IDF0500N-161AX Indigo NXT is a commercial ice machine head built for remote condenser systems in high-demand environments. It features a strong stainless steel build with a sleek silver finish for durability and a clean look. Measuring 30 (W) x 24 (D) x 21.5 (H) inches, it fits compactly atop a storage bin, which is sold separately.This unit produces full-size cubes in dimensions of 7/8 x 7/8 x 7/8 inches (W x D x H), perfect for drinks and food service. It delivers up to 510 lb of ice in 24 hours. Operating on 115 V, 14.8 A, single phase, and 60 Hz, it ensures reliable power. It uses R-404A refrigerant, which supports consistent cooling performance. The power usage is 5.96 kWh per 100 lbs., keeping energy consumption controlled.Its air-cooled remote condenser requires 12 in of top/side clearance and 5 in at the back for installation. Water use is 19 gal daily with a 3/8 in inlet and 1/2 in drain, supporting a pressure range of 20 to 80 psi and water temperature from 40°F to 90°F. The unit is CFC-free and ISO approved.It includes LuminIce II for sanitation, an EasyTouch display for control, and a DuraTech exterior for resistance to fingerprints and corrosion. Also included are an external scoop holder, an iAuCS system, Arctic Pure Plus water filters, and a growth inhibitor. Certified by AHRI, cULus, CE, and NSF. Backed by a 3-year parts and labor warranty, plus 5 years on evaporator parts and compressor components.
