What is the condenser’s power and electrical requirement?

It operates on 208/230 volts, 3-phase, 60 Hz power and draws 9.3 amps, with a maximum fuse size of 15 amps.

What are the condenser’s cooling capabilities?

It offers an average cooling output of 16,200 BTU/hr and a peak output of 19,100 BTU/hr.

What refrigerant does it use?

The unit uses environmentally friendly R-410A refrigerant and is CFC-free.

Can this condenser handle outdoor installation?

Yes, it is designed for outdoor use and can operate in ambient temperatures ranging from -20°F to 130°F.

What certifications does this product have?

It is AHRI Certified, cULus Listed, CE listed, NSF Listed, and ISO Approved.

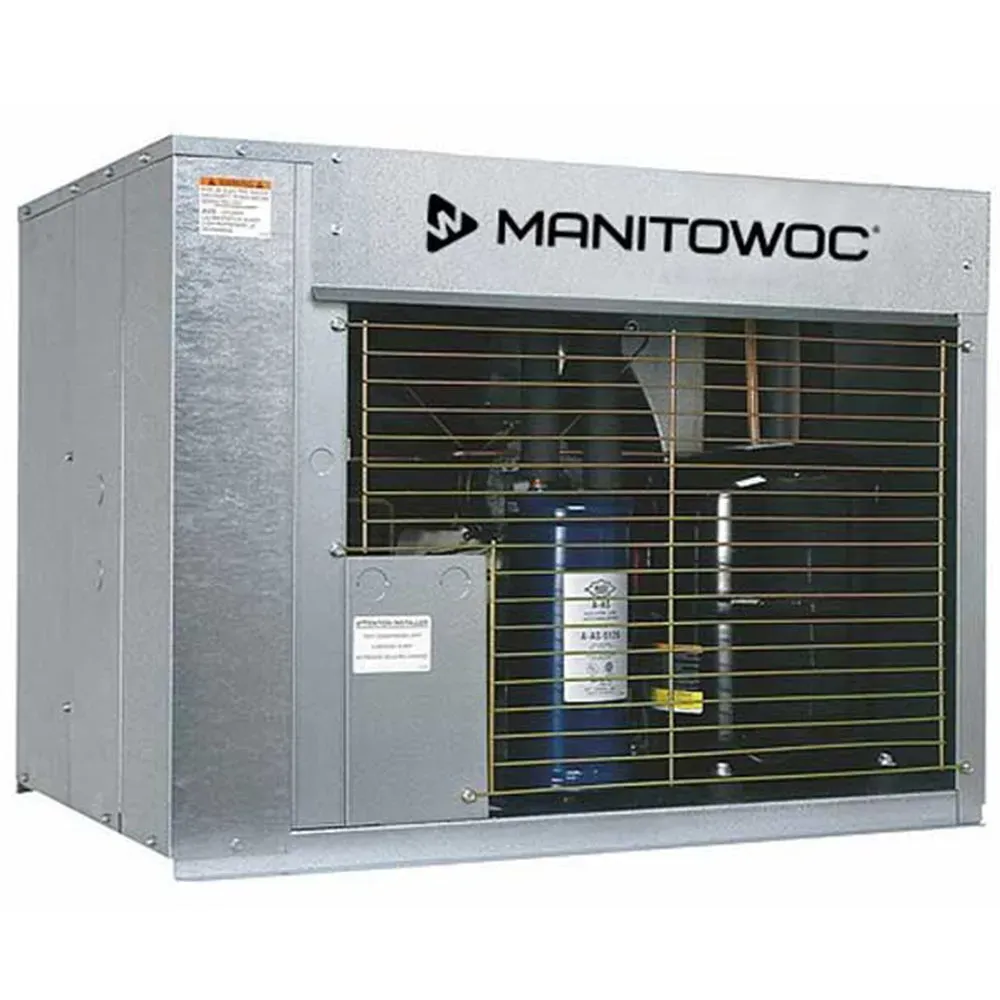

Manitowoc CVDT1200 Indigo QuietQube 34" Remote Ice Machine Condenser, 3 Phase,208-230V

Model: CVDT1200-263

$4,194.63

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Lease to OwnEstimated

Just $52/week instead of $4,195 today

Keep your cash in your business

$52

per week

$7.43 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: CVDT1200-263

★Why You'll Love It

Ultra-Quiet Operation: QuietQube® design minimizes operational noise by relocating heat exchange outdoors, creating a quieter indoor environment for staff and customers.
Maximum Cooling Power: Delivers impressive peak performance of 19,100 BTU/hr with sustained cooling average of 16,200 BTU/hr for reliable ice production.
Extreme Temperature Performance: Functions reliably in ambient temperatures from -20°F to 130°F, ensuring consistent operation across all seasonal conditions.
American-Made Quality: Manufactured in USA with durable DuraTech™ stainless steel exterior, designed specifically for demanding commercial environments.
Global Certification Compliance: Meets rigorous standards with AHRI, cULus, CE, NSF, and ISO certifications for safety, efficiency, and sanitation.
Comprehensive Warranty Protection: Backed by 3-year parts and labor warranty, providing peace of mind and long-term operational security.
Eco-Friendly Operation: Uses CFC-free R-410A refrigerant, supporting environmentally responsible business practices and regulatory compliance.
Reliable Power Supply: 3-phase, 208/230V operation at 9.3 amps ensures stable, efficient power consumption for continuous operation.
Heat Load Reduction: Remote condenser design minimizes indoor heat load, improving overall facility cooling efficiency and comfort.

QuietQube® design minimizes operational noise by relocating heat exchange outdoors, creating a quieter indoor environment for staff and customers.

$4,194.63

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Lease to OwnEstimated

Just $52/week instead of $4,195 today

Keep your cash in your business

$52

per week

$7.43 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Ice-O-Matic RGA-1061-HM 27" Remote Condenser for GEM0956R, GEM1306R, MFI1506R, and MFI1256R, 208-230V

$1,957.50/Each

Ice-O-Matic RGA-0501-HM 27" Remote Condenser for GEM060R and MFI0800R, 115V

$1,549.50/Each

Ice-O-Matic RCA-3561 27" Remote Condenser for CIM2046R, 208-230V

$2,584.50/Each

Similar Products

Hoshizaki DCM-751BWH-OS 34 1/16" Countertop Water Nugget Ice Dispenser, 782 lb, 95 lb Storage, Cup Fill, 115v

$20,392.50/Each

Hoshizaki DCM-751BWH 34 1/16" Countertop Water Nugget Ice Dispenser, 782 lb, 95 lb Storage, Cup Fill, 115v

$20,085.00/Each

Platinum Frost Series Commercial Air Cooled Ice Machine, 375 lbs Bin, 29.9", Capacity 500 lbs

$4,348.50/Each

Hoshizaki DCM-500BWH 26" Countertop Water Nugget Ice Dispenser, 590 lb, 40 lb Storage, Cup Fill, 115v

$14,347.50/Each

Key Specification

ManufacturerManitowoc

Country of OriginProudly Made In America

MaterialStainless Steel

ColorSilver

Selling Unit1/Each

TypeIce Machine Condenser

Manufacturer	Manitowoc	Country of Origin	Proudly Made In America	Material	Stainless Steel
Color	Silver	Selling Unit	1/Each	Type	Ice Machine Condenser
Warranty	3 Years Parts & Labor	Features	DuraTech Exterior	Shipping Weight	208 pound
Amps	9.3 ampere	Hertz	60 hertz	Phase	3 Phase
Voltage	208/230 volt	Refrigerant Type	R-410A	Certifications	AHRI Certified, cULus Listed, CE, NSF Listed, ISO Approved
CFC Free	Yes	Series	Indigo NXT	LuminIce II	Without LuminIce II
Design	QuietQube	Ambient Temperature Range	-20°F to 130°F	Average BTU Output	16200 BTU/Hr
Peak BTU Output	19100 BTU/Hr	Maximum Fuse Size	15 ampere	Horsepower	1.5 horsepower
Product Width	34 inch	Product Depth	24.13 inch	Product Height	25.75 inch

Product Overview

The Manitowoc Indigo NXT QuietQube Remote Condenser CVDT1200-263 is a high-performance cooling unit designed to support remote ice machine systems with maximum efficiency and minimal noise. Proudly made in America, it features a durable stainless steel DuraTech™ exterior in a silver finish, built for rugged commercial environments.

This 3-phase, 208/230V remote condenser runs at 9.3 amps and operates on 60 Hz power. It uses R-410A refrigerant, is CFC-free, and does not include LuminIce II. Engineered for reliability, the unit delivers up to 19,100 BTU/hr at peak and maintains a cooling average of 16,200 BTU/hr, making it ideal for supporting high-capacity ice machines.

Built under Manitowoc’s QuietQube® design, this condenser minimizes noise and indoor heat load by relocating heat exchange outdoors. It handles extreme environments with an ambient temperature range of -20°F to 130°F, ensuring uninterrupted performance in all seasons.

The condenser measures 34 in x 24.13 in x 25.75 in (W x D x H). It is certified by AHRI, cULus, CE, NSF, and ISO, meeting stringent global standards for safety, efficiency, and sanitation. Covered by a 3-year parts and labor warranty, the Manitowoc Indigo NXT QuietQube remote condenser is a reliable choice for businesses seeking quiet, efficient, and environmentally responsible refrigeration support.
