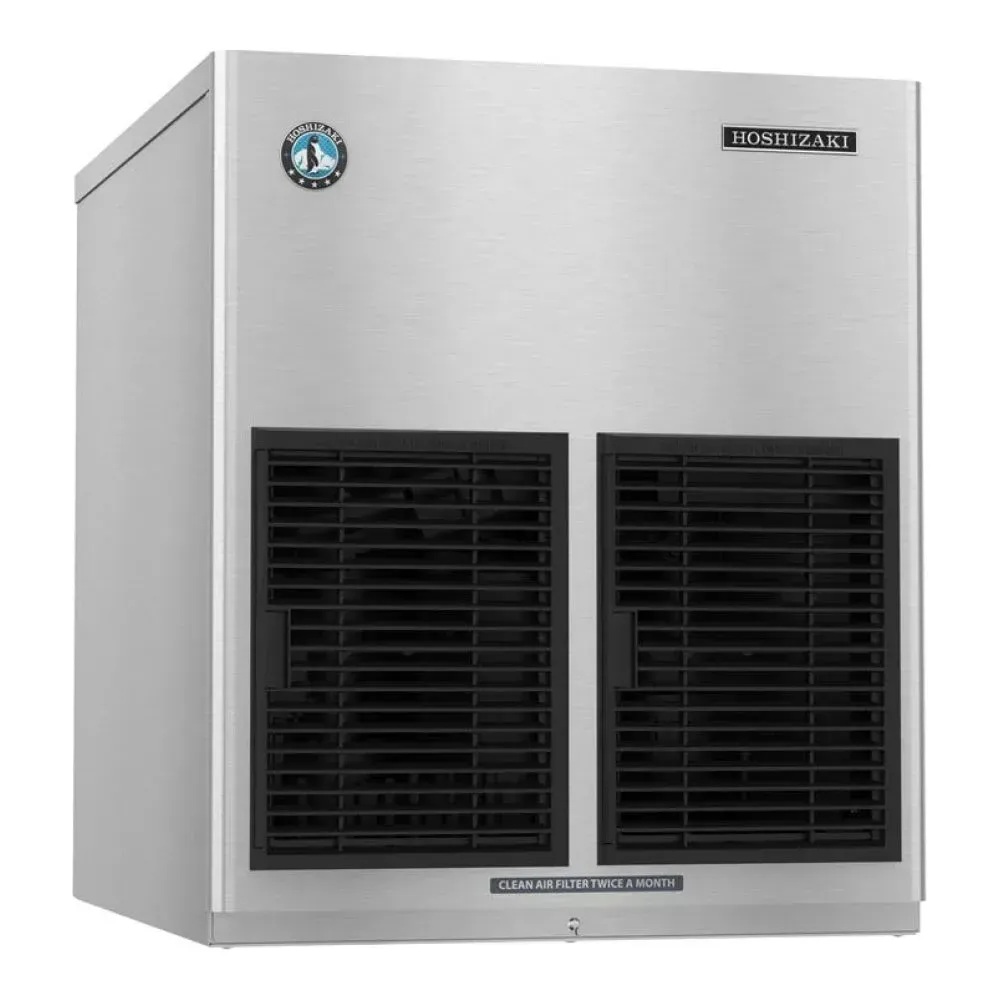

Nugget ice machine head by Hoshizaki America with filter cleaning instructions for biweekly maintenance, ensuring consistent ice output.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Hoshizaki America
Material
Stainless steel
Color
Silver
Shipping Weight
205 lb
Phase
1 Phase
Condenser Type
Air-Cooled Self-Contained
Plug Type
Hardwire
Amps
11.8 A
Water Usage
12 gal
Certifications
cULus Listed, NSE Approved, AHRI Certified, Energy Star
Voltage Range
104 - 127 Volts
Potable Water Pressure Range
10 to 113 Psi
BTU Per Hour
5000 BTU
Installation Configuration
Installed on top of compatible bin & dispenser
Product Depth
27.37 in
24 Hour Ice Production
690 lb
Drain Size
3/4 in
Selling Unit
1/Each
Type
Air Cooled Ice Machine
Warranty
3 years parts & labor for Ice Maker, 5 years parts for Compressor
Features
2-second hourly flush removes sediment for cleaner ice
Voltage
115 V
Ice Type
Nugget
Refrigerant Type
R-404A
Hertz
60 Hz
Ambient Temperature Range
45 to 100°F
Compatible Model
B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150
Series
F-801MAJ-C
Maximum Fuse Size
15 A
Max Daily Ice Production
690 Lbs/Day
Product Width
22 in
Product Height
26 in
Water Inlet Size
1/4 in
Power Usage
5.0 kWh per 100 lbs (at 90°F air / 70°F water)

Product Overview

The Hoshizaki F-801MAJ-C F Series Nugget Ice Machine Head represents commercial ice production excellence. Constructed with premium stainless steel, this air-cooled unit delivers superior performance in the hospitality industry. As a leading manufacturer, Hoshizaki has engineered this machine to produce the popular chewable nugget ice that customers prefer.

Operating on 115V power, this powerhouse generates up to 690 pounds of nugget ice per 24 hours. The unit features advanced technology with a 2-second hourly flush system for optimal ice clarity and machine longevity. With power usage of 5.0 kWh per 100 lbs at standard conditions and R404A refrigerant, it maintains efficient operation across varying demands.

Measuring 22 inches wide, 27.37 inches deep, and 26 inches high, this unit offers flexible installation options. The machine operates effectively in ambient temperatures from 45°F to 100°F with water pressure requirements of 10 to 113 PSI. Its robust construction includes a hardwired electrical connection and produces 5000 BTU per hour for consistent performance.

The F-801MAJ-C comes backed by Hoshizaki's comprehensive warranty: 3 years parts and labor for the ice maker and 5 years for the compressor. It meets strict industry standards with cULus Listed, NSF Approved, AHRI Certified, and Energy Star certifications. Designed for professional environments, this ice machine head is compatible with various storage bins (B-250 through B-1650) for customizable ice storage solutions.
