What cooling system does it use?

The unit is remote air-cooled, improving heat dispersion and reducing noise.

What are its power and energy specs?

It runs on 115V, draws 20.1 amps, and uses 6.3 kWh per 100 lbs of ice.

How much water does it use?

Water usage is approximately 19.6 gallons per 100 lbs of ice.

What sanitation features are built in?

It includes Agion® antimicrobial protection, dual exhaust, one-touch cleaning, and a Smart LED cleaning alert.

How much ice does the CIM0530HR produce daily?

It produces up to 570 lbs of half-size cube ice per day.

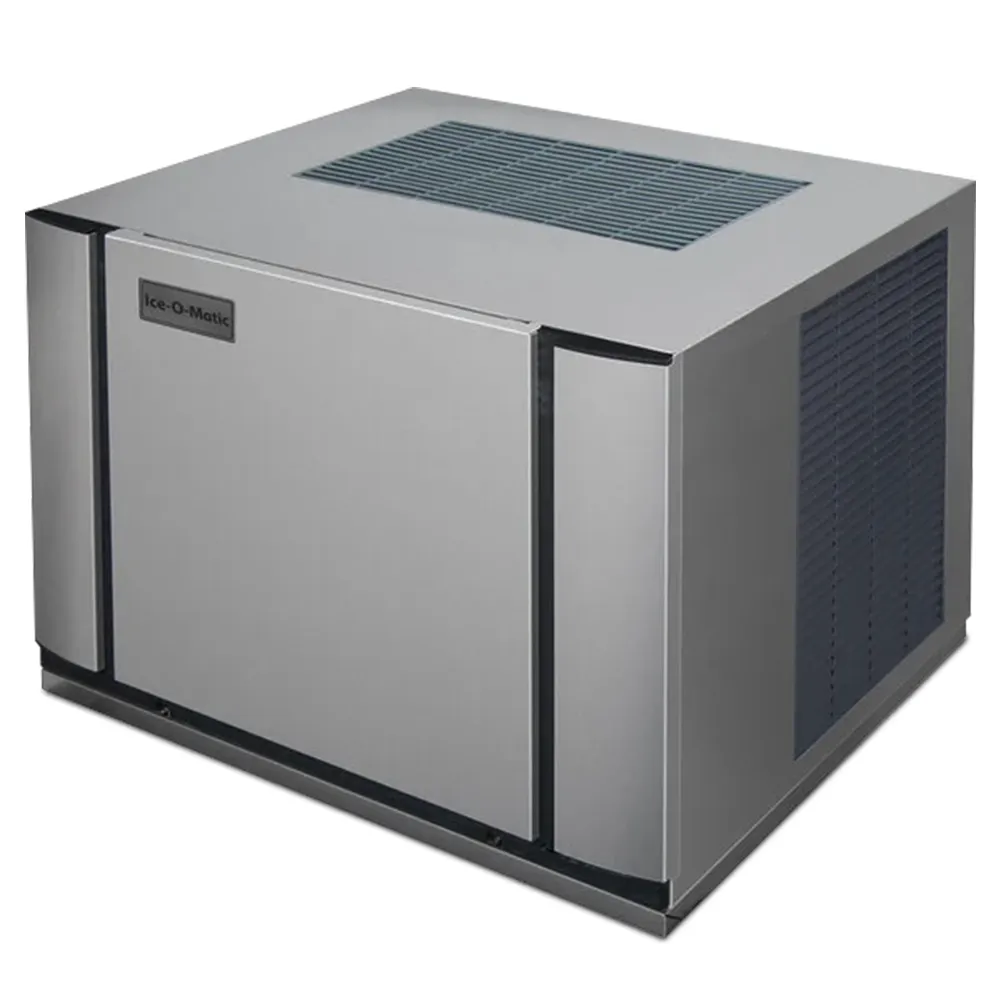

Ice-O-Matic CIM0530R Elevation Series 30" Full Cube Ice Machine Head Without Storage Bin, Remote Cooled, Stainless Steel, 115v

Model: CIM0530HR

4.8(5 reviews)

$4,380.00

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $52/week instead of $4,380 today

Keep your cash in your business

$52

per week

$7.43 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: CIM0530HR

4.8(5 reviews)

★Why You'll Love It

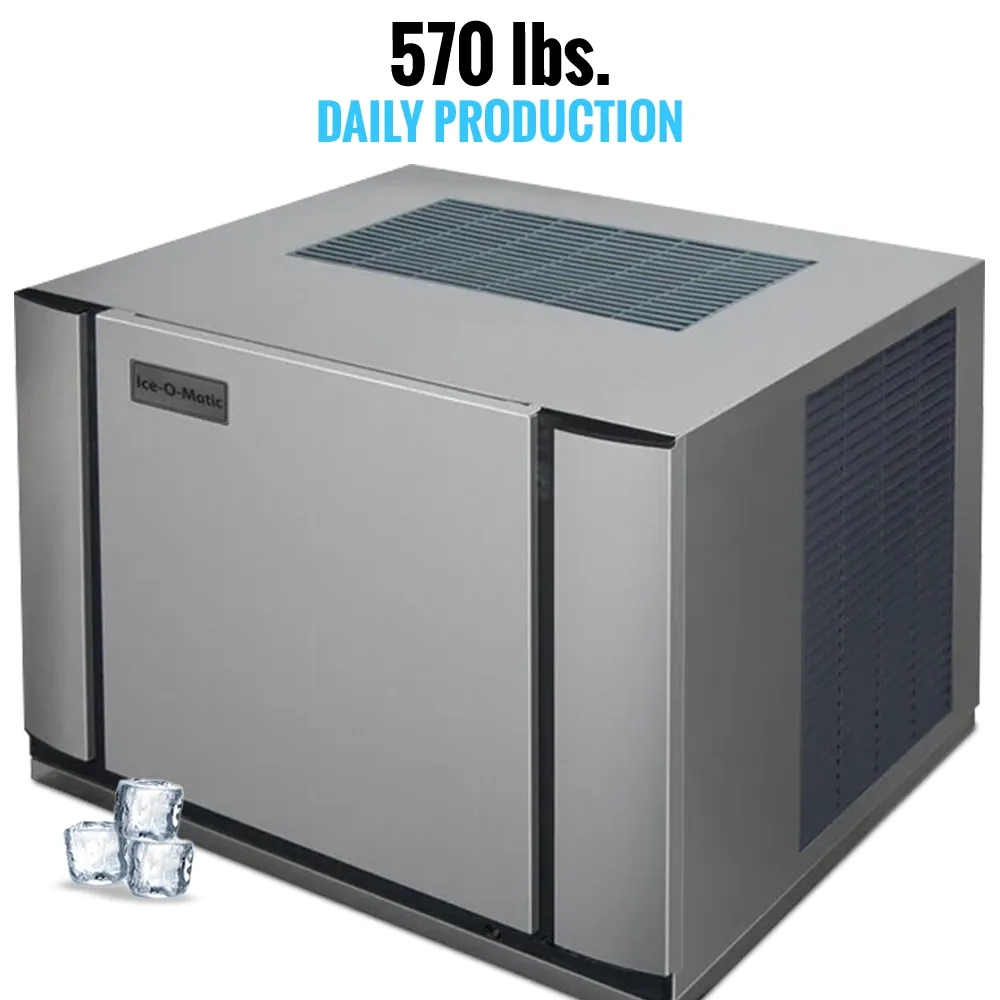

High Ice Production: Produces up to 570 pounds of half-size cube ice daily, perfect for medium-duty environments like cafes, offices, and small hotels.

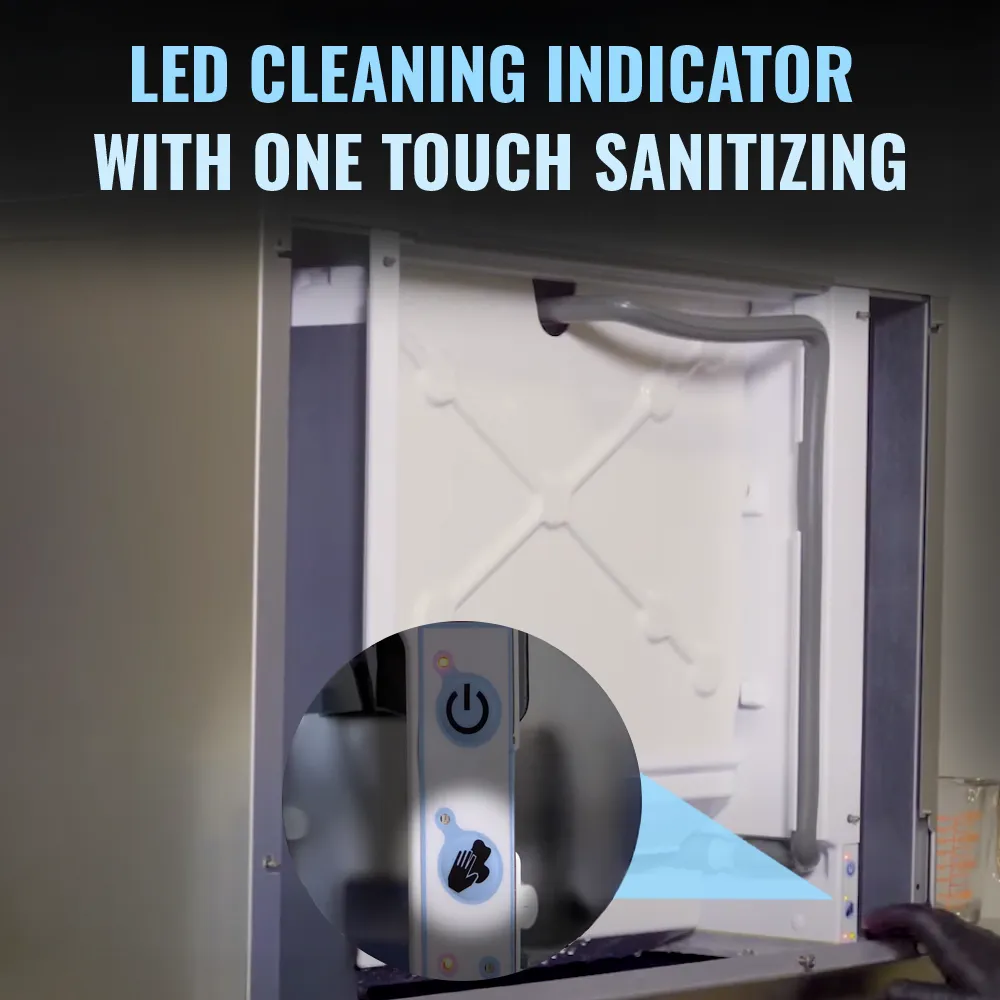

Advanced Sanitation System: Features Agion antimicrobial protection and one-touch sanitization system with Smart LED cleaning alerts for optimal hygiene maintenance.

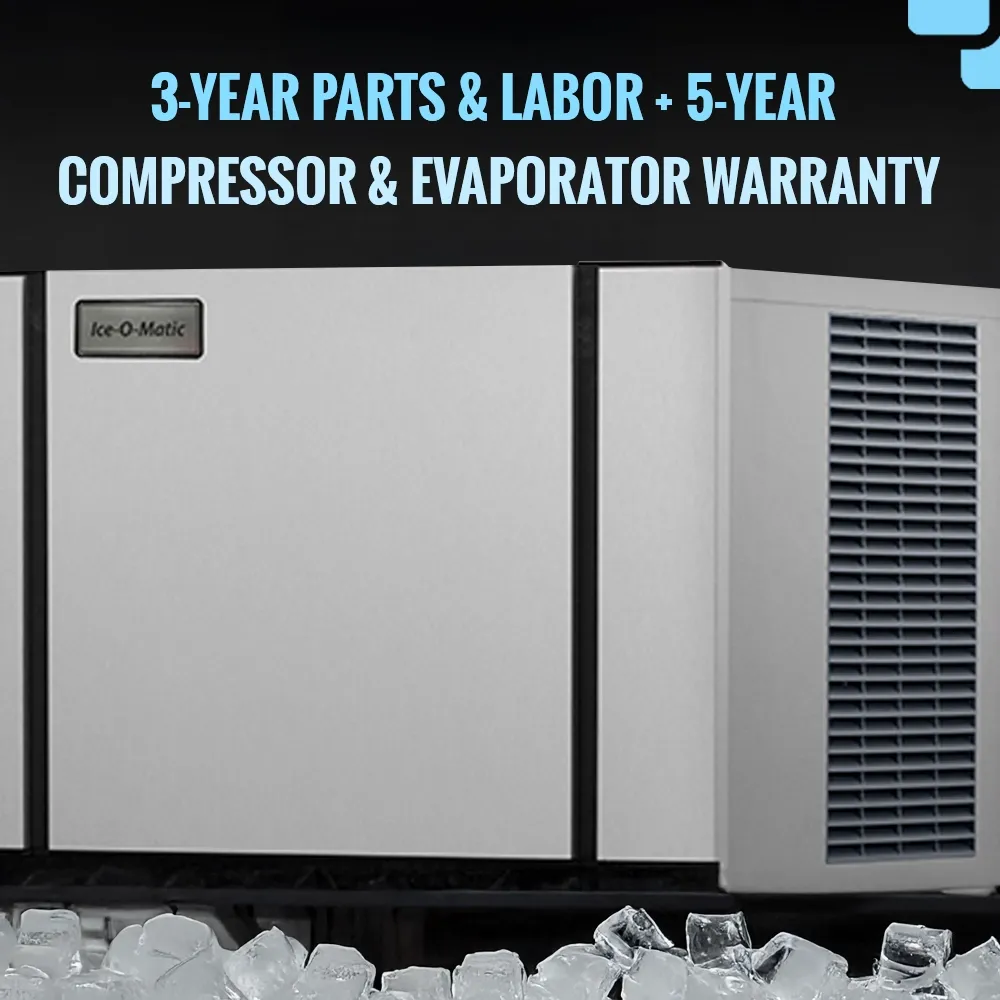

Extended Warranty Protection: Includes 3-year parts and labor warranty, plus 5-year coverage on evaporator and compressor components.
Multiple Certifications: Certified by cULus, NSF, CE, ISO, and Energy Star, ensuring compliance with industry standards and energy efficiency.
Durable Construction: Built with stainless steel exterior and BPA-free plastic food zone for long-lasting performance and food safety.
Efficient Temperature Range: Operates effectively in ambient conditions between 50°F and 100°F, ensuring consistent ice production.

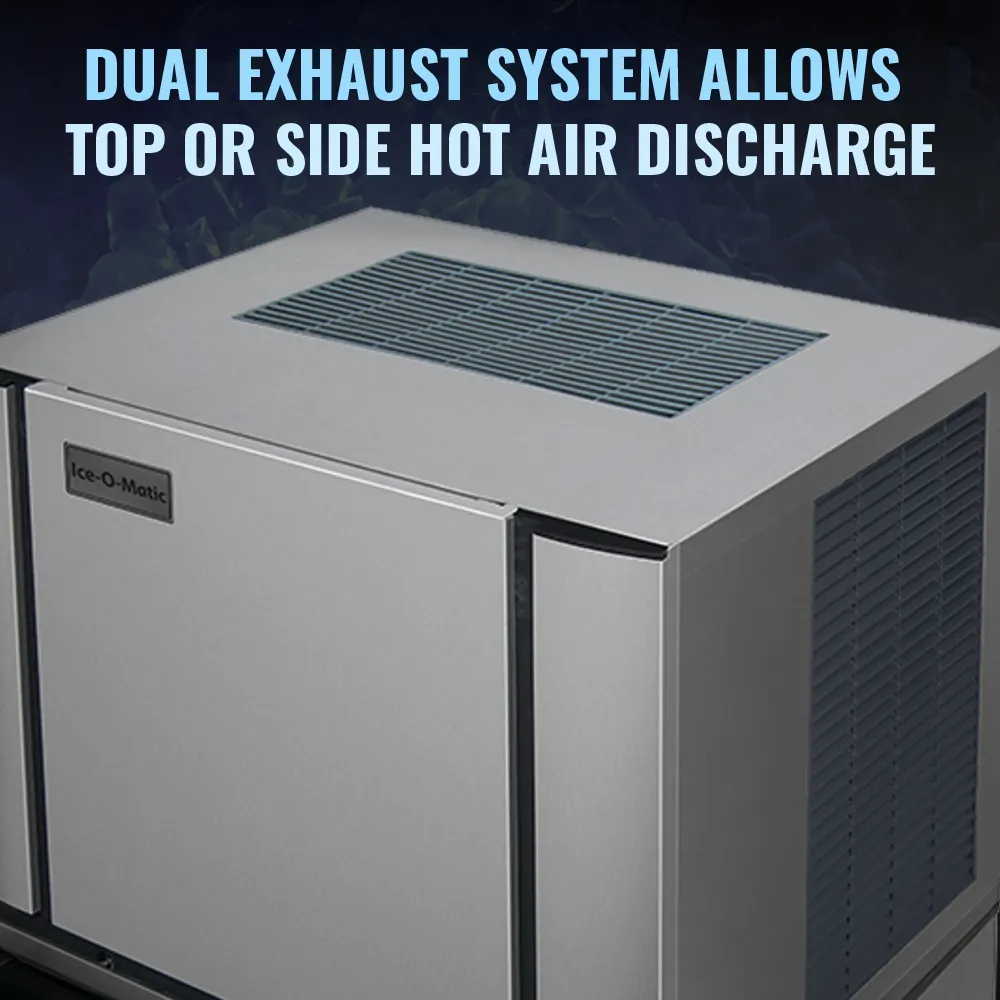

Easy Maintenance: Dual exhaust system and one-touch descaling function simplify routine maintenance and cleaning procedures.
Energy Efficient: Consumes only 6.3 kWh per 100 lbs of ice production, with 6,252 BTU/hour heat release.

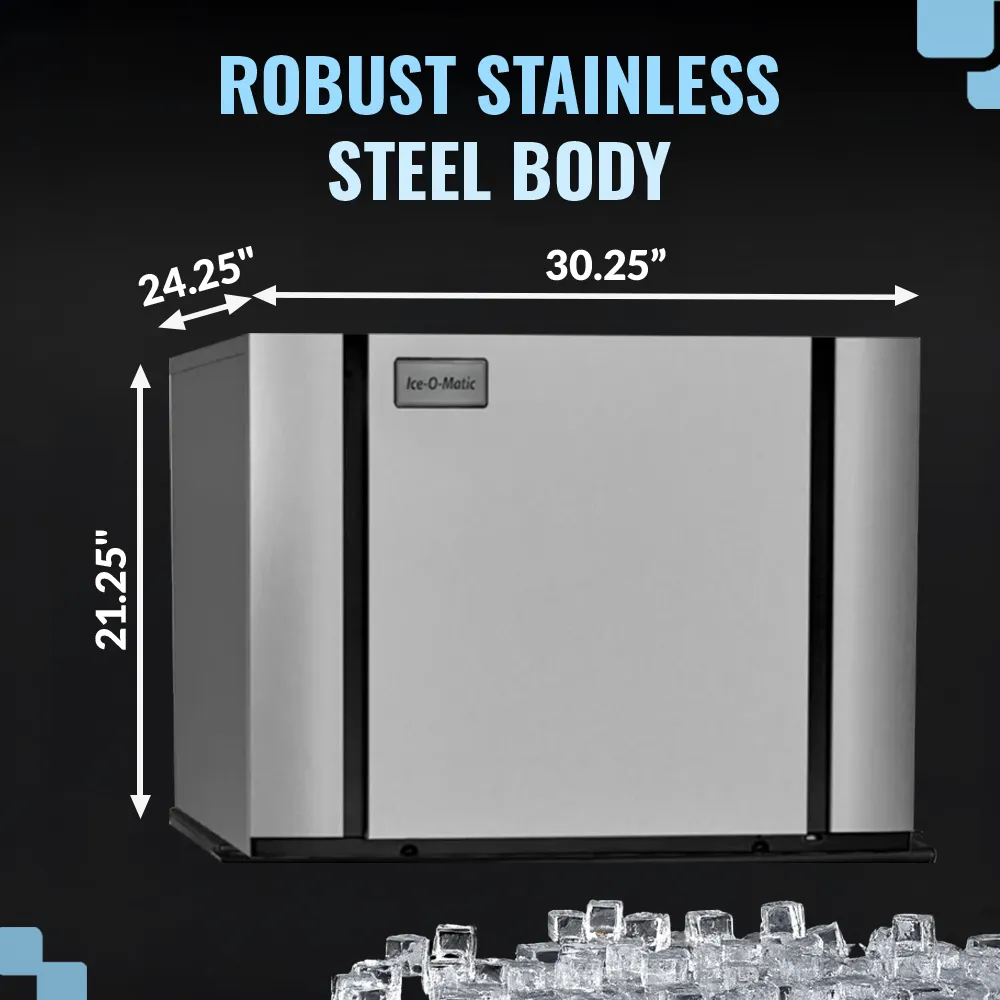

Compact Design: Space-efficient dimensions of 30.25"W x 24.25"D x 21.25"H fit various commercial settings.
Simple Installation: Compatible with standard 3/8" water inlet and 3/4" drain connections for straightforward setup and integration.

Produces up to 570 pounds of half-size cube ice daily, perfect for medium-duty environments like cafes, offices, and small hotels.

$4,380.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $52/week instead of $4,380 today

Keep your cash in your business

$52

per week

$7.43 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Installation & Elevation Diagram.pdf Spare Parts List.pdf Technical Specification Sheet.pdf User Manual.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Manitowoc IYT0500A Indigo NXT 30" Half Size Cube Ice Machine Head Without Storage Bin, Air Cooled, 550 lbs/day

$4,489.27/Each

Manitowoc IYT0620A-161 Indigo NXT 22" Half Dice Ice Machine Head Without Storage Bin, Air Cooled, 575 lbs/day, 115V

$4,302.15/Each

Similar Products

ChillCore Series 26'' Commercial Undercounter Air Cooled Ice Machine With 80lb Bin, 200 lb/day

$1,190.00/Each

ChillCore Series 20'' Commercial Undercounter Ice Machine with 35 lb Bin, 150 lb/day, 1 Year Warranty

$433.99/Each

Manitowoc UYF0190A-251Z 26" Undercounter Ice Machine with 90 lb. Bin, Air Cooled, 193 lbs

$2,906.74/Each

Manitowoc UYF0240W-251Z 26" Undercounter Half Size Cube Ice Machine with 90 lb. Bin, Water Cooled, 207 lbs/day

$3,498.32/Each

Manitowoc UDP0080A-251Z NEOB 19" Undercounter Ice Machine with 31 lb. Bin, Air Cooled

$2,795.03/Each

Manitowoc IYT0300A-161X Indigo NXT 30" Half Dice Cube Ice Machine Head Without Storage Bin, Air Cooled, 310 lbs/day

$4,065.24/Each

Manitowoc IDF0500N Indigo NXT 30" Full Size Cube Ice Machine Head Without Storage Bin, Air Cooled, 510 lbs/day

$4,351.49/Each

Manitowoc IDT0450W-161X Indigo NXT 30" Dice Cube Ice Machine Head Without Storage Bin, Water Cooled, 430 lbs/day

$4,681.03/Each

Key Specification

ManufacturerIce-O-Matic

MaterialStainless steel

ColorSilver

Selling Unit1/Each

TypeAir Cooled Ice Machine

Warranty3 years parts & labor for Ice Maker, 5 years parts for Evaporator & Compressor

Manufacturer	Ice-O-Matic	Material	Stainless steel	Color	Silver
Selling Unit	1/Each	Type	Air Cooled Ice Machine	Warranty	3 years parts & labor for Ice Maker, 5 years parts for Evaporator & Compressor
Features	BPA-free plastic food zone, Agion® antimicrobial, dual exhaust	Shipping Weight	160 pound	Phase	1 Phase
Voltage	115 volt	Condenser Type	Air-Cooled Remote Traditional	Ice Type	Full Size Cubes

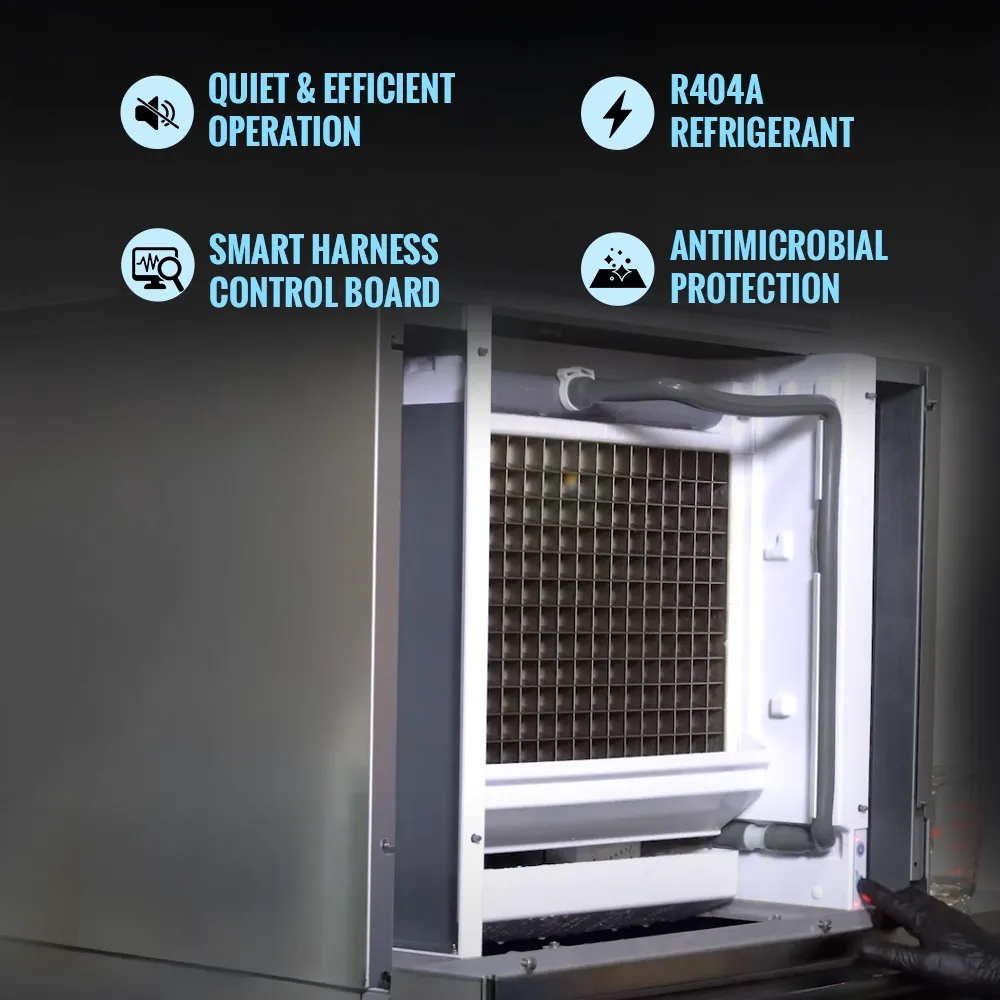

Plug Type	Hardwire	Refrigerant Type	R-404A	Water Inlet Size	3/8 inch
Hertz	60 hertz	Amps	20.1 ampere	Water Usage	19.6 gallon (US)
Interior Material	Plastic	Ambient Temperature Range	50°F to 100°F	Certifications	cULus Listed, NSF Approved, ISO 9001 Certified, CE Listed, Energy Star
Compatible Model	Bins: B25, B40, B42, B55, B110, B700, B1000, B1300, B1325, B1660	Series	CIM0530	Potable Water Pressure Range	20 to 80 Psi
BTU Per Hour	6252 british thermal unit	Compatible Water Filters	IFQ1-XL, IOMQXL1	Manifold Replacement Models	CIM0535
Junction Box Size	7/8 inch	Sanitation	One-touch sanitization & descaling	Cleaning Alert Indicator	Smart LED light
Max Daily Ice Production	586 Lbs/Day	Remote Condenser Temperature Range	-20˚F to 120˚F	Breaker Amps	25 ampere
Installation Configuration	Installed on top of compatible bin & dispenser	Product Width	30.25 inch	Product Depth	24.25 inch
Product Height	21.25 inch	24 Hour Ice Production	570 pound	Drain Size	3/4 inch
Power Usage	6.3 kWh per 100 lbs

Product Overview

The Ice-O-Matic CIM0530HR is a remote air-cooled ice machine designed for medium-duty environments like cafés, office breakrooms, and small hotels that require efficient daily ice output. With a maximum daily production of 586 lbs of half-size cube ice, it supports reliable performance for steady service demands.Constructed from durable stainless steel with a BPA-free plastic food zone, this model includes Agion® antimicrobial protection, a dual exhaust system, and one-touch sanitization and descaling for easy maintenance. It features a Smart LED cleaning alert for hygiene monitoring and is compatible with standard 3/8" water inlet and 3/4" drain connections.The unit operates on 115V power, draws 20.1 amps, and consumes 6.3 kWh per 100 lbs of ice, releasing 6,252 BTU/hour of heat. It measures 30.25" W x 24.25" D x 21.25" H, and works best in ambient conditions between 50°F and 100°F, with a water usage rate of 19.6 gallons per 100 lbs.Certified by cULus, NSF, CE, ISO, and Energy Star, the CIM0530HR is compatible with a range of Ice-O-Matic storage bins and comes with a 3-year parts and labor warranty and 5-year parts coverage on the evaporator and compressor, offering solid value and long-term performance.
