How much ice does this machine produce in a day?

This unit produces up to 193 lb of ice in a 24-hour period.

What type of ice does it make?

It produces half-size cube ice measuring 3/8 inch by 1 1/8 inch by 7/8 inch.

How much ice can the built-in bin store?

The integrated bin can store up to 90 lb of ice.

Is this machine designed for undercounter installation?

Yes. It is a self-contained undercounter ice machine and is compact enough to fit beneath most commercial counters.

What are its water and power consumption rates?

It consumes 21.6 gallons of water per day and 8.3 kWh of electricity per 100 lb of ice produced.

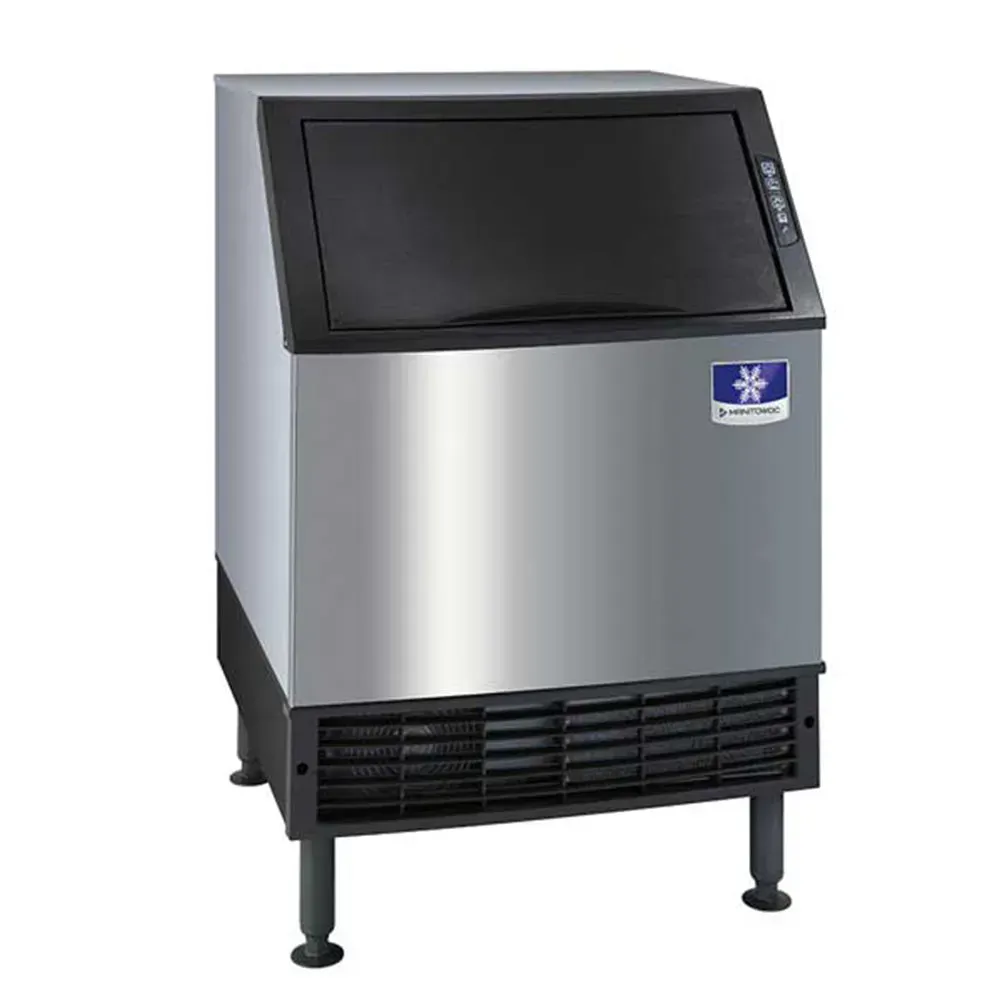

Manitowoc UYF0190A-251Z 26" Undercounter Ice Machine with 90 lb. Bin, Air Cooled, 193 lbs

Model: UYF0190A-251Z

$2,906.74

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Model: UYF0190A-251Z

★Why You'll Love It

High Ice Output: Produces up to 193 lb of half-size cube ice per day for consistent use in busy environments.
Compact Undercounter Fit: Fits neatly under most standard commercial counters for compact installation.
Efficient Water Usage: Produces more ice with less water and energy, reducing utility load per output.
User-Friendly Operation: Simple controls with clear access for easy daily use and maintenance.
Reliable Cooling System: Features an air-cooled condenser releasing 2,600 BTU per hour for steady performance.
Durable Construction: Built with stainless steel and a sleek finish to handle daily commercial use.
Certified Safety Standards: Certified by AHRI, NSF, cULus, and CE for trusted quality assurance.
Comprehensive Warranty: Comes with a 3-year parts and labor warranty and 5 years on the evaporator and compressor.

Produces up to 193 lb of half-size cube ice per day for consistent use in busy environments.

$2,906.74

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf User Manual.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Ice-O-Matic UCG130GA 18" Undercounter Gourmet Grande Cube Ice Machine With 121 lbs Bin, Air Cooled, 1 Phase, 115V

$2,829.00/Each

Ice-O-Matic UCG130A 18" Undercounter Gourmet Cube Ice Machine With 121 lbs Bin, Air Cooled, 1 Phase, 115V

$2,749.00/Each

Ice-O-Matic UCG100A 18" Undercounter Gourmet Cube Ice Machine With 114 lbs Bin, Air Cooled, 1 Phase, 115V

$2,565.00/Each

Similar Products

ChillCore Series 20'' Commercial Undercounter Ice Machine with 35 lb Bin, 150 lb/day, 1 Year Warranty

$433.99/Each

ChillCore Series 26'' Commercial Undercounter Air Cooled Ice Machine With 80lb Bin, 200 lb/day

$1,190.00/Each

Ice-O-Matic ICEU300HA ICE Series 30" Undercounter Cube Ice Machine with 97 lb. Bin, 115v

$3,825.00/Each

Key Specification

ManufacturerManitowoc

Country of OriginProudly Made In America

MaterialStainless steel

ColorSilver

Selling Unit1/Each

TypeUndercounter Ice Machine

Manufacturer	Manitowoc	Country of Origin	Proudly Made In America	Material	Stainless steel
Color	Silver	Selling Unit	1/Each	Type	Undercounter Ice Machine
Warranty	3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor	Features	Produces more ice with less water and energy	Shipping Weight	193 pound
Phase	1 Phase	Voltage	220/240 volt	Bin Storage Capacity	90 pound
Ice Type	Half Size Cubes	Water Usage	21.6 gallon (US)	Amps	6 ampere
Plug Type	NEMA 5-15P	Refrigerant Type	R404A	Water Inlet Size	3/8 inch
Hertz	50 hertz	Ambient Temperature Range	40˚ to 110˚F	Condenser Type	Air Cooled
Certifications	cULus Listed, NSF Approved, AHRI Certified, CE Listed	BTU Per Hour	2600 british thermal unit	Product Width	26 inch
Product Depth	28 inch	Product Height	38.5 inch	Ice Bin Width	26 inch
Ice Bin Depth	28 inch	Ice Size (W x D x H)	3/8 x 1 1/8 x 7/8 Inches	24 Hour Ice Production	193 pound
Legs Size	6 inch	Power Usage	8.3 kWh per 100 lbs

Product Overview

The Manitowoc UYF0190A-251Z is a self-contained undercounter ice machine with a built-in bin. It is made of stainless steel and features a sleek silver finish. This unit operates on 220/240 V, 1 phase, 50 Hz, and uses a NEMA 5-15P plug. It draws 6 amps and uses R404A refrigerant.This machine produces up to 193 lb of half-size cube ice in 24 hours and stores up to 90 lb in its internal bin. Each cube measures 3/8 inch x 1 1/8 inch x 7/8 inch. The machine consumes 21.6 gallons of water and 8.3 kWh of electricity per 100 lb of ice produced.Its air-cooled condenser releases 2,600 BTU per hour and is designed to operate in ambient temperatures ranging from 40°F to 110°F. The unit includes a 3/8 inch water inlet and stands on 6-inch legs. Overall dimensions are 26 inches (W) x 28 inches (D) x 38.5 inches (H). The ice bin has a matching depth of 28 inches and a width of 26 inches.The machine is certified by AHRI, NSF, cULus, and CE. It includes a 3-year parts and labor warranty on the ice maker and a 5-year parts and labor warranty on the evaporator and compressor.
