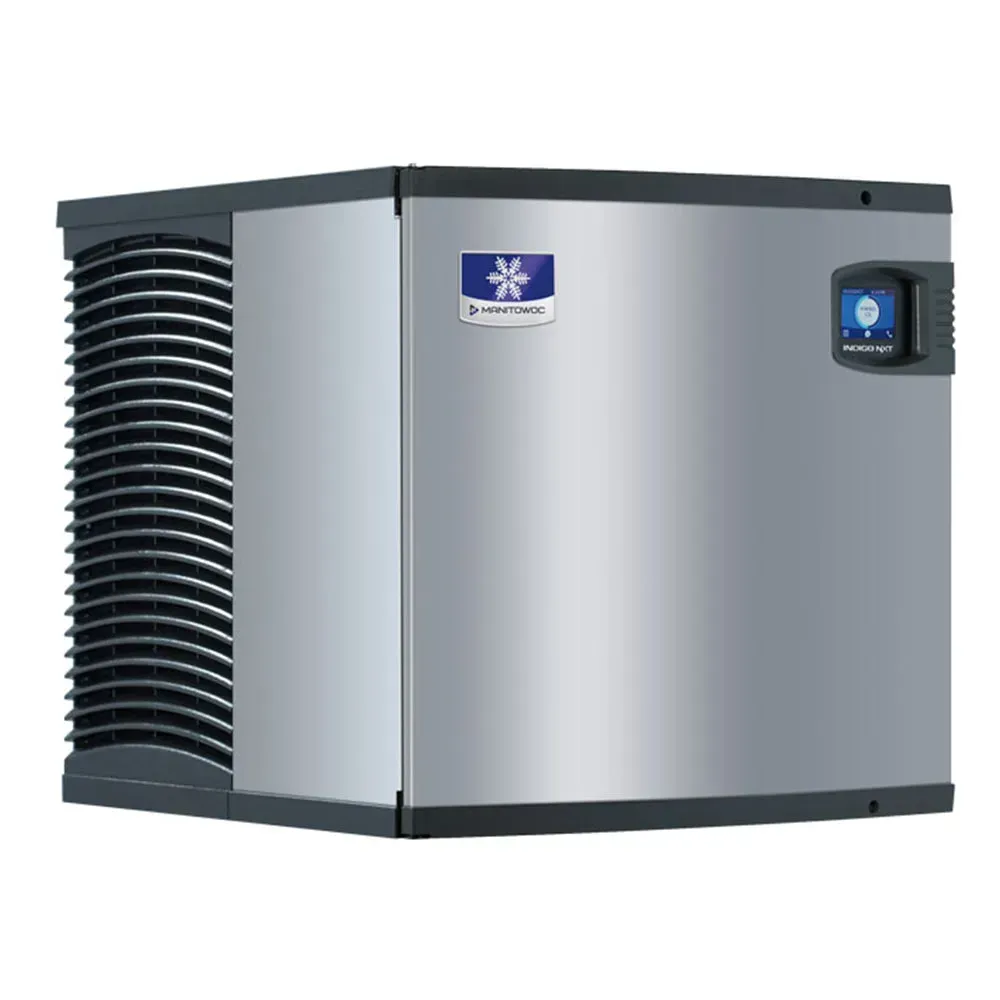

Manitowoc IYT0420W-161 Indigo NXT 22" Half Dice Ice Machine Head Without Storage Bin, Water Cooled, 490 lbs/day, 115V

The Manitowoc IYT0420W-161 Indigo NXT Ice Machine Head is a high-efficiency, water-cooled commercial ice machine that produces 490 lb of half-dice cube ice per day. Proudly made in America, this model features a robust DuraTech stainless steel exterior in a sleek silver finish. It uses R-410A refrigerant, requiring a 15 A max fuse.

It runs on 115 V, 60 Hz, 1 phase, 10.6 A with a power usage of 4.24 kWh per 100 lbs of ice and water usage of 19.9 gallons. The unit includes features like iAuCS for automatic cleaning and Arctic Pure water filters to ensure quality output. It handles a potable water pressure range of 20–80 psi and a condenser water pressure range of 20–276 psi. The included external scoop holder ensures hygienic, easy access to ice without contaminating the bin interior.

Compact and easy to install, this ice machine head measures 22" W x 24.5" D x 21.5" H, with a 3/8" water inlet and a 1/2" drain size. The unit supports an ambient temperature range of 40°F to 110°F and a water temperature range of 40°F to 90°F, ensuring stable operation across various conditions. It is CFC-free and offers 48% lower global warming potential. The unit delivers an average BTU output of 3,800 BTU/hr and a peak output of 6,000 BTU/hr, ensuring consistent performance.

This model is AHRI certified, CE listed, NSF listed, ISO approved, and cULus listed, making it fully compliant for commercial kitchen use. Backed by a 3-year parts and labor warranty, a 5-year parts and labor warranty on the evaporator, a 5-year parts warranty on the compressor, and a 3-year labor warranty on the compressor, it is for reliable, long-term use.
