What is the Manitowoc JCT1500-261Q used for?

It is a remote air-cooled condenser designed for commercial ice machine systems.

What is the electrical configuration?

It operates on 208/230 volts, 1 phase, 60 Hz, and draws 15 amps. It requires a hardwired connection and is protected by a maximum 15 A fuse.

What is the ambient temperature operating range?

The unit is built to operate in environments from -20°F to 120°F.

Is the unit certified for commercial use?

Yes, it is cULus Listed, AHRI Certified, and CE Listed.

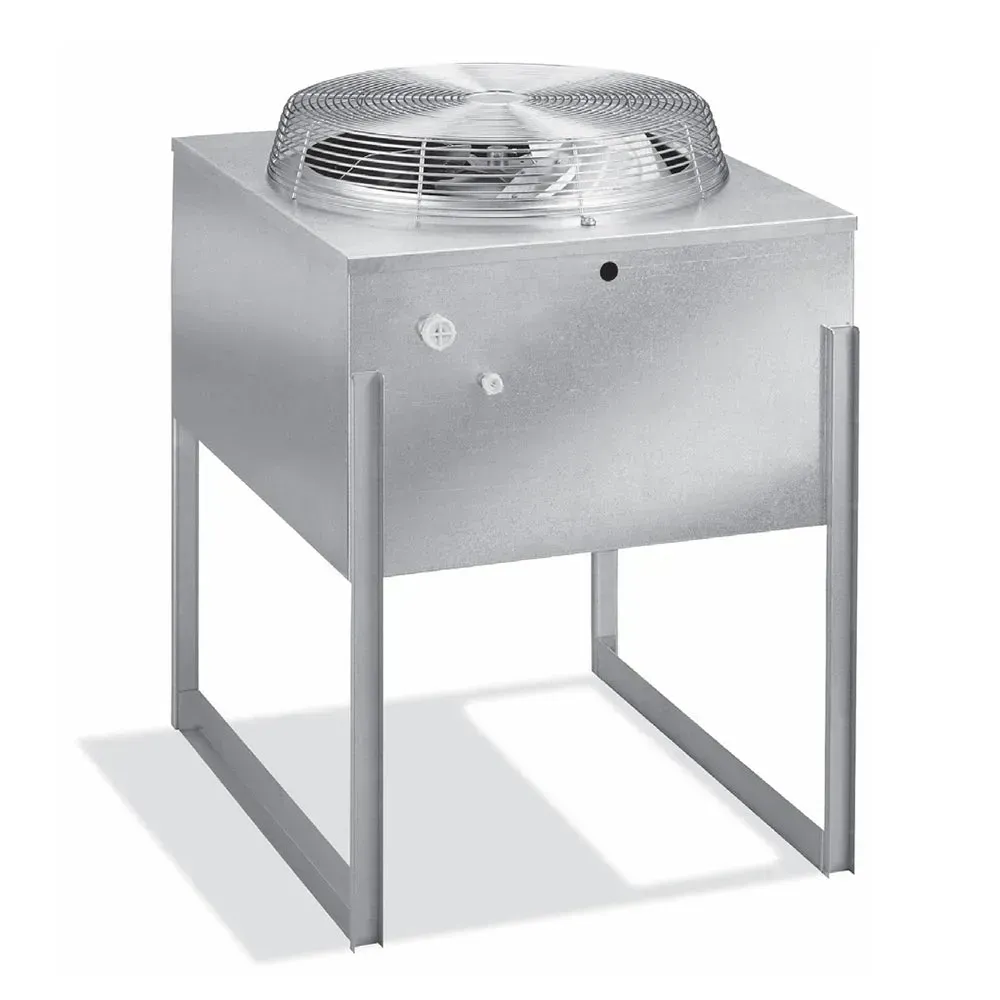

Manitowoc JCT1500-261Q 34" Remote Condensing Unit, Air Cooled, Vertical Discharge

Model: JCT1500-261Q

$1,784.07

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Model: JCT1500-261Q

★Why You'll Love It

Reliable Condensing: Remote traditional condenser supports efficient ice machine operation.
Durable Construction: Stainless steel body with silver finish ensures strength and corrosion resistance.
Wide Temperature Range: Performs reliably in ambient temperatures from -20°F to 120°F.
Energy Compatible: Operates on 208/230 V, 1-phase, 60 Hz with a 15 A draw and hardwire connection.
Certified Quality: cULus Listed, AHRI Certified, and CE Listed for compliance and reliability.
Warranty Protection: 3-year parts & labor for ice maker; 5-year parts & labor for evaporator and compressor.

Remote traditional condenser supports efficient ice machine operation.

$1,784.07

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Ice-O-Matic RCA-3561 27" Remote Condenser for CIM2046R, 208-230V

$1,723.00/Each

Ice-O-Matic RGA-1061-HM 27" Remote Condenser for GEM0956R, GEM1306R, MFI1506R, and MFI1256R, 208-230V

$1,305.00/Each

Ice-O-Matic RGA-0501-HM 27" Remote Condenser for GEM060R and MFI0800R, 115V

$1,033.00/Each

Key Specification

ManufacturerManitowoc

Country of OriginProudly Made In America

MaterialStainless steel

ColorSilver

Selling Unit1/Each

TypeIce Machine Condenser

Manufacturer	Manitowoc	Country of Origin	Proudly Made In America	Material	Stainless steel
Color	Silver	Selling Unit	1/Each	Type	Ice Machine Condenser
Warranty	3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor	Shipping Weight	200 pound	Phase	1 Phase
Voltage	208/230 volt	Plug Type	Hardwire	Amps	15 ampere
Hertz	60 hertz	Ambient Temperature Range	-20˚ to 120˚F	Condenser Type	Air-Cooled Remote Traditional
Certifications	cULus Listed, AHRI Certified, CE Listed	Series	JCT1500	Maximum Fuse Size	15 ampere
Product Width	34 inch	Product Depth	24.13 inch	Product Height	25.75 inch

Product Overview

The Manitowoc JCT1500-261Q is a remote air-cooled condenser from the JCT1500 Series, designed for high-efficiency performance in commercial ice systems. Constructed from stainless steel with a silver finish, it is built for durability and reliability. The unit operates on 208/230 volts, 1 phase, and 60 Hz, drawing 15 amps and protected by a 15 A maximum fuse.With dimensions of 34 inches (W) x 24.13 inches (D) x and 25.75 inches (H), the condenser is hardwired for secure power connection. It performs effectively in ambient temperatures ranging from -20°F to 120°F.Certified by cULus, AHRI, and CE, it meets stringent safety and performance standards. The JCT1500-261Q includes a 3-year parts and labor warranty for the ice maker and a 5-year parts and labor warranty for the evaporator and compressor.
