What is the voltage and electrical configuration?

This unit operates on 208/230 volts, 1 phase, 60 Hz, and draws 12.5 amps. It requires hardwiring and supports a maximum fuse size of 20 amps.

What temperature conditions can the condenser handle?

The CVDF0900 is built to operate in ambient temperatures ranging from -20°F to 130°F, making it suitable for outdoor installation.

What type of condenser system does it use?

This unit utilizes Remote CVD (Cool Vapor Defrost) Technology, which is designed for efficient heat transfer and system performance.

Is this a standalone ice machine?

No. This is a remote condenser designed to work with compatible Manitowoc remote-cooled ice machines.

What certifications does this unit have?

This remote condenser is cULus Listed NSF Approved AHRI Certified CE Listed

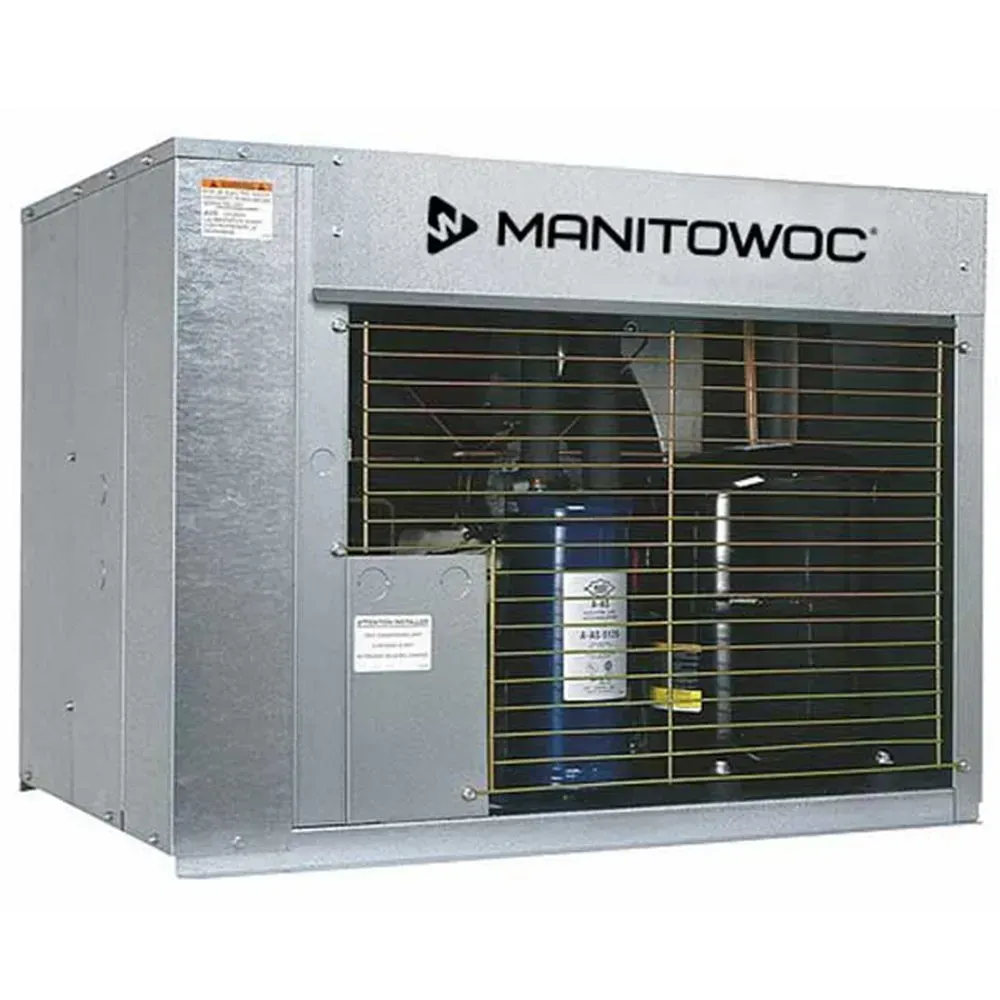

Manitowoc CVDF0900 QuietQube 34" Remote Condensing Unit for IF-0900C IBF-0820C, Air Cooled

Model: CVDF0900-261A

$2,451.99

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Model: CVDF0900-261A

★Why You'll Love It

Enhanced Cooling Efficiency: Advanced Remote CVD Technology optimizes system performance while minimizing operational noise and heat output in the installation environment.
Extreme Temperature Performance: Operates reliably in ambient temperatures from -20°F to 130°F, ensuring consistent ice production across diverse environmental conditions.
Extended Warranty Protection: Comprehensive coverage with 3-year parts and labor warranty on ice maker, 5 years on evaporator and compressor.
Multiple Certifications: Meets rigorous commercial standards with cULus, NSF, AHRI, CE, and ISO 9001 certifications for assured quality and compliance.
Indoor-Outdoor Versatility: Designed for flexible installation in both indoor and outdoor environments with protective construction features.
Powerful Performance: 208/230V system with 12.5 amp draw and 20-amp fuse protection delivers reliable commercial-grade ice making capabilities.
Remote Operation: Specialized remote condenser design reduces heat and noise in primary installation area for improved workspace comfort.
Commercial Durability: Engineered specifically for demanding commercial applications with heavy-duty components and robust construction.

Advanced Remote CVD Technology optimizes system performance while minimizing operational noise and heat output in the installation environment.

$2,451.99

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Ice-O-Matic RGA-1061-HM 27" Remote Condenser for GEM0956R, GEM1306R, MFI1506R, and MFI1256R, 208-230V

$1,305.00/Each

Ice-O-Matic RGA-0501-HM 27" Remote Condenser for GEM060R and MFI0800R, 115V

$1,033.00/Each

Ice-O-Matic RCA-3561 27" Remote Condenser for CIM2046R, 208-230V

$1,723.00/Each

Similar Products

Turbo Air TWF-28SD-D2-N 27" Super Deluxe Worktop Freezer, 1 Section, 7 cu.ft.

$3,944.53/Each

Beverage-Air PR3HC-1AS P-Series 77" Top Mounted Reach-In Refrigerator, Solid Door

$11,377.06/Each

Beverage-Air HF2HC-1G Horizon Series 52" Top Mounted Reach-In Freezer, Glass Door

$9,859.57/Each

Beverage-Air SPED60HC-08C-2 60" Refrigerated Sandwich Prep Table, Cutting Top, 1 Door, 2 Drawer, 17" Wide Cutting Board

$6,362.49/Each

True TS-49F-4-HC 54" Reach-In Freezer, 2 Sections, Solid Door, 7 Year Warranty

$9,404.43/Each

Key Specification

ManufacturerManitowoc

Country of OriginProudly Made In America

MaterialStainless steel

ColorSilver

Selling Unit1/Each

TypeIce Machine Condenser

Manufacturer	Manitowoc	Country of Origin	Proudly Made In America	Material	Stainless steel
Color	Silver	Selling Unit	1/Each	Type	Ice Machine Condenser
Warranty	3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor	Shipping Weight	183 pound	Phase	1 Phase
Voltage	208/230 volt	Plug Type	Hardwire	Amps	12.5 ampere
Hertz	60 hertz	Ambient Temperature Range	-20˚ to 130˚F	Condenser Type	Remote CVD Technology
Certifications	cULus Listed, NSF Approved, AHRI Certified, CE Listed	Series	CVDF0900	Maximum Fuse Size	20 ampere
Product Width	34 inch	Product Depth	24.12 inch	Product Height	25.75 inch

Product Overview

The Manitowoc CVDF0900 is a high-performance remote condenser engineered to support commercial ice-making systems with enhanced cooling efficiency. Proudly made in America, this unit features a stainless steel construction and a silver finish, ensuring durability and corrosion resistance in both indoor and outdoor settings.Designed for use with compatible remote ice makers, this condenser utilizes Remote CVD (Cool Vapor Defrost) Technology to improve system efficiency while reducing noise and heat in the installation area. The CVDF0900 series delivers reliable performance across a broad environmental range.This model operates on 208/230 volts, 1 phase, 60 Hz, and draws 12.5 amps. It is hardwired and protected by a maximum fuse size of 20 amps. Built for rugged climates, it performs effectively in ambient temperatures from -20°F to 130°F. The unit measures 34 inches (W)× 24.12 inches (D)× 25.75 inches (H). The CVDF0900 is certified for commercial use with approvals from cULus, NSF, AHRI, CE, and ISO 9001 standards. It is backed by 3 years parts and labor on the ice maker and 5 years parts and labor on the evaporator and compressor.
