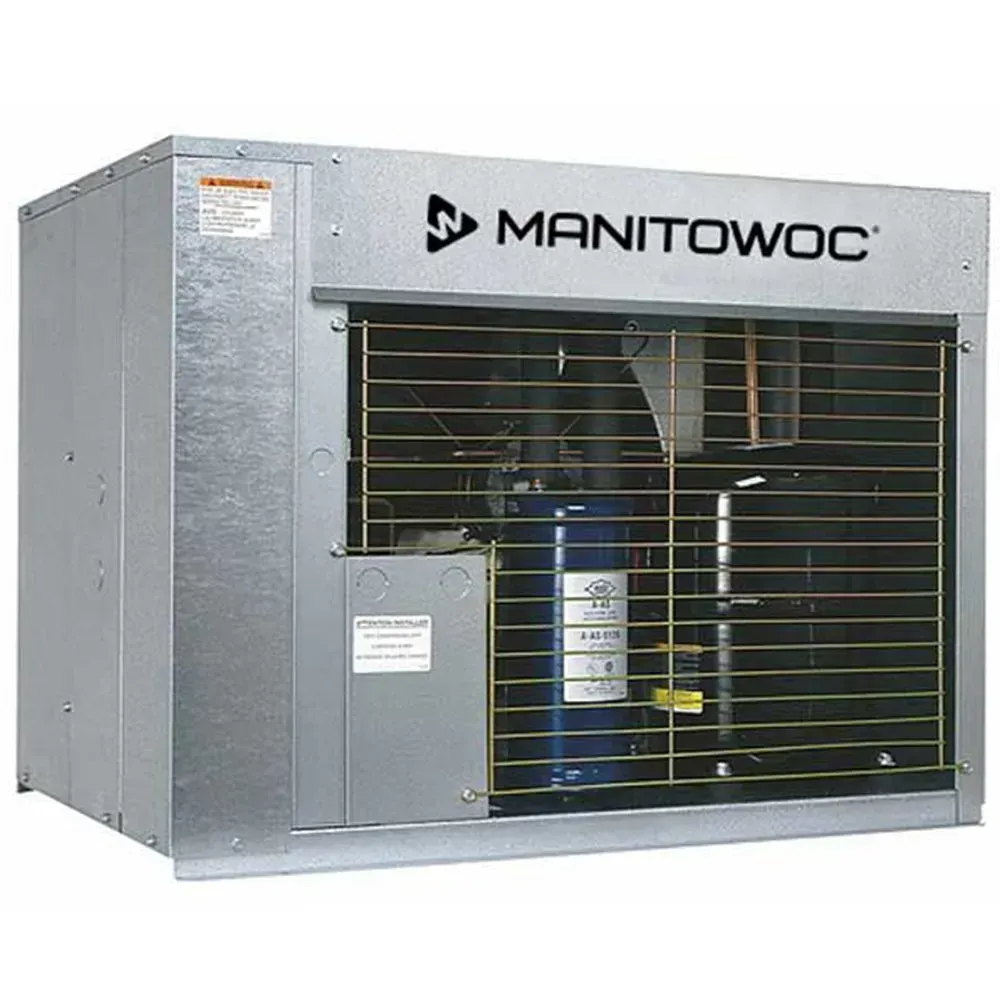

Manitowoc CVDF0600 QuietQube 34" Remote Condensing Unit for IF-0600C IBF-0620C, Air Cooled

The Manitowoc CVDF0600 Remote Condenser is a commercial-grade remote cooling unit built for ice-making systems that require reliable and efficient heat rejection away from the ice machine. Proudly made in America, this model is constructed with a stainless steel exterior and finished in silver for durability and corrosion resistance.This remote condenser operates using CVD (Cool Vapor Defrost) technology and is part of the CVDF0600 series. It is designed for remote installation, helping reduce noise and heat in the ice-making area by relocating the condenser unit. The condenser has overall dimensions of 34 inches (W) × 24.12 inches (D) × 25.75 inches (H). It is designed to be used as part of a complete Manitowoc remote ice-making system.The unit operates on 208/230 volts, 1 phase, 60 Hz, and draws 11.6 amps. It is hardwired for power and supports a maximum fuse size of 15 amps. The condenser is engineered to perform in a broad ambient temperature range from -20˚F to 130˚F, making it suitable for outdoor or rooftop installation.This model is cULus Listed, NSF Approved, AHRI Certified, and CE Listed, meeting rigorous standards for safety, performance, and energy compliance. The warranty coverage includes 3 years parts and labor on the ice maker and 5 years parts and labor on the evaporator and compressor.
