How much ice does the Ice-O-Matic CIM0836HR produce daily?

It produces up to 906 lbs of half-size cube ice in 24 hours.

What type of cooling system does it use?

The CIM0836HR is a remote-cooled ice machine head, ideal for reducing heat and noise in the kitchen.

What are the power and energy requirements?

It operates on 208/230V, draws 12.3 amps, uses 4.9 kWh per 100 lbs, and requires a 20 A fuse.

What is the heat rejection and water usage rate?

The unit rejects 15,100 BTU/hr and uses approximately 19 gallons of water per 100 lbs of ice.

What sanitation features are included?

It features one-touch sanitization and descaling, Agion® antimicrobial protection, and a smart LED status display.

What are the water connection specifications?

The machine uses a 3/8" water inlet and a 3/4" drain connection.

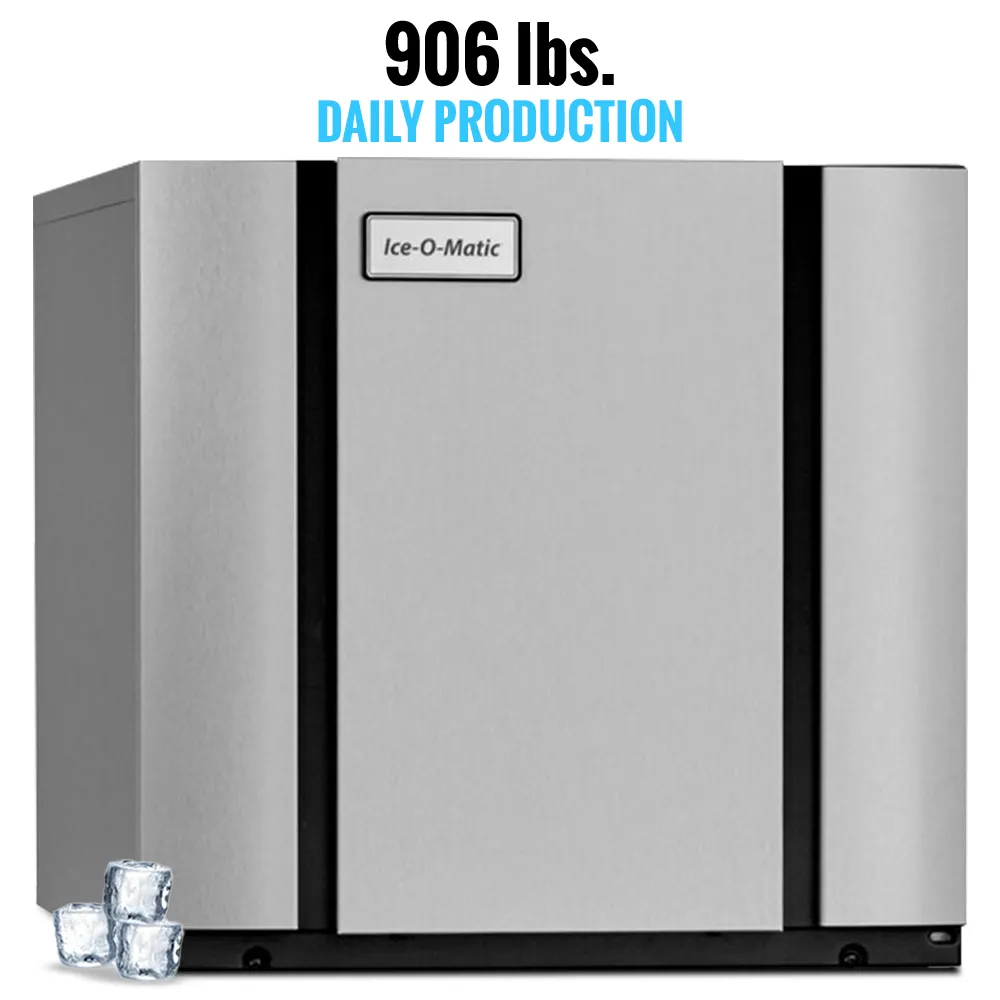

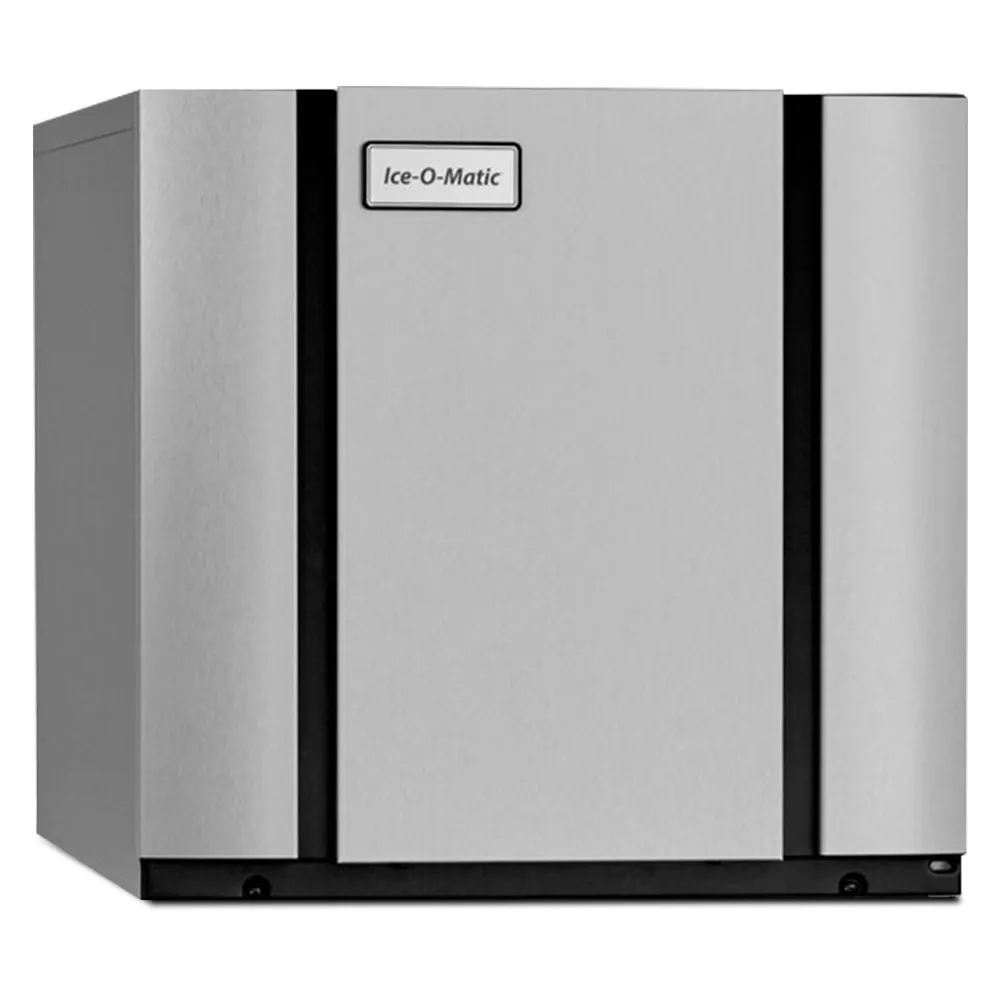

Ice-O-Matic CIM0836R Elevation Series 30.25" Half Cube Ice Machine Head Without Storage Bin, Remote Cooled, 906 lb/24 hr, 208/230v/1ph

Model: CIM0836HR

4.2(5 reviews)

$6,298.00

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $78/week instead of $6,298 today

Keep your cash in your business

$78

per week

$11.14 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: CIM0836HR

4.2(5 reviews)

★Why You'll Love It

High Daily Output: Produces up to 906 pounds of half-size cube ice per day, meeting demands of high-volume restaurants, cafes, hotels, and institutional operations.
Energy Star Certified: Energy-efficient operation using only 4.9 kWh per 100 lbs of ice, with comprehensive certifications including NSF, CE, cULus, and ISO standards.

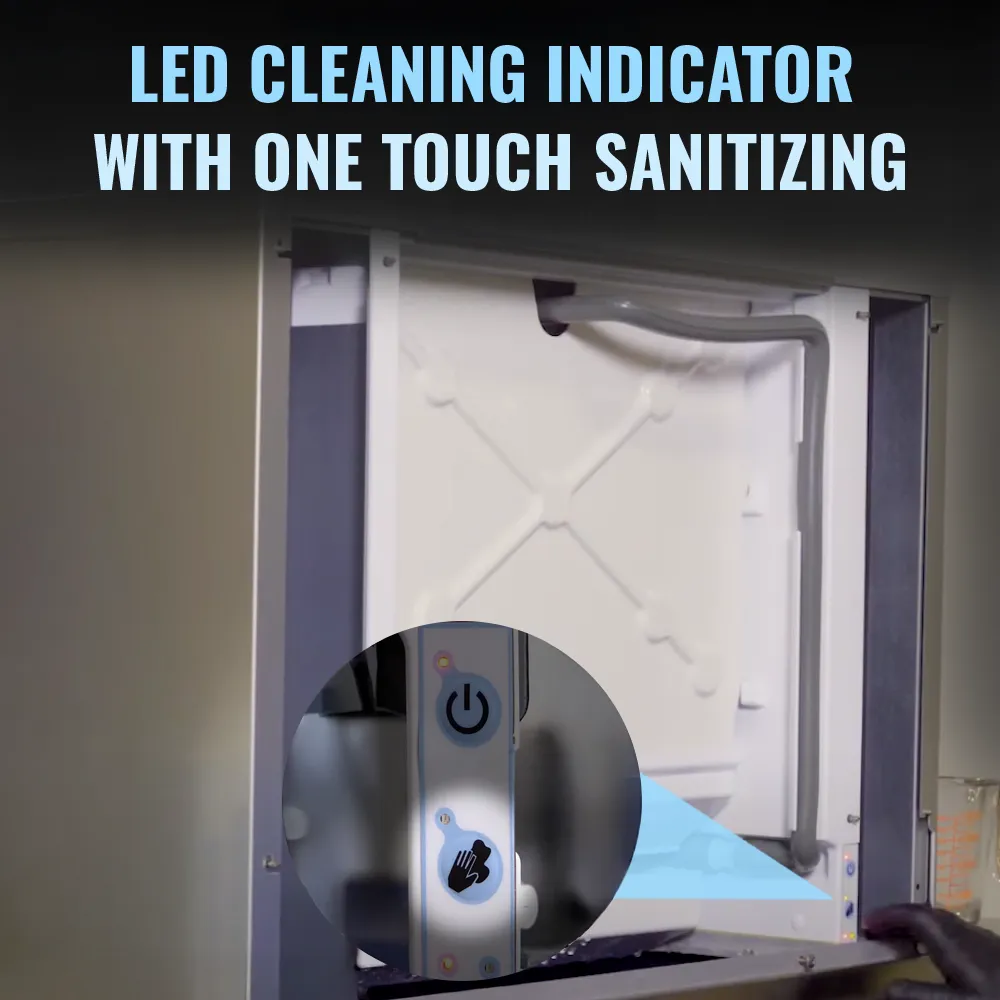

Smart Maintenance System: LED status display with one-touch sanitization and descaling controls simplifies maintenance procedures and monitoring.
Premium Construction Quality: Built with durable stainless steel and BPA-free plastic materials, ensuring long-lasting performance and food safety compliance.

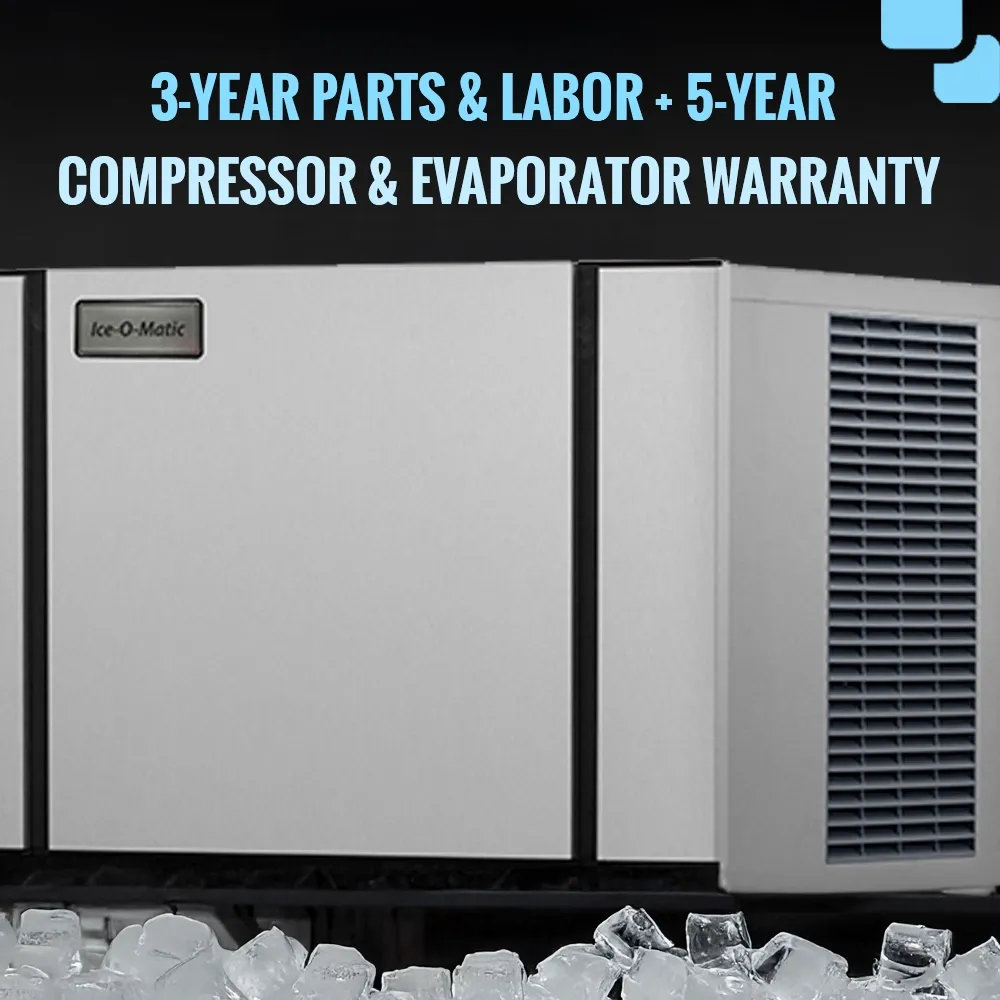

Extended Warranty Protection: Includes 3-year parts and labor warranty, plus 5-year coverage on evaporator and compressor components.
Water Efficient: Optimized water usage requiring only 19 gallons per 100 lbs of ice production.
American Made: Manufactured in the USA, ensuring high quality standards and reliable domestic support.

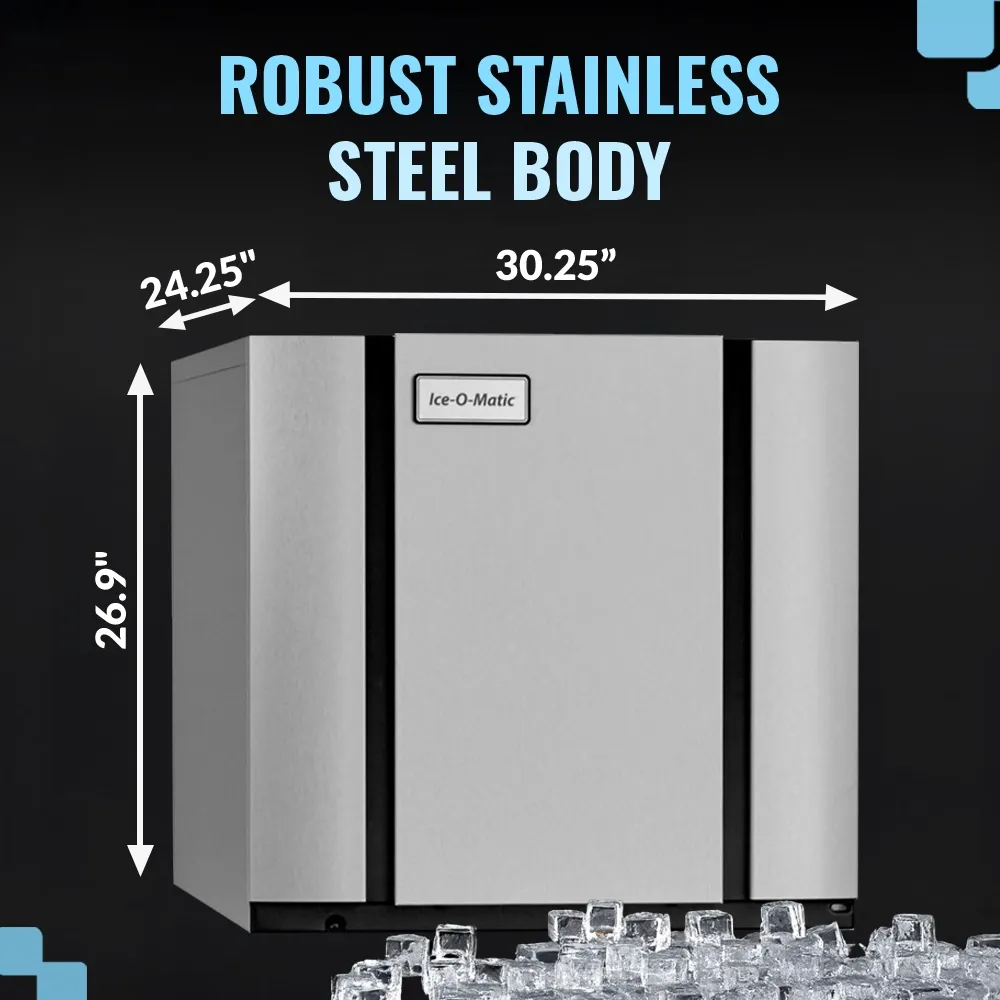

Versatile Installation: Compact 30.25"W x 24.25"D x 26.9"H design fits various bin or dispenser setups for flexible placement options.
Remote Cooling Ready: Remote-cooled system with 15,100 BTU/hr heat rejection rate supports efficient temperature management in diverse environments.
Wide Temperature Range: Operates effectively between 50°F to 100°F, ensuring consistent ice production across various environmental conditions.

Produces up to 906 pounds of half-size cube ice per day, meeting demands of high-volume restaurants, cafes, hotels, and institutional operations.

$6,298.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $78/week instead of $6,298 today

Keep your cash in your business

$78

per week

$11.14 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Installation & Elevation Diagram.pdf Spare Parts List.pdf User Manual.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Manitowoc IYF1800C-161X Indigo NXT QuietQube 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 1660 lbs/day

$10,155.65/Each

Manitowoc IYF1800C Indigo NXT QuietQube 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 1660 lbs/day

$9,741.40/Each

Manitowoc IYF1400C-161X Indigo NXT 30" Half Cube Ice Machine Head Without Storage Bin, Remote Cooled, 1425 lbs/day, 115V

$8,110.00/Each

Similar Products

Manitowoc IYT1500A-261A Indigo NXT 48" Half Cube Ice Machine Head Without Storage Bin, Air Cooled

$8,871.48/Each

Manitowoc IDF0500N Indigo NXT 30" Full Size Cube Ice Machine Head Without Storage Bin, Air Cooled, 510 lbs/day

$4,351.49/Each

Manitowoc IDF1400C Indigo Series QuietQube 30" Full Size Cube Ice Machine Head Without Storage Bin, 1350 lbs/day

$7,695.75/Each

Hoshizaki KM-1340MRJZ3 30" Crescent Cuber Icemaker Head Without Storage Bin, Remote Cooled

$9,435.00/Each

Manitowoc IYT1500A-251A 48" Cube Ice Machine Head Without Storage Bin, Air Cooled, 1660 lbs/day

$9,077.21/Each

Manitowoc IYT0300A-161X Indigo NXT 30" Half Dice Cube Ice Machine Head Without Storage Bin, Air Cooled, 310 lbs/day

$4,065.24/Each

Manitowoc IDF1800C Indigo Series QuietQube 30" Full Size Cube Ice Machine Head Without Storage Bin, 1715 lbs/day

$9,741.40/Each

Manitowoc IDF2100C-161 30" Cube Ice Machine Head Without Storage Bin, 1800 lbs/day

$11,514.30/Each

Manitowoc UYF0240W-251Z 26" Undercounter Half Size Cube Ice Machine with 90 lb. Bin, Water Cooled, 207 lbs/day

$3,498.32/Each

Manitowoc IYT1200N-251 30" Cube Ice Machine Head Without Storage Bin, Air Cooled, 1215 lbs/day

$7,748.81/Each

Manitowoc IYT1500A-263E Indigo NXT 48" Half Dice Cube Ice Machine Head Without Storage Bin, Air Cooled, 1931 lbs/day

$9,034.38/Each

Manitowoc IYT1200N-263 Indigo NXT 30" Half Size Cube Ice Machine Head Without Storage Bin, Remote Condenser, 1215 lbs/day, 208V, 3Ph

$7,625.47/Each

Key Specification

ManufacturerIce-O-Matic

Country of OriginProudly Made In America

MaterialStainless Steel / Plastic

ColorSilver

Selling Unit1/Each

TypeIce Machine Head

Manufacturer	Ice-O-Matic	Country of Origin	Proudly Made In America	Material	Stainless Steel / Plastic
Color	Silver	Selling Unit	1/Each	Type	Ice Machine Head

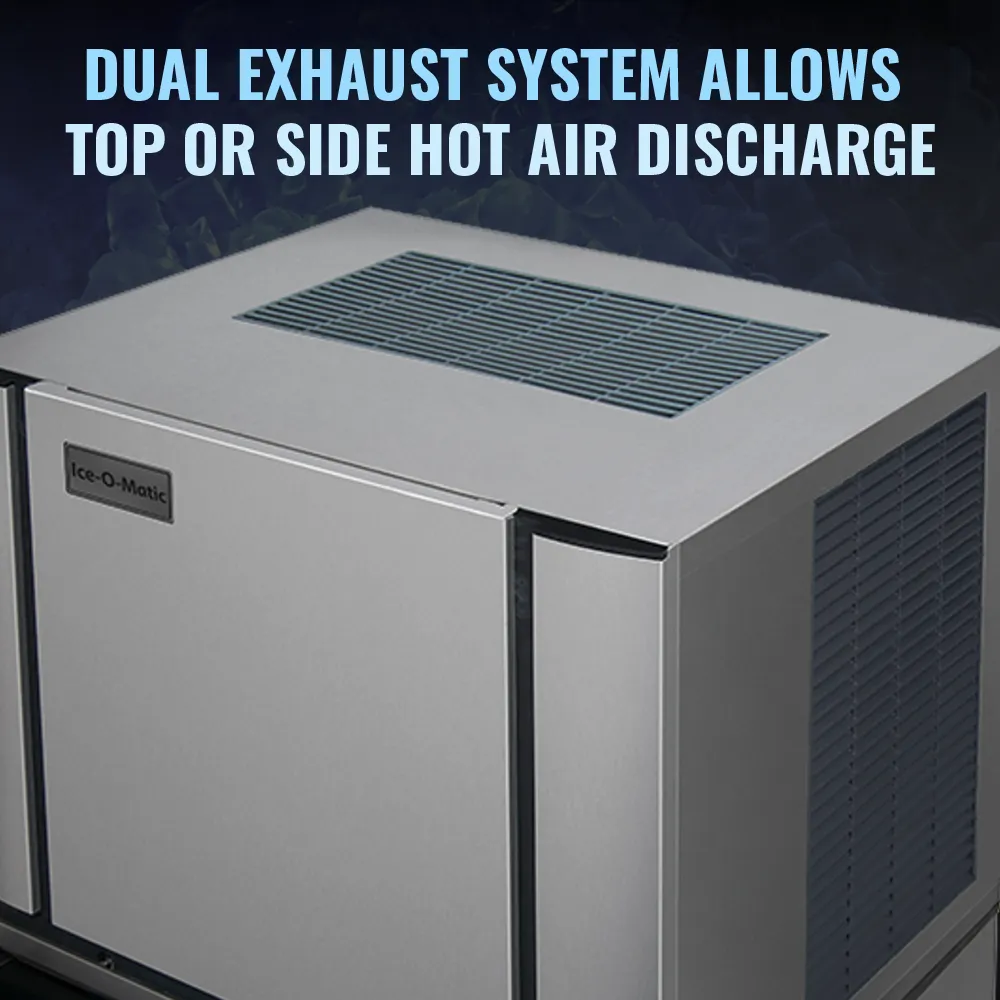

Warranty	3 Years Parts & Labor, 5 Years Parts Evaporator & Compressor	Features	LED Status Display, One Touch Sanitize/Descaling Controls, Dual Exhaust System, Antimicrobial Protection	Shipping Weight	220 pound
Hertz	60 hertz	Phase	1 Phase	Voltage	208/230 volt

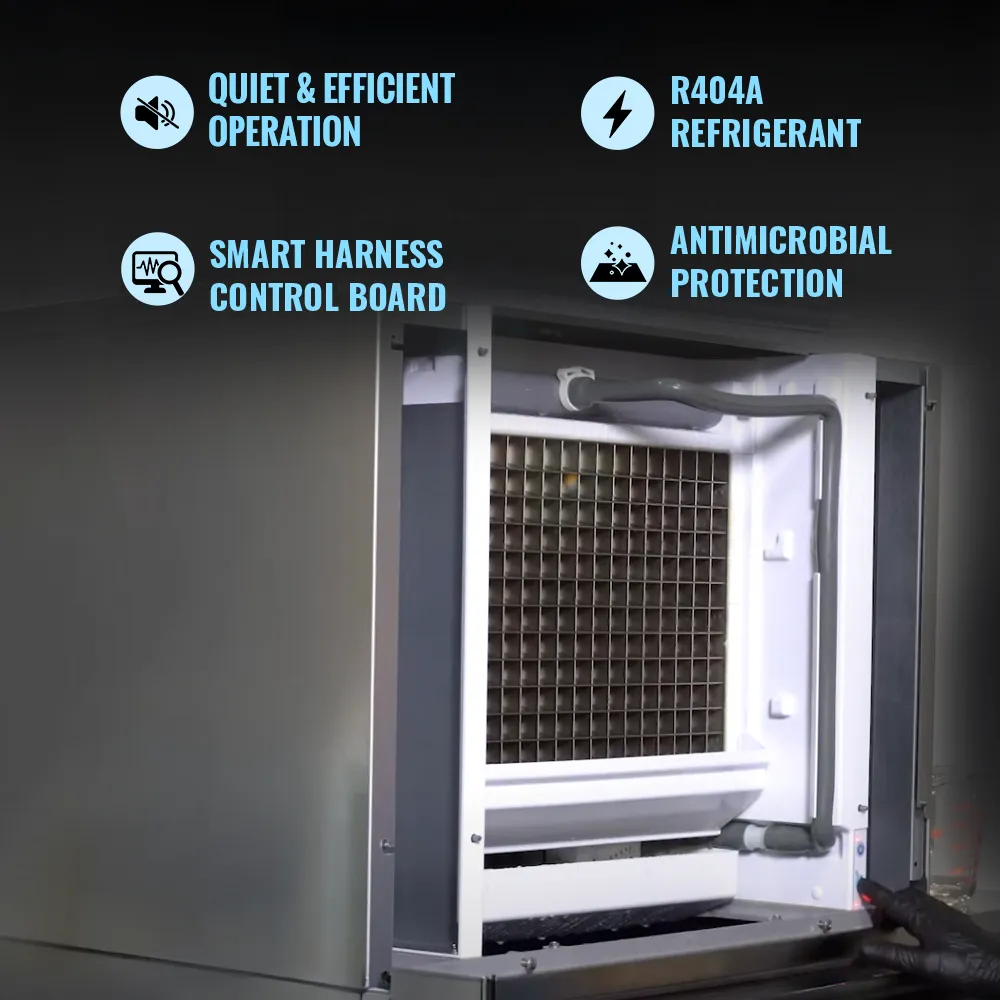

Condenser Type	Remote Cooled	Ice Type	Half Size Cube	Refrigerant Type	R-404a
Amps	12.3 ampere	Certifications	cULus, CE, NSF Listed, BPA Free, Energy Star, ISO Certified	Storage Bin	Without Storage Bin
Ambient Temperature Range	50°F to 100°F	Water Temperature Range	40°F to 100°F	Number of Wires	3 Wires
Maximum Fuse Size	20 ampere	Heat Rejection	15100 BTU/Hr	Water Usage (Potable 90°F/70°F)	19 gallon (US)
Product Width	30.25 inch	Product Depth	24.25 inch	Product Height	26.9 inch
Water Inlet Size	3/8 inch	Drain Size	3/4 inch	Power Usage	4.9 kWh per 100 lbs.
24 Hour Ice Production	906 pound

Product Overview

The Ice-O-Matic CIM0836HR is a high-efficiency remote-cooled ice machine head, ideal for mid- to high-volume restaurants, cafés, hotels, and institutions needing consistent daily ice output. Producing up to 906 lbs of half-size cube ice per day, it offers reliable performance while maintaining energy and water efficiency making it a solid fit for operations that demand both quality and sustainability.

This model features a stainless steel and BPA-free plastic construction and includes smart features like a LED status display and one-touch sanitization/descaling controls for easier maintenance. It runs on 208/230 V, draws 12.3 amps, and has a maximum fuse size of 20 A, while using 4.9 kWh per 100 lbs of ice. Its heat rejection rate is 15,100 BTU/hr, with operating temperatures ranging from 50°F to 100°F.

The unit has a 3/8" water inlet, a 3/4" drain, and requires 19 gallons of water per 100 lbs of ice. With a product footprint of 30.25" W x 24.25" D x 26.9" H, it's designed to sit on top of a compatible bin or dispenser setup.

Certified by NSF, CE, cULus, ISO, and Energy Star, the CIM0836HR is proudly made in the USA and comes with a 3-year parts and labor warranty, plus 5-year parts coverage on the evaporator and compressor—providing peace of mind for long-term use.
