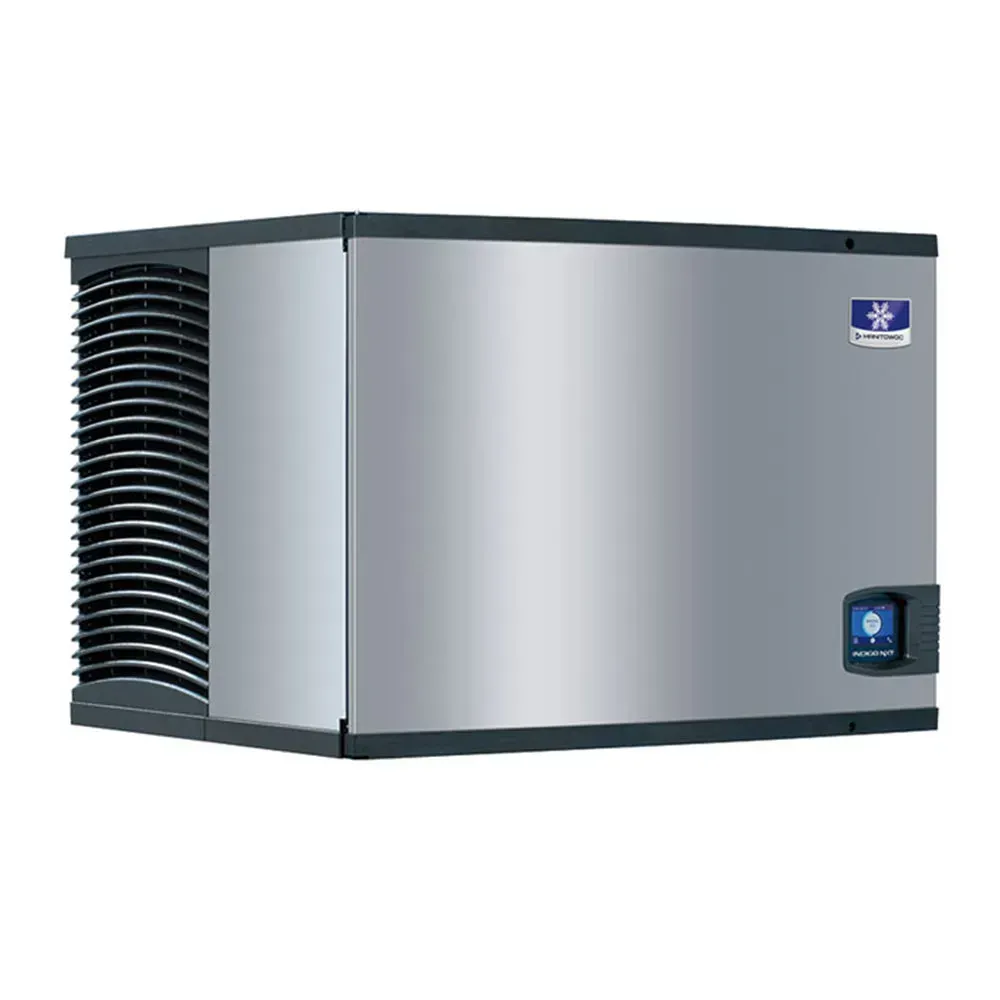

Manitowoc air-cooled cube ice head with modular stainless steel frame,high-efficiency evaporator,no bin, built for consistent daily ice production.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Manitowoc
Country of Origin
Proudly Made In America
Material
Stainless steel
Color
Silver
Phase
1 Phase
Voltage
220/240 V
Plug Type
Hardwire
Water Inlet Size
3/8 in
Hertz
50 Hz
Interior Material
Plastic
Condenser Type
Air-Cooled Self-Contained
Compatible Model
D970
Potable Water Pressure Range
20 to 80 Psi
BTU Per Hour
27000 BTU
Cleaning Alert Indicator
Display
Installation Configuration
Installed on top of compatible bin & dispenser
Product Depth
24.5 in
Ice Size (W x D x H)
3/8 x 1 1/8 x 7/8 Inches
Drain Size
1/2 in
Selling Unit
1/Each
Type
Air Cooled Ice Machine
Warranty
3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor
Features
Programmable Ice Production, Intelligent Diagnostics
Refrigerant Type
R-410
Amps
18.5 A
Shipping Weight
294 lb
Water Usage
20 gal
Ice Type
Half Size Cubes
Ambient Temperature Range
40˚ to 110˚F
Certifications
cULus Listed, NSF Approved, AHRI Certified, CE Listed, ISO 9001 Certified, Energy Star
Series
IYT1500
Maximum Fuse Size
30 A
Sanitation
Easy-to-Clean Foodzone, LuminIce® II Growth Inhibitor
Max Daily Ice Production
1660 Lbs/Day
Product Width
48 in
Product Height
29.5 in
24 Hour Ice Production
1660 lb
Power Usage
4.49 kWh per 100 lbs

Product Overview

The Manitowoc IYT1500A-251A air-cooled cube ice machine is designed for commercial use in high-demand environments. It produces up to 1660 lbs./day of half-size cubes and features programmable ice production with intelligent diagnostics for easy operation. Its 48 (W) x 24.5 (D) x 29.5 (H) size allows installation on compatible bins like the D970 model.

Built with a stainless steel exterior and plastic interior, it ensures both durability and hygiene. The air-cooled self-contained condenser provides consistent cooling, while the R410 refrigerant supports safe performance. It operates on 220/240 V, 1 phase, 50 Hz, and draws 18.5 A via hardwire connection. The maximum fuse size is 30 A, ensuring protected operation.

Its 3/8 in water inlet and 1/2 in drain size work with 20–80 psi water pressure and use around 20 gal daily. The ice size is 3/8 x 1 1/8 x 7/8 in, and it consumes 4.49 kWh per 100 lbs. of ice. It operates in ambient temperatures from 40°F to 110°F, making it ideal for most commercial kitchens.

This unit is cULus Listed, NSF Approved, AHRI Certified, CE Listed, ISO 9001 Certified, and Energy Star rated. It features a cleaning alert display, an easy-to-clean food zone, and LuminIce II growth inhibitor for sanitation. It includes a 3-year parts and labor warranty on the ice maker and 5 years on both the evaporator and compressor.

Purchased this product?

Share your honest review to help hotels and restaurants make smarter choices.

Questions from buyers like you

Answered to help you make the right decision.
The Manitowoc IYT1500A-251A can produce up to 1,660 lbs. of half-size ice cubes per day under optimal conditions.
The machine requires 220/240V, 1 phase, 50 Hz power supply, draws 18.5 amps, and needs a hardwire connection with a maximum fuse size of 30 amps.
The machine requires a 3/8-inch water inlet connection, operates with water pressure between 20-80 psi, and uses approximately 20 gallons of water daily.
The ice machine can operate in ambient temperatures ranging from 40°F to 110°F, making it suitable for most commercial kitchen environments.
Yes, it features programmable ice production with intelligent diagnostics for easy operation.
