What kind of ice does this unit produce?

This nugget ice machine produces soft, chewable nugget-style ice.

How much ice can this nugget ice machine produce per day?

This nugget ice machine has a daily production capacity of 308 lbs.

What is the power specification for this unit?

This nugget ice machine runs on 115 V, 1 phase, 60 Hz, and draws 7.5 amps.

What condenser type does it use?

This nugget ice machine uses an air-cooled, self-contained condenser.

What refrigerant is used?

This nugget ice machine uses environmentally friendly R290 refrigerant.

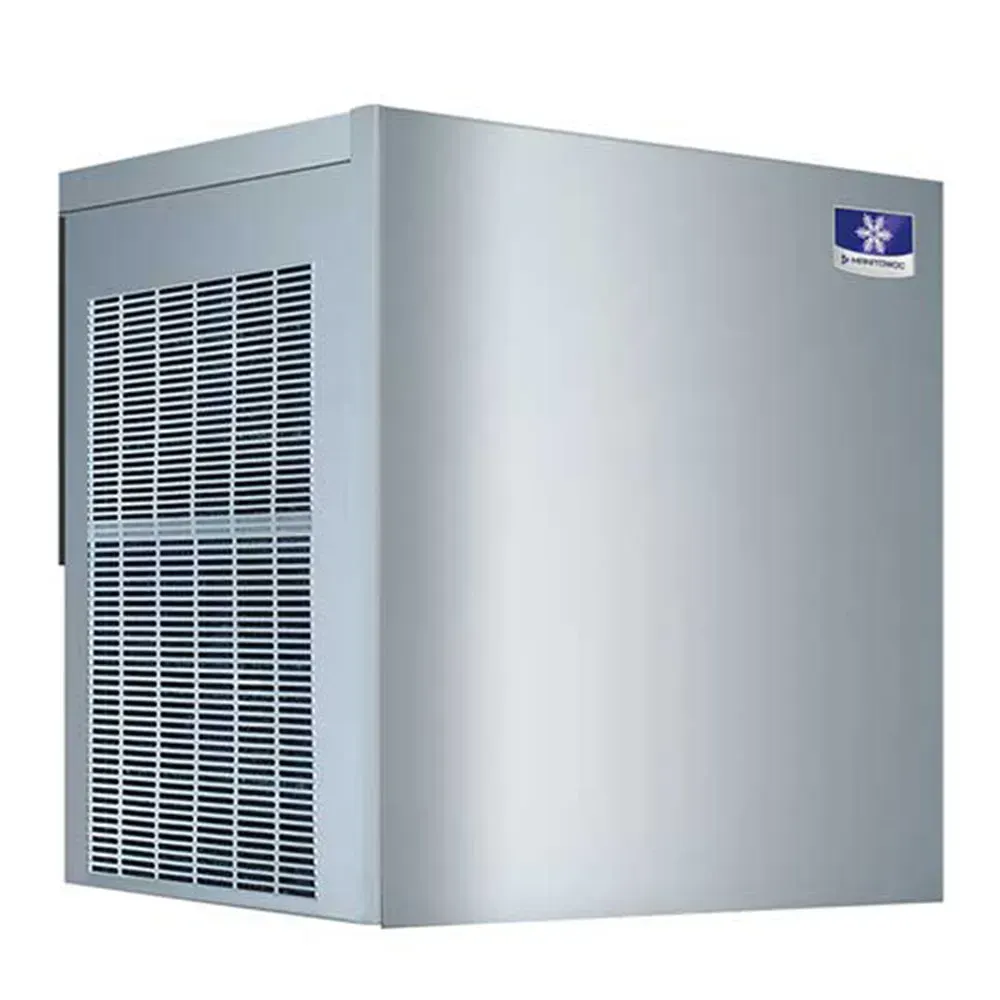

Manitowoc RNP0320A-161 22" Nugget Ice Machine Head Without Storage Bin, Air Cooled, 308 lbs/day, 115V

Model: RNP0320A-161*

$4,769.93

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Model: RNP0320A-161*

★Why You'll Love It

High Ice Production: Produces up to 308 pounds of nugget ice daily, perfect for high-volume commercial operations requiring consistent ice supply.
Energy Efficient Operation: Consumes only 6.88 kWh per 100 lbs of ice, ensuring cost-effective and environmentally conscious performance.
Extended Warranty Protection: Includes 3-year parts and labor warranty, plus 5-year coverage for evaporator and compressor components.
Professional Certification: ETL Listed, ETL Sanitation Listed, and CE Listed certifications ensure compliance with safety and sanitation standards.
Durable Construction: Built with commercial-grade stainless steel and silver finish for long-lasting durability and professional appearance.
Powerful Cooling: Delivers 7511 BTU/hr cooling capacity with air-cooled, self-contained condenser using R290 refrigerant.
Water Efficient: Uses 12 gallons of potable water per 100 lbs of ice, with pressure compatibility from 14 to 80 psi.
Versatile Installation: Compatible with D420 bin and dispenser models, featuring 3/8" water inlet and 1/2" drain outlet.
Simple Power Requirements: Operates on standard 115V, 1 phase, 60 Hz power with 7.5 amp draw and 15A max fuse.

Produces up to 308 pounds of nugget ice daily, perfect for high-volume commercial operations requiring consistent ice supply.

$4,769.93

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Ice-O-Matic MFI1256A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 1149 lb/24 hr, 208/230v

$7,592.00/Each

Ice-O-Matic MFI0800A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 115v

$5,965.00/Each

Ice-O-Matic MFI1506A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 208-230V

$9,703.00/Each

Similar Products

Hoshizaki DCM-751BWH-OS 34 1/16" Countertop Water Nugget Ice Dispenser, 782 lb, 95 lb Storage, Cup Fill, 115v

$13,595.00/Each

Hoshizaki F-1002MAJ-C 22" F Series Nugget Ice Machine Head Without Storage Bin, Air Cooled, 890 lb/24 hr, 115v

$8,375.00/Each

Hoshizaki DCM-751BWH 34 1/16" Countertop Water Nugget Ice Dispenser, 782 lb, 95 lb Storage, Cup Fill, 115v

$13,390.00/Each

Hoshizaki F-1002MWJ-C 22" F Series Cubelet Icemaker Head Without Storage Bin, Water Cooled, 878 lb/24 hr, 115v

$8,960.00/Each

Hoshizaki DCM-500BWH 26" Countertop Water Nugget Ice Dispenser, 590 lb, 40 lb Storage, Cup Fill, 115v

$9,565.00/Each

Key Specification

ManufacturerManitowoc

Country of OriginProudly Made In America

MaterialStainless steel

ColorSilver

Selling Unit1/Each

TypeAir Cooled Ice Machine

Manufacturer	Manitowoc	Country of Origin	Proudly Made In America	Material	Stainless steel
Color	Silver	Selling Unit	1/Each	Type	Air Cooled Ice Machine
Warranty	3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor	Phase	1 Phase	Voltage	115 volt
Water Usage	12 gallon (US)	Amps	7.5 ampere	Plug Type	Hardwire
Refrigerant Type	R-290	Hertz	60 hertz	Ice Type	Nugget
Ambient Temperature Range	50˚ to 110˚F	Condenser Type	Air-Cooled Self-Contained	Certifications	ETL Listed, ETL Sanitation Listed, CE Listed
Compatible Model	D420	Series	RNP0320	Potable Water Pressure Range	14 to 80 Psi
Maximum Fuse Size	15 ampere	BTU Per Hour	7511 british thermal unit	Max Daily Ice Production	308 Lbs/Day
Installation Configuration	Installed on top of compatible bin & dispenser	Product Width	22 inch	Product Depth	23.63 inch
Product Height	26 inch	24 Hour Ice Production	308 pound	Water Inlet Size	3/8 inch
Drain Size	1/2 inch	Power Usage	6.88 kWh per 100 lbs

Product Overview

The Manitowoc RNP0320A-161 is a nugget ice machine head built from stainless steel with a sleek silver finish. Designed for compact commercial spaces, it operates on 115 V, 1 phase, 60 Hz, drawing 7.5 amps, and is intended for installation on top of compatible models such as the D420 bin and dispenser.With dimensions of 22" W x 23.63" D x 26" H, the unit uses R290 refrigerant and features an air-cooled, self-contained condenser. It delivers a cooling capacity of 7511 BTU/hr and produces up to 308 lbs of nugget ice per 24 hours.The ice machine consumes 6.88 kWh per 100 lbs of ice and uses 12 gallons of potable water per 100 lbs of ice. It connects via a 3/8" water inlet and drains through a 1/2-inch outlet, with water pressure compatibility ranging from 14 to 80 psi. It also requires a 15 A max fuse and uses a hardwired plug.The unit is ETL Listed, ETL Sanitation Listed, and CE Listed, and it comes with a 3-year parts & labor warranty for the ice maker, plus 5 years parts & labor for the evaporator and compressor.
