What type of cooling system does the Ice-O-Matic CIM1136HA use?

It features an air-cooled, self-contained design ideal for commercial settings.

What are the power and refrigerant specifications of the Ice-O-Matic Air Cooled Ice Machines?

The unit runs on 208/230V, draws 13.9 amps, uses R404A refrigerant, and rejects 18,200 BTU/hr of heat.

What sanitation features does the Ice-O-Matic Air Cooled Ice Machines offer?

It includes Agion® antimicrobial protection, one-touch sanitization and descaling, and a smart LED cleaning alert.

What are the water and drain connection requirements for the Ice-O-Matic Air Cooled Ice Machines?

It requires a 3/8" water inlet and a 3/4" drain for smooth operation.

What is the daily ice production capacity of the Ice-O-Matic Air Cooled Ice Machines?

The Ice-O-Matic CIM1136HA produces up to 932 lbs of half-size cube ice in 24 hours.

Ice-O-Matic CIM1136A Elevation Series 30" Ice Machine Head Without Storage Bin, Air Cooled, Stainless Steel, 208/230v

Model: CIM1136HA

4.8(5 reviews)

$6,849.00

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $91/week instead of $6,849 today

Keep your cash in your business

$91

per week

$13.00 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: CIM1136HA

4.8(5 reviews)

★Why You'll Love It

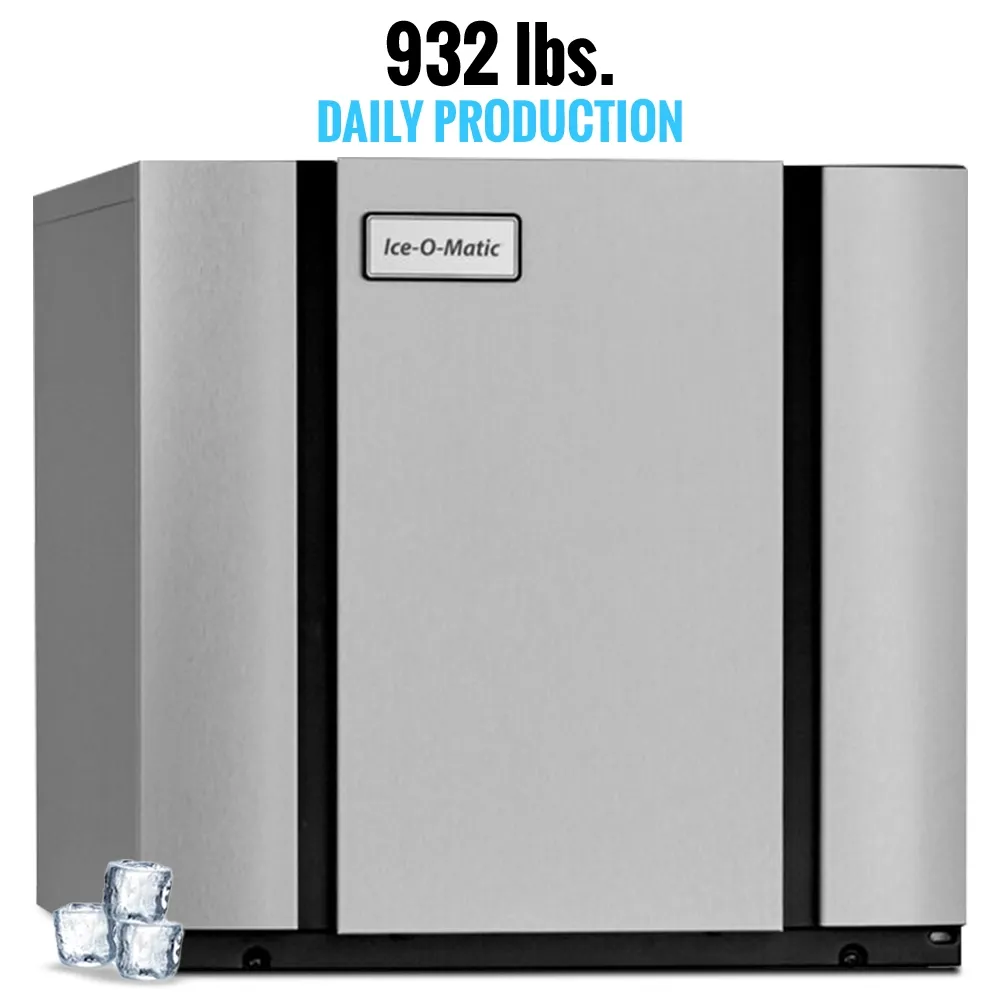

High Ice Production: Produces up to 932 pounds of half-size cube ice daily, meeting high-volume demands of restaurants, hotels, and foodservice operations.
Advanced Sanitation Protection: Features Agion® antimicrobial protection and BPA-free plastic food zone, ensuring maximum hygiene and food safety standards.

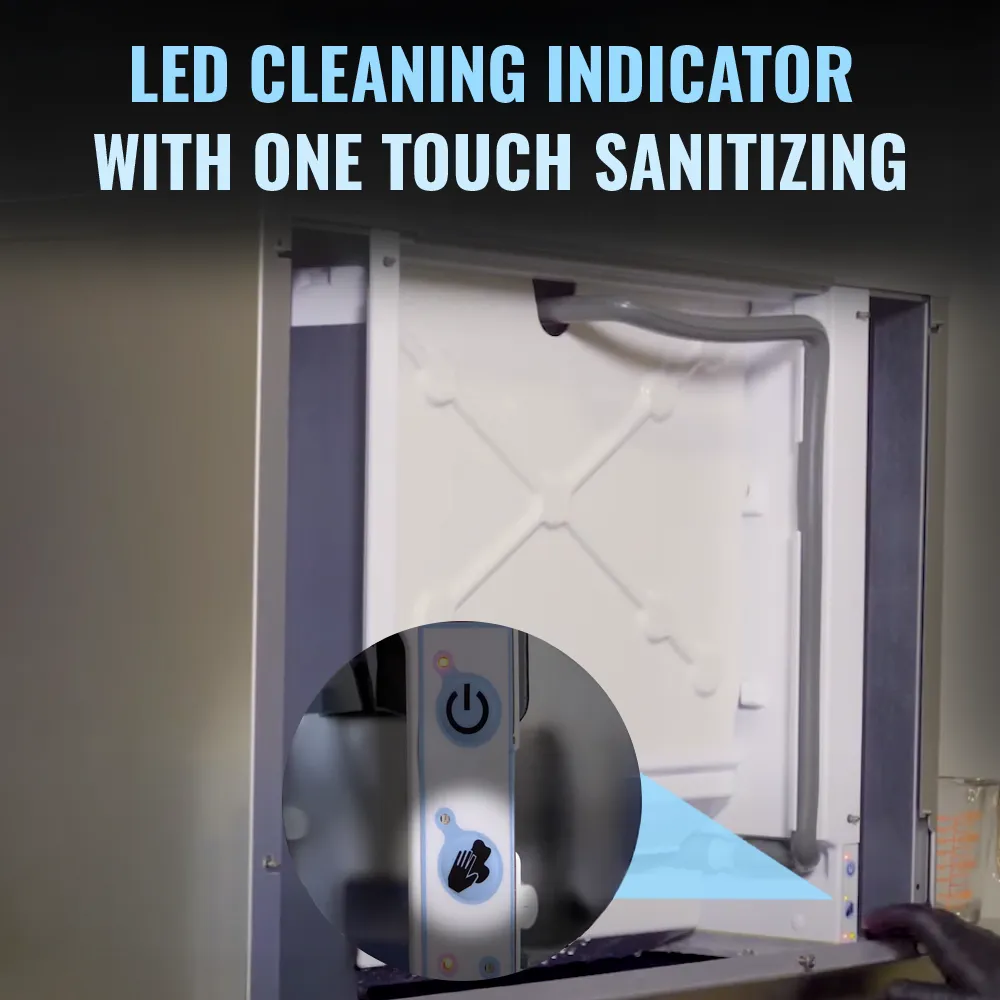

Easy Maintenance System: One-touch sanitization and descaling function with smart LED cleaning alert indicator simplifies routine maintenance procedures.

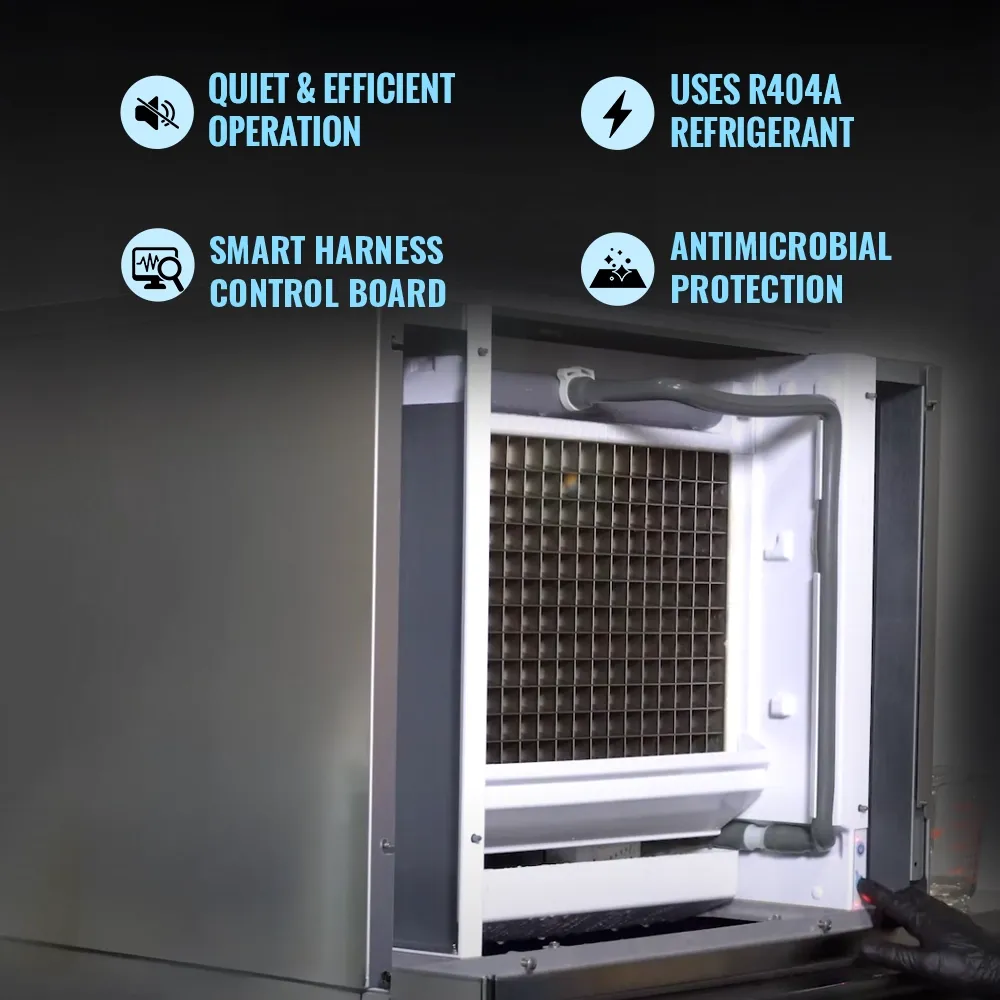

Energy Efficient Operation: Consumes only 5.1 kWh per 100 lbs of ice production, with efficient R404A refrigerant system.

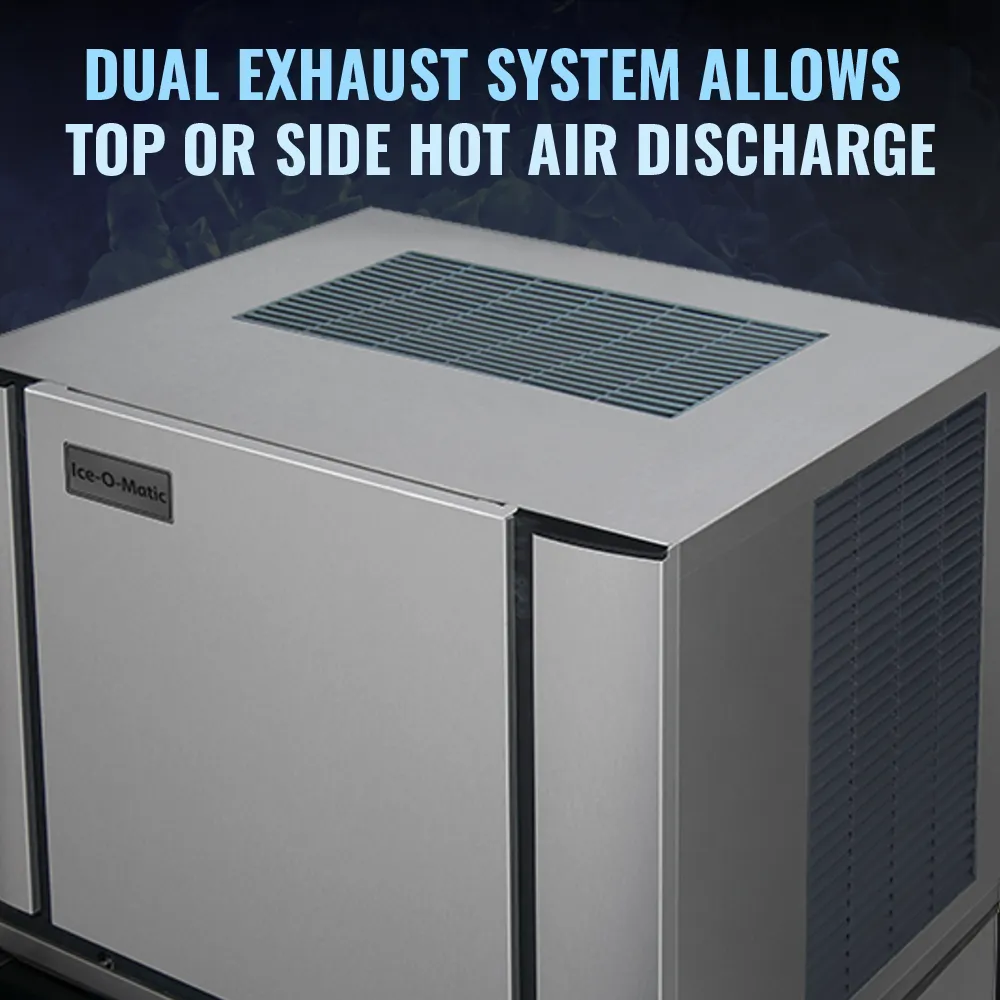

Premium Build Quality: Constructed with durable stainless steel and features dual exhaust system for enhanced performance and longevity.

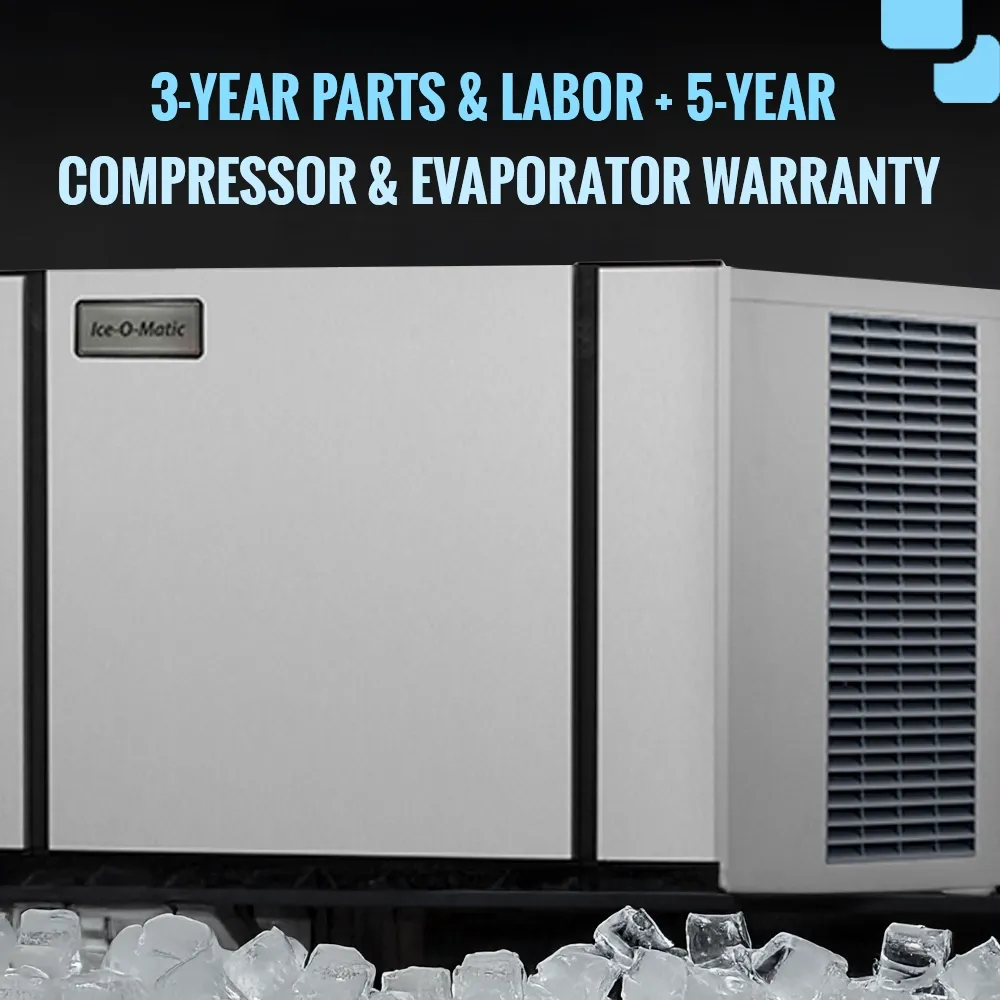

Comprehensive Warranty: Includes 3-year parts and labor warranty for ice maker, plus 5-year coverage on evaporator and compressor.
Multiple Certifications: Certified by NSF, CE, ISO 9001, and cULus, ensuring compliance with international quality and safety standards.

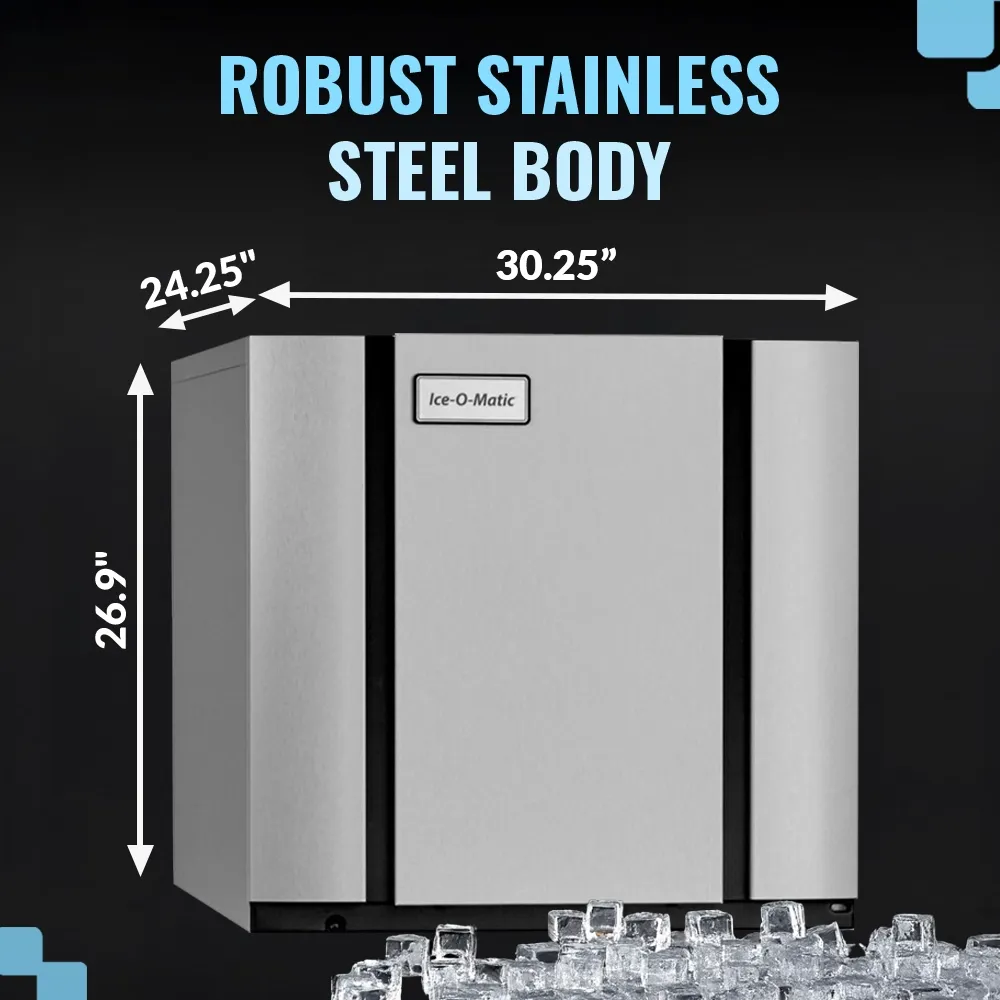

Compact Design: Space-efficient dimensions of 30.25" W x 24.25" D x 26.9" H fit various commercial kitchen layouts.
Temperature Adaptable: Operates effectively in ambient temperatures between 50°F and 100°F with 18,200 BTU/hr heat rejection.
Professional Installation: Equipped with hardwire plug, 3/8" water inlet, and 3/4" drain for proper commercial installation.

Produces up to 932 pounds of half-size cube ice daily, meeting high-volume demands of restaurants, hotels, and foodservice operations.

$6,849.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Protect Your Product

Lease to OwnEstimated

Just $91/week instead of $6,849 today

Keep your cash in your business

$91

per week

$13.00 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Installation & Elevation Diagram.pdf Spare Parts List.pdf Technical Specification Sheet.pdf User Manual.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Manitowoc IYT0500A Indigo NXT 30" Half Size Cube Ice Machine Head Without Storage Bin, Air Cooled, 550 lbs/day

$4,489.27/Each

Manitowoc IYT0620A-161 Indigo NXT 22" Half Dice Ice Machine Head Without Storage Bin, Air Cooled, 575 lbs/day, 115V

$4,302.15/Each

Similar Products

ChillCore Series 26'' Commercial Undercounter Air Cooled Ice Machine With 80lb Bin, 200 lb/day

$1,190.00/Each

Manitowoc IDF0500N Indigo NXT 30" Full Size Cube Ice Machine Head Without Storage Bin, Air Cooled, 510 lbs/day

$4,351.49/Each

Manitowoc IYT0300A-161X Indigo NXT 30" Half Dice Cube Ice Machine Head Without Storage Bin, Air Cooled, 310 lbs/day

$4,065.24/Each

Manitowoc IYT1500A-261A Indigo NXT 48" Half Cube Ice Machine Head Without Storage Bin, Air Cooled

$8,871.48/Each

Platinum Frost Series Commercial Air Cooled Ice Machine, 375 lbs Bin, 29.9", Capacity 500 lbs

$2,899.00/Each

Manitowoc IYT1500A-263E Indigo NXT 48" Half Dice Cube Ice Machine Head Without Storage Bin, Air Cooled, 1931 lbs/day

$9,034.38/Each

Manitowoc IYT1500A-251A 48" Cube Ice Machine Head Without Storage Bin, Air Cooled, 1660 lbs/day

$9,077.21/Each

Manitowoc IYT1200N-251 30" Cube Ice Machine Head Without Storage Bin, Air Cooled, 1215 lbs/day

$7,748.81/Each

Manitowoc IDT0900A-251 Indigo NXT 30" Cube Ice Machine Head Without Storage Bin, Air Cooled, 851 lbs/day

$6,886.33/Each

Key Specification

ManufacturerIce-O-Matic

MaterialStainless steel

ColorSilver

Selling Unit1/Each

TypeAir Cooled Ice Machine

Warranty3 years parts & labor for Ice Maker, 5 years parts for Evaporator & Compressor

Manufacturer	Ice-O-Matic	Material	Stainless steel	Color	Silver
Selling Unit	1/Each	Type	Air Cooled Ice Machine	Warranty	3 years parts & labor for Ice Maker, 5 years parts for Evaporator & Compressor
Features	BPA-free plastic food zone, Agion® antimicrobial, dual exhaust, system safe	Shipping Weight	230 pound	Phase	1 Phase
Voltage	208/203 volt	Condenser Type	Air-Cooled Self-Contained	Ice Type	Half Size Cubes
Plug Type	Hardwire	Refrigerant Type	R-404A	Water Inlet Size	3/8 inch
Amps	13.9 ampere	Hertz	60 hertz	Water Usage	19 gallon (US)
Interior Material	Plastic	Ambient Temperature Range	50°F to 100°F	Certifications	cULus Listed, NSF Approved, ISO 9001 Certified, CE Listed
Compatible Model	Bins: B25, B40, B42, B55, B110, B700, B1000, B1300, B1325, B1660	Series	CIM1136	Potable Water Pressure Range	20 to 80 Psi
BTU Per Hour	18200 british thermal unit	Compatible Water Filters	IFQ2, IOMQ2	Manifold Replacement Models	CIM1135, CIM1137
Junction Box Size	7/8 inch	Sanitation	One-touch sanitization & descaling	Cleaning Alert Indicator	Smart LED light
Max Daily Ice Production	1035 Lbs/Day	Remote Condenser Temperature Range	-20˚F to 120˚F	Breaker Amps	30 ampere
Installation Configuration	Installed on top of compatible bin & dispenser	Product Width	30.25 inch	Product Depth	24.25 inch
Product Height	26.9 inch	24 Hour Ice Production	932 pound	Drain Size	3/4 inch
Power Usage	5.1 kWh per 100 lbs

Product Overview

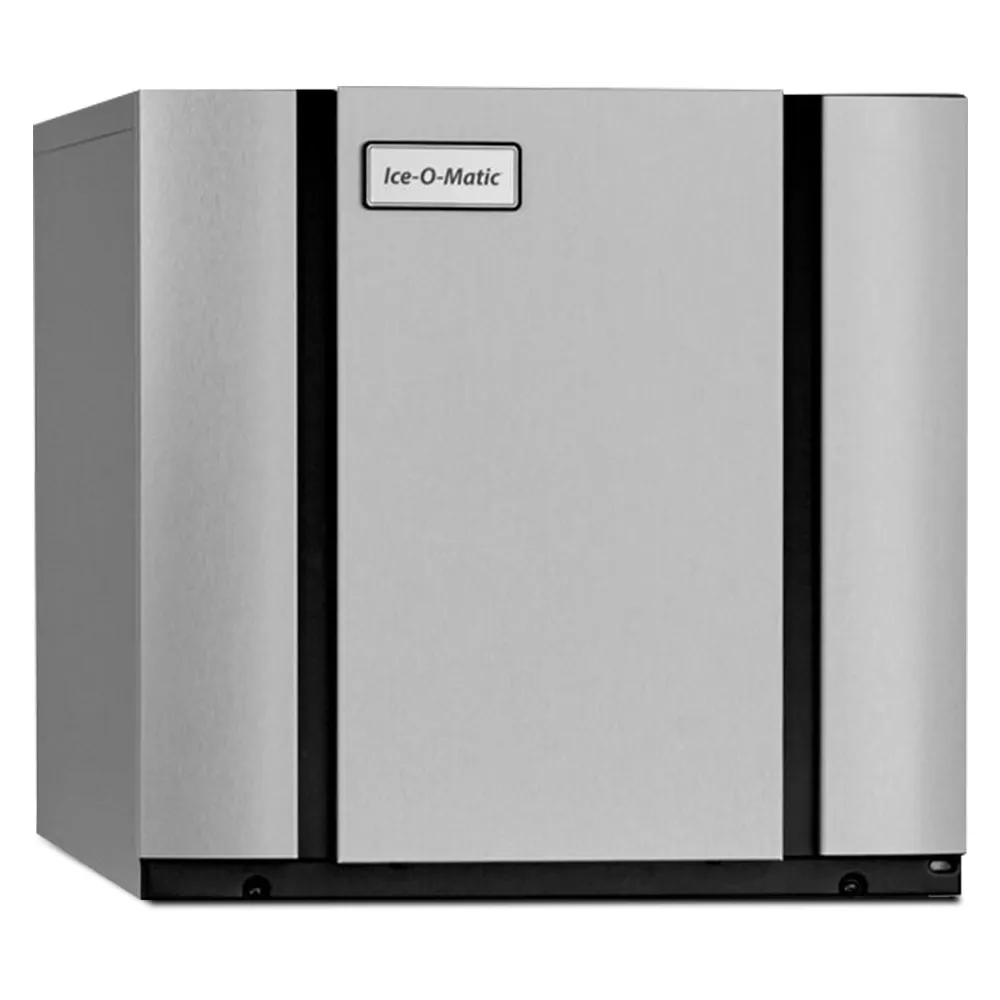

The Ice-O-Matic CIM1136HA is a commercial air-cooled ice machine, ideal for restaurants, hotels, and foodservice operations that need a reliable, high-capacity ice production system. It produces up to 932 lbs of half-size cube ice per day and is built with durable stainless steel and a BPA-free plastic food zone for sanitary, long-term performance.The unit includes Agion® antimicrobial protection, a dual exhaust system, and a one-touch sanitization and descaling function for simplified maintenance. Running on 208/203 V, the machine consumes 5.1 kWh per 100 lbs of ice and uses R404A refrigerant. It operates at 13.9 amps, requires a 3/8" water inlet, and is equipped with a 3/4" drain.The breaker amps rating is 30 A, and it handles ambient temperatures between 50°F and 100°F, with a BTU output of 18,200 BTU/hr for effective heat rejection. Certified by NSF, CE, ISO 9001, and cULus, the unit features a smart LED cleaning alert indicator, hardwire plug, and a compact design with dimensions of 30.25" W x 24.25" D x 26.9" H.The machine is supported by a 3-year parts and labor warranty on the ice maker and a 5-year parts warranty on the evaporator and compressor, making it a dependable choice for high-demand environments.
