TurboVent Series 9' Wall Canopy Hood With Exhaust Fan, Make Up Air Unit & Roof Curbs, Stainless Steel

Model: TVWCHFMR9

$7,078.80

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

14 Days return policy

Lease to OwnEstimated

Just $91/week instead of $7,079 today

Keep your cash in your business

$91

per week

$13.00 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: TVWCHFMR9

★Why You'll Love It

600-Degree Hood Rating: The 600-degree rated hood supports use with medium to heavy duty cooking equipment in a commercial kitchen.
48" Hood Depth: The 48" depth supports better capture and containment of cooking vapors at lower airflow volumes above cooking equipment.
UL Classified Filtration: The 16" x 16" Kleen-Gard stainless steel baffle filter with bottom hanging hook is UL Classified for kitchen-duty grease filtration.
LED Lighting: The premium recessed round LED fixture with 3500 K warm output provides visibility over the cooking area during kitchen use.
EC Motor Technology: Both the exhaust and supply fans are fitted with EC motors, supporting variable speed operation in a commercial kitchen ventilation system.
High-Capacity Exhaust: The direct drive centrifugal upblast exhaust fan handles 2,025 CFM at 1,226 RPM, supporting ventilation above heavy cooking equipment.
Make-Up Air Included: The untempered supply unit delivers 1,620 CFM at 708 RPM with metal mesh filtration, completing the air exchange in a restaurant kitchen setting.
Warranty Coverage: It includes a 1-year warranty from date of shipment, covering defects in materials and workmanship under normal use and service.

The 600-degree rated hood supports use with medium to heavy duty cooking equipment in a commercial kitchen.

$7,078.80

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

14 Days return policy

Lease to OwnEstimated

Just $91/week instead of $7,079 today

Keep your cash in your business

$91

per week

$13.00 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf

Spot something off?
Help us improve this page.

Key Specification

Country of OriginChina

MaterialStainless Steel

Selling Unit1/Each

TypeCommercial Kitchen Hood Package

Warranty1 Year Warranty

Product Depth48 inch

Country of Origin	China	Material	Stainless Steel	Selling Unit	1/Each
Type	Commercial Kitchen Hood Package	Warranty	1 Year Warranty	Product Depth	48 inch
Product length	9 foot	Material Type	430 Stainless Steel	Air Flow	2025 CFM (Exhaust) / 1620 CFM (Supply)
Exhaust Fan	TEAO-ECM, 1226 RPM, 3/4 HP, 13 FLA, 115 V, 1 Phase, 60 Hz	Filter Type	16" Tall x 16" Wide, Kleen-Gard Stainless Steel Baffle Filter, UL Classified	Air Discharge	Down Discharge
Style	Exhaust-Only Wall Canopy Hood	Lighting	LED	Series	TurboVent Series
Certifications	ETL & NSF	Included	Hood + Exhaust Fan + Make Up Air Unit + Roof Curbs + Built-in 3" Back Standoff	Temperature	600 fahrenheit
Supply Plenum	Front Perforated Supply Plenum	Exhaust Riser	16" Diameter (Factory Installed)	Supply Riser	12"x 28", Volume Dampers Included
Supply Unit	Untempered Supply Unit (Make Up Air)	Supply Blower	10" Blower	Supply Housing	Size #1 Housing
Supply Fan RPM	708 RPM	Supply Motor	ODP (Open Drip Proof), 1/3 HP, 7.0 FLA	Air Flow Direction	Right to Left
Intake Type	Sloped Filtered Intake for Size #1 Standard Untempered Supply Unit	Curb Type	Flat Curb (Both Fans)	Usage	Medium to Heavy Duty

Product Overview

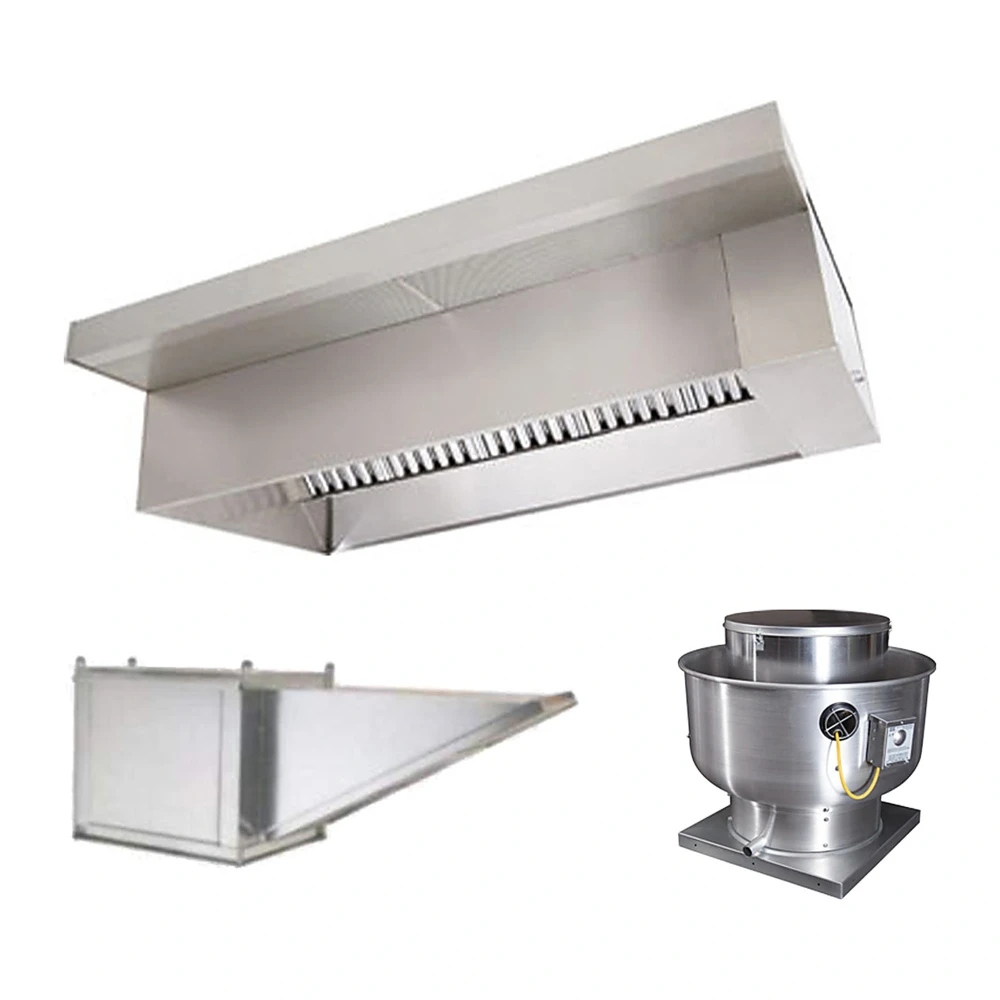

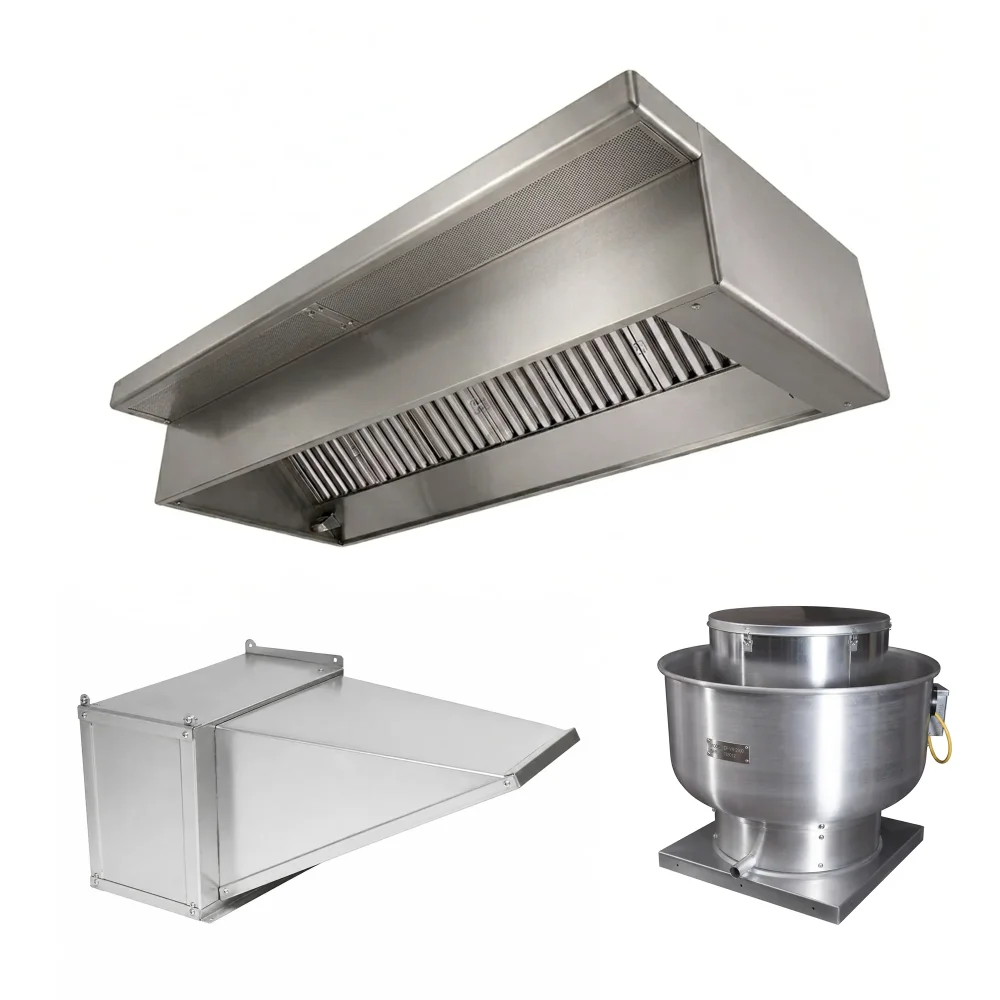

This 9-foot wall canopy exhaust hood package is built for commercial kitchens. It includes a hood, exhaust fan, make-up air unit, and roof curbs.

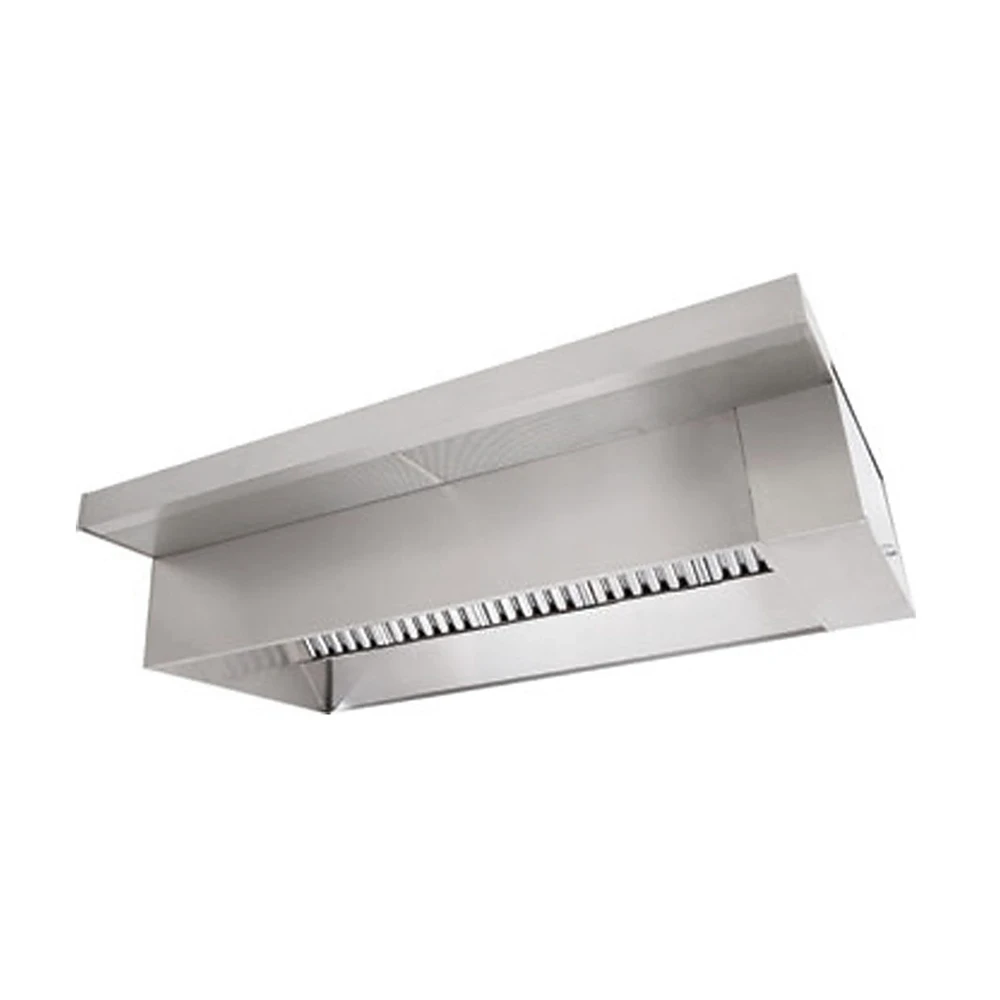

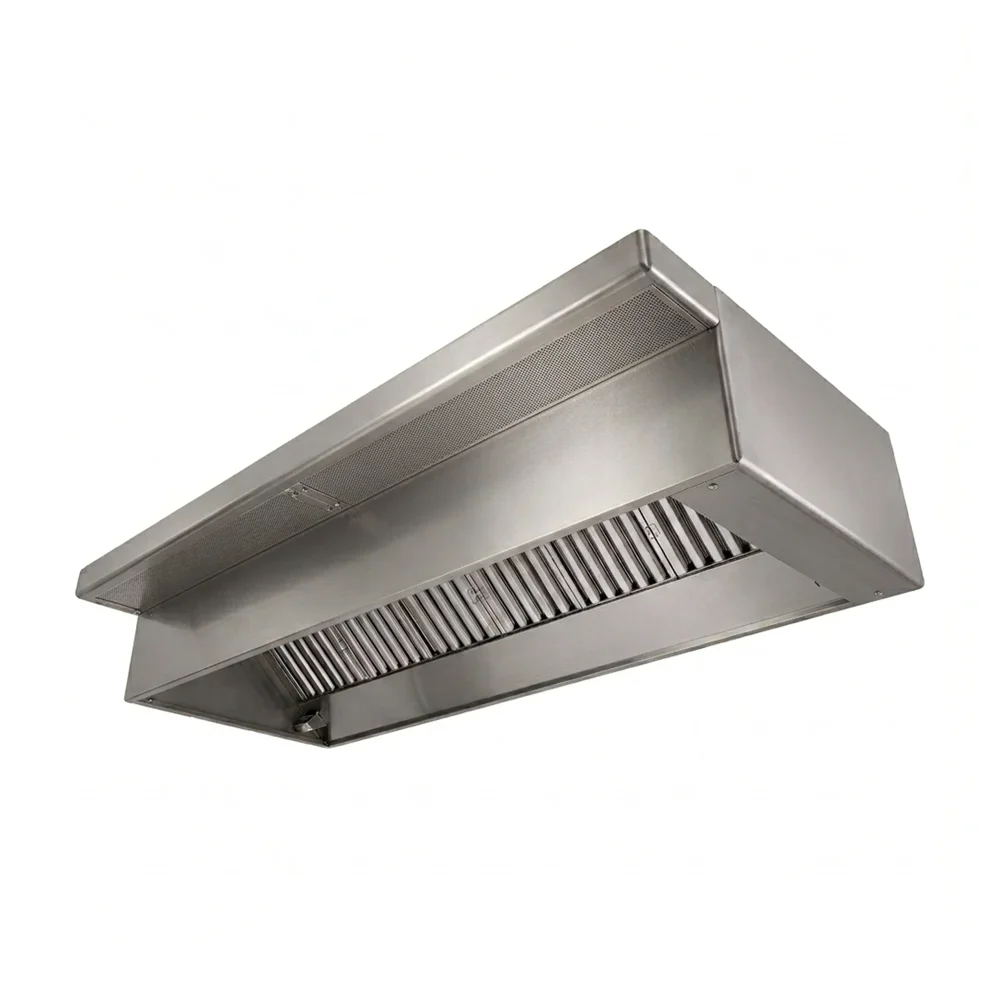

Hood Specifications

430 stainless steel construction where exposed
48" depth for capture and containment of cooking vapors at lower airflow volumes
600-degree hood rating, suitable for medium to heavy duty equipment
Front perforated supply plenum with built-in 3" back standoff

Filter: 16" tall x 16" wide Kleen-Gard stainless steel baffle filter with handles and bottom hanging hook, UL Classified
Premium recessed round LED fixture, 3500 K warm output
Exhaust riser: factory installed, 16" diameter
Supply riser: 12" x 28" with volume dampers
1/2 pint grease cup, new style, flanged slotted
Note: both exhaust and supply fans include EC motors

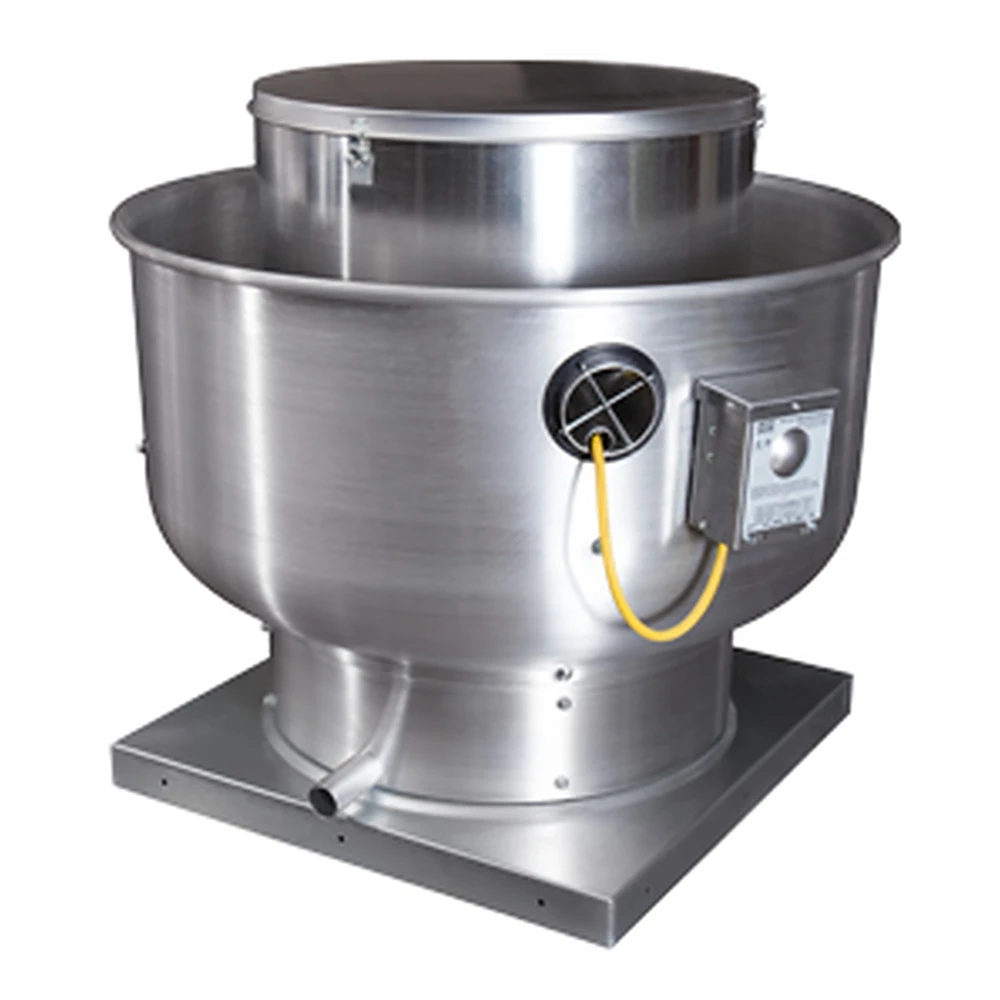

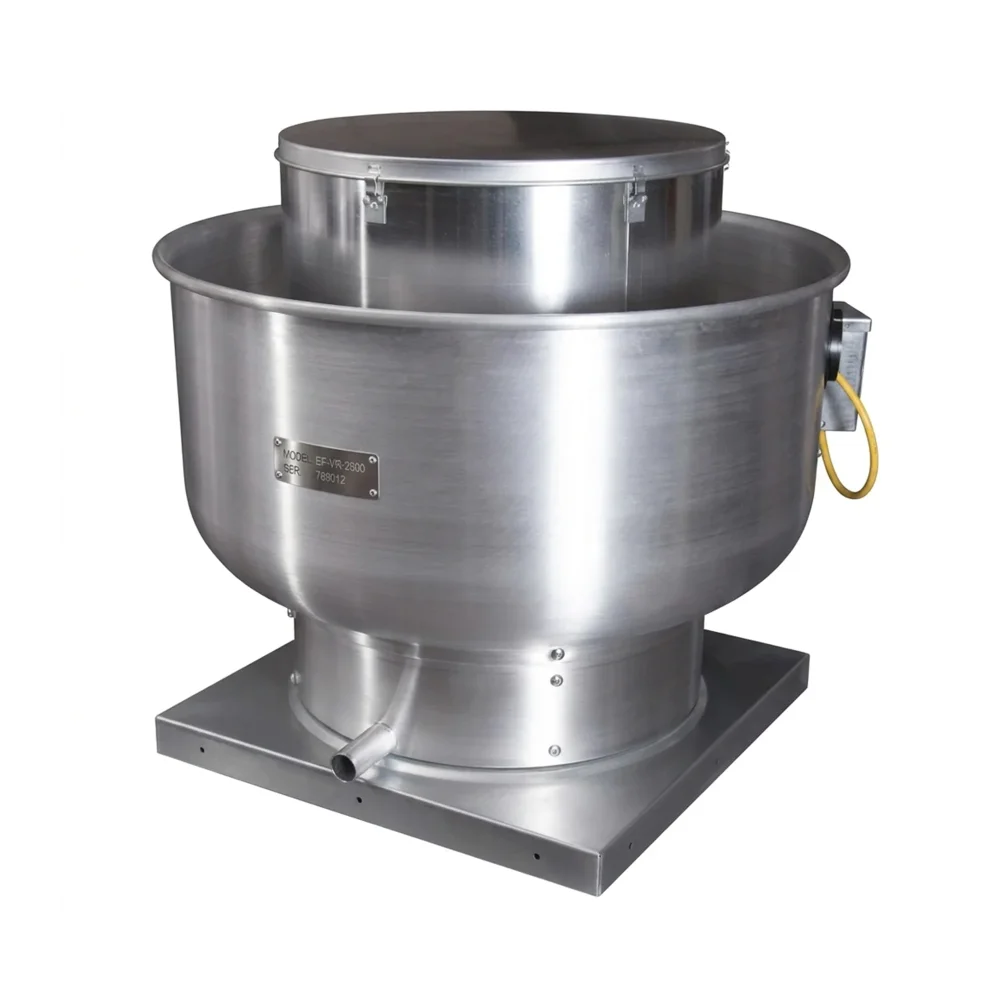

Exhaust Fan Specifications
High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (single phase only), disconnect switch, and 15-3/4" wheel

Handles 2,025 CFM @ -0.750" wc ESP, runs at 1,226 RPM
Motor: 0.750 HP, 1 Phase, 115 V, 60Hz, 13.0 FLA, TEAO-ECM
Grease cup: 15-3/4" L x 5-1/16" W x 3-3/4" H (18 GA.), includes down spout
Curb: CRB23X20E on Fan #1 Flat Curb, hinged base, 12 GA galvanized

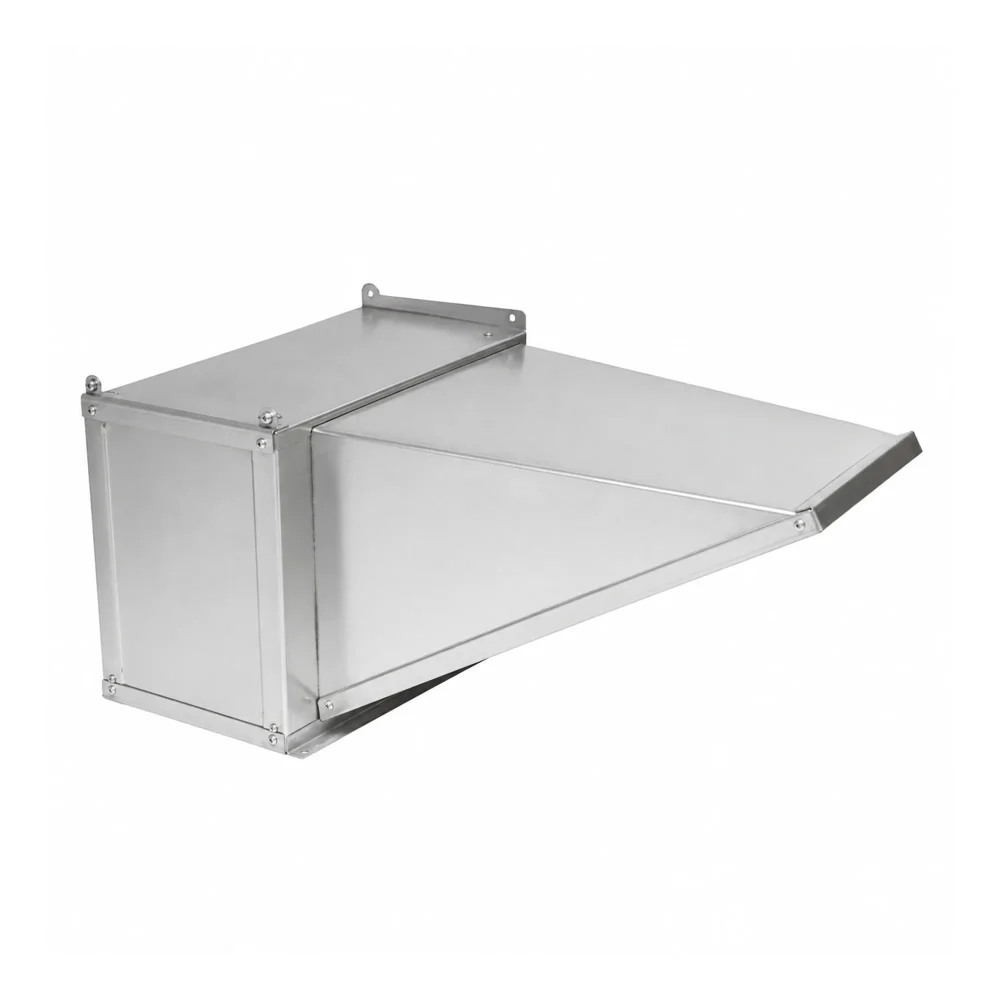

Make-Up Air Unit Specifications
Untempered supply unit with 10" blower in Size #1 Housing

Handles 1,620 CFM @ 0.416" wc ESP, runs at 708 RPM
Motor: 0.333 HP, 1 Phase, 115 V, 60Hz, 7.0 FLA, ODP (Open Drip Proof)
Down discharge, air flow: right to left
Sloped filtered intake: 22" W x 25.875" L x 23.375" H, includes 2" MV EZ Kleen metal mesh filters
Curb: CRB21X20 on Fan #2 Flat Curb
