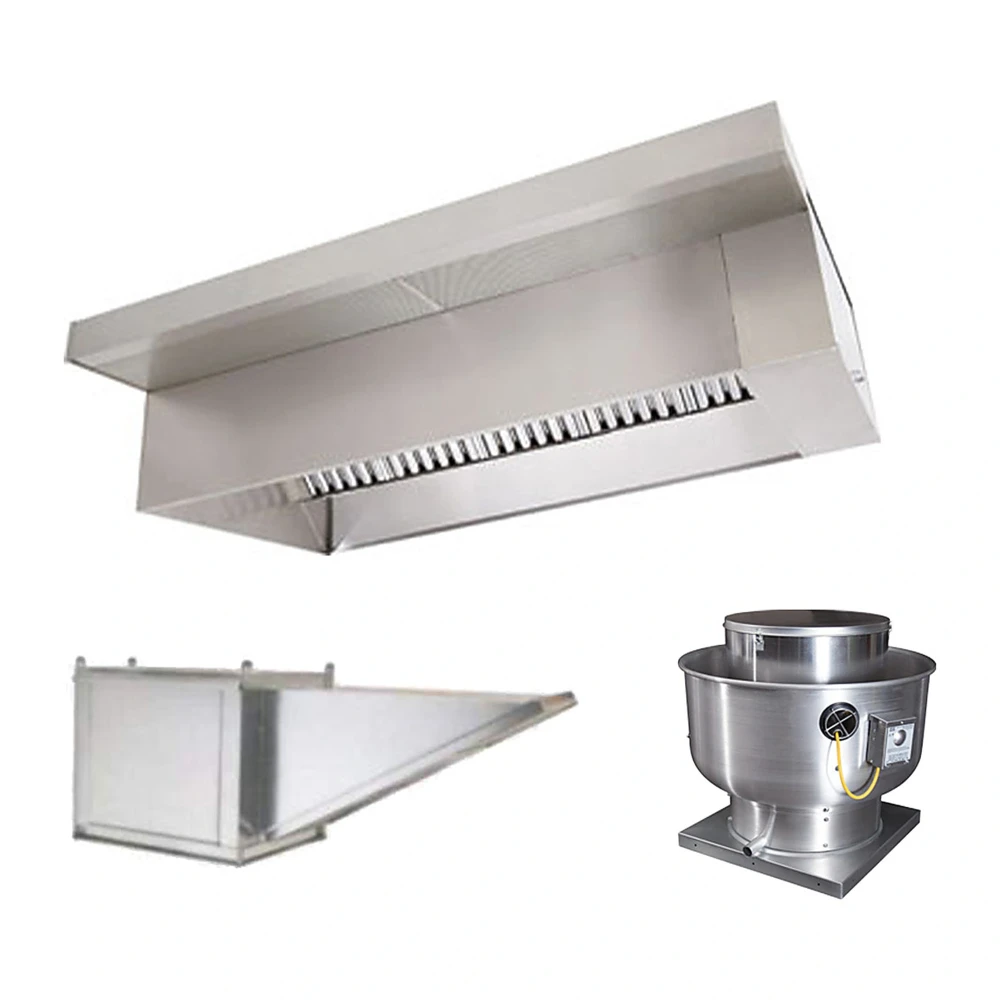

TurboVent Series 5' Wall Canopy Hood With Exhaust Fan, Make Up Air Unit & Roof Curbs, Stainless Steel

Model: TVWCHFMR5

$5,398.80

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

14 Days return policy

Lease to OwnEstimated

Just $65/week instead of $5,399 today

Keep your cash in your business

$65

per week

$9.29 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: TVWCHFMR5

★Why You'll Love It

600-Degree Hood Rating: The 600-degree rated hood supports use with medium to heavy duty cooking equipment in a commercial kitchen.
UL Classified Filtration: The 16" x 20" Kleen-Gard stainless steel baffle filter with bottom hanging hook is UL Classified for kitchen-duty grease filtration.
EC Motor Technology: Both the exhaust and supply fans are fitted with EC motors, supporting variable speed operation in a commercial kitchen ventilation system.
High-Capacity Exhaust: The direct drive centrifugal upblast exhaust fan handles 1,125 CFM at 1,290 RPM, supporting ventilation above heavy cooking equipment.
Make-Up Air Included: The untempered supply unit delivers 900 CFM at 633 RPM with metal mesh filtration, completing the air exchange in a restaurant kitchen setting.
Warranty Coverage: It includes a 1-year warranty from date of shipment, covering defects in materials and workmanship under normal use and service.

The 600-degree rated hood supports use with medium to heavy duty cooking equipment in a commercial kitchen.

$5,398.80

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

14 Days return policy

Lease to OwnEstimated

Just $65/week instead of $5,399 today

Keep your cash in your business

$65

per week

$9.29 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf

Spot something off?
Help us improve this page.

Key Specification

Country of OriginChina

MaterialStainless Steel

Selling Unit1/Each

TypeCommercial Kitchen Hood Package

Warranty1 Year Warranty

Product Depth48 inch

Country of Origin	China	Material	Stainless Steel	Selling Unit	1/Each
Type	Commercial Kitchen Hood Package	Warranty	1 Year Warranty	Product Depth	48 inch
Product length	5 foot	Material Type	430 Stainless Steel	Air Flow	1125 CFM (Exhaust) / 900 CFM (Supply)
Exhaust Fan	TEAO-ECM, 1290 RPM, 1/2 HP, 8.1 FLA, 115 V, 1 Phase, 60 Hz	Filter Type	16" Tall x 20" Wide, Kleen-Gard Stainless Steel Baffle Filter, UL Classified	Air Discharge	Down Discharge
Style	Exhaust-Only Wall Canopy Hood	Lighting	LED	Series	TurboVent Series
Certifications	ETL & NSF	Included	Hood + Exhaust Fan + Make Up Air Unit + Roof Curbs + Built-in 3" Back Standoff	Temperature	600 fahrenheit
Supply Plenum	Front Perforated Supply Plenum	Exhaust Riser	12" Diameter (Factory Installed)	Supply Riser	10" x 20", Volume Dampers Included
Supply Unit	Untempered Supply Unit (Make Up Air)	Supply Blower	10" Blower	Supply Housing	Size #1 Housing
Supply Fan RPM	633 RPM	Supply Motor	ODP (Open Drip Proof), 1/3 HP, 7.0 FLA	Air Flow Direction	Right to Left
Intake Type	Sloped Filtered Intake for Size #1 Standard Untempered Supply Unit	Curb Type	Flat Curb (Both Fans)	Usage	Medium to Heavy Duty

Product Overview

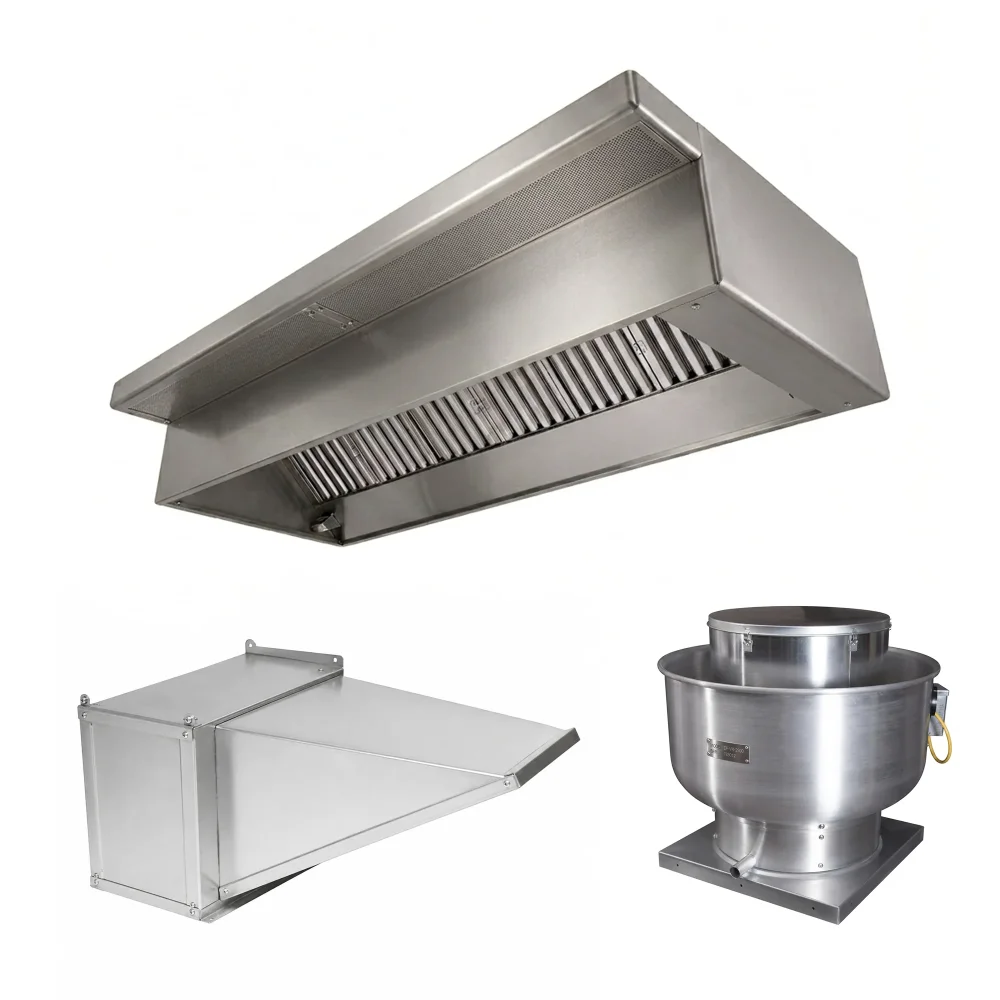

This 5-foot wall canopy exhaust hood package is built for commercial kitchens. It includes a hood, exhaust fan, make-up air unit, and roof curbs.

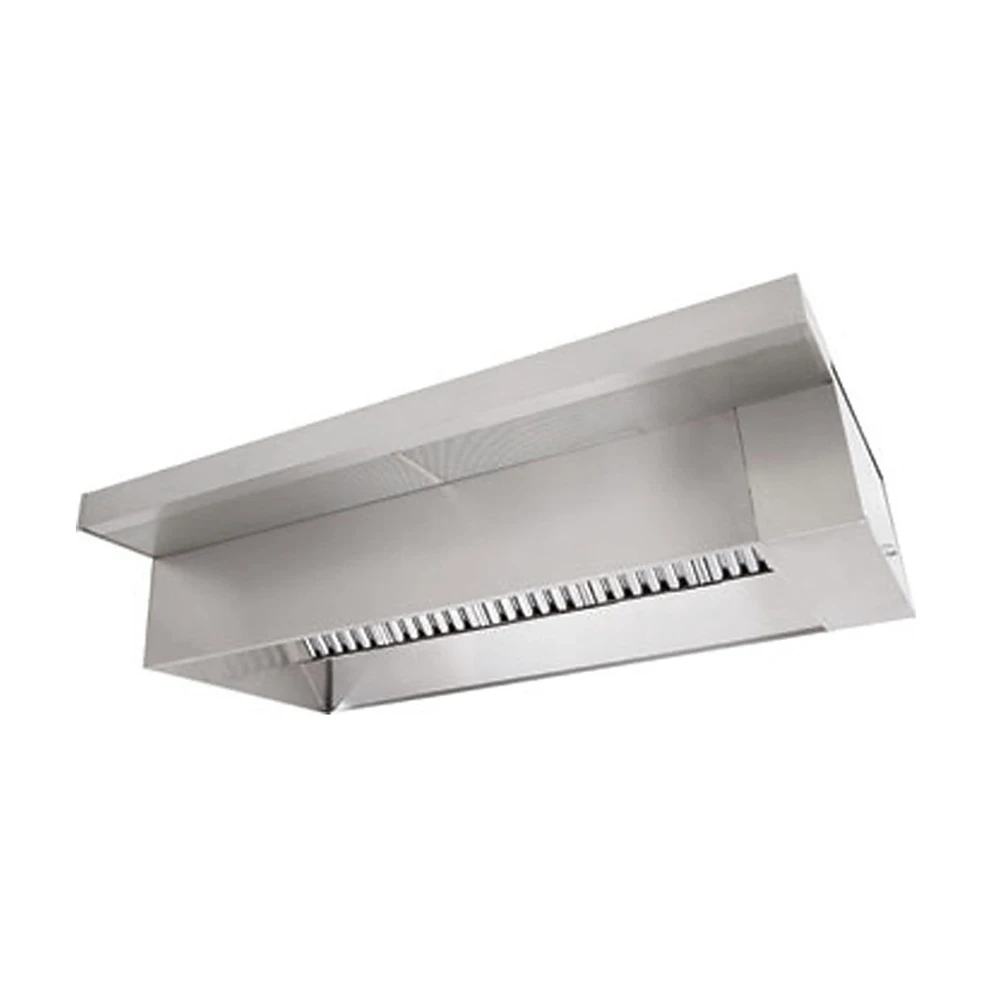

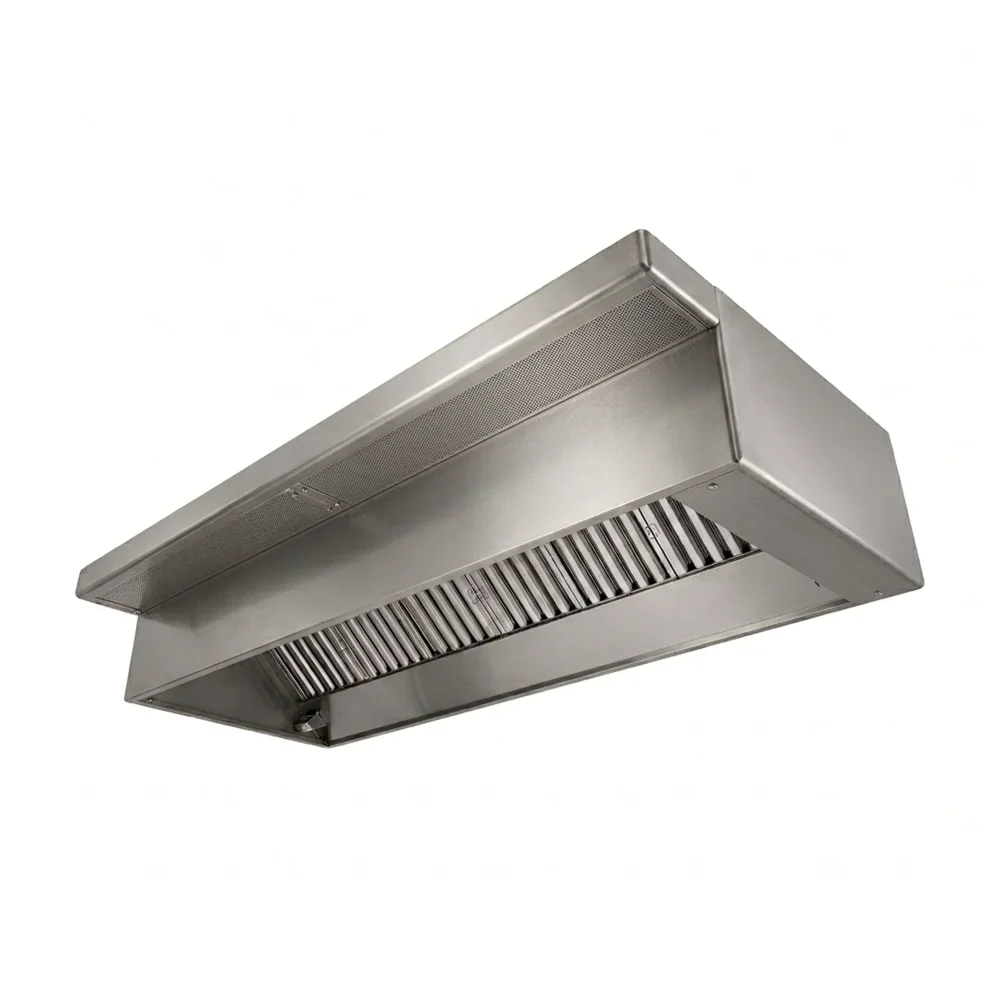

Hood Specifications

430 stainless steel construction where exposed
48" depth for capture and containment of cooking vapors at lower airflow volumes
600-degree hood rating, suitable for medium to heavy duty equipment
Front perforated supply plenum with built-in 3" back standoff

Filter: 16" tall x 20" wide Kleen-Gard stainless steel baffle filter with handles and bottom hanging hook, UL Classified
Premium recessed round LED fixture, 3500 K warm output
Exhaust riser: factory installed, 12" diameter
Supply riser: 10" x 20" with volume dampers
1/2 pint grease cup, new style, flanged slotted
Note: both exhaust and supply fans include EC motors

Exhaust Fan Specifications

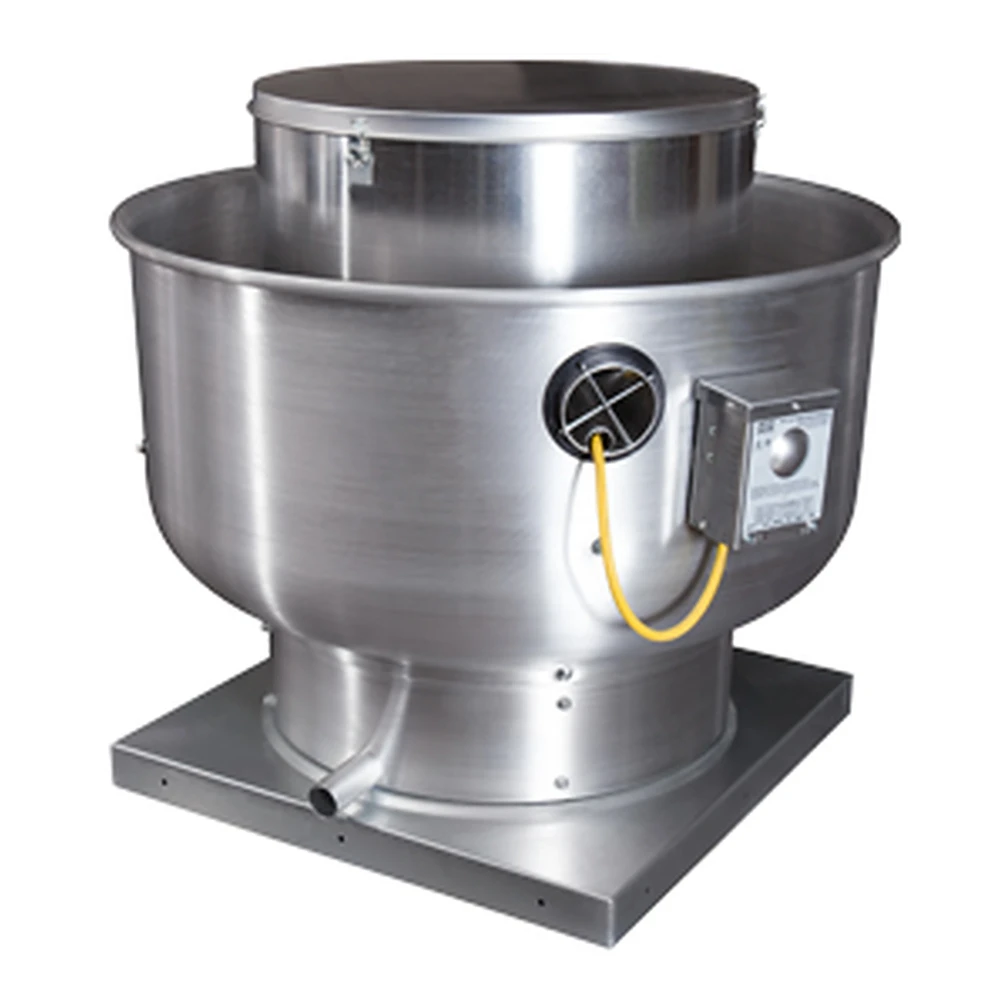

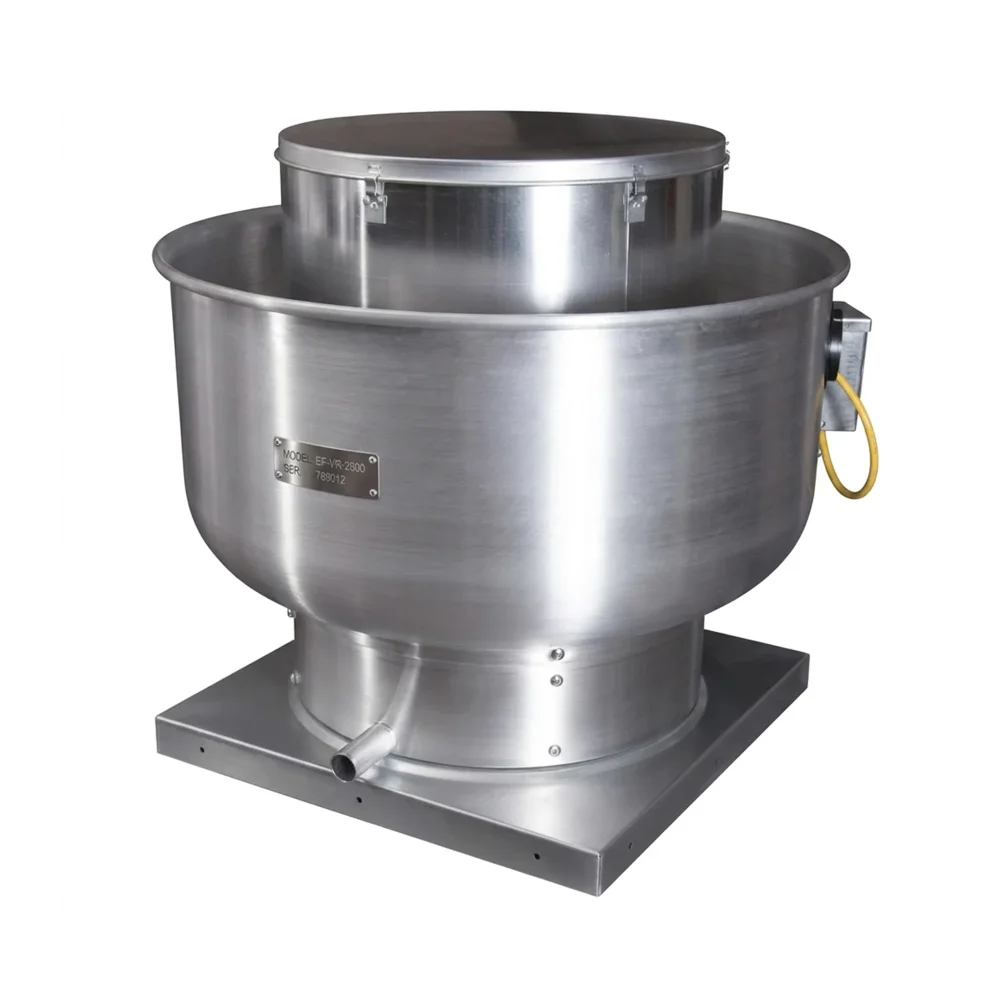

High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (single phase only), disconnect switch, and 11-3/4" wheel
Handles 1,125 CFM @ -0.750" wc ESP, runs at 1,290 RPM
Motor: 0.500 HP, 1 Phase, 115 V, 60Hz, 8.1 FLA, TEAO-ECM
Grease cup: 15-3/4" L x 5-1/16" W x 3-3/4" H (18 GA.), includes down spout
Curb: CRB19.5X20E on Fan #1 Flat Curb, Hinged base for curb, 12 GA galvanized

Make-Up Air Unit Specifications

Untempered supply unit with 10" blower in Size #1 Housing

Handles 900 CFM @ 0.416" wc ESP, runs at 633 RPM
Motor: 0.333 HP, 1 Phase, 115 V, 60Hz, 7.0 FLA, ODP (Open Drip Proof)
Down discharge, air flow: right to left
Sloped filtered intake: 22" W x 25.875" L x 23.375" H, includes 2" MV EZ Kleen metal mesh filters
Curb: CRB21X20 on Fan #2 Flat Curb
