TurboVent Series 16' Wall Canopy Hood With Exhaust Fan, Make Up Air Unit & Roof Curbs, Stainless Steel

Model: TVWCHFMR16

$11,998.80

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

14 Days return policy

Lease to OwnEstimated

Just $156/week instead of $11,999 today

Keep your cash in your business

$156

per week

$22.29 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: TVWCHFMR16

★Why You'll Love It

600-Degree Hood Rating: The 600-degree rated hood supports use with medium to heavy duty equipment in a commercial kitchen.
54" Hood Depth: The 54" depth supports better capture and containment of cooking vapors at lower airflow volumes above cooking equipment.
UL Classified Filtration: The 16" x 16" Kleen-Gard stainless steel baffle filter with bottom hanging hook is UL Classified for kitchen-duty grease filtration.
LED Lighting: The premium recessed round LED fixture with 3500 K warm output provides visibility over the cooking area during kitchen use.
Dual Exhaust Fans: Two direct drive centrifugal upblast exhaust fans, each handling 1,800 CFM at 1,131 RPM, support ventilation across a 16-foot hood span.
EC Motor Technology: Both exhaust fans are fitted with Premium Efficiency Electronically Commutated motors with speed control, supporting variable operation in a commercial kitchen.
Make-Up Air Included: The untempered supply unit with 20" mixed flow direct drive fan delivers 2,880 CFM at 1,035 RPM, completing the air exchange in a restaurant kitchen setting.
Warranty Coverage: It includes a 1-year warranty from date of shipment, covering defects in materials and workmanship under normal use and service.

The 600-degree rated hood supports use with medium to heavy duty equipment in a commercial kitchen.

$11,998.80

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

14 Days return policy

Lease to OwnEstimated

Just $156/week instead of $11,999 today

Keep your cash in your business

$156

per week

$22.29 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf

Spot something off?
Help us improve this page.

Key Specification

Country of OriginChina

MaterialStainless Steel

Selling Unit1/Each

TypeCommercial Kitchen Hood Package

Warranty1 Year Warranty

Product Depth54 inch

Country of Origin	China	Material	Stainless Steel	Selling Unit	1/Each
Type	Commercial Kitchen Hood Package	Warranty	1 Year Warranty	Product Depth	54 inch
Product length	16 foot	Material Type	430 Stainless Steel	Air Flow	3600 CFM (Exhaust) / 2880 CFM (Supply)
Exhaust Fan	2 EC Motors Fans, 1131 RPM, 3/4 HP, 9.8 FLA, 115 V, 1 Phase, 60 Hz	Filter Type	16" Tall x 16" Wide, Kleen-Gard Stainless Steel Baffle Filter, UL Classified	Air Discharge	Down Discharge
Style	Exhaust-Only Wall Canopy Hood	Lighting	LED	Series	TurboVent Series
Certifications	ETL & NSF	Included	Hood + Exhaust Fan + Make Up Air Unit + Roof Curbs + Built-in 3" Back Standoff	Temperature	600 fahrenheit
Supply Plenum	Front Perforated Supply Plenum	Exhaust Riser	14" Diameter (Factory Installed)	Supply Riser	12"x 28", Volume Dampers Included
Supply Unit	Untempered Supply Unit (Make Up Air)	Supply Housing	Size #2 Housing	Supply Fan RPM	1035 RPM
Supply Motor	ODP, Premium (E-Plus3) Eff, 3 Phase, 208 V, 60Hz, 3.8 FLA	Air Flow Direction	Right to Left	Usage	Medium to Heavy Duty

Product Overview

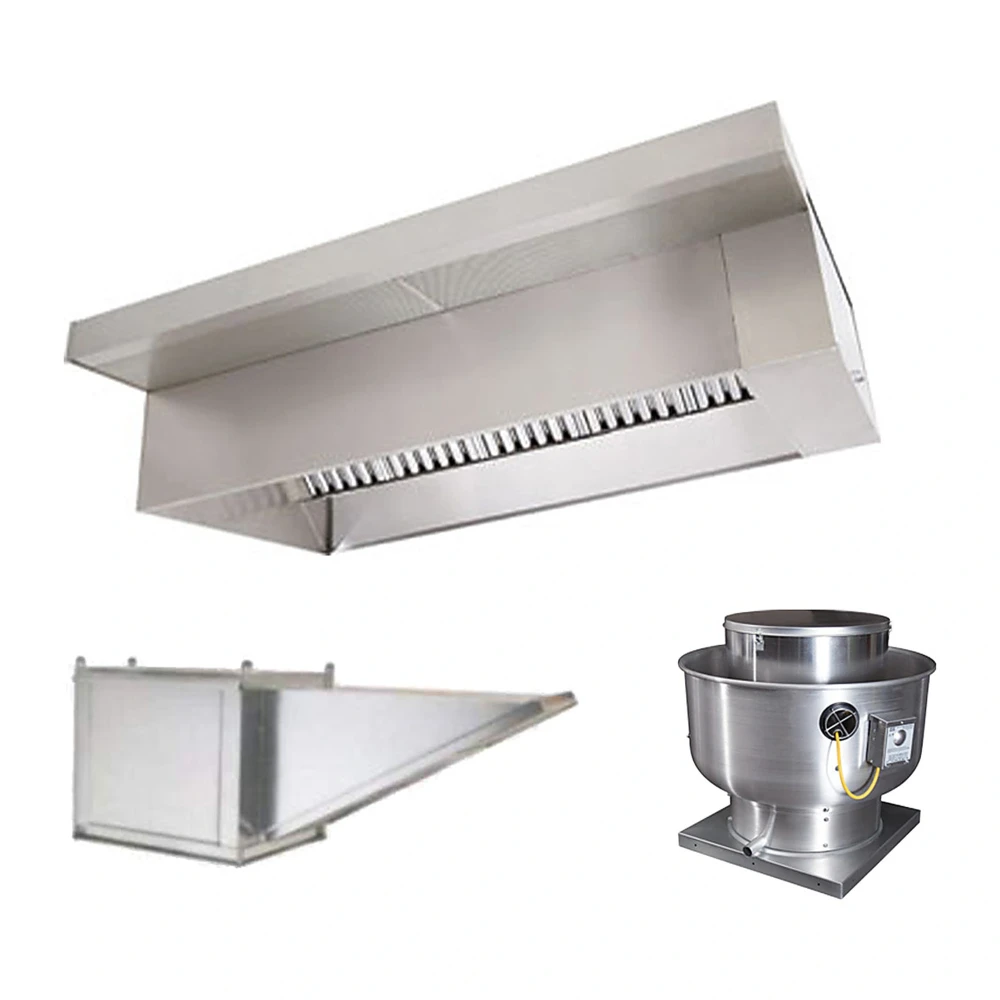

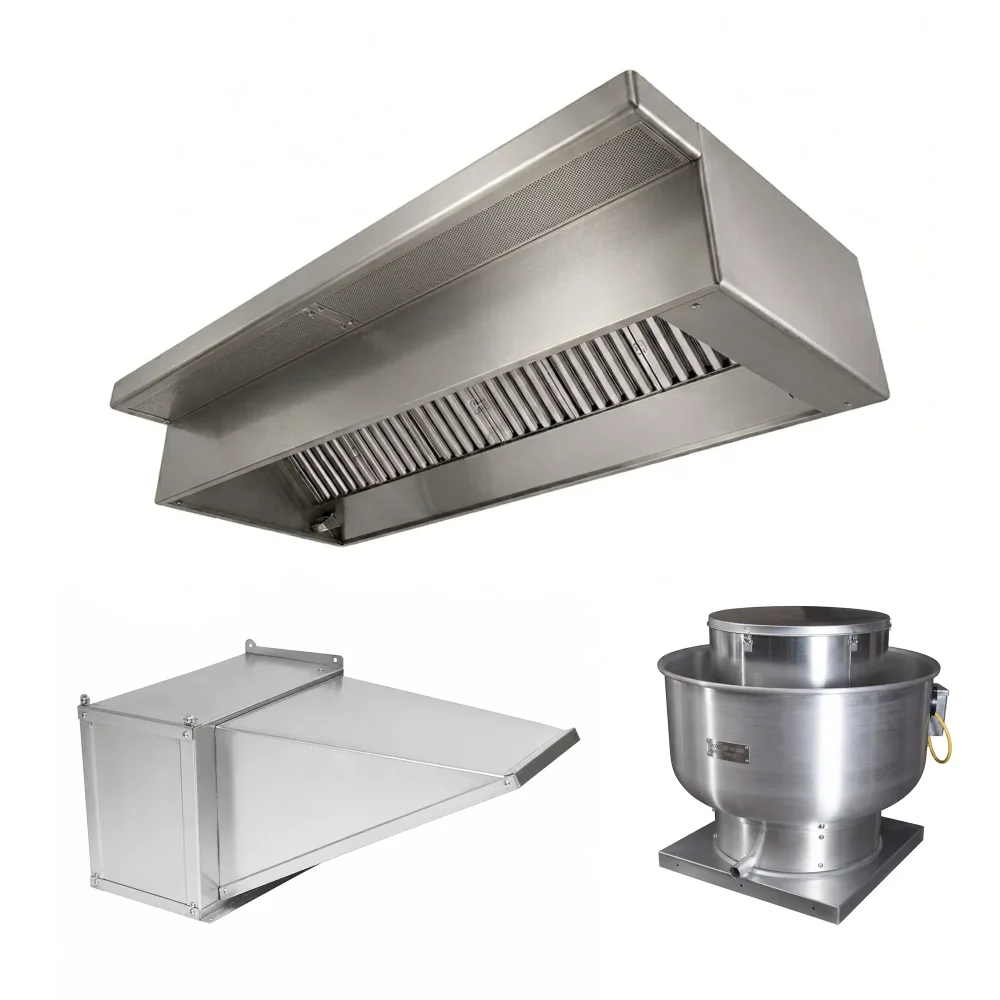

This 16-foot wall canopy exhaust hood package is built for commercial kitchens. It includes a hood, two exhaust fans, make-up air unit, and roof curbs.

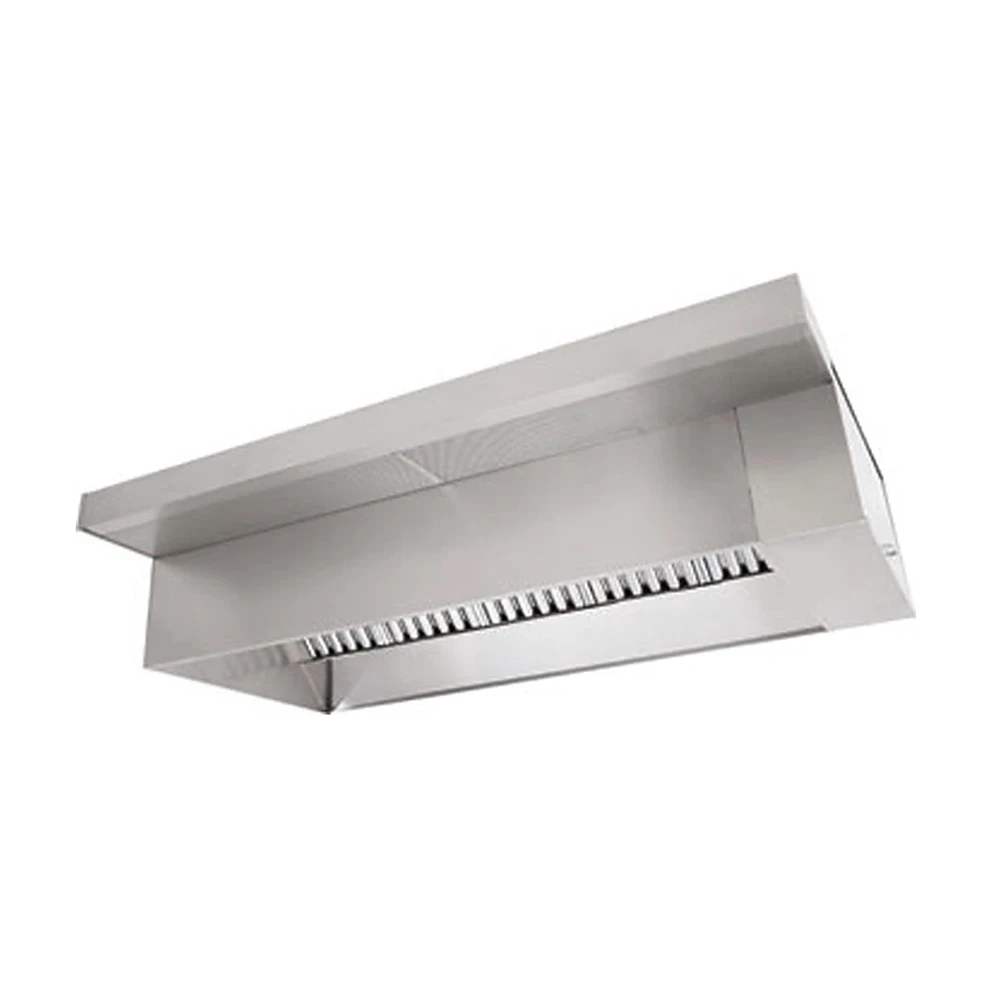

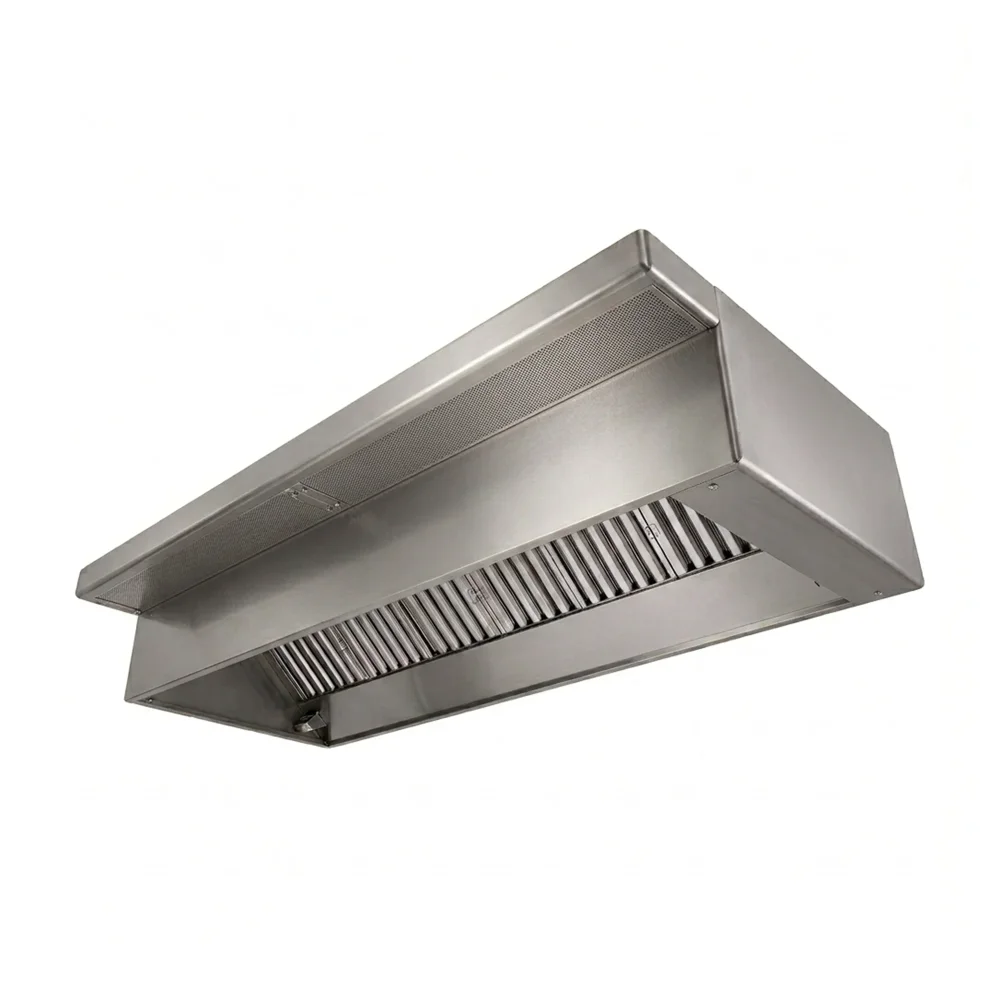

Hood Specifications

430 stainless steel construction where exposed
54" depth for capture and containment of cooking vapors at lower airflow volumes
600-degree hood rating, suitable for medium to heavy duty equipment
Front perforated supply plenum with built-in 3" back standoff

Filter: 16" tall x 16" wide Kleen-Gard stainless steel baffle filter with handles and bottom hanging hook, UL Classified
Premium recessed round LED fixture, 3500 K warm output
Exhaust riser: factory installed, 14" diameter
Supply riser: 12" x 28" with volume dampers
1/2 pint grease cup, new style, flanged slotted

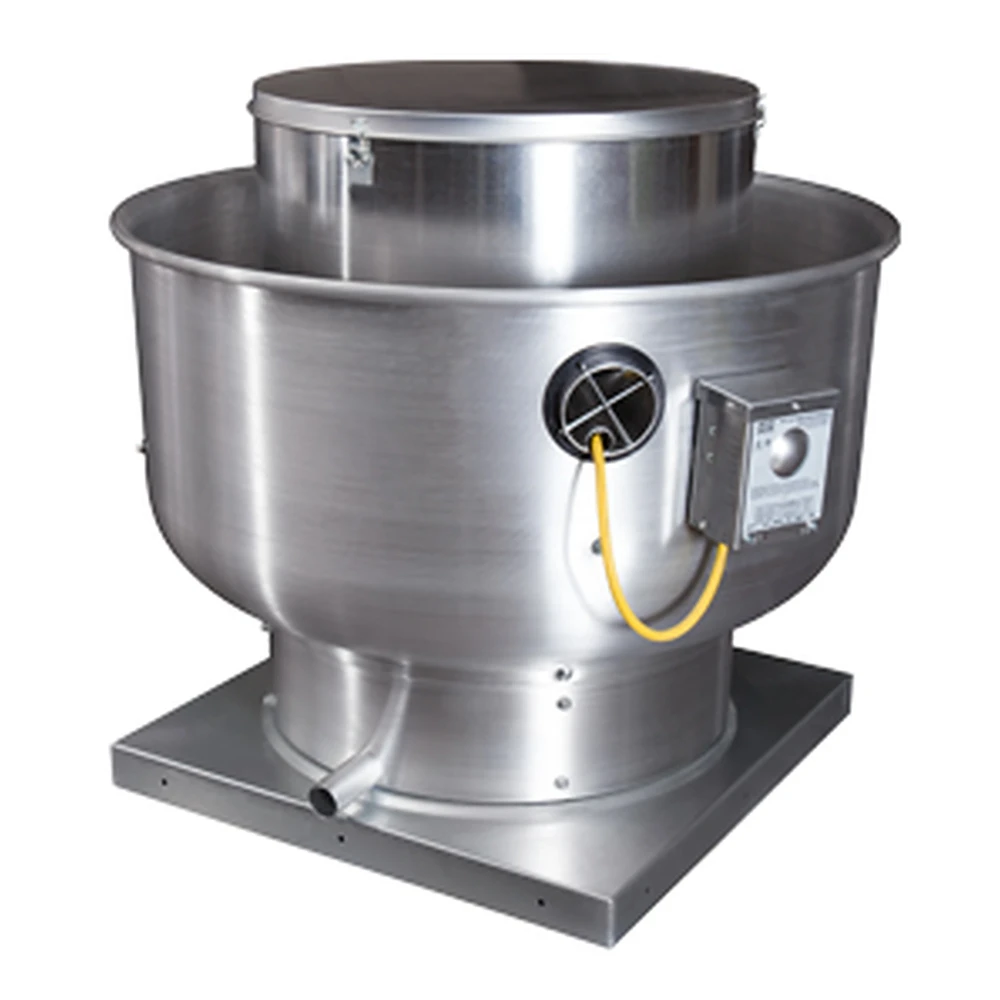

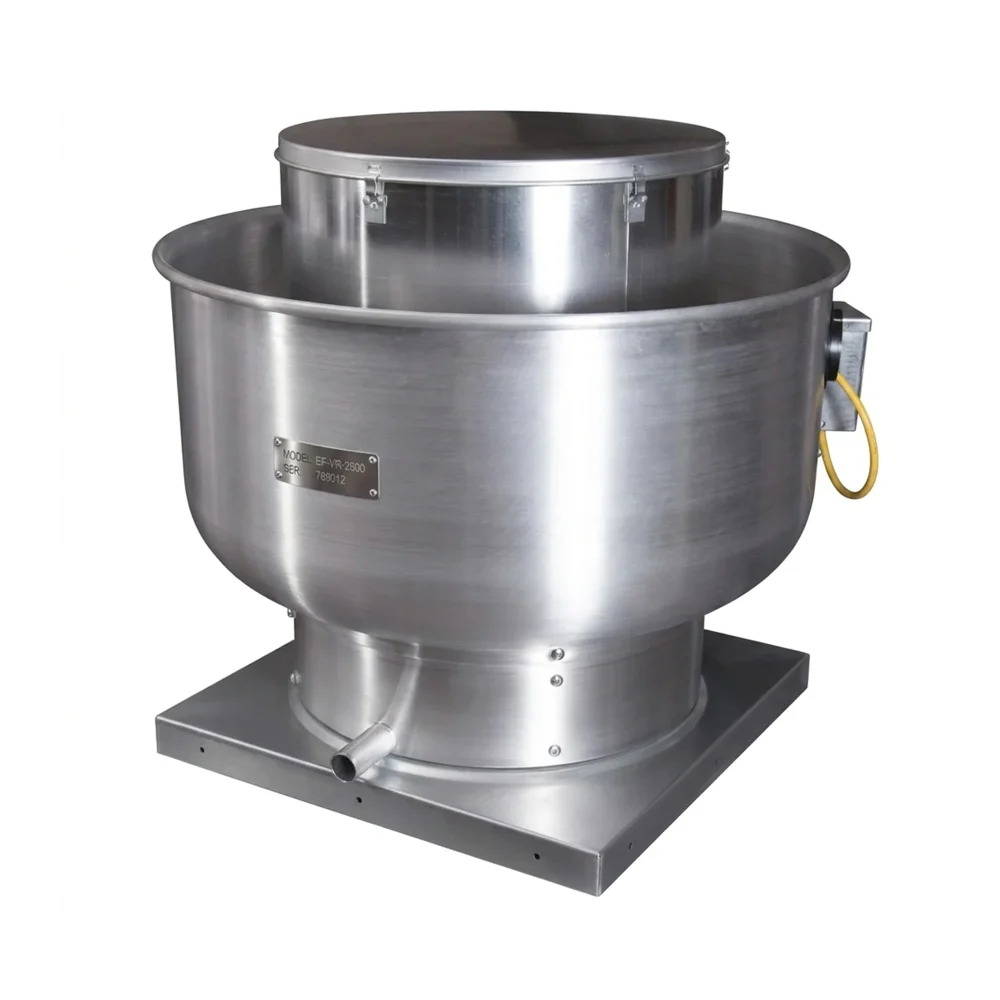

Exhaust Fan Specifications (x2)
Two High Speed Direct Drive Centrifugal Upblast Exhaust Fans with speed control, disconnect switch, and 15-3/4" wheel

Each fan handles 1,800 CFM @ -0.500" wc ESP, runs at 1,131 RPM
Motor: 0.750 HP, 1 Phase, 115 V, 60Hz, 9.8 FLA, Premium Efficiency Electronically Commutated (EC) motors

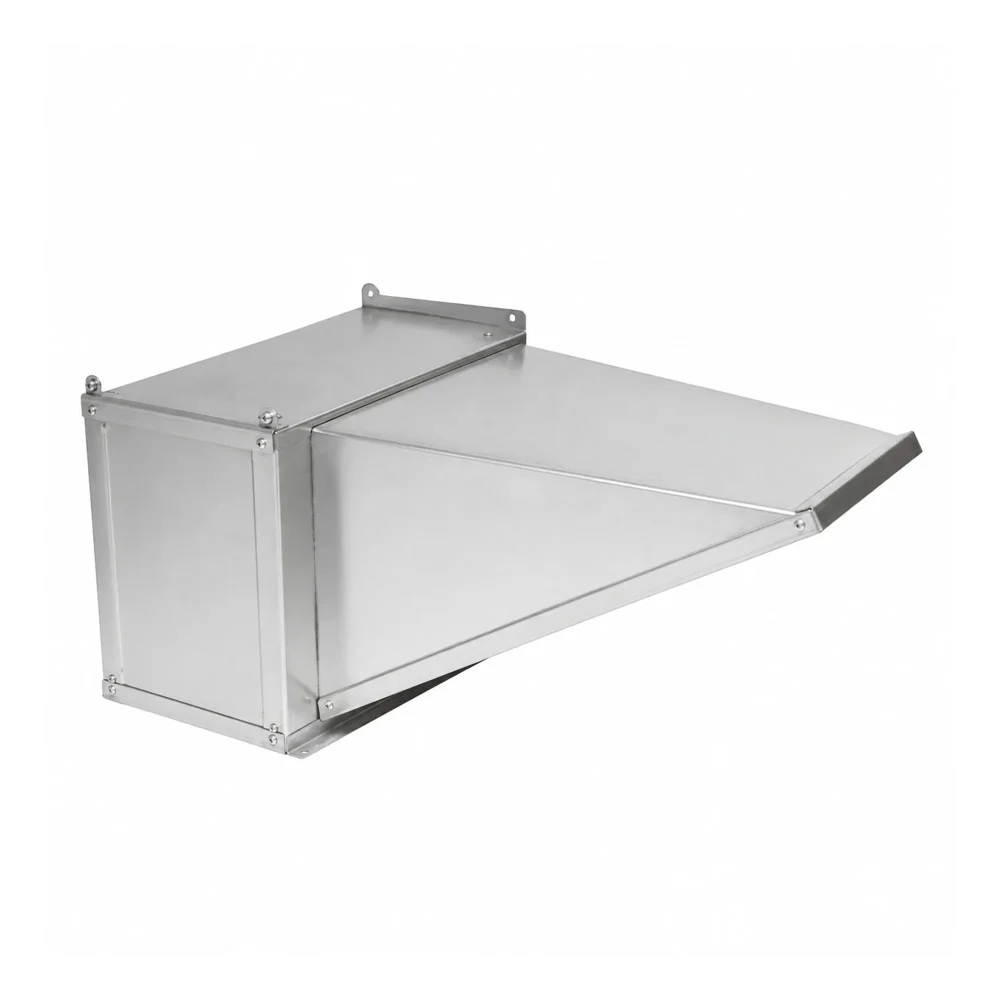

Make-Up Air Unit Specifications
Untempered Supply Unit with 20" Mixed Flow Direct Drive Fan in Size #2 Housing

Handles 2,880 CFM @ 0.375" wc ESP, runs at 1,035 RPM
Motor: 1.000 HP, 3 Phase, 208 V, 60Hz, 3.8 FLA, ODP, Premium (E-Plus3) Efficiency
Down discharge, air flow: right to left
