TurboVent Series 12' Wall Canopy Hood With Exhaust Fan, Make Up Air Unit & Roof Curbs, Stainless Steel

Model: TVWCHFMR12

$9,238.80

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

14 Days return policy

Lease to OwnEstimated

Just $117/week instead of $9,239 today

Keep your cash in your business

$117

per week

$16.71 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Model: TVWCHFMR12

★Why You'll Love It

600-Degree Hood Rating: The 600-degree rated hood supports use with medium to heavy duty equipment in a commercial kitchen.
54" Hood Depth: The 54" depth supports better capture and containment of cooking vapors at lower airflow volumes above cooking equipment.
UL Classified Filtration: The 16" x 20" Kleen-Gard stainless steel baffle filter with bottom hanging hook is UL Classified for kitchen-duty grease filtration.
LED Lighting: The premium recessed round LED fixture with 3500 K warm output provides visibility over the cooking area during kitchen use.
Variable Frequency Drive: The exhaust fan includes a factory mounted, wired, and programmed Variable Frequency Drive supporting controlled motor speed operation.
High-Capacity Exhaust: The direct drive centrifugal upblast exhaust fan handles 2,700 CFM at 1,111 RPM, supporting ventilation above heavy cooking equipment.
Make-Up Air Included: The direct drive untempered supply unit delivers 2,160 CFM at 940 RPM with TEAO-ECM motor, completing the air exchange in a restaurant kitchen setting.
Warranty Coverage: It includes a 1-year warranty from date of shipment, covering defects in materials and workmanship under normal use and service.

The 600-degree rated hood supports use with medium to heavy duty equipment in a commercial kitchen.

$9,238.80

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

14 Days return policy

Lease to OwnEstimated

Just $117/week instead of $9,239 today

Keep your cash in your business

$117

per week

$16.71 / day

Low weekly payments, up to 100% tax deductible
Change, or return the equipment at any time
Startups welcome

Estimate only. Final rate confirmed after approval.

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf

Spot something off?
Help us improve this page.

Key Specification

Country of OriginChina

MaterialStainless Steel

Selling Unit1/Each

TypeCommercial Kitchen Hood Package

Warranty1 Year Warranty

Product Depth54 inch

Country of Origin	China	Material	Stainless Steel	Selling Unit	1/Each
Type	Commercial Kitchen Hood Package	Warranty	1 Year Warranty	Product Depth	54 inch
Product length	12 foot	Material Type	430 Stainless Steel	Air Flow	2700 CFM (Exhaust) / 2160 CFM (Supply)
Exhaust Fan	TEFC, Premium (E-Plus3) Eff., 1111 RPM, 1 1/2 HP, 6.5 FLA, 208 V, 3 Phase, 60 Hz	Filter Type	16" Tall x 20" Wide, Kleen-Gard Stainless Steel Baffle Filter, UL Classified	Air Discharge	Down Discharge
Style	Exhaust-Only Wall Canopy Hood	Lighting	LED	Series	TurboVent Series
Certifications	ETL & NSF	Included	Hood + Exhaust Fan + Make Up Air Unit + Roof Curbs + Built-in 3" Back Standoff	Temperature	600 fahrenheit
Supply Plenum	Front Perforated Supply Plenum	Exhaust Riser	16" Diameter (Factory Installed)	Supply Riser	12"x 28", Volume Dampers Included
Supply Unit	Untempered Supply Unit (Make Up Air)	Supply Blower	10" Blower	Supply Housing	Size #1 Housing
Supply Fan RPM	940 RPM	Supply Motor	TEAO-ECM, 1 HP, 11.6 FLA	Air Flow Direction	Right to Left
Usage	Medium to Heavy Duty

Product Overview

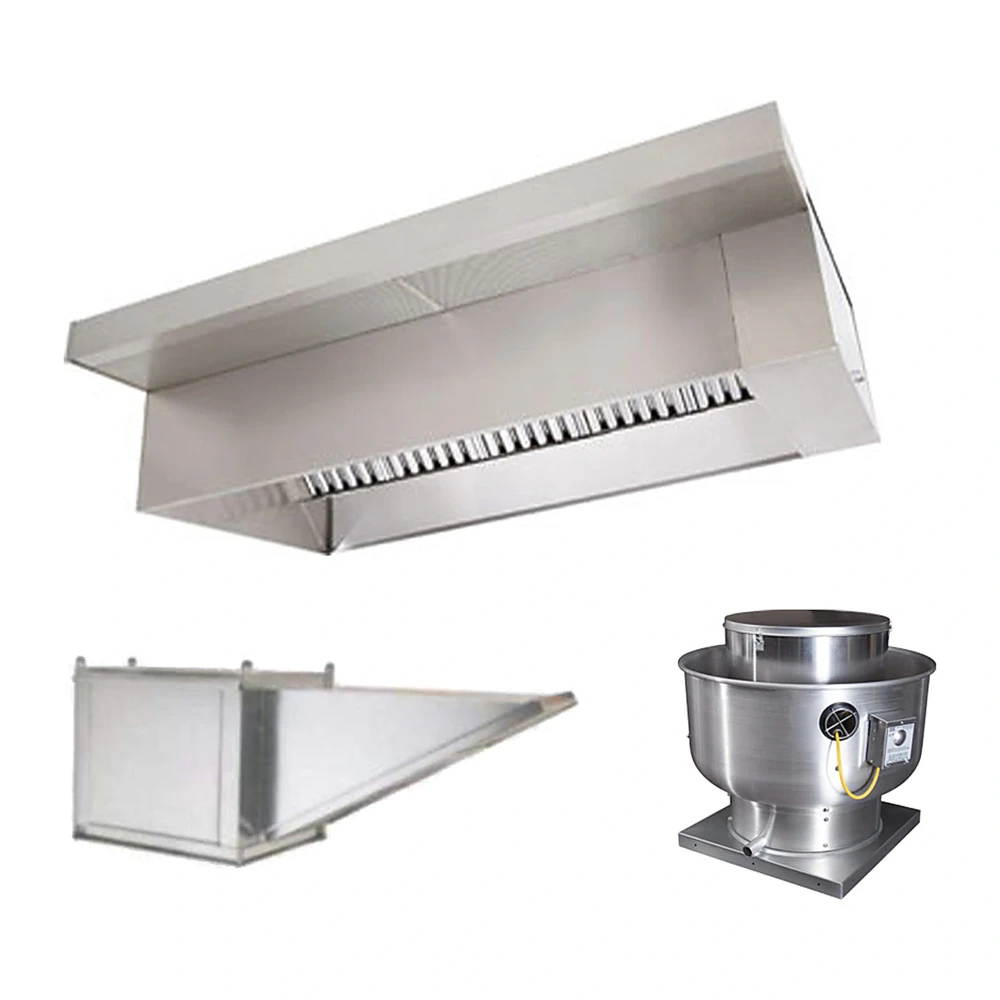

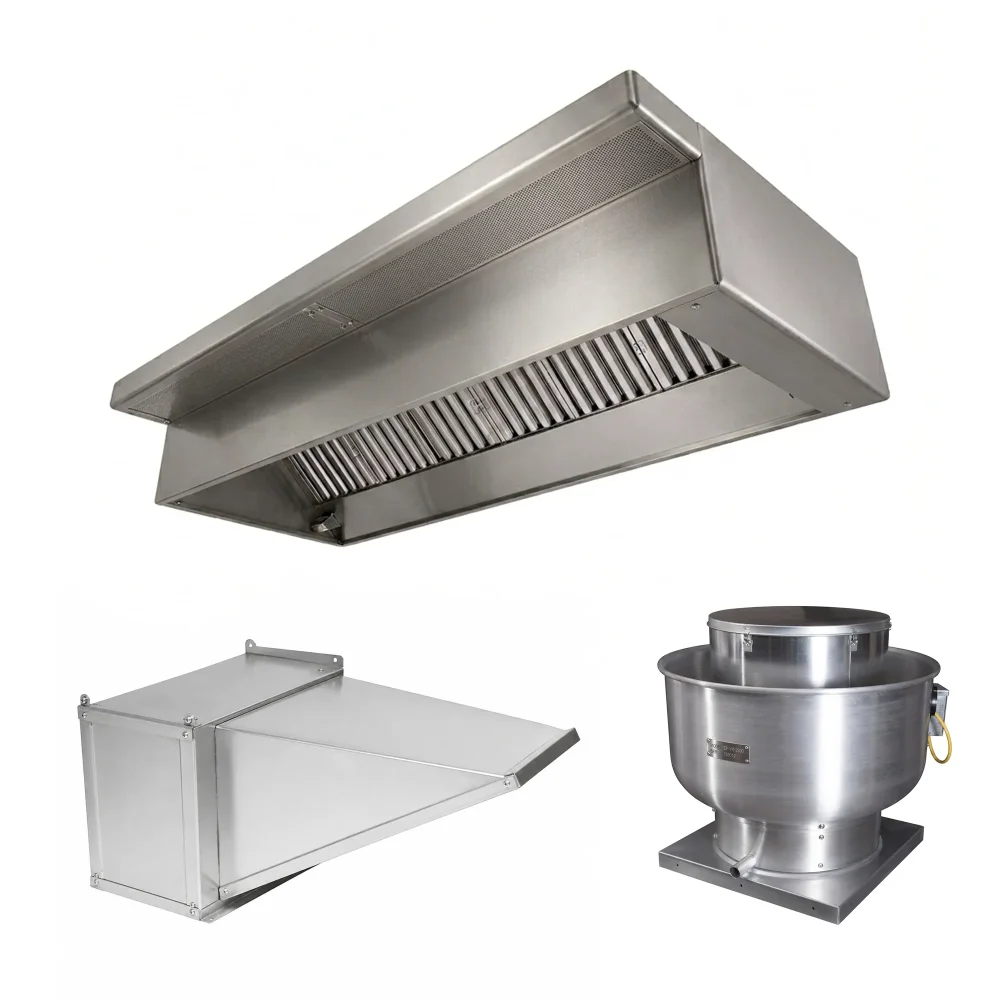

This 12-foot wall canopy exhaust hood package is built for commercial kitchens. It includes a hood, exhaust fan, make-up air unit, and roof curbs.

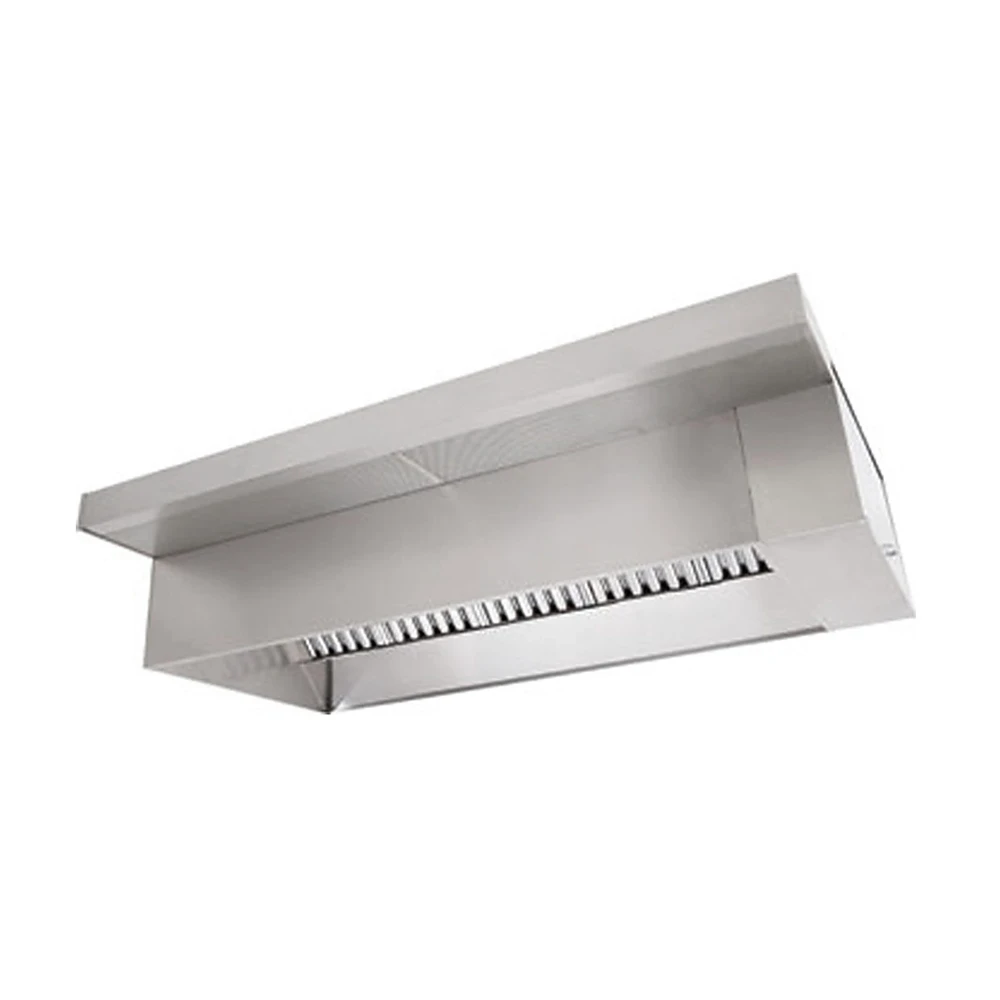

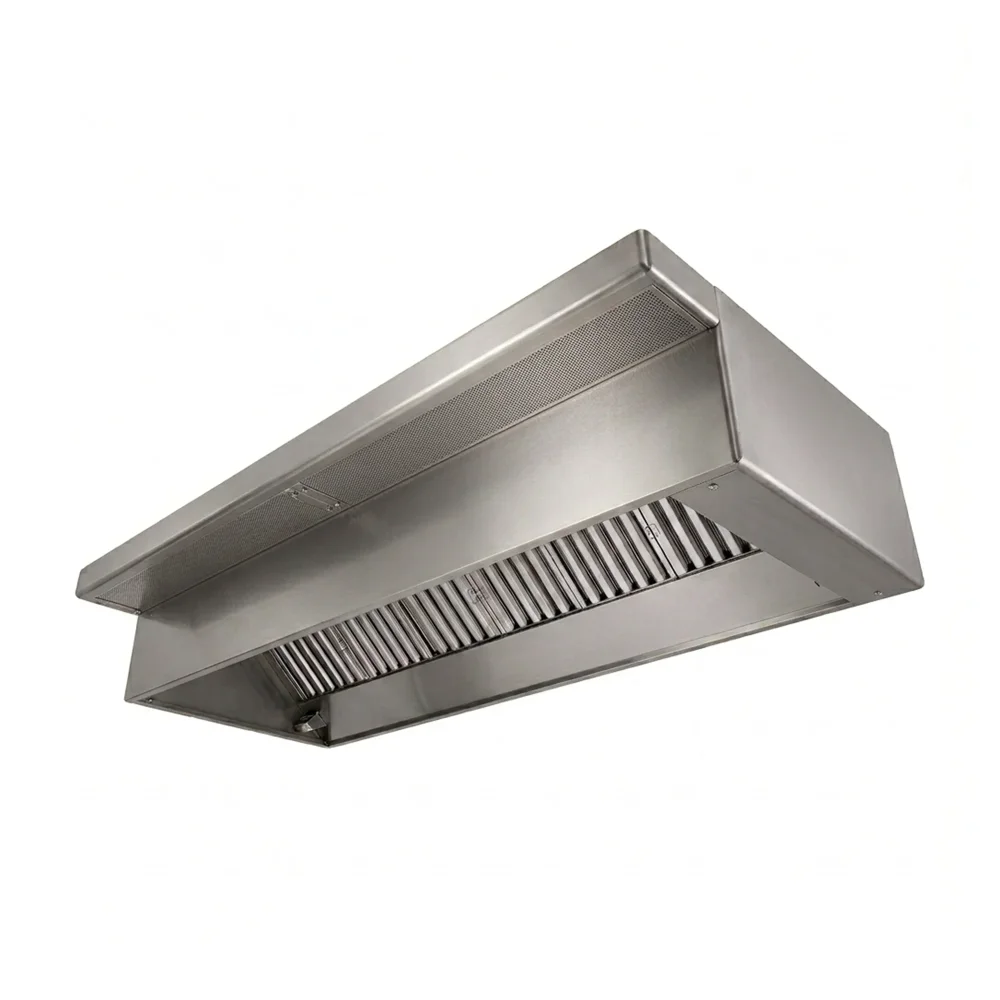

Hood Specifications

430 stainless steel construction where exposed
54" depth for capture and containment of cooking vapors at lower airflow volumes
600-degree hood rating, suitable for medium to heavy duty equipment
Front perforated supply plenum with built-in 3" back standoff

Filter: 16" tall x 20" wide Kleen-Gard stainless steel baffle filter with handles and bottom hanging hook, UL Classified
Premium recessed round LED fixture, 3500 K warm output
Exhaust riser: factory installed, 16" diameter
Supply riser: 12" x 28" with volume dampers
1/2 pint grease cup, new style, flanged slotted

Exhaust Fan Specifications

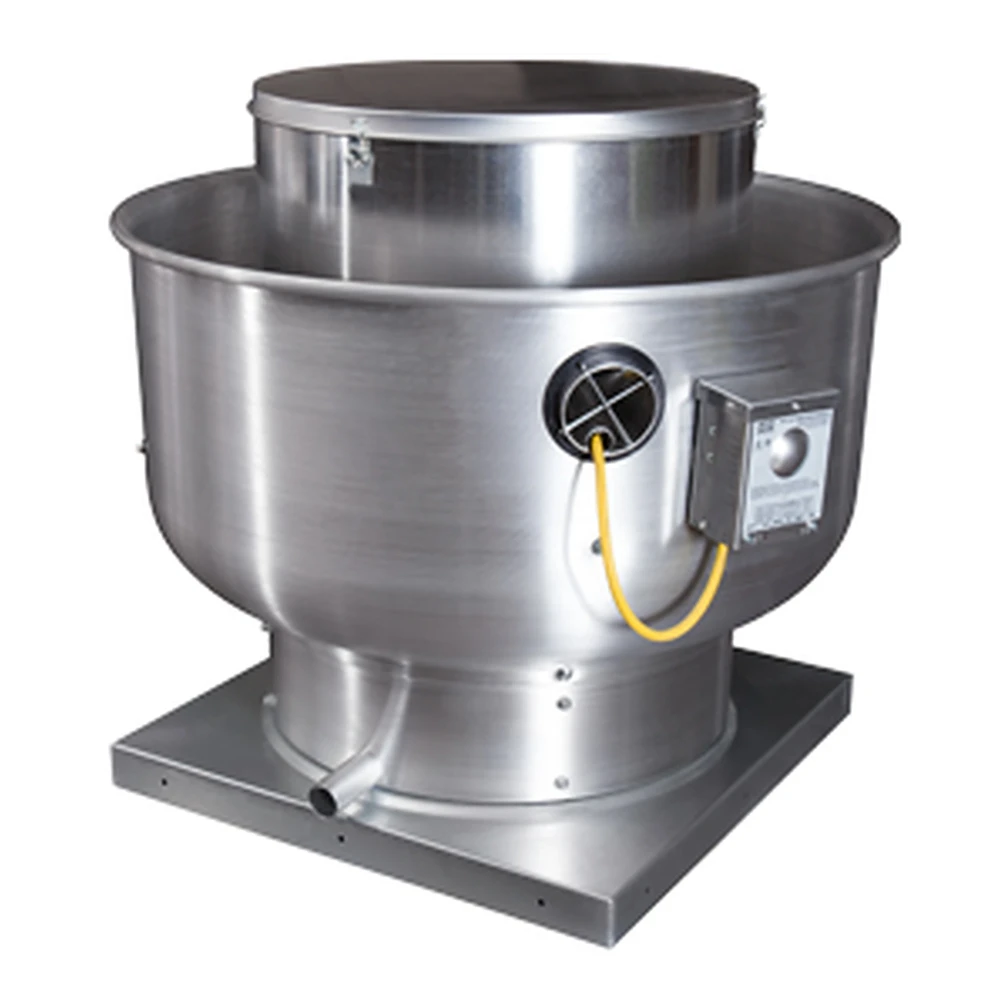

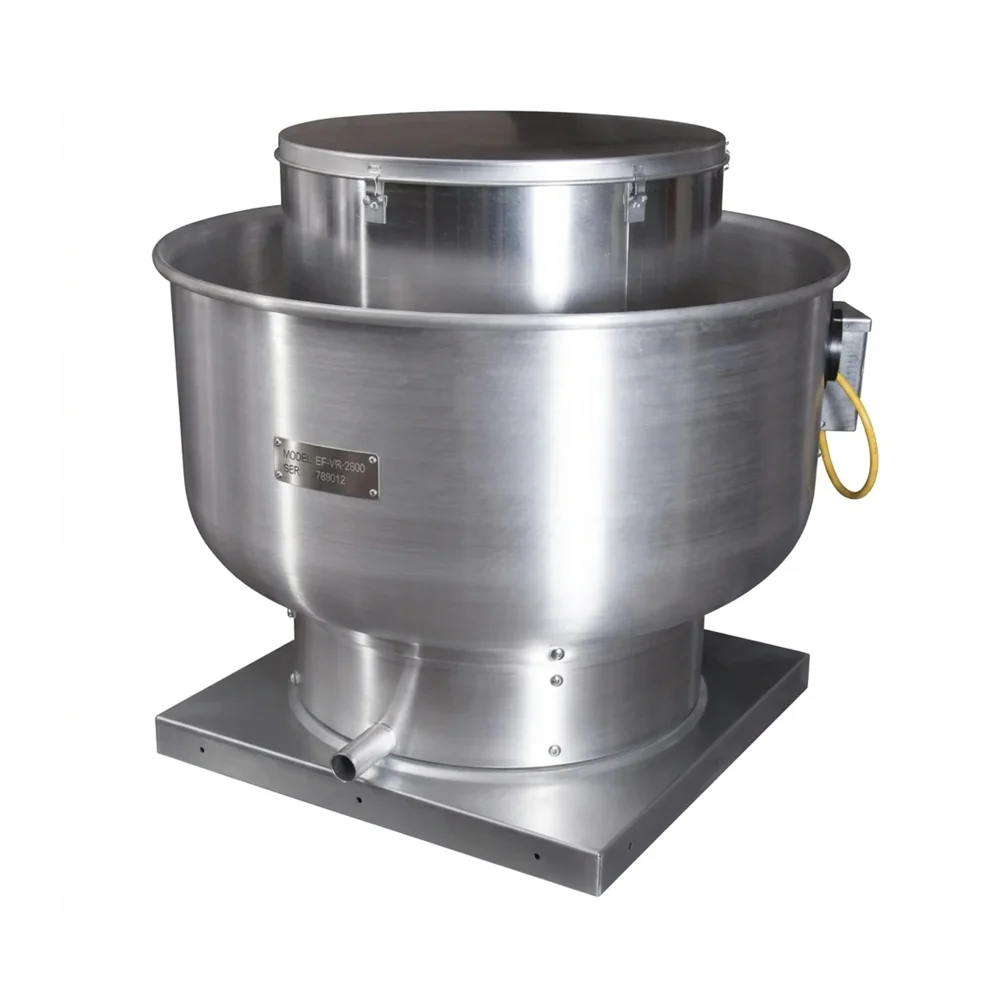

High Speed Direct Drive Centrifugal Upblast Exhaust Fan with 18-3/4" wheel

Handles 2,700 CFM @ -1.000" wc ESP, runs at 1,111 RPM
Motor: 1.500 HP, 3 Phase, 208 V, 60Hz, 6.5 FLA, TEFC, Premium (E-Plus3) Efficiency
Variable Frequency Drive factory mounted, wired and programmed

Make-Up Air Unit Specifications
Direct Drive Untempered Supply Unit with 10" blower in Size #1 Housing with speed control and disconnect switch

Handles 2,160 CFM @ 0.500" wc ESP, runs at 940 RPM
Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)
Down discharge, air flow: right to left
