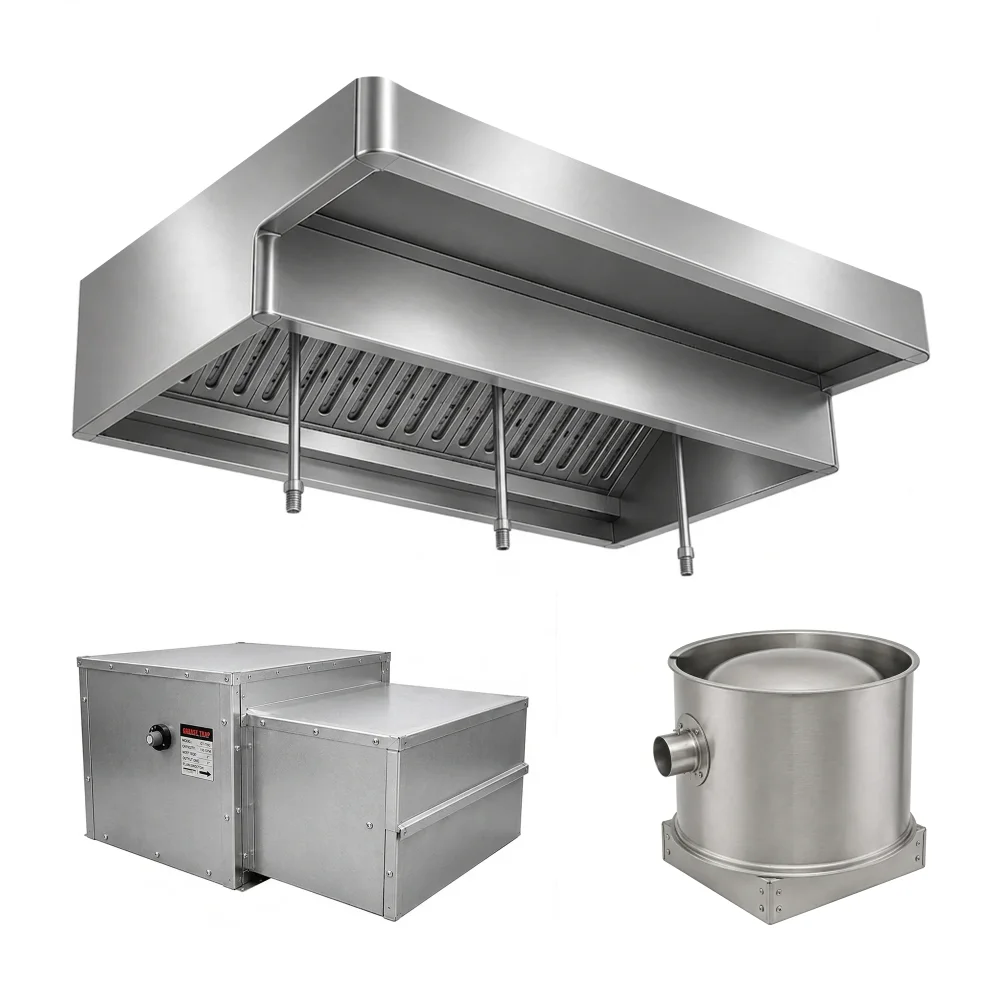

FumeGuard Series 4' Wall Mounted Grease Hood System with Supply Plenum, Exhaust & Supply Fans, Stainless Steel - Heavy-Duty

The FumeGuard Series Heavy-Duty Wall Mounted Grease Hood System is designed for heavy-duty commercial kitchen applications requiring a grease hood system with exhaust and supply air components. It measures 4 ft (L) x 4 ft (W) x 2 ft (H) and features an 18 Gauge, 400 Series Stainless Steel construction in silver.

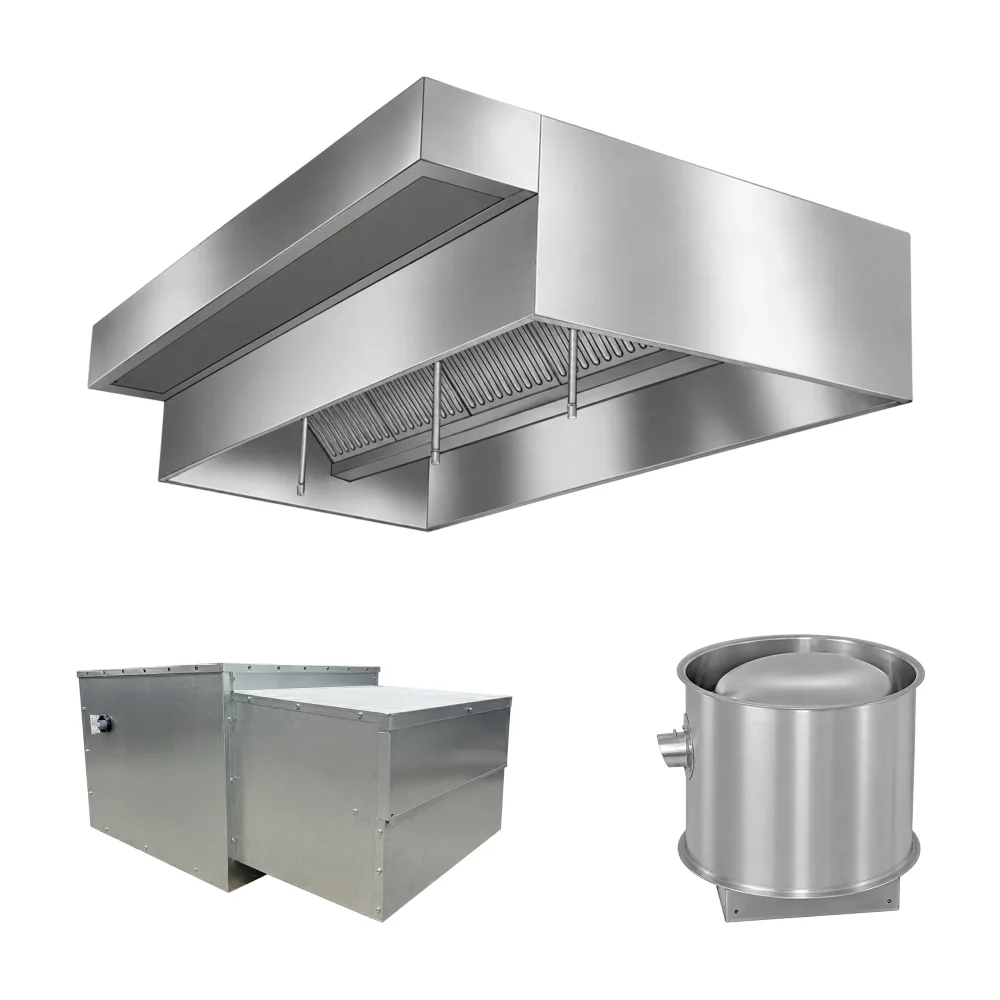

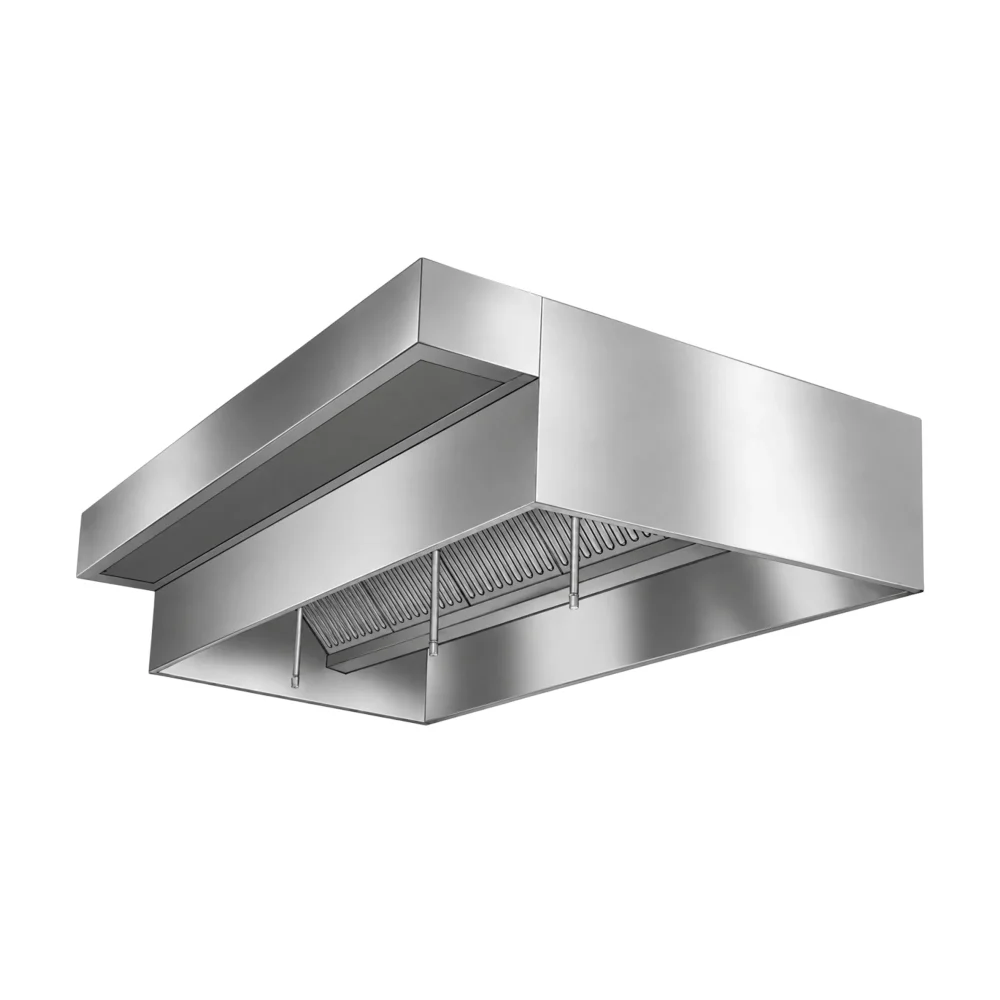

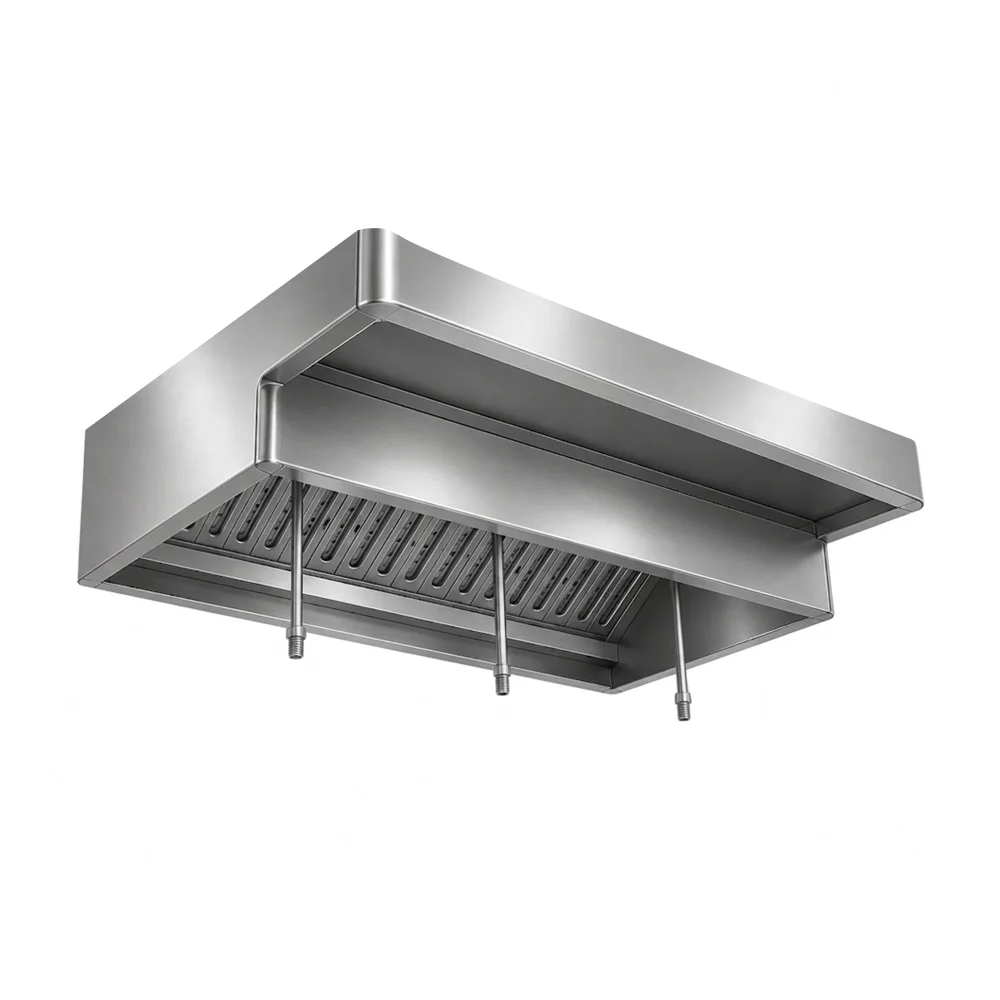

The system includes the hood, exhaust fan, supply fan, 16" Slotted Diffuser Supply Plenum, and built-in 3" rear standoff. The hood features standard left and right cheeks, a 10" x 10" exhaust collar, and a right grease cup, while the supply housing is made of galvanized material.

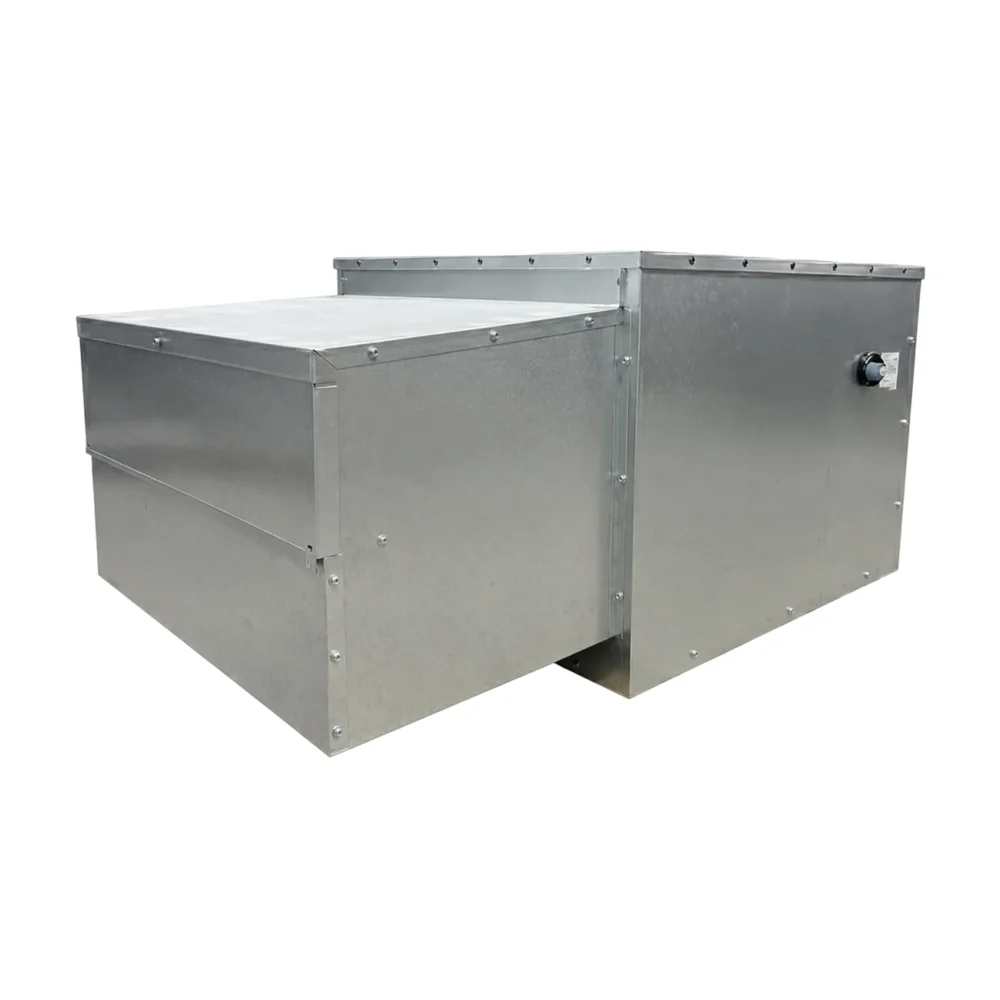

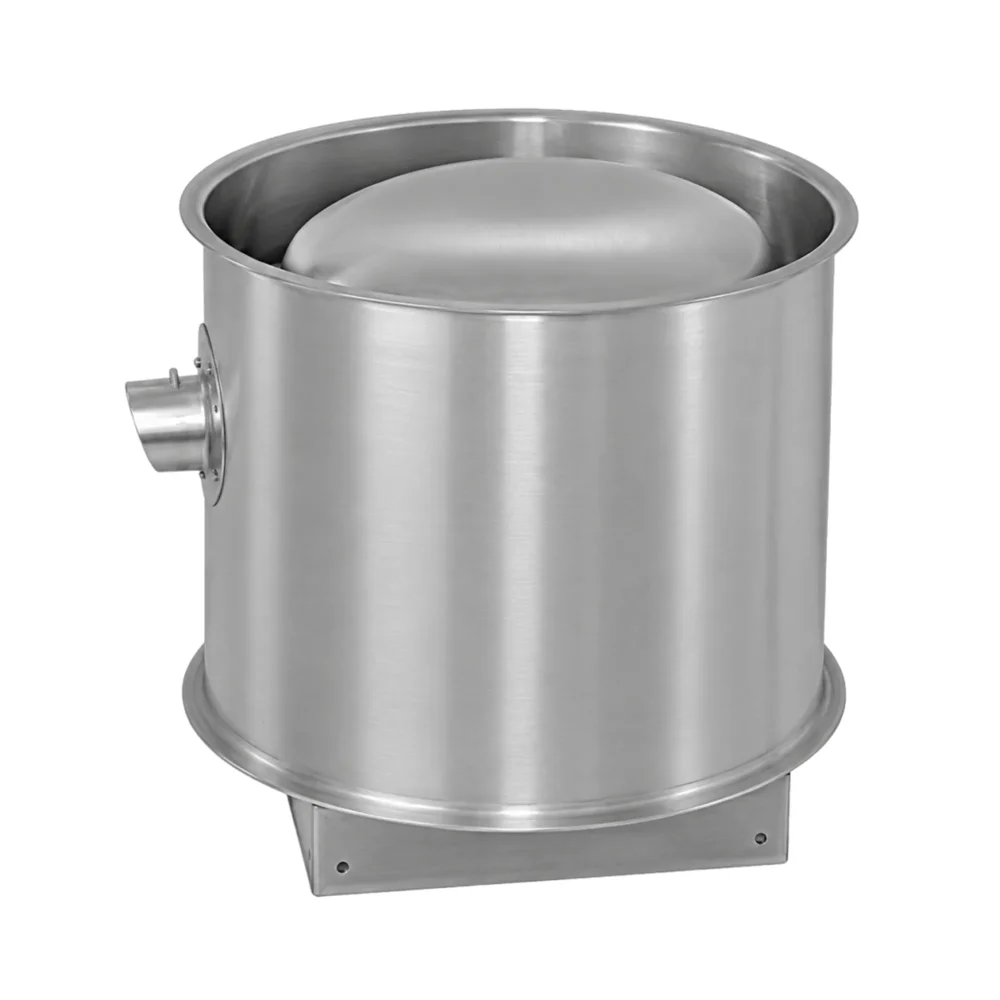

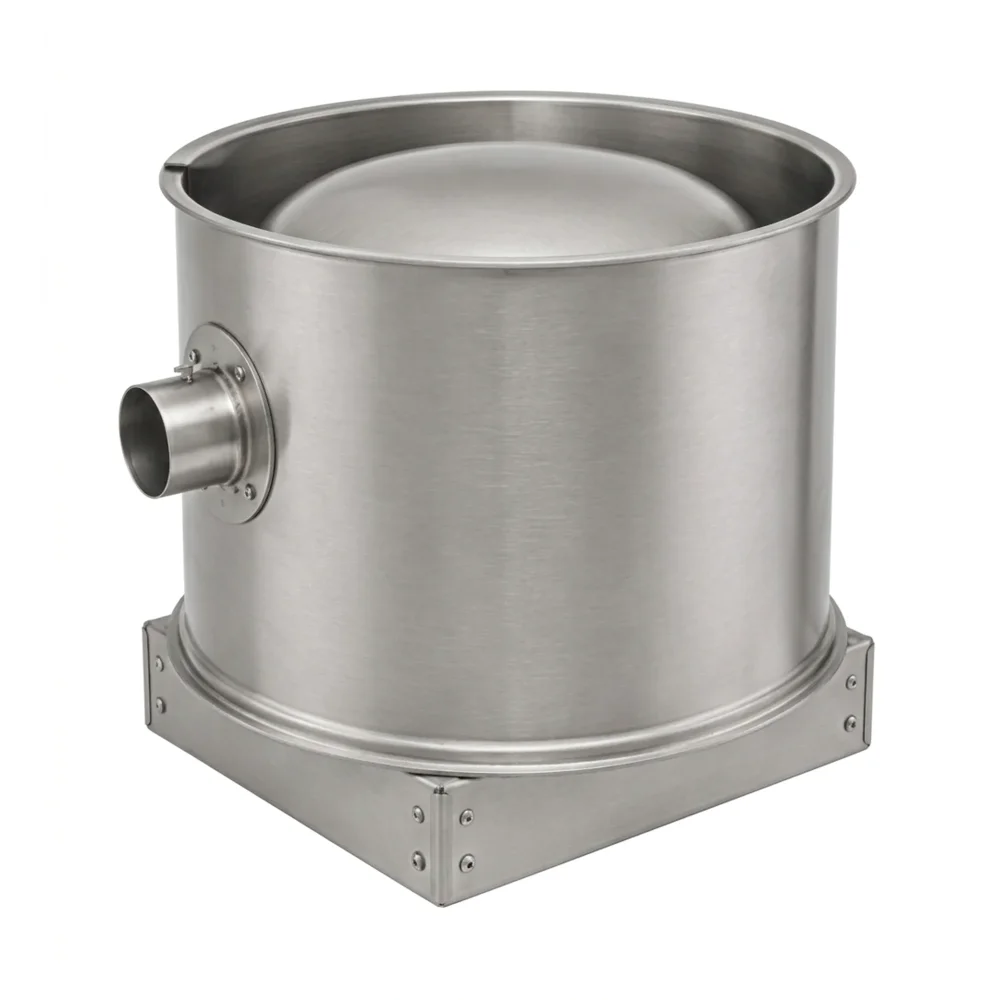

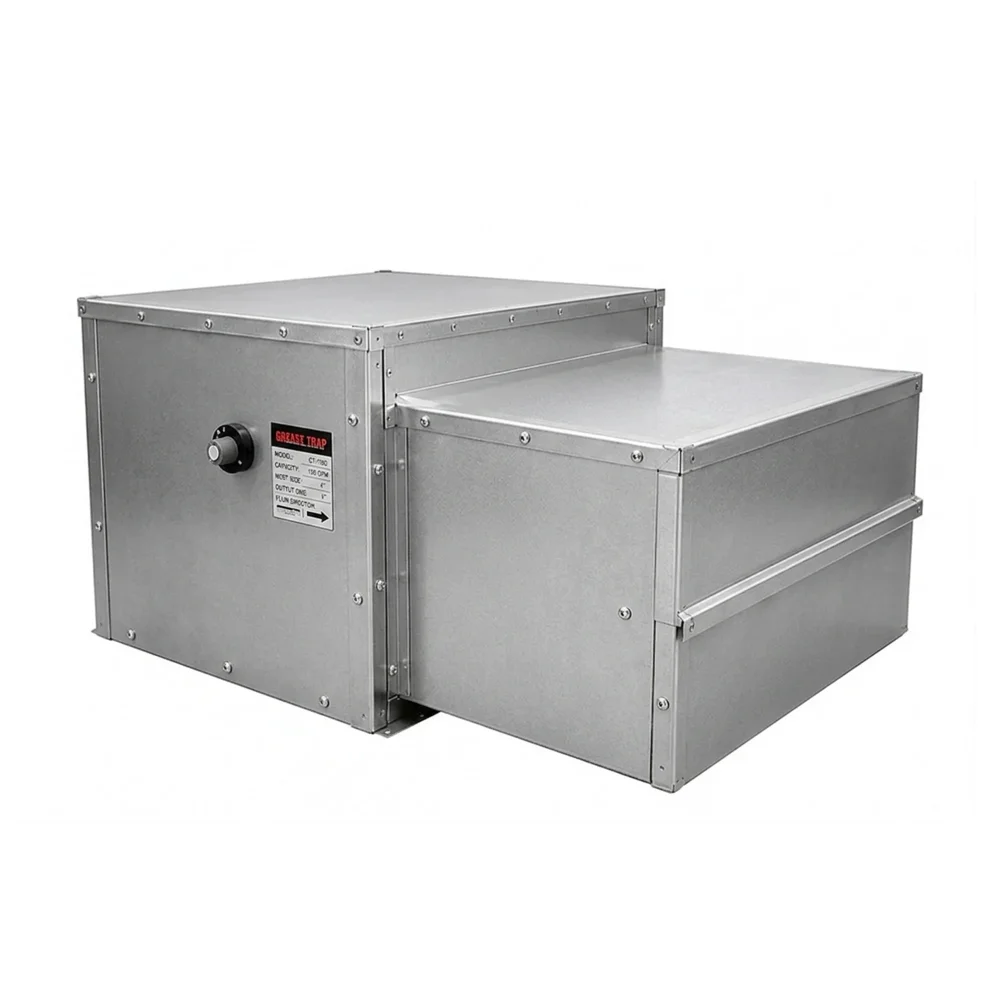

The exhaust system uses a 13.5" Direct Drive Aluminum Up-Blast Exhaust Fan with UL762 listing, 1/2 HP, 115 V, 1 Phase motor, and variable speed controller. Exhaust airflow is rated at 1040 CFM, while the supply airflow is 832 CFM. The supply fan is a KC-F1009-1/2-1 Rooftop Supply Fan with belt drive and bottom discharge, rated at 1/2 HP / 115 V / 1 Phase / 60 Hz and 800 to 1,500 CFM @ 0.50 ESP.

The grease hood system includes stainless steel filters and mesh filters for the supply fan. Lighting is provided by 1 incandescent light fixture with glass globe, and the 16" Slotted Diffuser Supply Plenum provides the specified supply-air configuration. The system is wall mounted, classified as a Grease Hood System, and is UL Listed to ANSI/UL710. It includes a 1-year warranty by the manufacturer.
