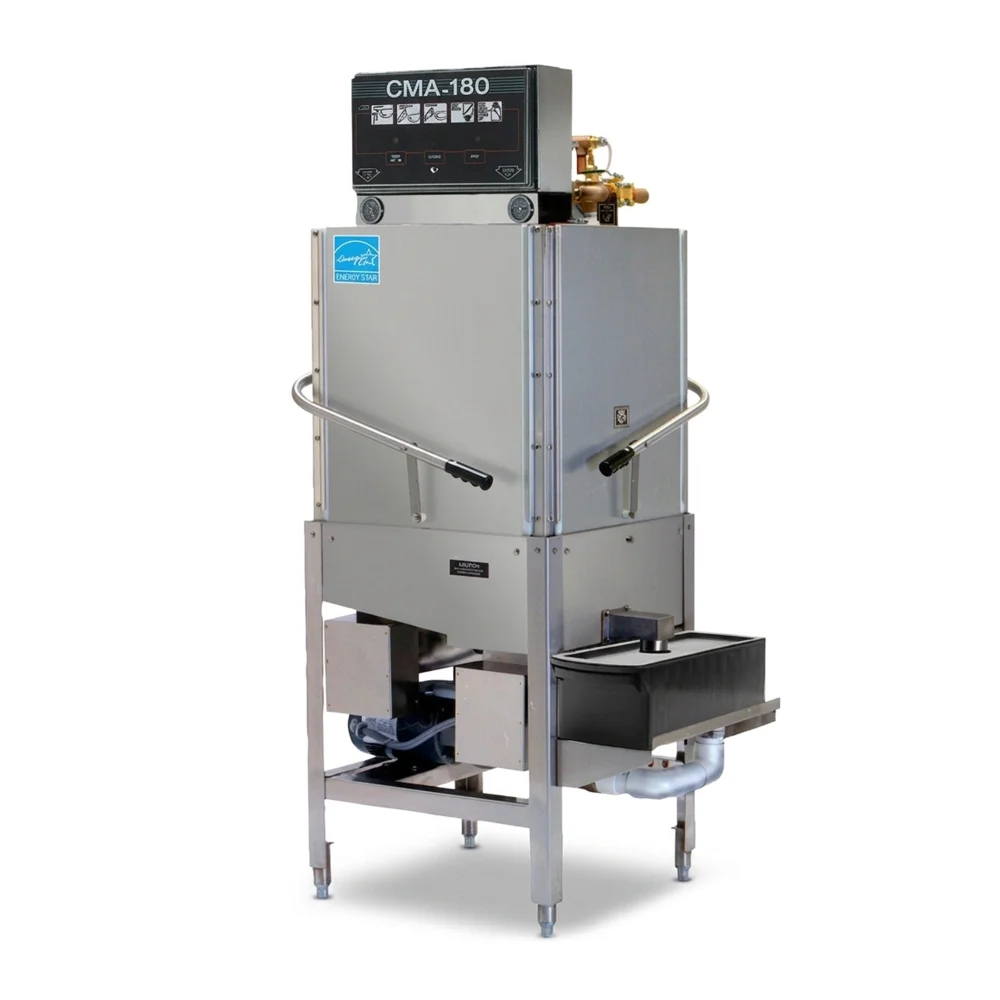

CMA Dishmachines CMA-180C Single Rack High Temperature Corner Dishwasher - 208/240V, 1 Phase

The CMA Dishmachines Single Rack Corner Dishwasher is designed for dishwashing operations in commercial kitchen environments. The stainless steel construction supports durability for repeated washing cycles. It operates with a capacity of 60 racks per hour, supporting continuous cleaning in restaurant setups. The unit includes 1 standard dishrack for immediate use.

This corner dishwasher operates on 208/240 V with 36–38 A, 1 phase, and 60 Hz. It features a 7 kW wash heater with 7000 W wattage and a 1 HP motor for washing operations. The unit includes a wash tank capacity of 8 gallons, supporting consistent wash cycles in food service environments.

The wash water temperature operates between 155°F to 160°F, while rinse water temperature ranges from 180°F to 195°F, with a required hot water supply of 180°F. It uses a high-temperature system with a lift-up door style and provides a door clearance height of 17.5". The interior height is 17.5", supporting rack handling.

The dishwasher measures 25.5" (W) x 25" (D) x 60" (H) and fits into corner layouts for space utilization in commercial kitchen designs. It includes a 0.75" water inlet and 2" drain size. Certifications include NSF, UL, cULus, and Energy Star qualification. It includes a 1-year warranty by the manufacturer.
