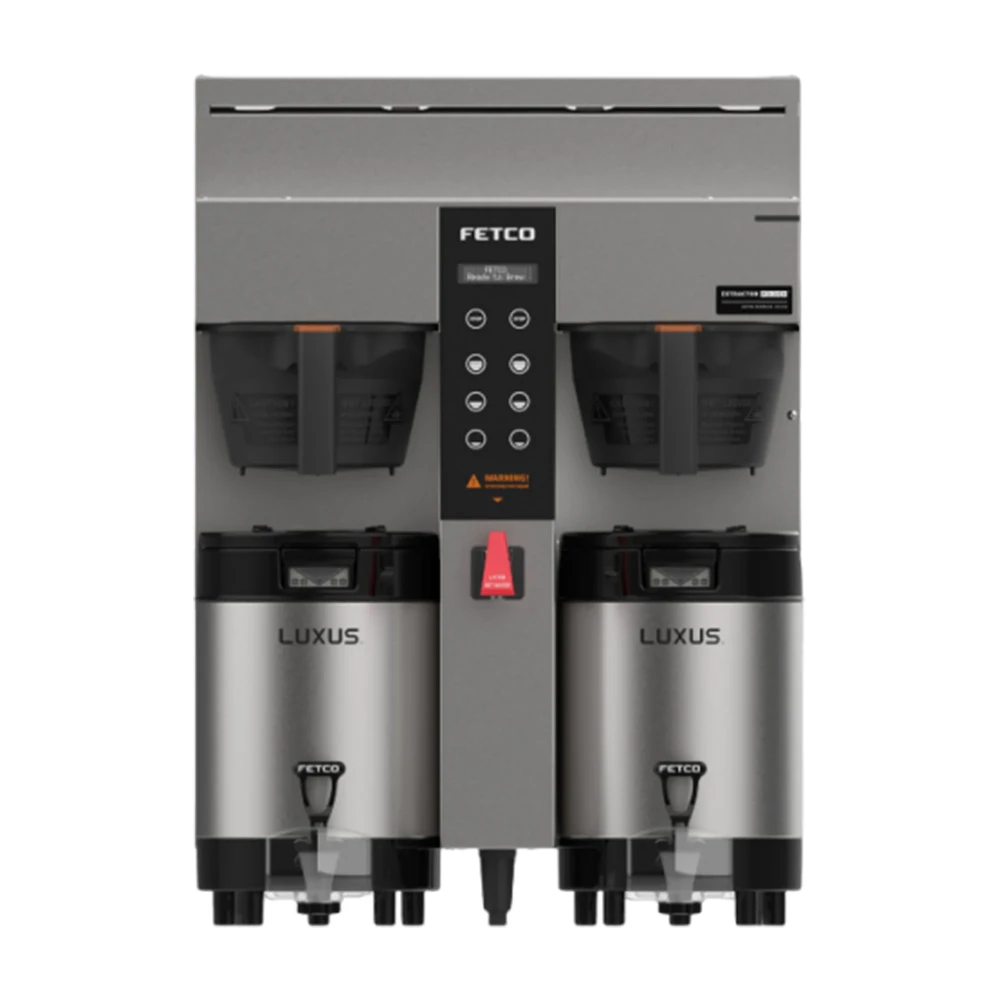

Fetco CBS-1232-PLUS High-Volume Automatic Thermal Coffee Maker, 15 Gallon/hr, 240V

Fetco CBS-1232-PLUS Thermal Coffee Maker is a double-brewer bulk dispenser for commercial kitchen, restaurant, café, and food-service beverage operations. It features a stainless steel housing with a metal brew basket and a silver finish. The unit has a brewing capacity of 15 gal/hour, a 5.48 Gallon tank capacity, and an output of 254 Cups per Hour. Its water source is a Direct Connection, with a 3/8 (Male Flare) in water inlet and a Hot Water Faucet.

The unit measures 20.5" (L) x 19.75" (W) x 26.25" (H), based on the supplied Product Depth, Product Width, and Product Height specifications. It has a Product Weight of 29 lb. The supplied shipping dimensions are 25 in depth, 23 in width, and 30 in height, with a shipping weight of 55 lb. Its electrical specifications include 4600 W wattage, 208/240 V voltage, 60 Hz frequency, 1 Phase, Electric power type, and a Hardwired plug type. The Connection Type is 2+G wires, 25.5A max draw.

The CBS-1232-PLUS features Automatic operation, a Digital control type, and a Digital Touchpad LCD display. Its brewing configuration includes a basket width of 13, basket height of 5, and 2 Brewers in the Double style. The Brewer Type is Bulk Dispenser. Listed features include Pre-programmed Batch Buttons and a USB Plug-in Feature For Software Updates. The unit also carries cULus and NSF certifications.

The supplied warranty is 1-year Parts & Labor; 2-year Parts & 1-year Labor Electro-Mechanical; 3-year Parts & 1-year Labor Circuit Board. The unit is listed under the Fetco CBS-1232-PLUS series and has a Type classification of Thermal Coffee Maker. These specifications define its construction, brewing capacity, electrical configuration, water connection, controls, brewing arrangement, certifications, and warranty for commercial beverage service.
