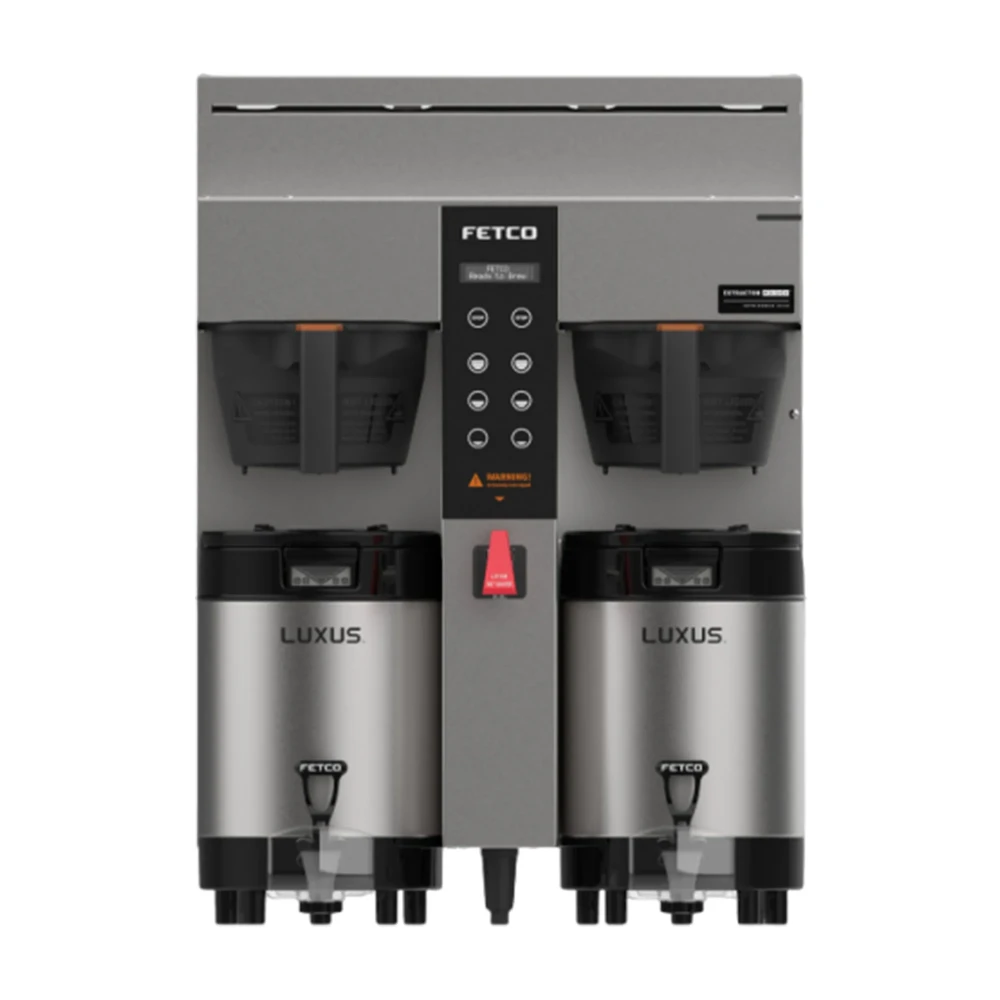

Fetco CBS-1232-PLUS High-Volume Automatic Thermal Coffee Maker, 12.2 Gallon/hr, 240V

Fetco CBS-1232-PLUS Thermal Coffee Maker is a double-brewer bulk dispenser for commercial kitchen, restaurant, café, and food-service beverage operations. It has a stainless steel housing with a plastic brew basket and a silver finish. The unit has a brewing capacity of 12.2 gal/hour, a 5.48 Gallon tank capacity, and an output of 254 Cups per Hour. Its direct connection water source uses a 3/8 (Male Flare) in water inlet, while the hot water faucet provides the listed faucet configuration.

The unit measures 20.5" (L) x 19.75" (W) x 26.25" (H), based on the supplied Product Depth, Product Width, and Product Height specifications. It has a Product Weight of 29 lb, while the supplied shipping dimensions are 25 in depth, 23 in width, and 30 in height. The electrical specification includes 4600 W wattage, 208/240 V voltage, 60 Hz frequency, 1 Phase operation, and a hardwired plug type. The connection type is 2+G wires with a 19.7A max draw.

The CBS-1232-PLUS uses automatic operation with a digital control type and a Digital Touchpad LCD display. It has a basket width of 13 and a basket height of 5, with 2 Brewers in the double style configuration. The brewer features Pre-programmed Batch Buttons and a USB Plug-in Feature For Software Updates. Its listed certifications are cULus and NSF, and the power type is Electric.

For commercial coffee service, the brewer is specified as a Thermal Coffee Maker within the CBS-1232-PLUS series. The supplied warranty is 1-year Parts & Labor; 2-year Parts & 1-year Labor Electro-Mechanical; 3-year Parts & 1-year Labor Circuit Board. The combination of automatic operation, digital controls, direct water connection, bulk dispenser configuration, and two brewing systems forms the complete supplied specification set for this Fetco thermal coffee maker.
