What refrigeration type is used in this walk-in freezer?

It uses a remote refrigeration system with R-448A refrigerant and TXV/TEV valve for controlled cooling in commercial storage applications.

What are the dimensions of the unit?

The walk-in freezer measures 98 in (W) x 197 in (D) x 91 in (H) with a nominal size of 8 ft width, 17 ft depth, and 7 ft height.

What warranty is included with the unit?

It includes a 10-year panel warranty, 1-year door parts, 2-year compressor & parts, and 1-year labor on refrigeration unit.

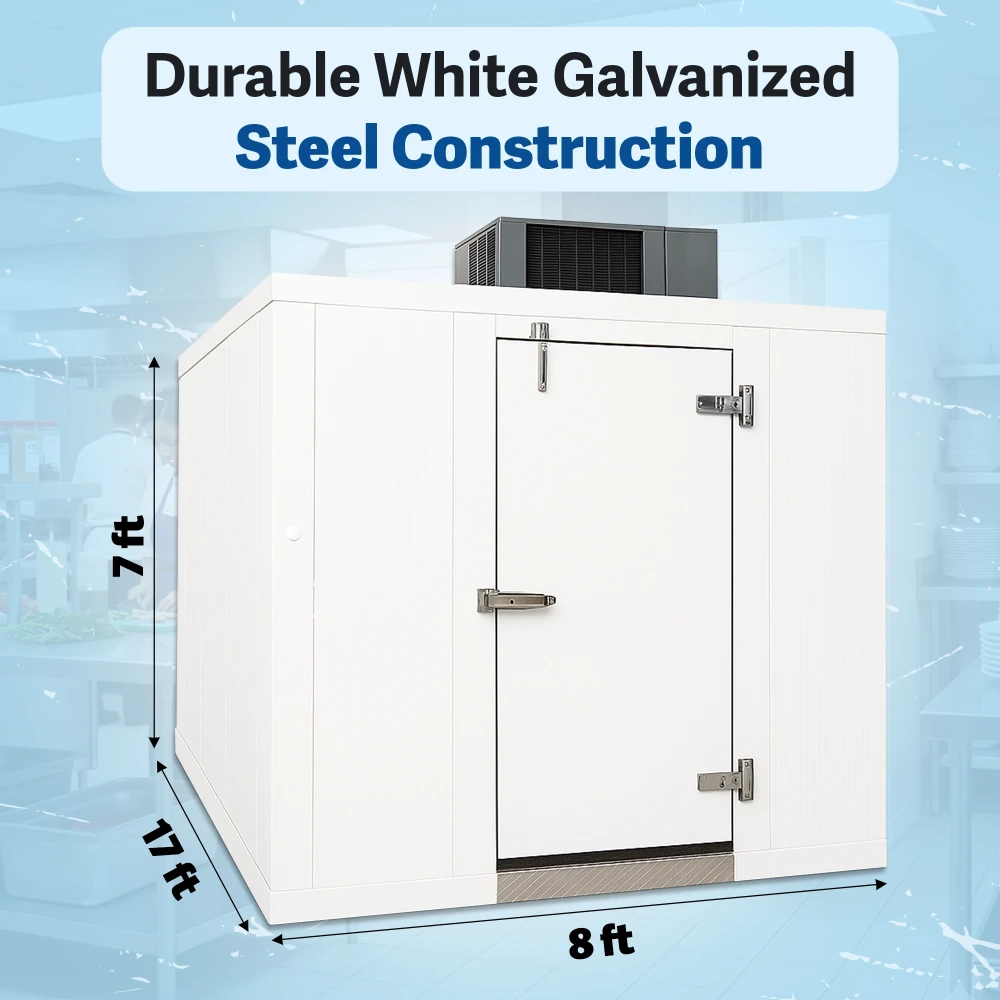

PolarBox Series 8' x 17' Quick Ship Walk-In Freezer With Floor & Remote Refrigeration

Model: PBFWF8X17-RM

$17,594.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

Non-Returnable return policy

Select Door Hinge*

Select Door Width*

Select LED Lights

Select Kick Plate

Select External Ramp

Model: PBFWF8X17-RM

★Why You'll Love It

Steel Construction: White galvanized steel with 24 gauge structure supports commercial kitchen cold storage applications.
Modular Panels: Cam-lock tongue & groove design supports structured walk-in freezer assembly.
Maximum Depth: 17 ft nominal depth supports large-scale frozen storage capacity in commercial operations.
Thermal Insulation: 4 in polyurethane insulation with R-28 thermal resistance supports controlled freezing conditions.
Remote Refrigeration: Remote system separates refrigeration equipment from storage chamber for flexible kitchen layouts.
Refrigerant Control: R-448A refrigerant with TXV/TEV valve and solenoid system supports regulated cooling flow.
Solid Door Design: Single solid flush-mounted door supports structured access in commercial food storage areas.
Door Security: Keyed lock system supports restricted access in restaurant and catering environments.
Self Closing Feature: Self-closing door mechanism supports controlled entry and exit in freezer use.
Warranty Coverage: Includes 10-year panel, 1-year door parts, 2-year compressor & parts, and 1-year labor on refrigeration unit.

White galvanized steel with 24 gauge structure supports commercial kitchen cold storage applications.

$17,594.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

Non-Returnable return policy

Select Door Hinge*

Select Door Width*

Select LED Lights

Select Kick Plate

Select External Ramp

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf

Spot something off?
Help us improve this page.

Key Specification

Country of OriginProudly Made in America

MaterialWhite Galvanized Steel

Selling Unit1/Each

TypeWalk-In Freezer

Warranty10-Year Panel, 1-Year Door Parts, 2-Year Compressor & Parts, 1-Year Labor on Refrigeration Unit

FeaturesSelf-Closing, Flush-Mounted Door, Heating Wire and Pressure Relief Vent

Country of Origin	Proudly Made in America	Material	White Galvanized Steel	Selling Unit	1/Each
Type	Walk-In Freezer	Warranty	10-Year Panel, 1-Year Door Parts, 2-Year Compressor & Parts, 1-Year Labor on Refrigeration Unit	Features	Self-Closing, Flush-Mounted Door, Heating Wire and Pressure Relief Vent
Product Width	98 inch	Product Depth	197 inch	Product Height	91 inch
Hertz	60 hertz	Phase	1 Phase	Voltage	208-230 volt
Compressor Location	Remote	Door Type	Solid	Insulation Thickness	4 inch
Insulation Material	Polyurethane	Hinge Type	Modular Cam-Lock, Tongue & Groove Design	Door Lock	Keyed Lock
Plug Type	Hardwired	Refrigerant Type	R-448A	Usage	Indoor / Outdoor
Certifications	Ul Listed US, NSF Listed, DOE	Nominal Depth	17 ft	Nominal Width	8 foot
Nominal Height	7 foot	Door Height	77 inch	Floor	With Floor
Included	Condensing Unit and Evaporator	Gauge	24 Gauge	Thermal Resistance	R-28
Material Type	CFC & HFC Free	Refrigeration Type	Remote Refrigeration	Valve Type	Thermostatic Expansion, Liquid Line Solenoid Valve (TXV/TEV)
Number of Doors	1 Door	Series	PolarBox Series	Floor Material	Standard Galvanized Steel Floor
Door Width	Choice of 30" or 36"	Door Style	Swing

Product Overview

The PolarBox Series Walk-In Freezer is a commercial cold storage unit designed for restaurants, hotels, catering kitchens, and food handling facilities requiring large-capacity frozen storage. It is built with white galvanized steel and 24 gauge panels suited for structured use in commercial kitchen environments.The unit uses a modular cam-lock, tongue & groove panel system for structured assembly. It features 4 in polyurethane insulation with R-28 thermal resistance, supporting controlled freezing conditions. The enclosure measures 98" (W) x 197" (D) x 91" (H), with nominal dimensions of 8 ft width, 17 ft depth, and 7 ft height.This walk-in freezer operates on a 1 phase, 208/230 V, 60 Hz electrical system and uses a remote refrigeration setup. It includes R-448A refrigerant with thermostatic expansion valve (TXV/TEV) and liquid line solenoid valve for regulated refrigeration flow in commercial applications.The unit is fitted with a single solid flush-mounted door with self-closing function, keyed lock, 77 in door height, heating wire, and pressure relief vent. It includes a standard galvanized steel floor and CFC & HFC free insulation material suitable for indoor and outdoor installation.
