What refrigeration system is used in this walk-in freezer?

It uses a top mounted refrigeration system with R-448A refrigerant and TXV/TEV valve for controlled cooling in commercial storage applications.

What are the dimensions of the unit?

The walk-in freezer measures 118 in (W) x 197 in (D) x 91 in (H) with a nominal size of 10 ft width, 17 ft depth, and 7 ft height.

What warranty is included with the unit?

It includes a 10-year panel warranty, 1-year door parts, 2-year compressor & parts, and 1-year labor on refrigeration unit.

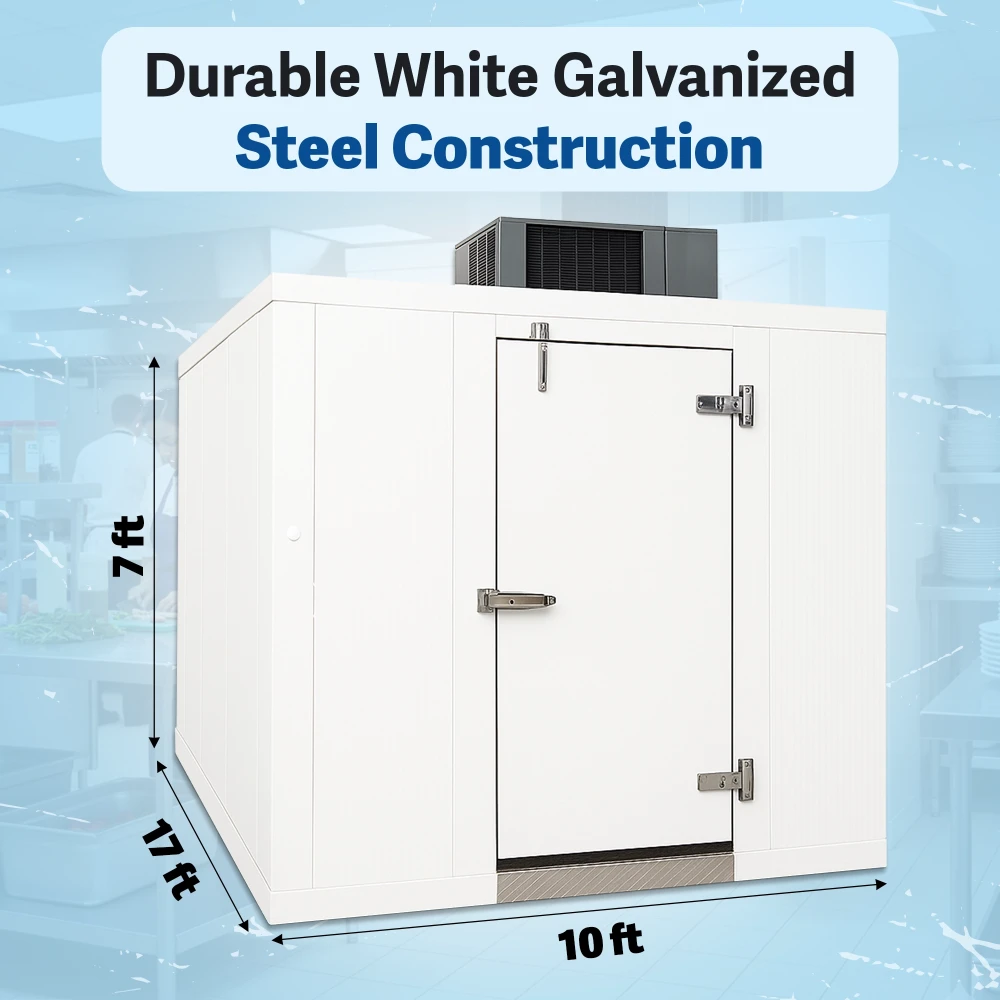

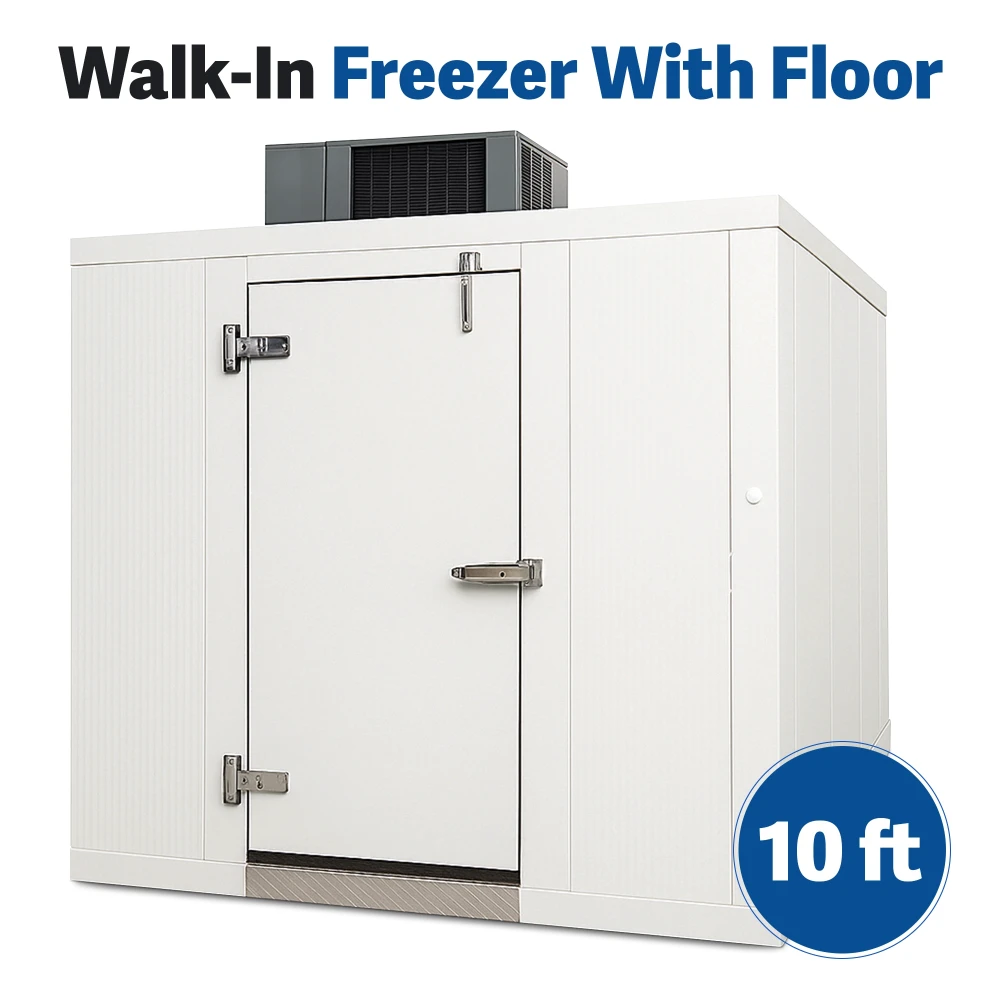

PolarBox Series 10' x 17' Quick Ship Walk-In Freezer With Floor & Top Mounted Refrigeration

Model: PBFWF10X17-TM

$29,850.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

Non-Returnable return policy

Select Door Hinge*

Select Door Width*

Select LED Lights

Select Kick Plate

Select External Ramp

Model: PBFWF10X17-TM

★Why You'll Love It

Steel Construction: White galvanized steel with 24 gauge structure supports commercial kitchen cold storage applications.
Modular Panels: Cam-lock tongue & groove design supports structured walk-in freezer assembly.
Balanced Depth: 17 ft nominal depth supports moderate-to-large frozen storage for commercial kitchen operations.
Thermal Insulation: 4 in polyurethane insulation with R-28 thermal resistance supports controlled freezing conditions.
Top Mounted System: Top mounted refrigeration configuration supports equipment placement above storage chamber.
Refrigerant Control: R-448A refrigerant with TXV/TEV valve and solenoid system supports regulated cooling flow.
Solid Door Design: Single solid flush-mounted door supports structured access in commercial food storage areas.
Door Security: Keyed lock system supports restricted entry in restaurant and catering environments.
Self Closing Feature: Self-closing door mechanism supports controlled entry and exit in freezer operations.
Warranty Coverage: Includes 10-year panel, 1-year door parts, 2-year compressor & parts, and 1-year labor on refrigeration unit.

White galvanized steel with 24 gauge structure supports commercial kitchen cold storage applications.

$29,850.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

Non-Returnable return policy

Select Door Hinge*

Select Door Width*

Select LED Lights

Select Kick Plate

Select External Ramp

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf

Spot something off?
Help us improve this page.

Key Specification

Country of OriginProudly Made in America

MaterialWhite Galvanized Steel

Selling Unit1/Each

TypeWalk-In Freezer

Warranty10-Year Panel, 1-Year Door Parts, 2-Year Compressor & Parts, 1-Year Labor on Refrigeration Unit

FeaturesSelf-Closing, Flush-Mounted Door, Heating Wire and Pressure Relief Vent

Country of Origin	Proudly Made in America	Material	White Galvanized Steel	Selling Unit	1/Each
Type	Walk-In Freezer	Warranty	10-Year Panel, 1-Year Door Parts, 2-Year Compressor & Parts, 1-Year Labor on Refrigeration Unit	Features	Self-Closing, Flush-Mounted Door, Heating Wire and Pressure Relief Vent
Product Width	118 inch	Product Depth	197 inch	Product Height	91 inch
Hertz	60 hertz	Phase	1 Phase	Voltage	208-230 volt
Compressor Location	Top Mounted	Door Type	Solid	Insulation Thickness	4 inch
Insulation Material	Polyurethane	Hinge Type	Modular Cam-Lock, Tongue & Groove Design	Door Lock	Keyed Lock
Plug Type	Hardwired	Refrigerant Type	R-448A	Usage	Indoor / Outdoor
Certifications	Ul Listed US, NSF Listed, DOE	Nominal Depth	17 ft	Nominal Width	10 foot
Nominal Height	7 foot	Door Height	77 inch	Floor	With Floor
Included	Condensing Unit and Evaporator	Gauge	24 Gauge	Thermal Resistance	R-28
Material Type	CFC & HFC Free	Refrigeration Type	Top Mounted Refrigeration	Number of Doors	1 Door
Series	PolarBox Series	Floor Material	Standard Galvanized Steel Floor	Door Width	Choice of 30" or 36"
Door Style	Swing

Product Overview

The PolarBox Series Walk-In Freezer is a commercial cold storage system designed for restaurants, hotels, catering kitchens, and food handling facilities requiring frozen storage capacity. It is constructed with white galvanized steel and 24 gauge panels suitable for structured use in commercial kitchen environments.The unit uses a modular cam-lock, tongue & groove panel system for structured assembly. It features 4 in polyurethane insulation with R-28 thermal resistance, supporting controlled low-temperature storage. The enclosure measures 118" (W) x 197" (D) x 91" (H), with nominal dimensions of 10 ft width, 17 ft depth, and 7 ft height.This walk-in freezer operates on a 1 phase, 208/230 V, 60 Hz electrical system and uses a top mounted refrigeration configuration. It includes R-448A refrigerant with thermostatic expansion valve (TXV/TEV) and liquid line solenoid valve for regulated refrigeration flow in commercial applications.The unit is fitted with a single solid flush-mounted door with self-closing function, keyed lock, 77 in door height, heating wire, and pressure relief vent. It includes a standard galvanized steel floor and CFC & HFC free insulation material suitable for indoor and outdoor installation.
