What refrigeration system is used in this walk-in cooler?

This unit uses a top-mounted refrigeration system with R-448A refrigerant and an included condensing unit and evaporator.

What electrical requirements are needed for this commercial kitchen cooler?

The cooler operates on 208/230 V, 60 Hz, single-phase power with a hardwired connection.

What warranty coverage is included with this walk-in cooler?

It includes a 10-year panel warranty and 1-year warranty coverage on doors, compressor, and refrigeration components by the manufacturer.

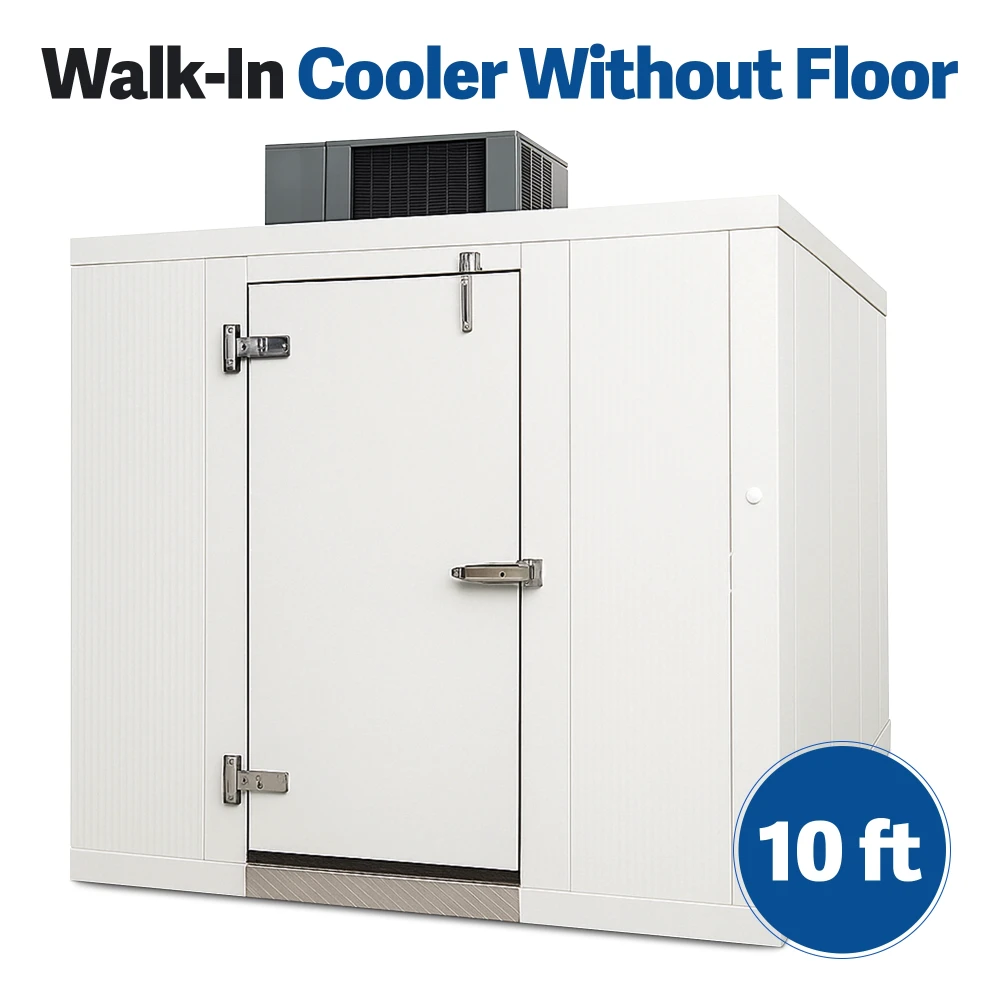

PolarBox Series 10' x 20' Quick Ship Floorless Walk-In Cooler with Top Mounted Refrigeration

Model: PBCNF10X20-TM

$15,884.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

Non-Returnable return policy

Select Door Hinge*

Select Door Width*

Select LED Lights

Select Kick Plate

Select External Ramp

Model: PBCNF10X20-TM

★Why You'll Love It

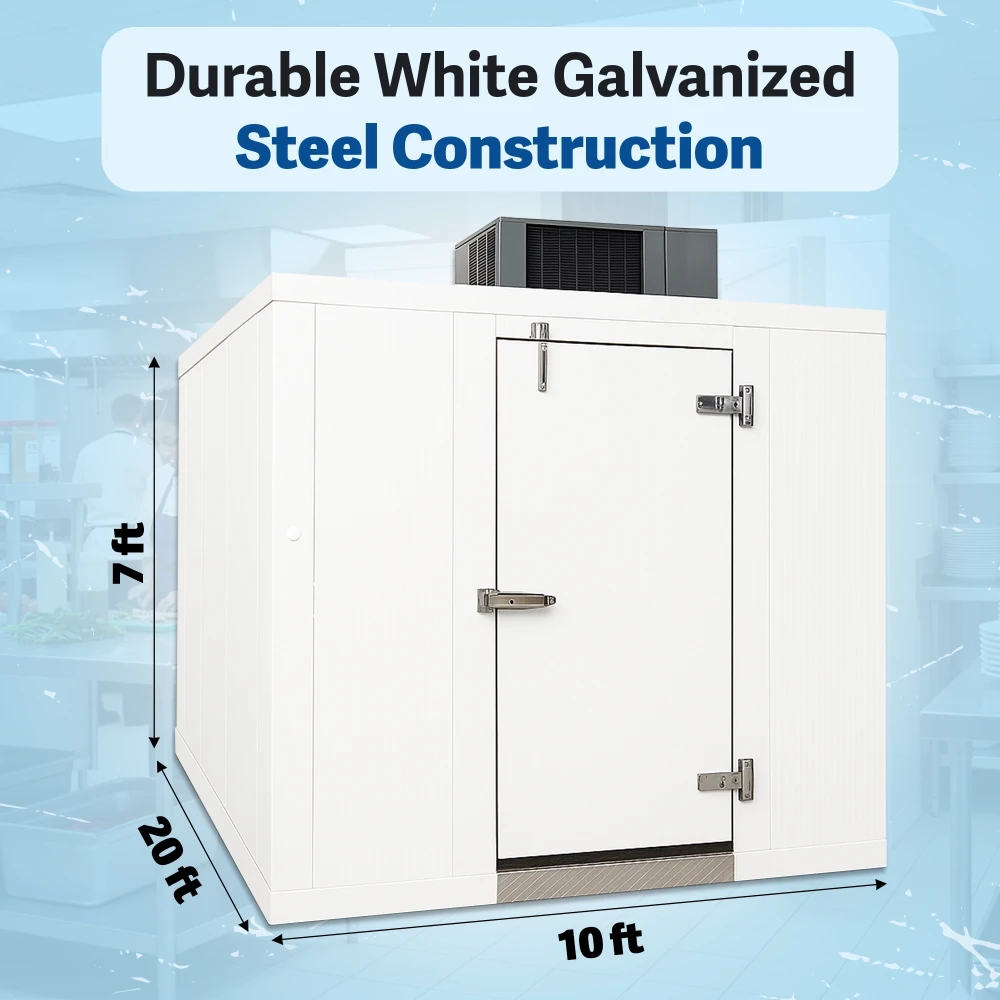

Galvanized Steel Construction: White galvanized steel structure supports daily commercial kitchen refrigeration use.
Extended Storage Layout: Nominal 10 ft x 20 ft configuration supports organized refrigerated storage for restaurant operations.
Polyurethane Insulation: 4-inch insulation with R-28 thermal resistance supports temperature retention inside the cooler.
Top Mounted Refrigeration: Top-mounted system positions the compressor above the storage compartment.
R-448A Refrigerant System: R-448A refrigerant supports operation within the top-mounted refrigeration configuration.
Included Cooling Components: Includes a condensing unit and evaporator for commercial refrigeration installation.
Cam-Lock Panel System: Modular cam-lock and tongue-and-groove design supports structured panel assembly.
Secure Door Access: Solid swing door with keyed lock supports controlled entry in food storage areas.
Self-Closing Door Design: Flush-mounted self-closing door supports frequent access in restaurant operations.
Warranty Coverage: Includes a 10-year panel warranty and 1-year warranty on doors and refrigeration components.

White galvanized steel structure supports daily commercial kitchen refrigeration use.

$15,884.00

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

Non-Returnable return policy

Select Door Hinge*

Select Door Width*

Select LED Lights

Select Kick Plate

Select External Ramp

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf

Spot something off?
Help us improve this page.

Key Specification

Country of OriginProudly Made in America

MaterialWhite Galvanized Steel

Selling Unit1/Each

TypeWalk-In Cooler

Warranty10-Year Panel, 1-Year Door Parts, 2-Year Compressor & Parts, 1-Year Labor on Refrigeration Unit

FeaturesSelf-Closing, Flush-Mounted Door

Country of Origin	Proudly Made in America	Material	White Galvanized Steel	Selling Unit	1/Each
Type	Walk-In Cooler	Warranty	10-Year Panel, 1-Year Door Parts, 2-Year Compressor & Parts, 1-Year Labor on Refrigeration Unit	Features	Self-Closing, Flush-Mounted Door
Product Width	118 inch	Product Depth	236 inch	Product Height	87 inch
Door Height	77 inch	Nominal Depth	20 ft	Nominal Width	10 foot
Nominal Height	7 foot	Hertz	60 hertz	Phase	1 Phase
Voltage	208-230 volt	Compressor Location	Top Mounted	Door Style	Swing
Door Type	Solid	Insulation Thickness	4 inch	Insulation Material	Polyurethane
Hinge Type	Modular Cam-Lock, Tongue & Groove Design	Door Lock	Keyed Lock	Floor	Without Floor
Plug Type	Hardwired	Refrigerant Type	R-448A	Refrigeration Type	Top Mounted Refrigeration
Usage	Indoor / Outdoor	Certifications	Ul Listed US, NSF Listed, DOE	Gauge	24 Gauge
Thermal Resistance	R-28	Material Type	CFC & HFC Free	Number of Doors	1 Door
Included	Condensing Unit and Evaporator	Series	PolarBox Series	Door Width	Choice of 30" or 36"

Product Overview

The PolarBox Series Walk-In Cooler is designed for commercial kitchen operations, restaurants, and refrigerated food storage applications. It features white galvanized steel construction suited for daily foodservice environments. The unit measures 118" (L) x 236" (W) x 87" (H), with a nominal size of 10 ft width, 20 ft depth, and 7 ft height for structured cold storage in commercial kitchens.This walk-in cooler includes 4-inch polyurethane insulation with an R-28 thermal resistance rating to support refrigerated holding conditions. The insulation material is CFC and HFC free and combined with 24-gauge steel panels. A modular cam-lock and tongue-and-groove hinge system supports structured panel assembly in commercial refrigeration installations.The refrigeration system uses a top-mounted configuration with R-448A refrigerant. It operates on 208/230 V, 60 Hz, single-phase electrical service with a hardwired connection. The compressor is positioned above the storage compartment as part of the integrated cooling layout for commercial kitchen applications.This model includes a solid swing door with a 77-inch height, self-closing operation, and flush-mounted design. A keyed lock supports controlled access in food storage areas. The unit is designed without a floor and supports indoor and outdoor installation. It includes UL Listed US, NSF Listed, and DOE certifications along with a 10-year panel warranty and 1-year warranty on doors, compressor, and refrigeration parts.
