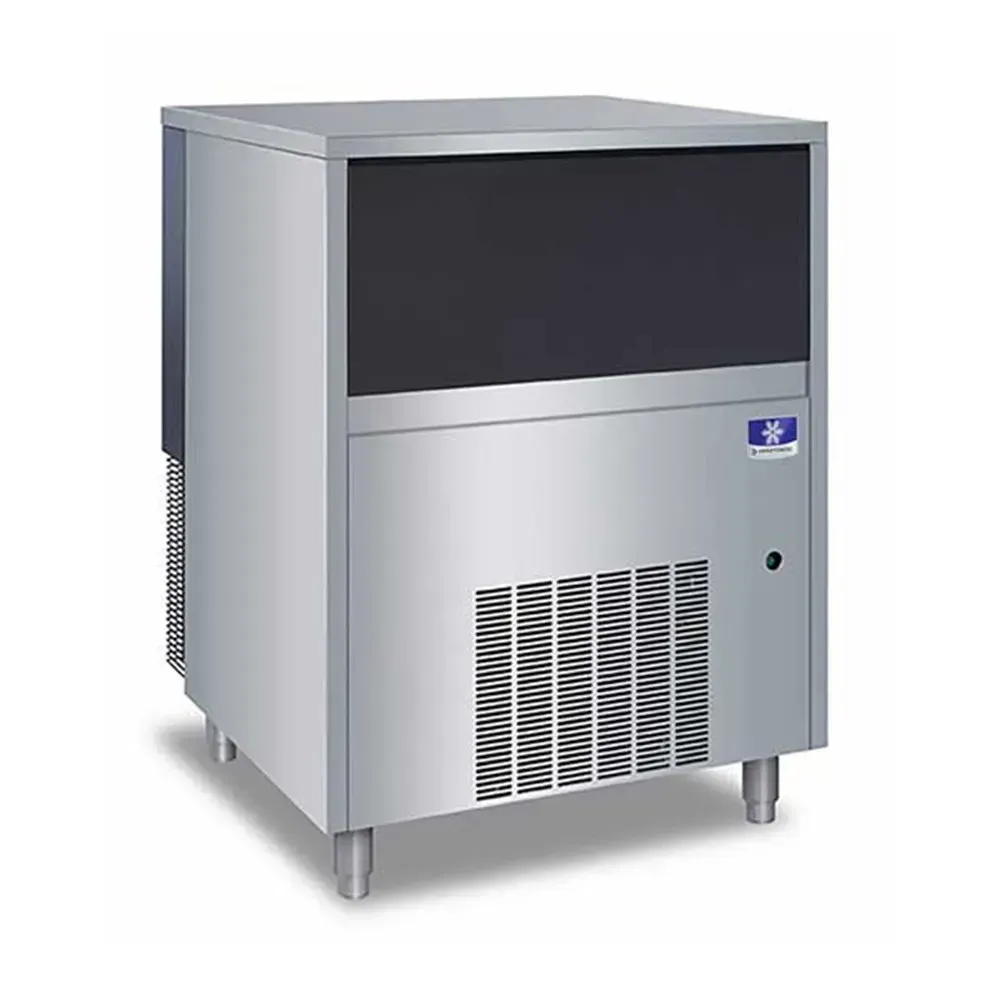

Manitowoc large air-cooled undercounter nugget ice machine with bin for hotel or restaurant. Supports high-volume chewable ice production.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Manitowoc
Country of Origin
Proudly Made In America
Material
Stainless steel
Color
Silver
Phase
1 Phase
Bin Storage Capacity
60 lb
Amps
10 A
Refrigerant Type
R452A
Hertz
50 Hz
Condenser Type
Air Cooled
BTU Per Hour
3500 BTU
Product Depth
27.17 in
Ice Bin Width
29.06 in
24 Hour Ice Production
302 lb
Legs Size
6 in
Selling Unit
1/Each
Type
Undercounter Ice Machine
Warranty
3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor
Features
Slide-up easy-access bin door, Adjustable gray flange legs included
Voltage
220/240 V
Ice Type
Nugget
Plug Type
NEMA 5-15P
Water Usage
12 gal
Ambient Temperature Range
50˚ to 110˚F
Certifications
ETL Listed, ETL Sanitation Listed, CE Listed
Product Width
29.06 in
Product Height
39.52 in
Ice Bin Depth
27.17 in
Water Inlet Size
3/8 in
Power Usage
6.89 kWh per 100 lbs

Product Overview

The Manitowoc UNK0300AZ is an undercounter ice machine with a bin. It is made up of stainless steel and features a sleek silver finish and compact design. It operates on 220/240 V, 1 phase, 50 Hz with a NEMA 5-15P plug and draws 10 amps. It produces nugget-type ice and is perfect for busy kitchens and bars needing reliable, consistent ice output.

This machine produces up to 302 lb of ice in 24 hours and stores 60 lb in its bin. The machine uses R452A refrigerant. It features a slide-up, easy-access bin door and adjustable grey flange legs of 6”, which provide stability. It fits neatly under counters & comes with dimensions of 29.06"W x 27.17"D x 39.52"H. It connects with a 3/8” water inlet, and its ice bin comes in dimensions of 29.06” W X 27.17” D.

This unit features an air-cooled condenser and releases 3,500 BTU per hour during use. It consumes 12 gallons of water daily and 6.89 kWh of power per 100 lb of ice. It is designed for ambient temperatures from 50°F to 110°F

This machine is certified by ETL Sanitation and CE Listed. It meets top safety and quality standards. It includes warranty of 3 years of parts & labour for the ice maker and 5 years of parts & labour for the evaporator & compressor.

Purchased this product?

Share your honest review to help hotels and restaurants make smarter choices.

Questions from buyers like you

Answered to help you make the right decision.
This machine produces nugget ice.
It produces up to 302 pounds of ice every 24 hours.
The bin can store up to 60 pounds of ice.
It uses R452A refrigerant.
It features an air-cooled condenser that releases 3,500 BTU per hour.
