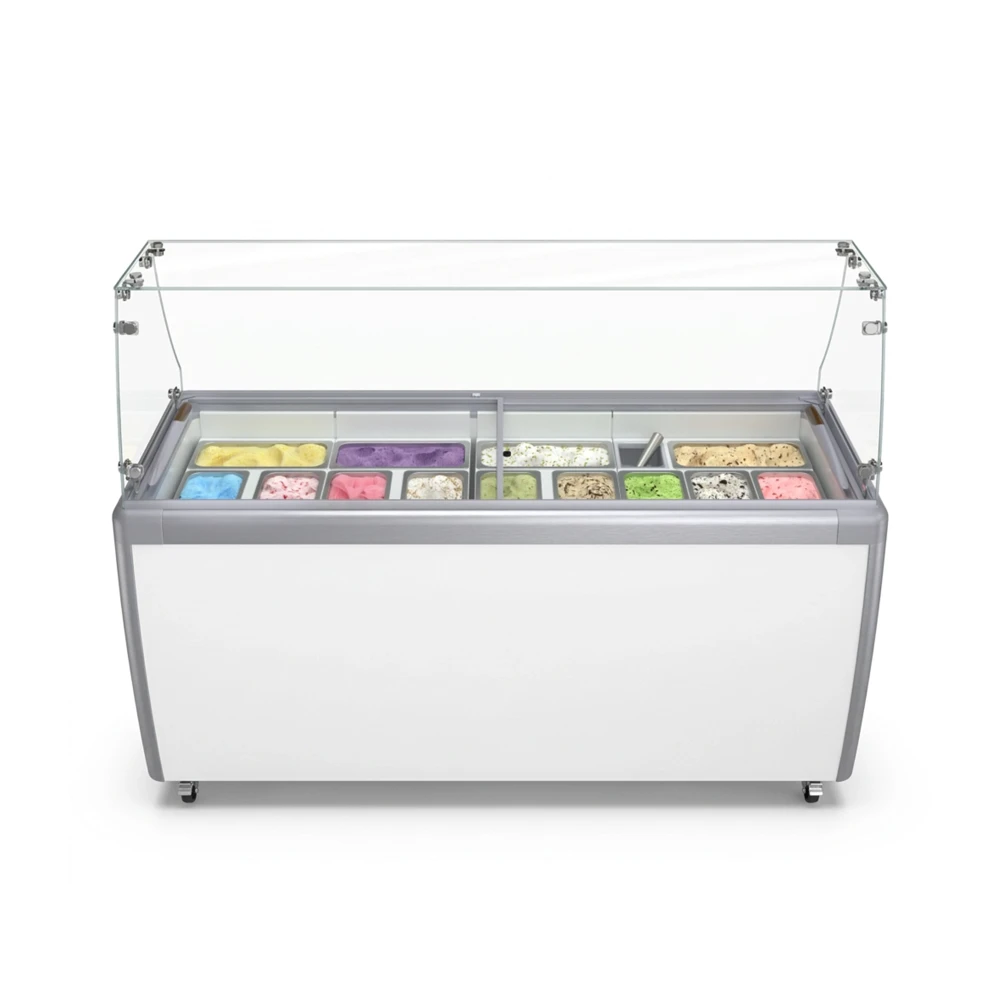

ChillCore Series 70" Dipping Cabinet Display Freezer, 2 Doors with Sneeze Guard
Model Number: CCDCDF70
Why You'll Love It
Pan Storage: Holds 13 × 5L pans with a 6.5" pan depth, supporting organized frozen food handling in a commercial kitchen.
Temperature Range: Operates between -15°F to 32°F with digital control for structured frozen storage in restaurant use.
Glass Door Design: Sliding glass doors with low-E tempered glass and sneeze guard support visibility and separation.
Cooling System: Static cooling with a bottom-mounted 0.67 HP compressor and R-290 refrigerant supports refrigeration operation.
Lighting Visibility: Dual side-mounted LED lighting with 190–700 lumen brightness supports display visibility in food service areas.
Warranty & Certification: ETL Listed and it includes a 2-year parts warranty and 5-year compressor warranty by the manufacturer.
Product Snapshot
Key Specification
Product Overview
The ChillCore Series Dipping Cabinet Display Freezer is a 70" unit designed for commercial kitchen operations handling ice cream, gelato, and frozen dessert display. It features powder-coated steel construction with a white finish and a pre-coated steel interior. The unit measures 70.86" (L) x 28.14" (W) x 52" (H), supporting freestanding installation with 6 casters.
This dipping cabinet freezer has a capacity of 20.1 cb3 with a 15.9 cu. ft. net capacity, supporting frozen storage. It includes 2 sliding glass doors with a sneeze guard made of low-E tempered glass, along with a door lock. The unit holds 13 × 5L pans with a pan depth of 6.5", and includes 13 pans and 1 plastic container for food handling.
The unit operates at 110 V, 1 phase, 60 Hz with a NEMA 5-15P plug and a 5.9 ft power cord. It uses R-290 refrigerant with a 0.67 HP bottom-mounted compressor. The temperature range of -15°F to 32°F is managed through digital control, with static cooling and manual defrost.
Additional features include dual side-mounted LED lighting with brightness ranging from 190 to 700 lumens for product visibility. The unit operates at 4 A and 372 W, with an energy consumption of 2237 kWh/year. It supports an ambient temperature range of 0°F to 100°F and requires 4" back and side clearance. The unit is ETL Listed and includes a 2-year parts warranty and 5-year compressor warranty by the manufacturer.
