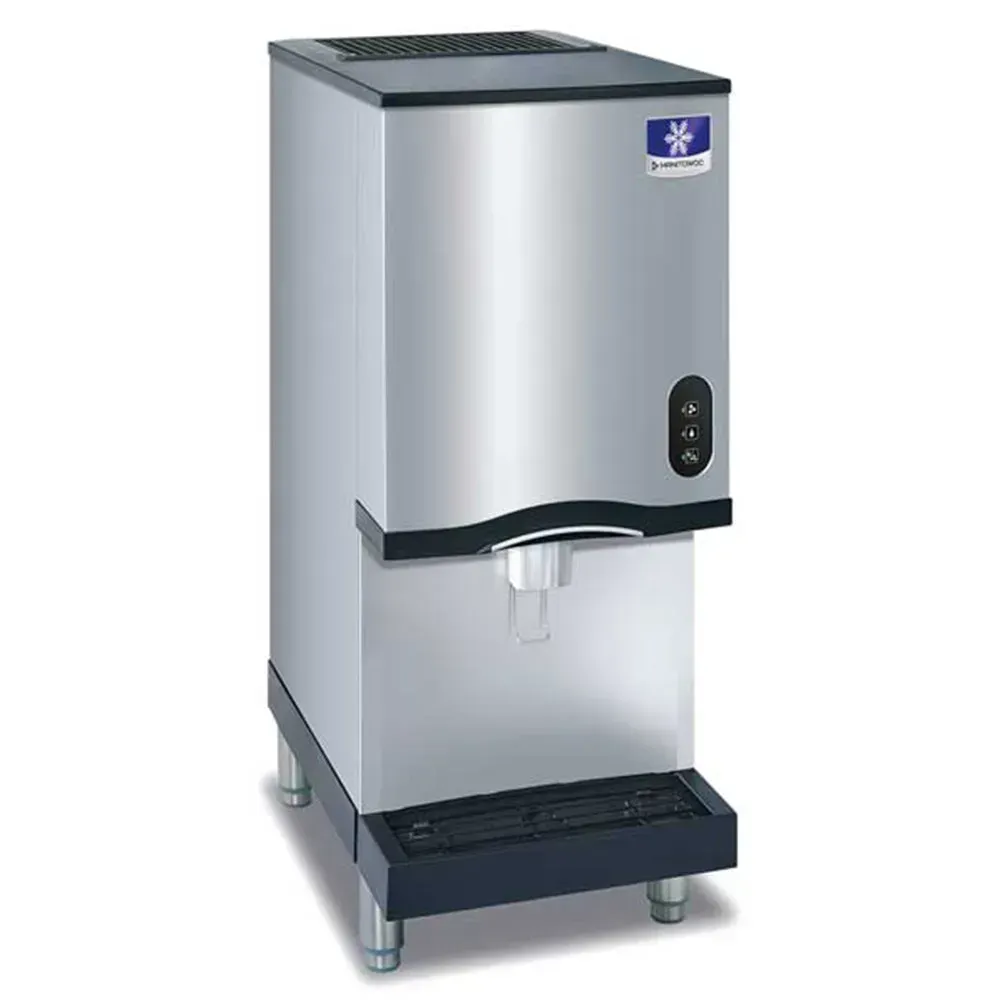

Manitowoc CNF0201A-161 16" Countertop Nugget Ice Machine and Dispenser, Air Cooled, Chewable Ice, 315 lbs/day

The Manitowoc CNF0201A-161 is a countertop ice and water combination machine that produces up to 315 pounds of nugget ice per 24 hours. It features a 10-pound bin storage capacity and dispenses ice and water using a sensor-based system with three dispense settings.

The unit includes a DuraTech™ front panel and front access panel for durability and accessibility. It operates on 115 volts, 1 phase, 60 Hz, and draws 10.3 amps. The system uses a 1/3 horsepower compressor, a 6-foot power cord, and a NEMA 5-15P plug. The ambient operating temperature range is 45°F to 110°F.

Cooling is handled by an air-cooled condenser using R-404A refrigerant, with a cooling capacity of 2300 BTU/Hr. The machine consumes 6.69 kilowatt-hours of power per 100 pounds of ice. It is designed for installation with a 3/8-inch water inlet and a 3/4-inch drain connection, operating within a water pressure range of 20 to 80 PSI and a water temperature range of 45°F to 90°F.

The unit measures 16.25 inches (W) x 24 inches (D) x 35 inches (H), with a 10.5-inch dispenser height. It is constructed in the United States and has a shipping weight of 184 pounds. This model is NSF Certified, cULus Listed, CE Listed, and ISO 9001:2015 Certified. The warranty Coverage includes 2 years parts and labor on the icemaker and 5 years parts and 2 years labor on the compressor.
