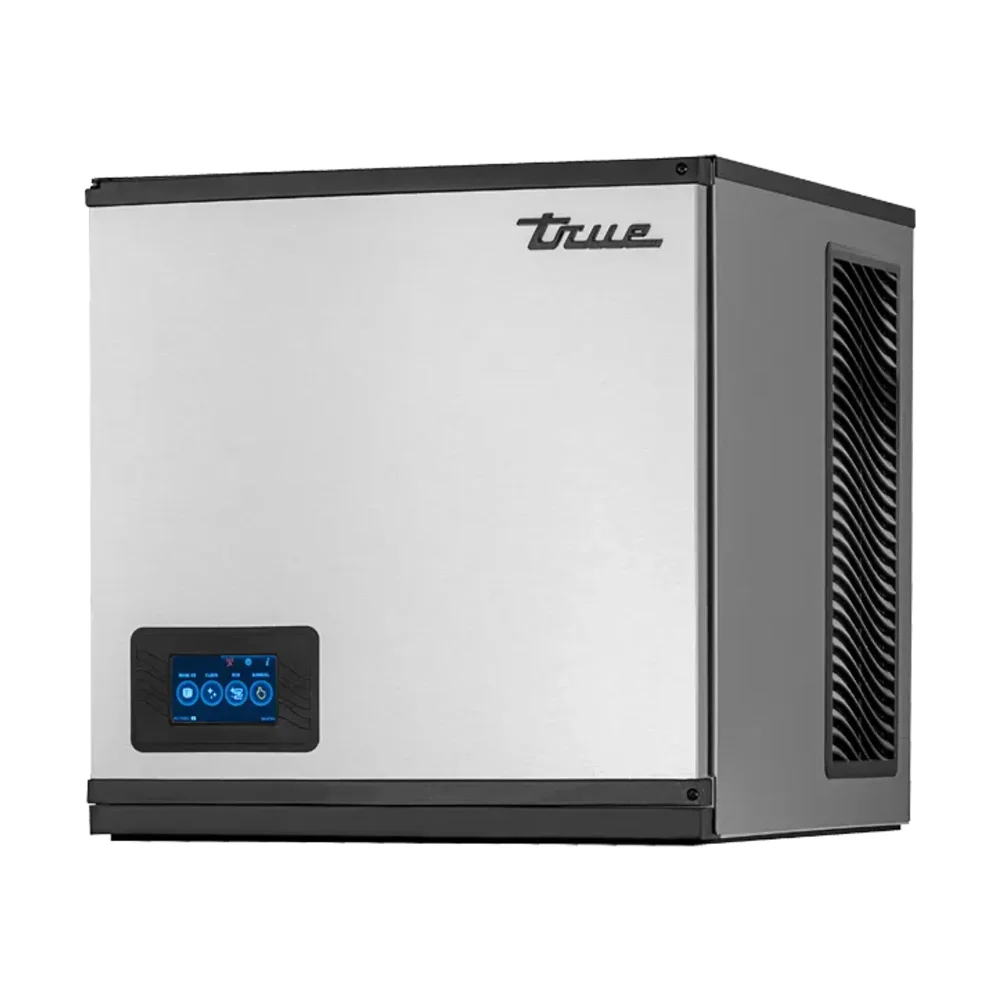

True 22" Air Cooled Modular Ice Machine Head with TrueZone, Large Cube, Silver, 115V, 7-Year Warranty

The True 22" Air Cooled Modular Ice Machine Head is designed for high-volume commercial kitchens, restaurants, hotels, and foodservice operations that require a reliable, continuous supply of large size ice cubes. Proudly Made in America, this modular unit pairs with the compatible TIB-422 Bin to form a complete ice-making station suited to demanding service environments.

At 22" (L) x 24" (W) x 22" (H) and shipping at 162 lbs, this compact head unit delivers up to 520 lbs of large size cubes in a 24-hour period, with a rated production of 430 lbs at 90°F air and 70°F water conditions. Operating on 115V, 60 Hz, single-phase power at 15 amps, it draws 4.65 kWh and outputs 7,600 BTU per hour, making it a practical fit for standard commercial kitchen electrical configurations. The air-cooled condenser removes the need for additional water-cooled infrastructure.

The machine uses R-290 refrigerant, a low-GWP option suited to commercial kitchen sustainability goals. Water is supplied through a 1/2-inch inlet, drains via a 3/4-inch drain, and the unit consumes 15 gallons of water per use cycle. Compatible True Platinum and Standard water filter kits and replacement cartridges are available to maintain water quality and protect internal components.

Operation is managed through a TrueTouch Smart Touchscreen measuring 4.3 inches (11 cm), and cleaning is simplified with a One-Touch Cleaning function. TrueGuard Antimicrobial Protection is built into the unit to support hygiene standards in food handling environments. It includes a 7-year warranty by the manufacturer, covering both parts and labour as well as the compressor, and holds cULus Listed and Energy Star certifications.
