How much ice does this ice machine produce in 24 hours?

This model produces up to 460 pounds of half-size cube ice per day.

Is this ice machine air-cooled or water-cooled?

It features an air-cooled, self-contained condenser system.

Can it be installed on any bin?

It is designed for compatibility with Manitowoc bins such as D320 or D420.

What are the electrical requirements?

It operates on 115V, 60Hz, 1-phase power and draws 11.3 amps with a 15A fuse.

What certifications does this model hold?

It is NSF approved, cULus and CE listed, AHRI certified, and Energy Star rated.

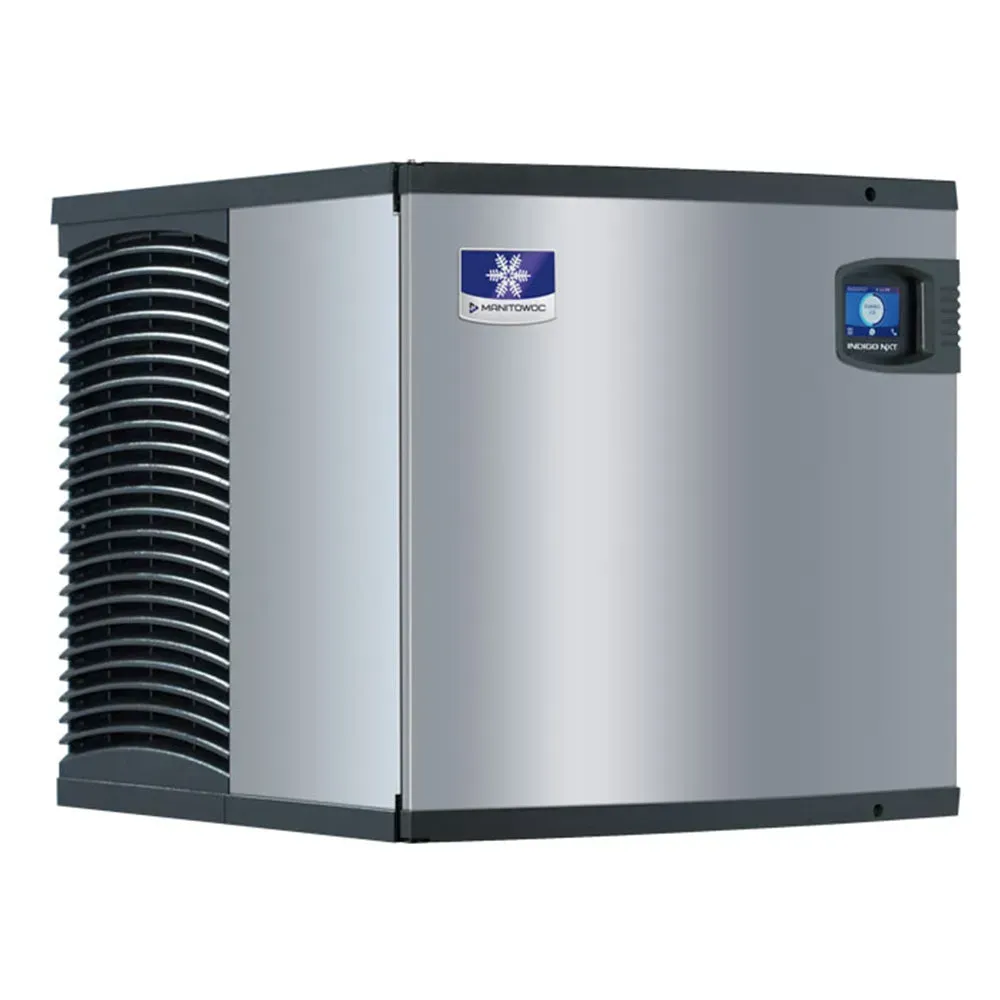

Manitowoc IYT0420A-161X 22" Half Cube Ice Machine Head Without Storage Bin, Air Cooled, LuminIce, 115V

Model: IYT0420A-161X

$4,442.25

/Each

Free Shipping

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Model: IYT0420A-161X

★Why You'll Love It

High Daily Production: Produces up to 460 lb of half-size ice cubes daily, meeting demanding commercial kitchen and bar requirements with consistent output.
Energy-Efficient: Uses only 5.55 kWh per 100 lbs of ice and 19.9 gallons of water, delivering superior energy efficiency with Energy Star certification.
Premium Warranty Coverage: Includes 3-year parts and labor warranty for ice maker, plus extended 5-year coverage on evaporator and compressor components.
Reliable Sanitation: Built-in LuminIce II Growth Inhibitor system ensures cleaner operation and maintains hygiene standards in commercial environments.
Multiple Certifications: Meets rigorous industry standards with NSF, cULus, CE, AHRI, and Energy Star certifications for safety and performance.
Smart Diagnostics: Features programmable ice production and intelligent diagnostics system for optimized performance and maintenance monitoring.
Easy Maintenance: Display-based cleaning alerts and easy-to-clean food zone design reduce maintenance time and operational downtime.
Durable Construction: American-made with stainless steel exterior and sleek silver finish, designed for long-lasting commercial use.

Produces up to 460 lb of half-size ice cubes daily, meeting demanding commercial kitchen and bar requirements with consistent output.

$4,442.25

/Each

Shipping Charges Apply

Ships 5 to 7 Days

Delivering to

Select Location

30 Days return policy

Opening a Restaurant?

Kitchen equipment from start to finish — we've got you covered.

(866) 446-7322

Documents

Technical Specification Sheet.pdf Warranty Information.pdf

Spot something off?
Help us improve this page.

AI-Recommended Alternatives

Ice-O-Matic MFI1506A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 208-230V

$9,703.00/Each

Ice-O-Matic MFI1256A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 1149 lb/24 hr, 208/230v

$7,592.00/Each

Ice-O-Matic MFI0800A 21" Flake Ice Machine Head Without Storage Bin, Air Cooled, 115v

$5,965.00/Each

Key Specification

ManufacturerManitowoc

Country of OriginProudly Made In America

MaterialStainless steel

ColorSilver

Selling Unit1/Each

TypeAir Cooled Ice Machine

Manufacturer	Manitowoc	Country of Origin	Proudly Made In America	Material	Stainless steel
Color	Silver	Selling Unit	1/Each	Type	Air Cooled Ice Machine
Warranty	3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor	Features	Programmable Ice Production, Intelligent Diagnostics	Shipping Weight	135 pound
Phase	1 Phase	Voltage	115 volt	Ice Type	Half Size Cubes
Plug Type	Hardwire	Amps	11.3 ampere	Refrigerant Type	R-410A
Water Inlet Size	3/8 inch	Water Usage	19.9 gallon (US)	Hertz	60 hertz
Interior Material	Plastic	Ambient Temperature Range	40˚ to 110˚F	Condenser Type	Air-Cooled Self-Contained
Certifications	cULus Listed, NSF Approved, AHRI Certified, CE Listed, Energy Star	Compatible Model	D320, D420	Series	IYT0420
Potable Water Pressure Range	20 to 80 Psi	Maximum Fuse Size	15 ampere	BTU Per Hour	6000 british thermal unit
Sanitation	Easy-to-Clean Foodzone, Includes Luminice II Built In	Cleaning Alert Indicator	Display	Max Daily Ice Production	460 Lbs/Day
Installation Configuration	Installed on top of compatible bin & dispenser	Product Width	22 inch	Product Depth	24.5 inch
Product Height	21.5 inch	24 Hour Ice Production	460 pound	Drain Size	1/2 inch
Power Usage	5.55 kWh per 100 lbs

Product Overview

The Manitowoc IYT0420A-161X Ice Machine is a high-performance, American-made commercial ice machine designed to meet the rigorous demands of commercial kitchens and bars. It is constructed with a durable stainless steel exterior with a sleek silver finish and a plastic interior. This unit has an air-cooled self-contained condenser and delivers up to 460 lb of half-size ice cubes per day.Powered by a 115V/60Hz/1-phase/11.3 A system and requiring a 15 A fuse, it operates efficiently using only 5.55 kWh per 100 lbs of ice and 19.9 gallons of water. It features programmable ice production, intelligent diagnostics, and a built-in LuminIce II Growth Inhibitor for cleaner operation. Its easy-to-clean food zone and display-based cleaning alerts system simplify maintenance and reduce downtime.This compact ice machine measures 22" (W) x 24.5" (D) x 21.5" (H) and is designed to install seamlessly on compatible Manitowoc ice bins such as D320 and D420. It works via a hardwired plug and connects via a 3/8" water inlet and 1/2" drain and handles a potable water pressure range of 20–80 psi. The R410A refrigerant and maximum 6000 BTU/hr output support optimal performance across ambient temperatures of 40°F to 110°F.Certified by NSF, cULus, CE, AHRI, and Energy Star, this ice machine meets top industry standards for food safety and energy efficiency. Backed by a 3-year parts and labor warranty on the ice maker and a 5-year parts and labor warranty on the evaporator and compressor, it is a smart and reliable investment for any commercial kitchen.
