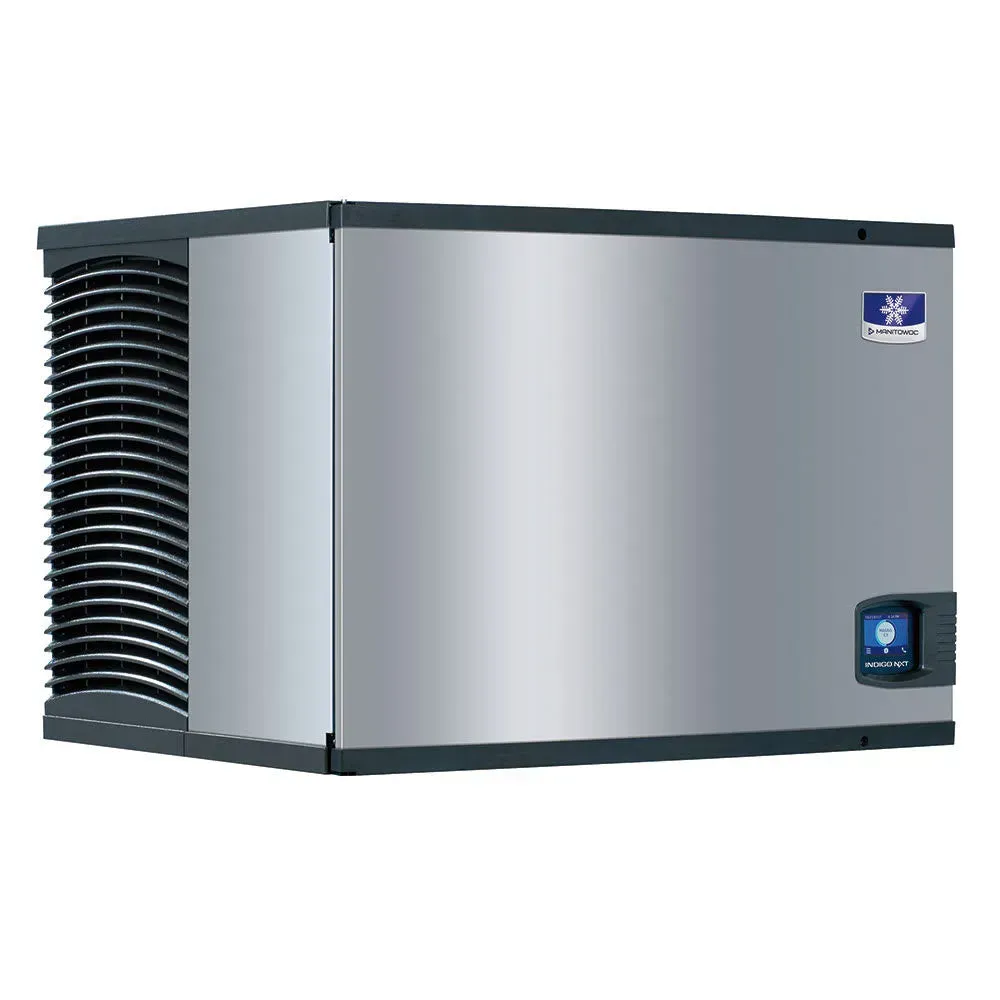

Manitowoc cube ice machine head with storage bin, air-cooled system, modular width, no bin, consistent high-volume production.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Manitowoc
Country of Origin
Proudly Made In America
Material
Stainless steel
Color
Silver
Shipping Weight
321 lb
Voltage
220/240 V
Amps
17.9 A
Refrigerant Type
R-410
Water Usage
20 gal
Interior Material
Plastic
Condenser Type
Air-Cooled Self-Contained
Compatible Model
D970
Potable Water Pressure Range
20 to 80 Psi
BTU Per Hour
30500 BTU
Cleaning Alert Indicator
Display
Installation Configuration
Installed on top of compatible bin & dispenser
Product Depth
24.5 in
Ice Size (W x D x H)
3/8 x 1 1/8 x 7/8 Inches
Drain Size
1/2 in
Selling Unit
1/Each
Type
Air Cooled Ice Machine
Warranty
3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor
Features
Programmable Ice Production, Intelligent Diagnostics
Phase
1 Phase
Ice Type
Half Size Cubes
Plug Type
Hardwire
Water Inlet Size
3/8 in
Hertz
50 Hz
Ambient Temperature Range
40˚ to 110˚F
Certifications
cULus Listed, NSF Approved, AHRI Certified, CE Listed, Energy Star
Series
IYT1900
Maximum Fuse Size
30 A
Sanitation
Easy-to-Clean Foodzone, LuminIce® II Growth Inhibitor
Max Daily Ice Production
1965 Lbs/Day
Product Width
48 in
Product Height
29.5 in
24 Hour Ice Production
1965 lb
Power Usage
4.32 kWh per 100 lbs

Product Overview

The Manitowoc IYT1900A-251E commercial ice machine head is designed for high-volume ice production in busy service environments. Built with a stainless steel body and a silver finish, it offers durability and easy cleaning. Its dimensions are 48 (W) x 24.5 (D) x 29.5 (H) inches, and it weighs 321 lbs.

This unit produces half-size cube ice measuring 3/8 x 1 1/8 x 7/8 inches. It delivers up to 1965 lbs. of ice per day, using only 4.32 kWh per 100 lbs., making it highly productive. The air-cooled, self-contained condenser ensures reliable performance. It includes a cleaning alert display and supports programmable ice production through intelligent diagnostics.

Operating at 220/240 V, 17.9 A, and 1 phase, it uses R410 refrigerant. It requires 20 gallons of water daily, with a 3/8 in water inlet and a 1/2 in drain, and operates within a 20 to 80 psi pressure range. The ambient temperature range supported is 40° to 110°F.

This unit is compatible with the D970 bin and must be installed on top. It has easy-to-clean food zones with LuminIce® II growth inhibitor. Certified by NSF, CE, cULus, AHRI, and Energy Star, it comes with a 3-year parts and labor warranty for the ice maker and 5 years for the evaporator and compressor.

Purchased this product?

Share your honest review to help hotels and restaurants make smarter choices.

Questions from buyers like you

Answered to help you make the right decision.
It produces half-size cube ice, which works well for drinks and food displays.
Yes, its compact design allows it to fit easily into tighter kitchen setups.
It can make up to 1965 lbs. of ice in 24 hours, making it ideal for high-volume use.
Yes, it’s designed to be efficient using with both energy and water use, 4.32 kWh per 100 lbs. of ice.
It uses R410 refrigerant for efficient and safe operation.
