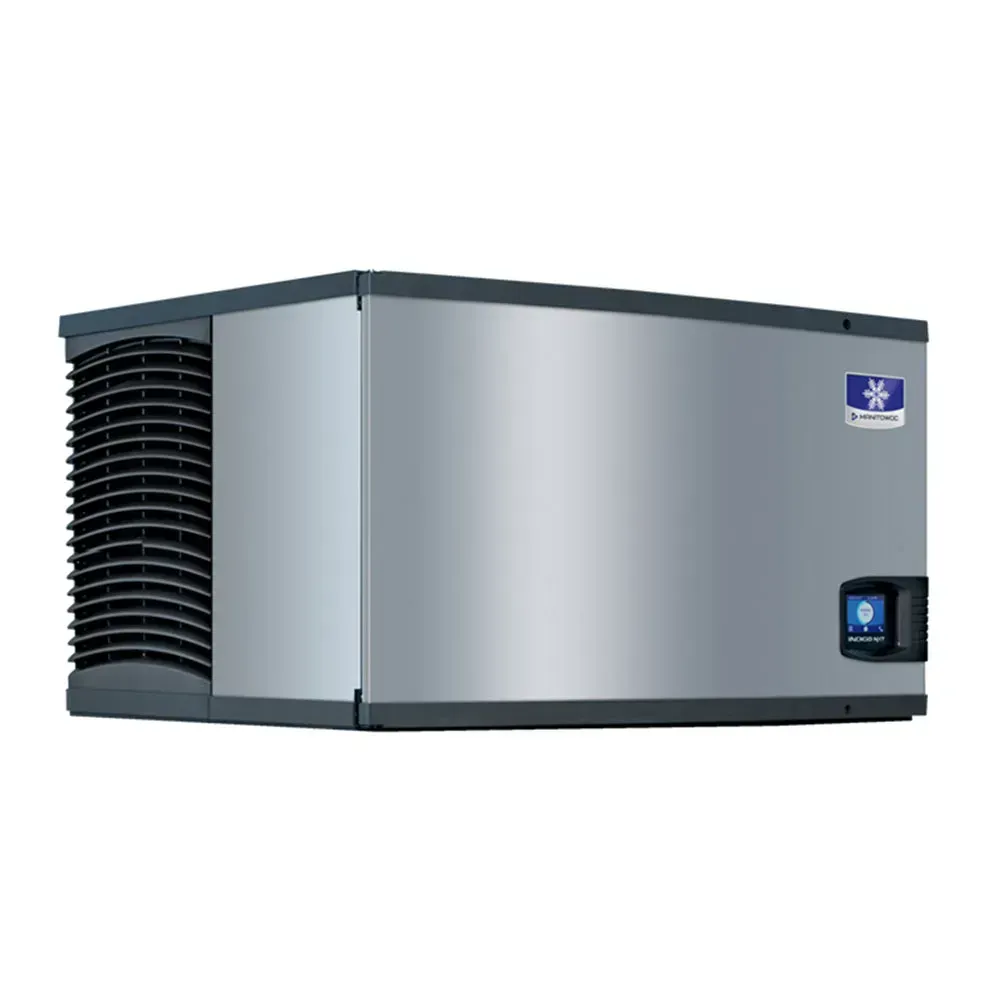

Manitowoc IDT0300A-161X 30" Dice Cube Ice Machine Head Without Storage Bin, Air Cooled, 325 lbs/day, 115V

The Manitowoc IDT0300A-161X ice machine is built for commercial spaces needing a daily ice supply. Constructed from stainless steel in a silver finish, it measures 18.25 (W) x 22.25 (D) x 32.25 (H) inches, making it compact for tight kitchen areas. The interior is made of plastic, which is easy to clean and resistant to wear. It installs on top of a compatible bin or dispenser like model D400.

This unit produces full-size dice cubes, each measuring 7/8 x 7/8 x 7/8 inches (W x D x H). It delivers up to 305 lbs. of ice per day and consumes 6.35 kWh per 100 lbs., ensuring steady output. It runs on 115 V, 60 Hz, single-phase power with an 8.8 A current draw. It uses R410A refrigerant and has a maximum fuse size of 15 A. The air-cooled, self-contained condenser generates 5450 BTU per hour for consistent cooling.

It features a 3/8 in water inlet and a 1/2 in drain for proper flow. The potable water pressure should range between 20 and 80 psi, while the condenser water pressure range is 20 to 276 psi. It uses 20 gal of water daily and functions best within an ambient temperature of 40° to 110°F.

Programmable ice production, intelligent diagnostics, and a display with cleaning alerts support daily operation. The LuminIce II system and easy-to-clean food zone promote hygiene. It is cULus, NSF, AHRI, CE, and ISO 9001 certified and Energy Star rated. Backed by a 3-year parts and labor warranty on the ice maker and 5 years on the evaporator and compressor, this Series IDT0300 machine ensures long-term value.
