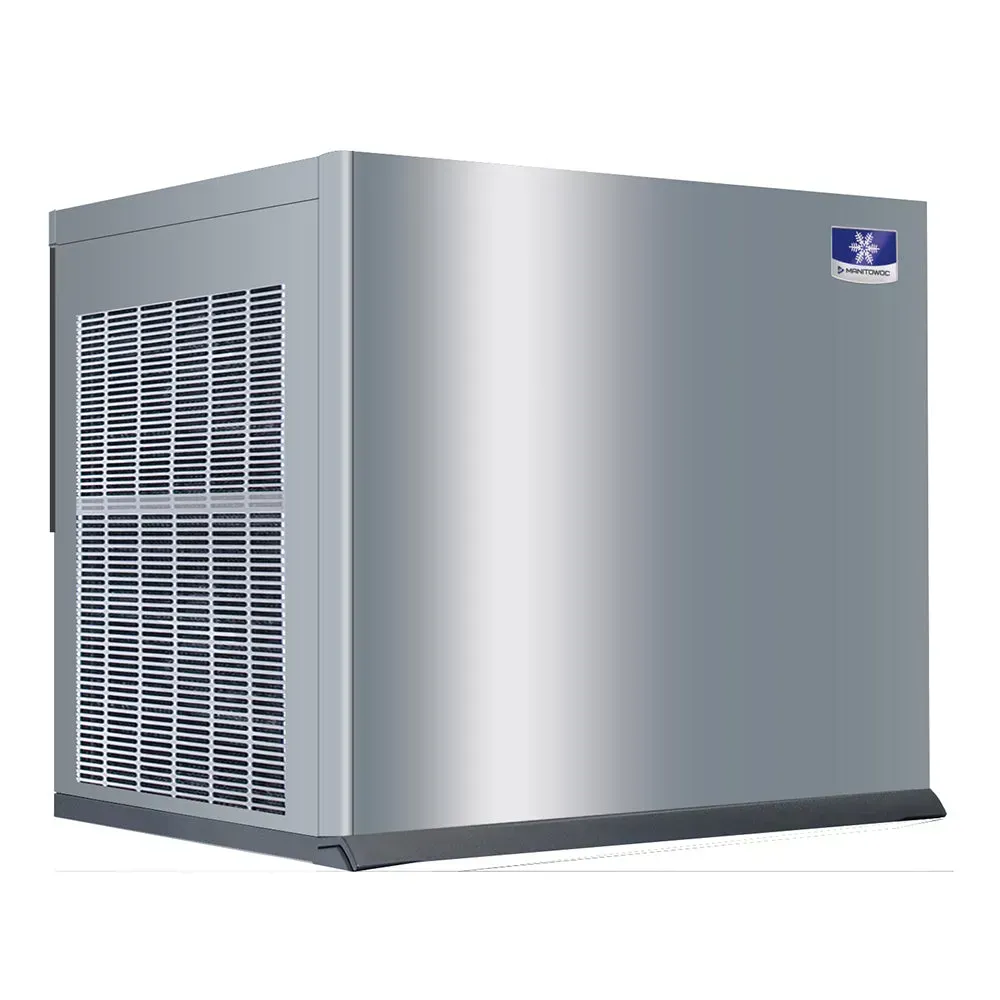

Manitowoc heavy duty air cooled flake ice machine with robust ventilation and stainless steel construction for high-volume commercial applications.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Manitowoc
Country of Origin
Proudly Made In America
Material
Stainless steel
Color
Silver
Ice Type
Flake Ice
Phase
1 Phase
Refrigerant Type
R-452A
Water Usage
12 gal
Ambient Temperature Range
50˚ to 110˚F
Certifications
ETL Listed, ETL Sanitation Listed, CE Listed
Series
RFK1300
Maximum Fuse Size
16 A
Air Flow
Air in back, Air out side
Installation Configuration
Installed on top of compatible bin & dispenser
Product Depth
23.62 in
24 Hour Ice Production
1301 lb
Drain Size
3/4 in
Selling Unit
1/Each
Type
Air Cooled Ice Machine
Warranty
3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor
Shipping Weight
249 lb
Amps
6 A
Plug Type
Hardwire
Voltage
220/240 V
Hertz
50 Hz
Condenser Type
Air-Cooled Self-Contained
Compatible Model
D570
Potable Water Pressure Range
14 to 84 Psi
BTU Per Hour
14000 BTU
Max Daily Ice Production
1301 Lbs/Day
Product Width
30 in
Product Height
27.4 in
Water Inlet Size
3/8 in
Power Usage
4.54 kWh per 100 lbs

Product Overview

The Manitowoc RFK1300AZ is a flake ice machine head constructed from stainless steel with a silver finish. It is part of the RFK1300 series and is proudly made in America. This unit produces up to 1301 lbs of flake ice per day and uses R452A refrigerant. It features an air-cooled, self-contained condenser with airflow directed in through the back and out through the side.

It features an air-cooled, self-contained condenser with airflow directed in through the back and out through the side. The machine uses 12 gallons of potable water daily and supports an inlet water pressure range of 14 to 84 psi.

The RFK1300AZ has a 3/8" water inlet and a 3/4" drain connection. It operates on 220/240 V, 1 phase, 50 Hz power, drawing 6 amps, and requires a hardwired installation with a maximum fuse size of 16 A. The BTU rating is 14,000 BTU per hour, and power usage is 4.54 kWh per 100 lbs of ice produced. Designed to be installed on top of compatible storage bins and dispensers such as the D570, the unit measures 30 inches(W) x 23.62 inches (D) x 27.4 inches (H).

This ice machine is ETL Listed, ETL Sanitation Listed, and CE Listed. It includes a 3-year parts and labor warranty for the ice maker and a 5-year parts and labor warranty for the evaporator and compressor.

Purchased this product?

Share your honest review to help hotels and restaurants make smarter choices.

Questions from buyers like you

Answered to help you make the right decision.
The Manitowoc RFK1300AZ produces flake ice.
It produces up to 1301 lbs of ice per 24 hours.
It operates on 220/240 volts, 1 phase, 50 hertz, and draws 6 amps.
The machine has an air-cooled, self-contained condenser.
Air enters from the back and exits from the side.
