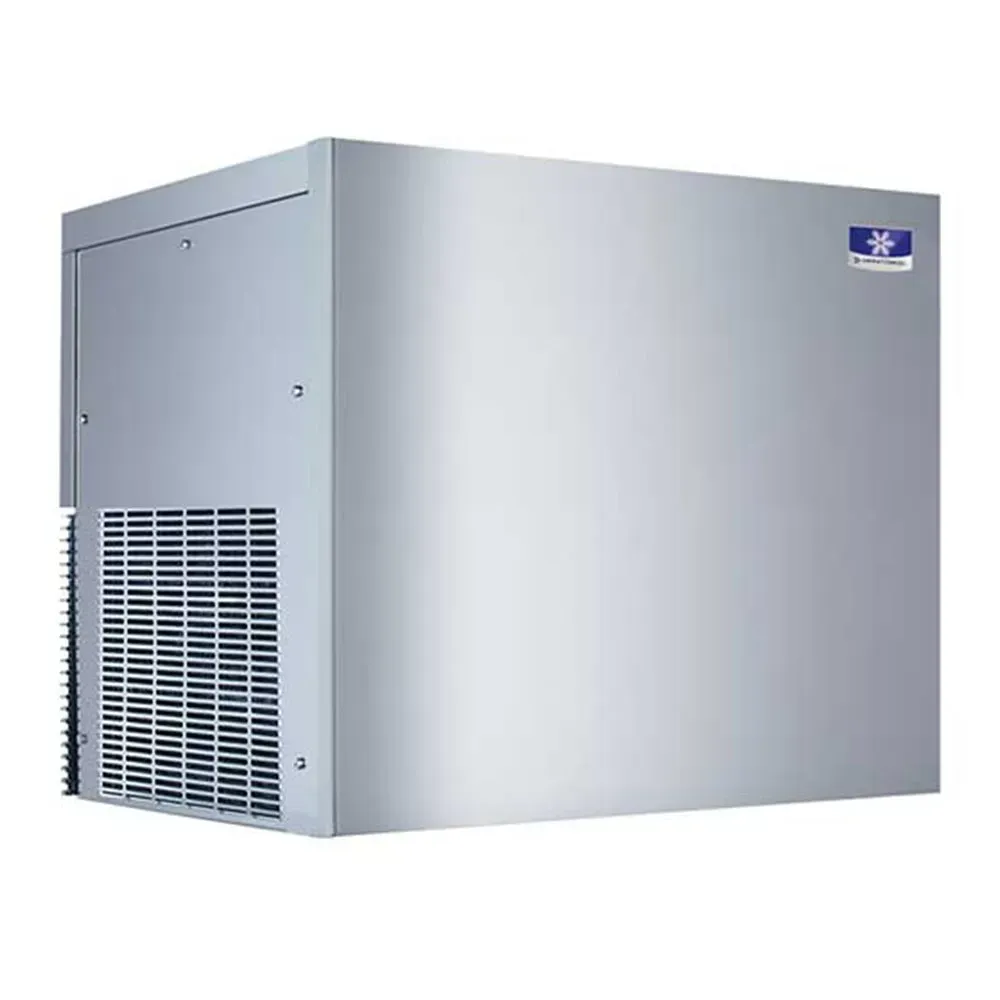

Manitowoc RFK0320AZ-251 22" Flake Ice Machine Head Without Storage Bin, Air Cooled, 364 lbs/day

The Manitowoc RFK0320AZ-251 is a flake ice machine head designed for moderate-volume commercial ice production. Made from stainless steel and finished in silver, it offers a clean, professional exterior built to last. This unit is proudly made in America.

The machine operates on 220/240 V, 1 phase, 50 Hz, and draws 3.46 amps. It features a hardwired electrical connection and requires a maximum 10 A fuse. Power consumption is 6.81 kWh per 100 lbs of ice, and it produces up to 364 pounds of flake ice every 24 hours. The machine connects with a 3/8-inch water inlet and a 3/4-inch drain, supports potable water pressure from 14 to 84 psi, and consumes 12 gallons of water.

Designed for integration with compatible bins and dispensers like the D420, the RFK0320AZ-251 is configured for top-mounted installation. It features an air-cooled, self-contained condenser with air intake from the back and air exhaust through the side, and it uses R452A refrigerant with a cooling output of 5000 BTU per hour. It measures 22 in (W) x 23.63 in (D) x 26 in (H).

Certified to meet rigorous global standards, the RFK0320AZ-251 is ETL Listed, ETL Sanitation Listed, and CE Listed. It comes with a factory warranty of 3 years parts and labor for the ice maker and 5 years parts and labor for the evaporator and compressor.
